Description

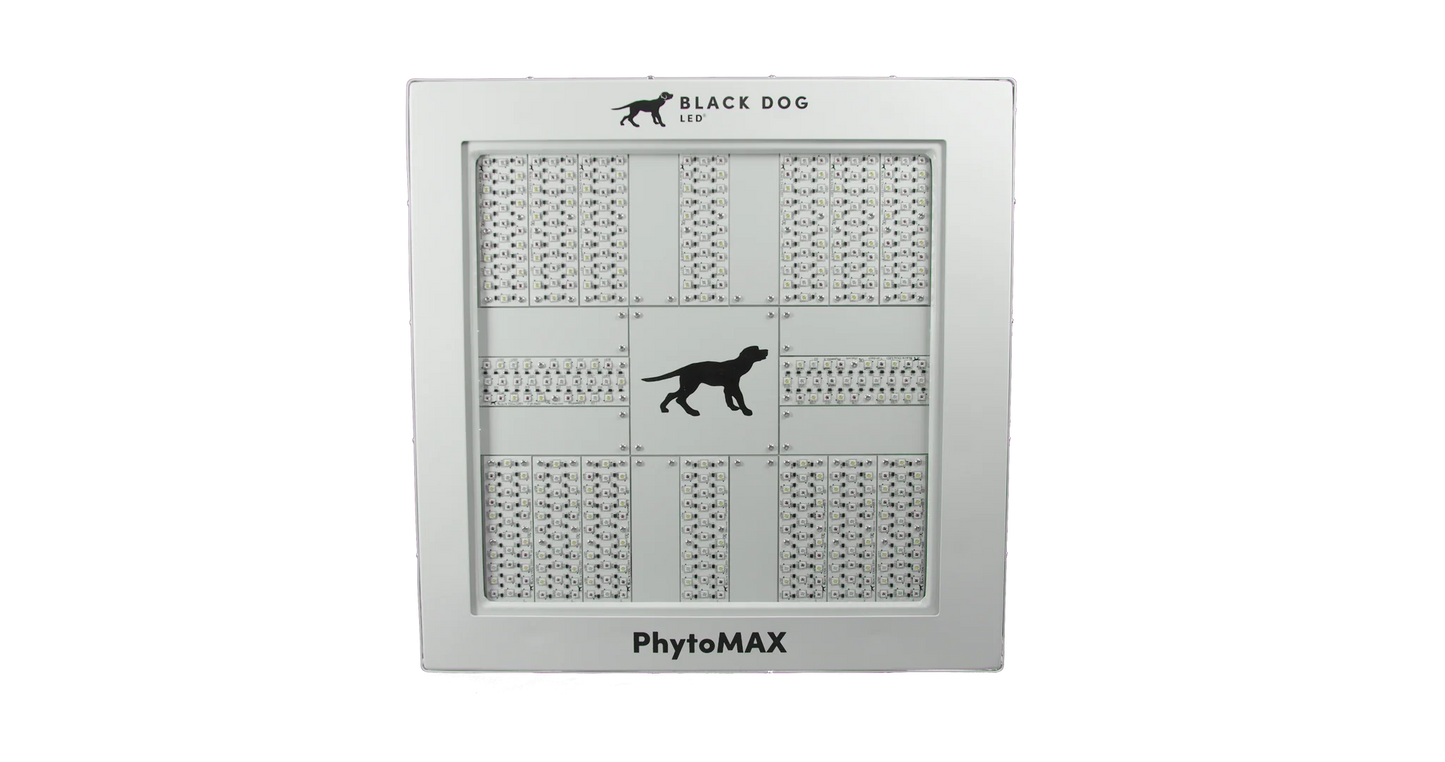

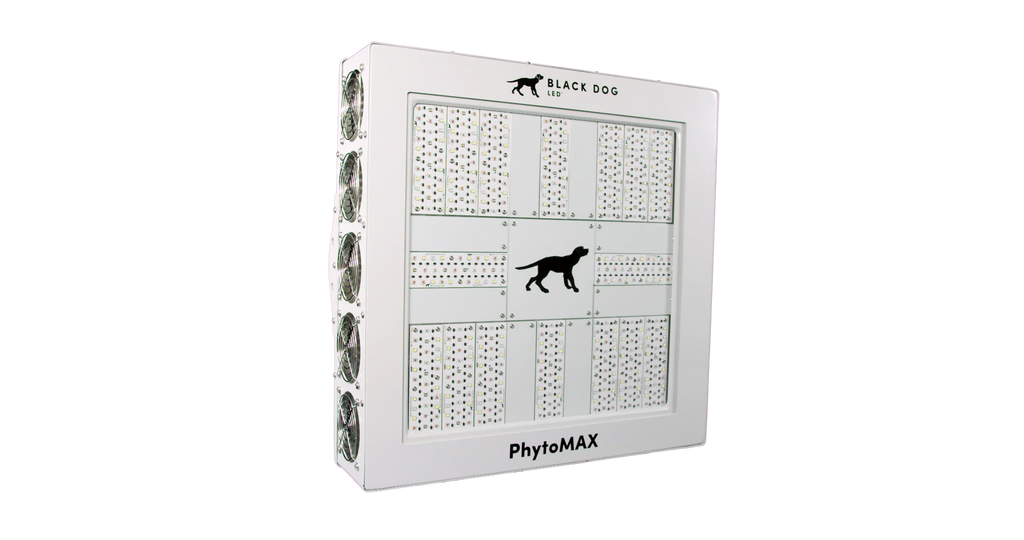

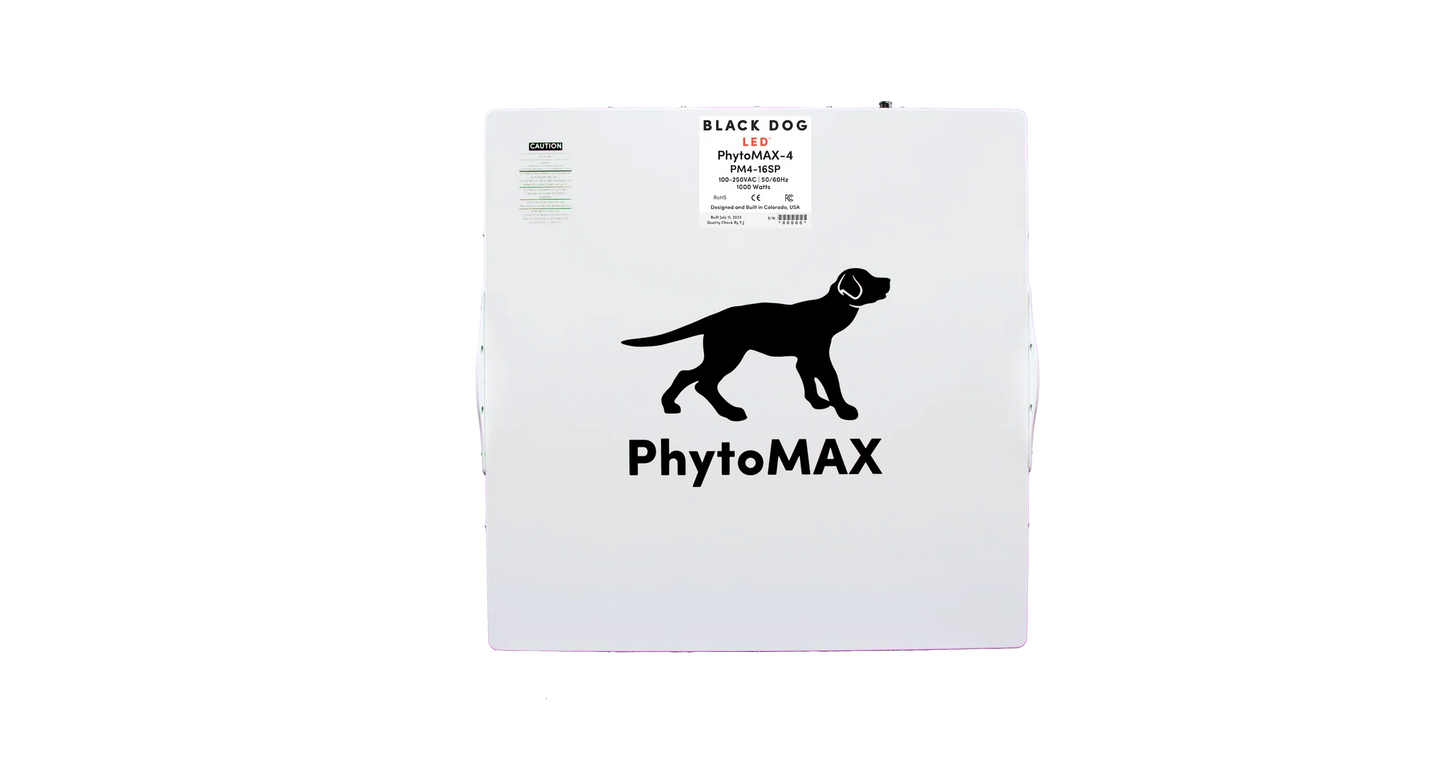

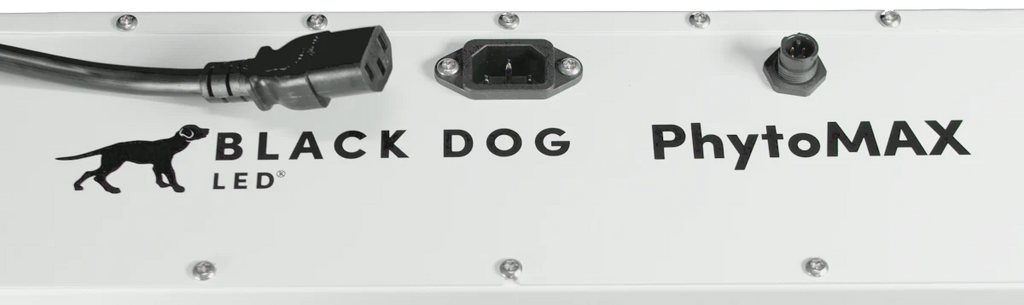

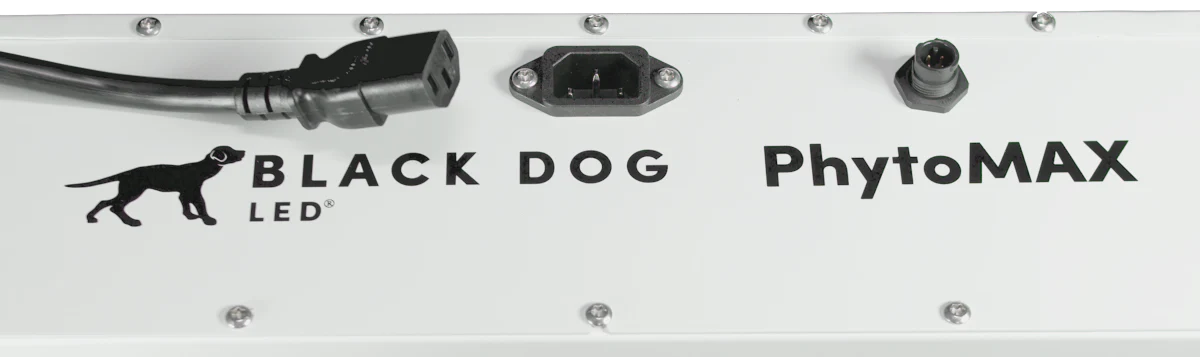

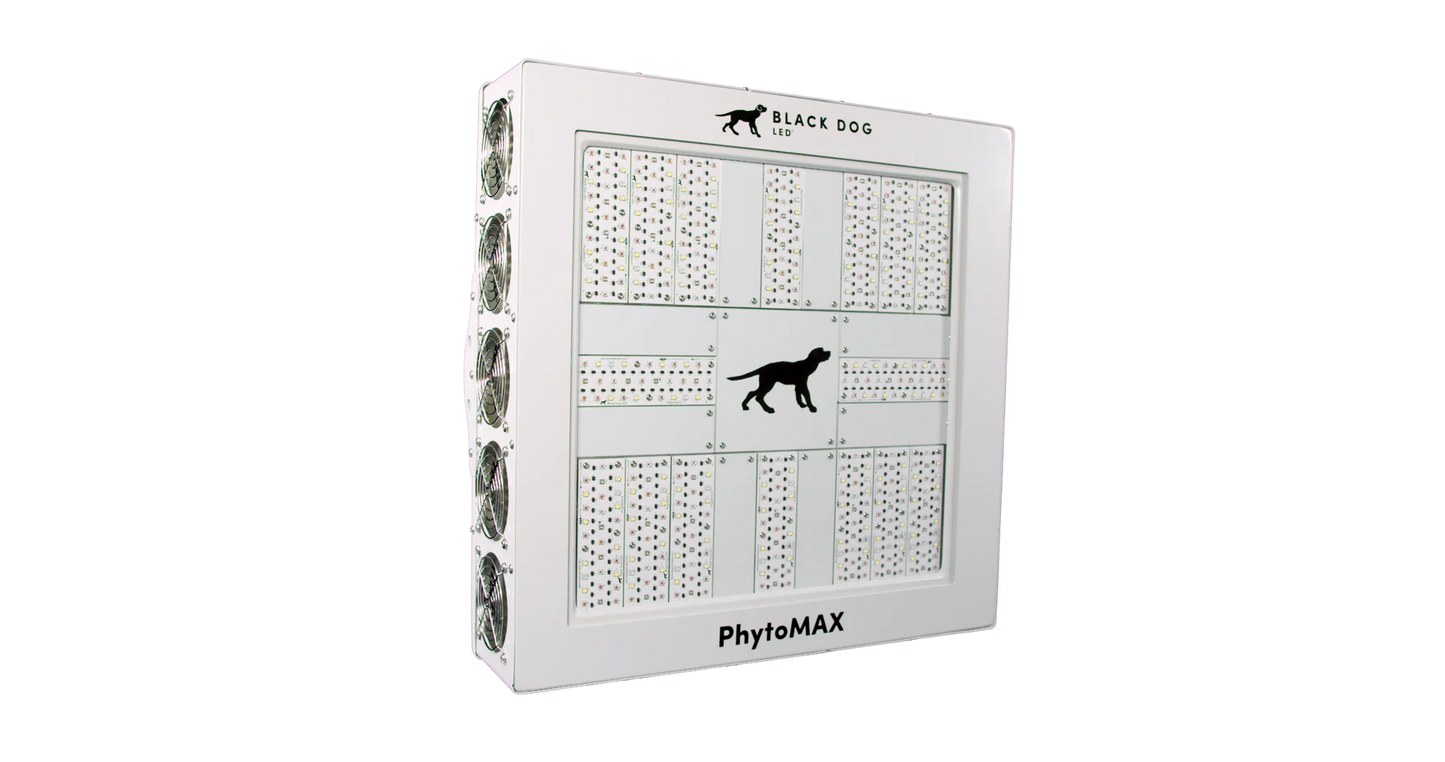

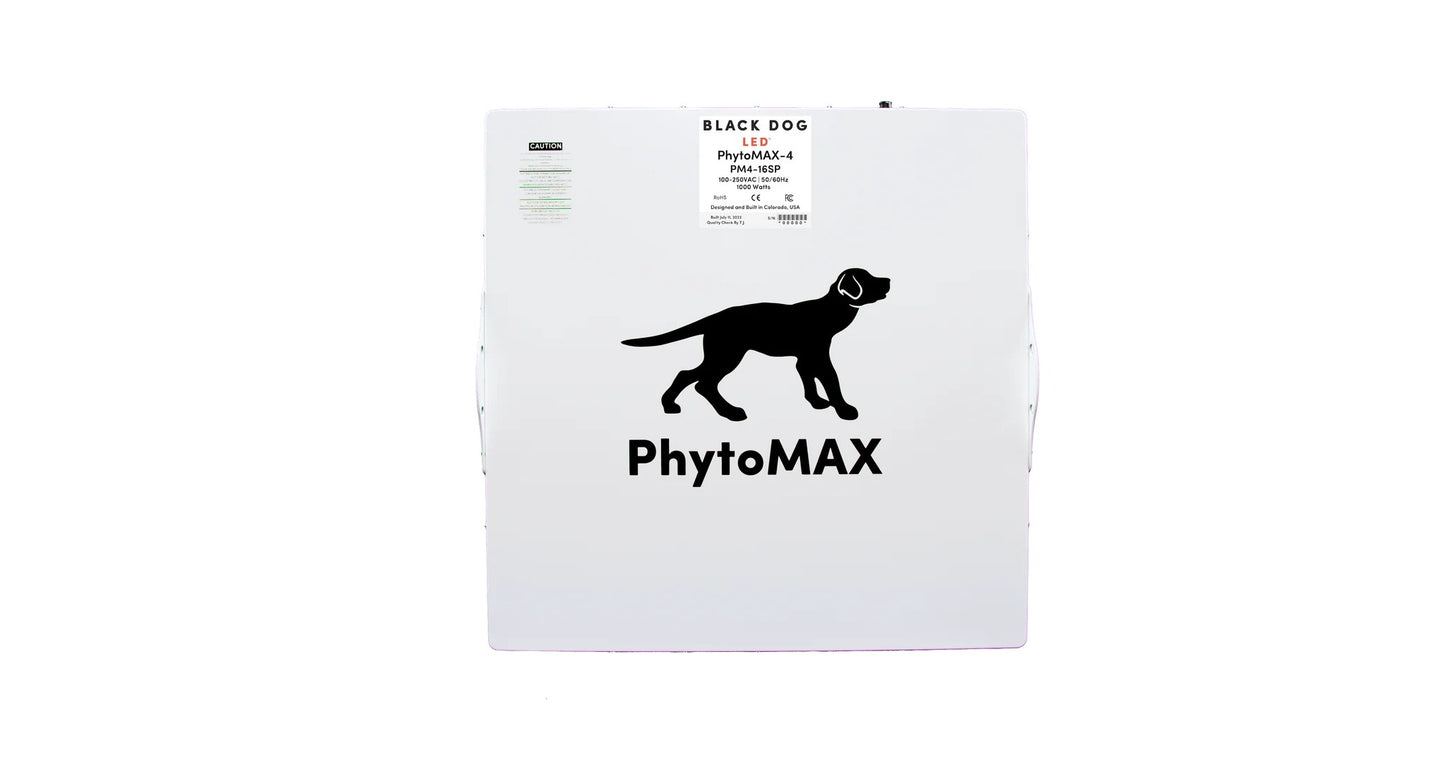

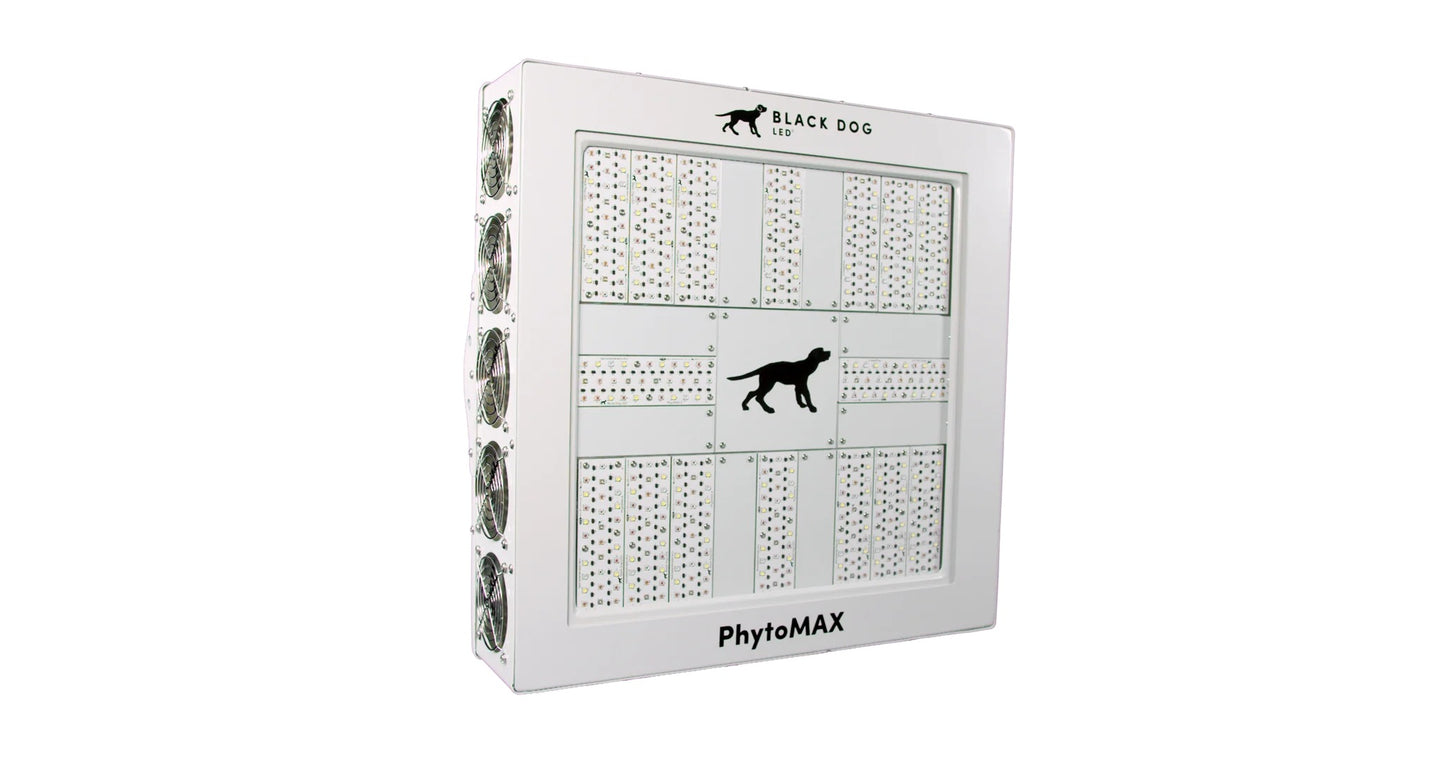

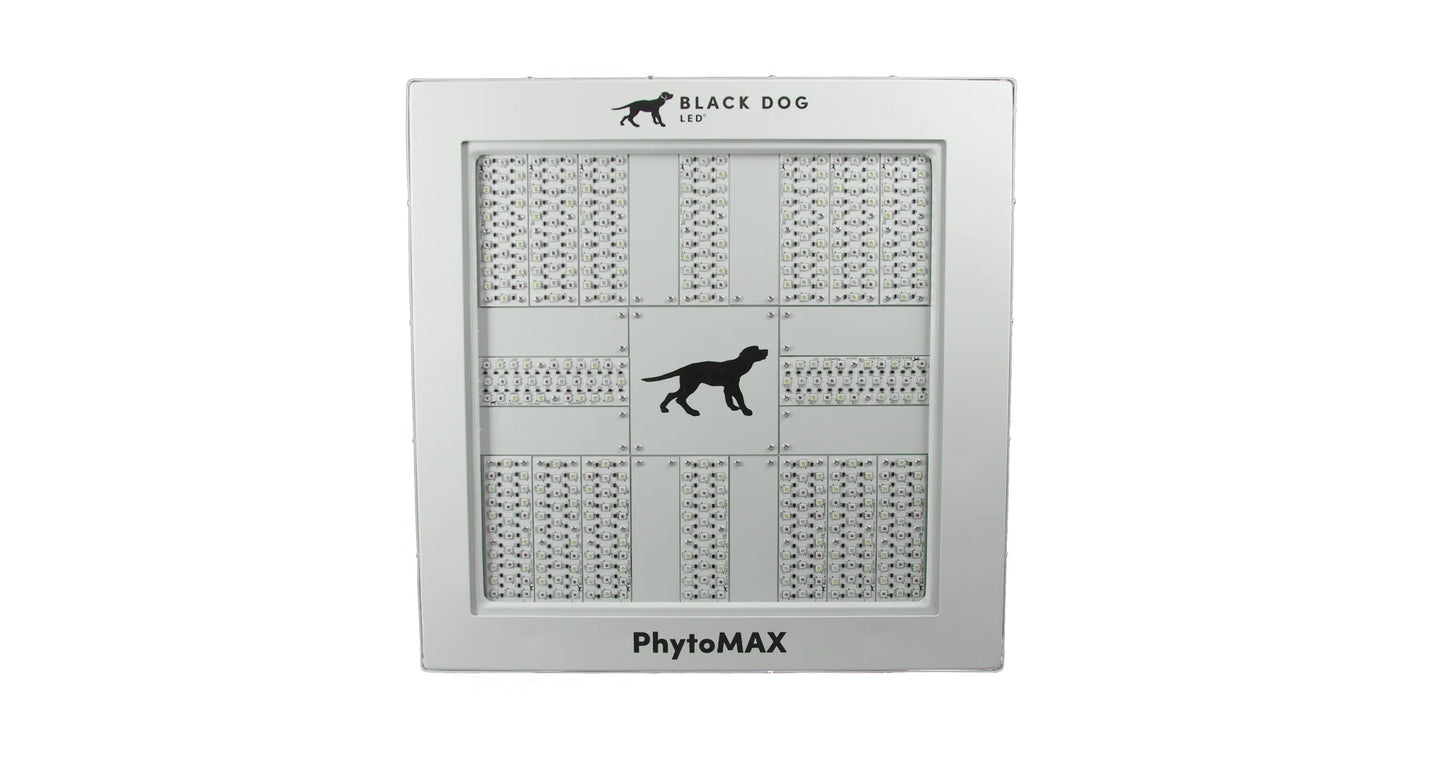

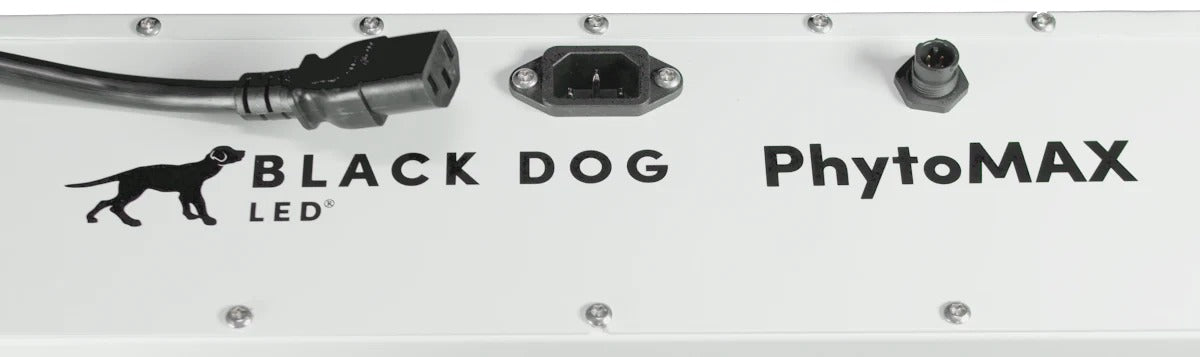

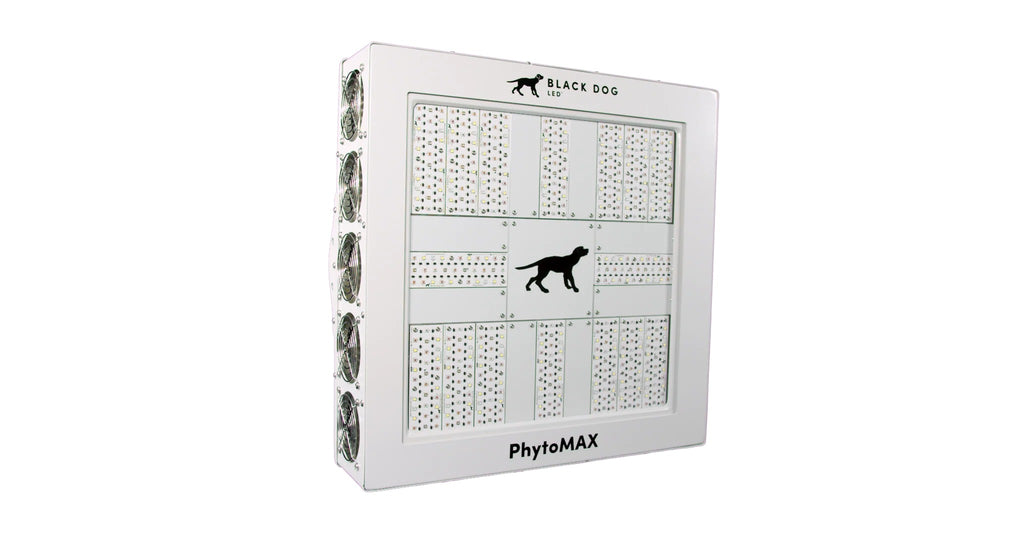

Selected Model: Black Dog LED PhytoMAX-4 16SP 1000W LED Grow Light. The SP model uses an IEC power cord and is rated for 100-250V.

Application Condition: The manufacturer does not recommend the SP model for greenhouse use.

• PhytoMAX-4 16S LED Grow Light: PhytoMAX-4 16S uses 1000 watts and provides 2125 umol/s of photon flux.
• Dimmable: The lights are dimmable from 15% - 100% with industry-standard 0-10V dimming controllers for convenient control of the light intensity.

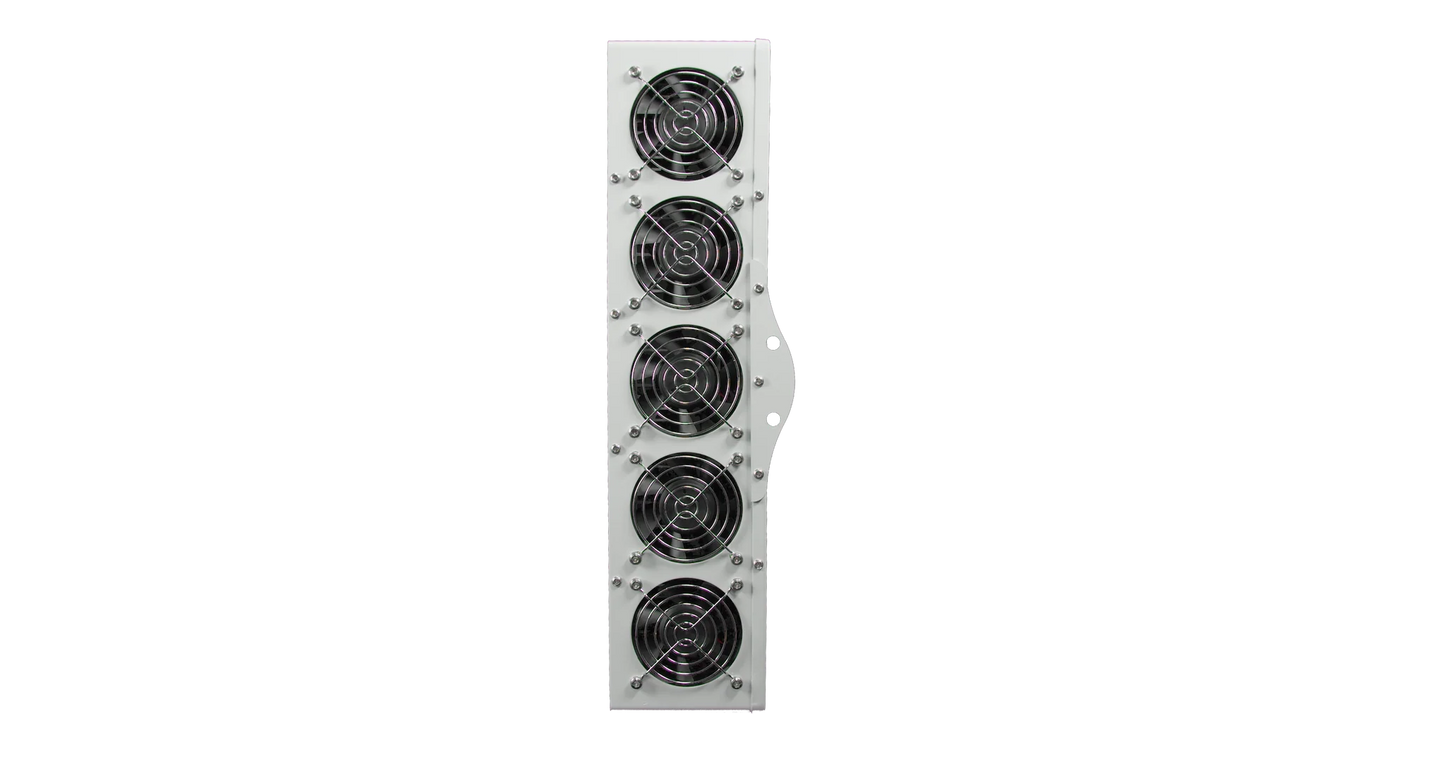

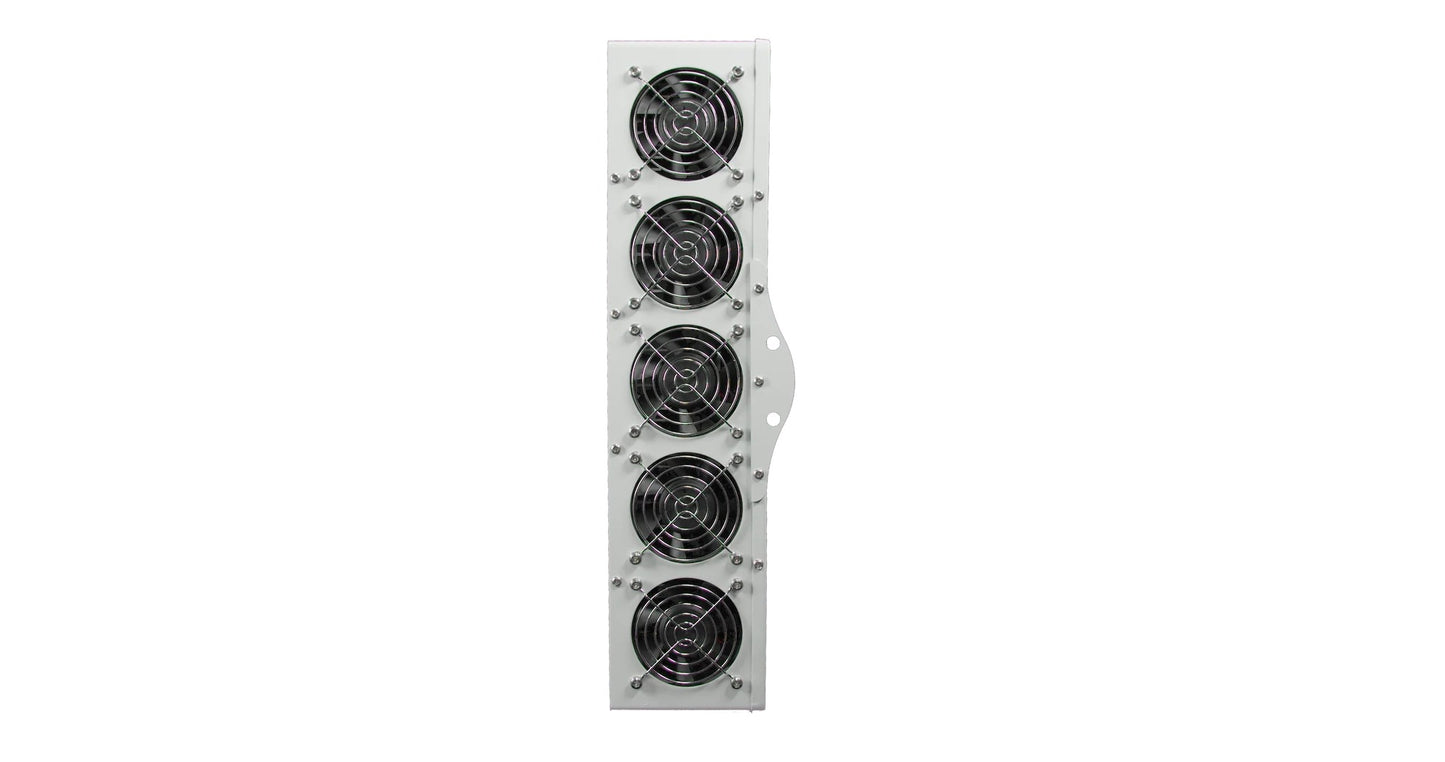

• Reliable Active Cooling: The PhytoMAX-4 enhances efficiency and extends lifespan by actively cooling the LEDs. The patented design includes multiple redundant fans. Even in the unlikely event of a fan failure, your light will continue operating without interruption.
• Hanging Hardware Included: Every light comes inclusive of a pair of V-hooks and ratcheting rope hangers for easy installation and setup.

Specifications

Photon Flux (umol/s)

• PBAR (280-800nm): 2125 umol/s
• UV (280-400nm): 63 umol/s
• PAR (400-700nm): 1904 umol/s
• IR (700-800nm): 158 umol/s

• Dimming: 0-10V, 15-100%
• Dimensions: 19" x 19" x 4.5" 48 x 48 x 11 cm
• Weight: 43lb 19.5kg
• Power: 1000 Watts
• Standards and Marks: UL 1598, UL 8800, ETL, CE, FCC, RoHS
• Mean Time Before Failure: greater than 70,000 hours
• Number of LEDs: 448
• Amp Draw: 10.0 @ 100V 8.33 @ 120V 4.81 @ 208V 4.35 @ 230V 4.17 @ 240V 3.61 @ 277V (SC model only)
• Included Power Cord Length: 8 ft 2.4 meters

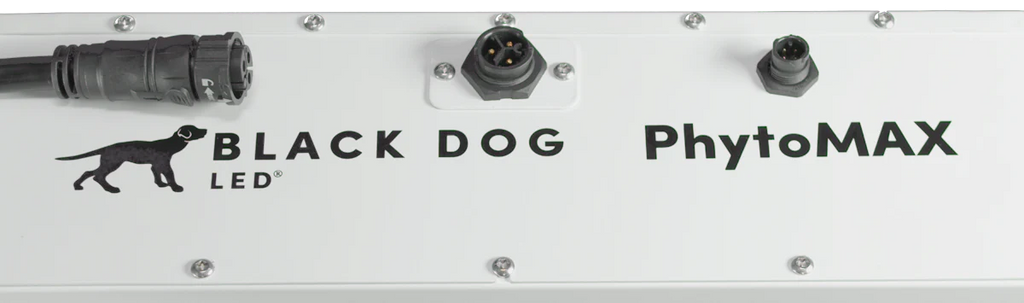

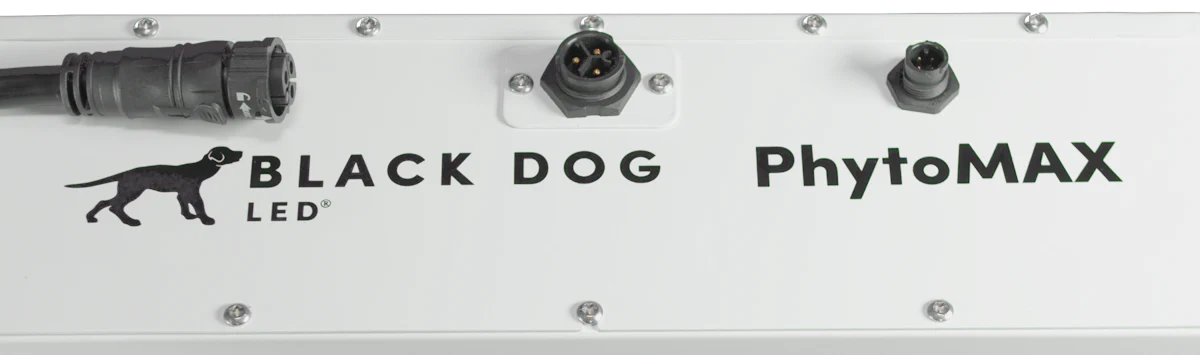

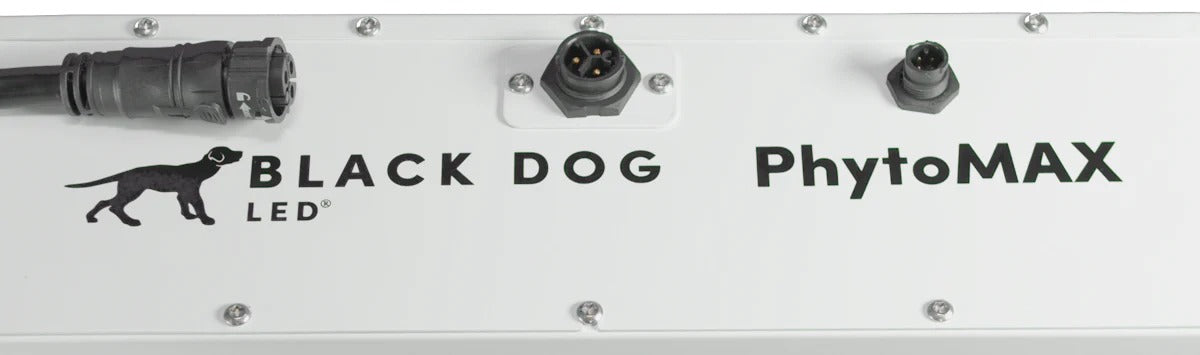

• Power Cord Options: NEMA 5-15, NEMA 6-15, NEMA 7-15 (SC model only), Pigtails
• AC Voltage Range by Model: SP Model: 100-250V (50 / 60 Hz) SC Model: 100-277V (50 / 60 Hz) SX Model (special order): 347V
• Power Factor: 0.99
• Operating Ambient Temperature Range: -4 to 104 degrees F -20 to 40 degrees C
• BTU: 3410
• Fans Expected Life: greater than 70,000 hours
• Warranty: 5 Years
