Description

AI-driven controller predicts climate shifts using real-time and historical data, auto-adjusting connected devices for optimal grow conditions.

Connect this controller to the Wi-Fi app for access to real-time AI insights, guides, chatbot, and more from anywhere.

EC inline fan 6", oscillating clip fan 6", and 4x4 full-spectrum bar grow light with Samsung LM301H EVO LEDs.

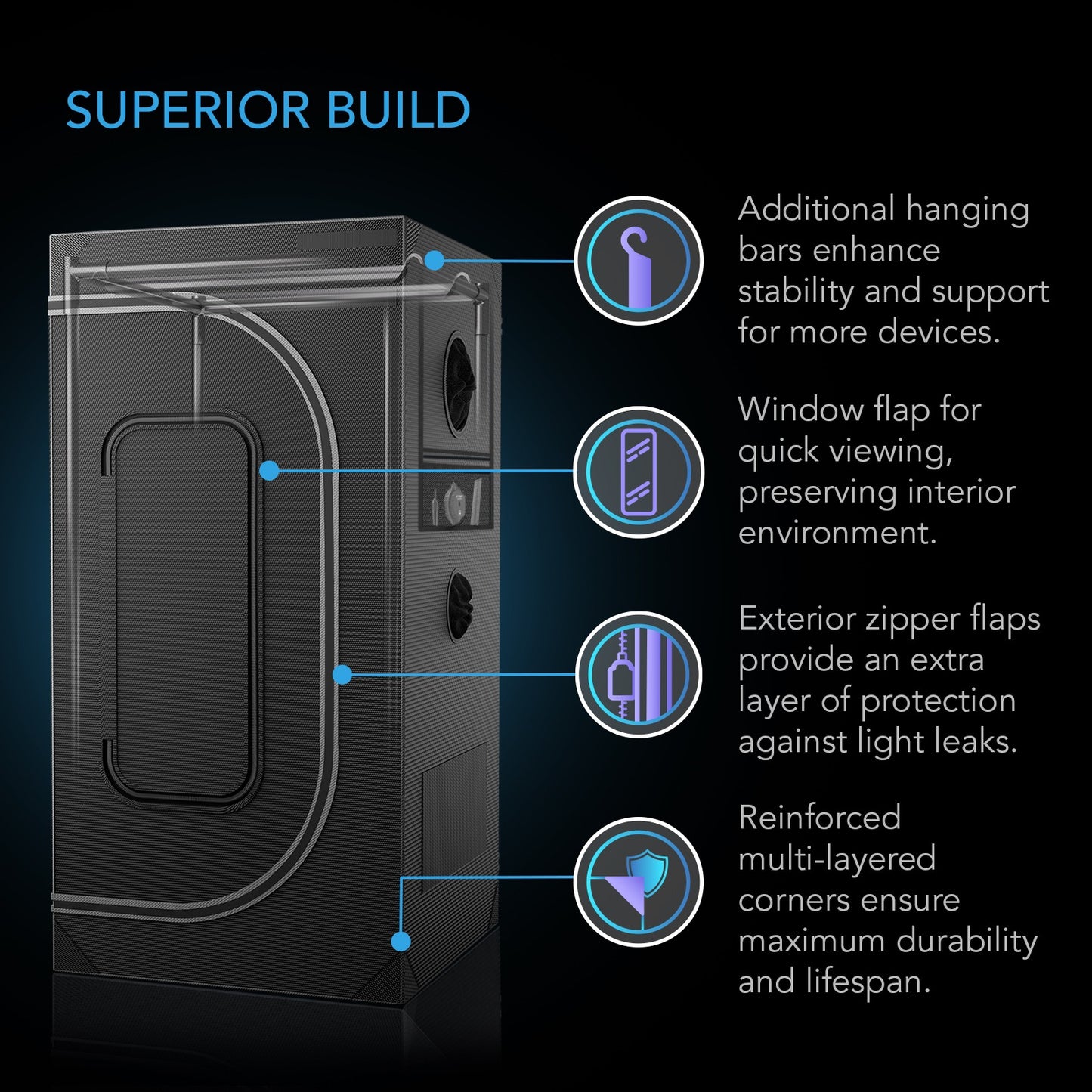

Advanced grow tent designed with lab-tested reflective mylar for maximum light efficiency, taller windows for clear visibility, and enhanced light-blocking technology.

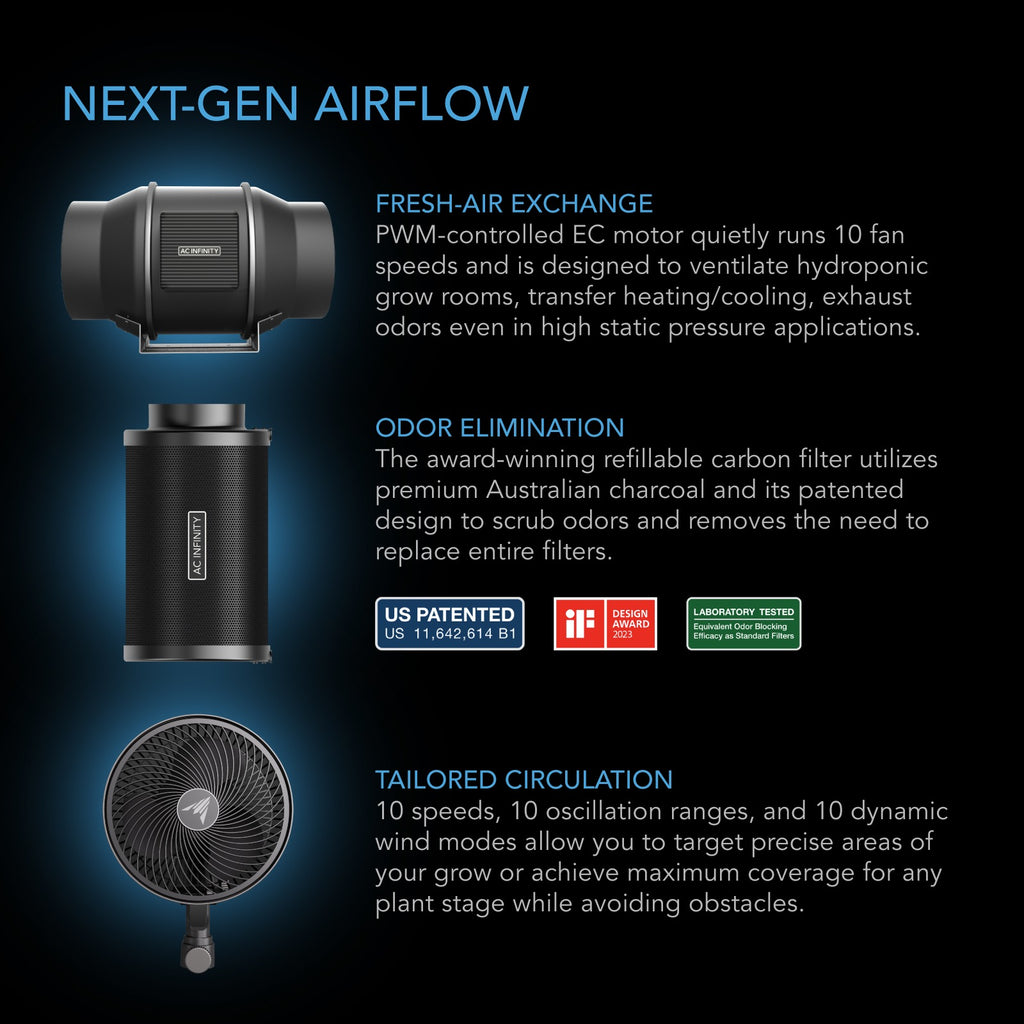

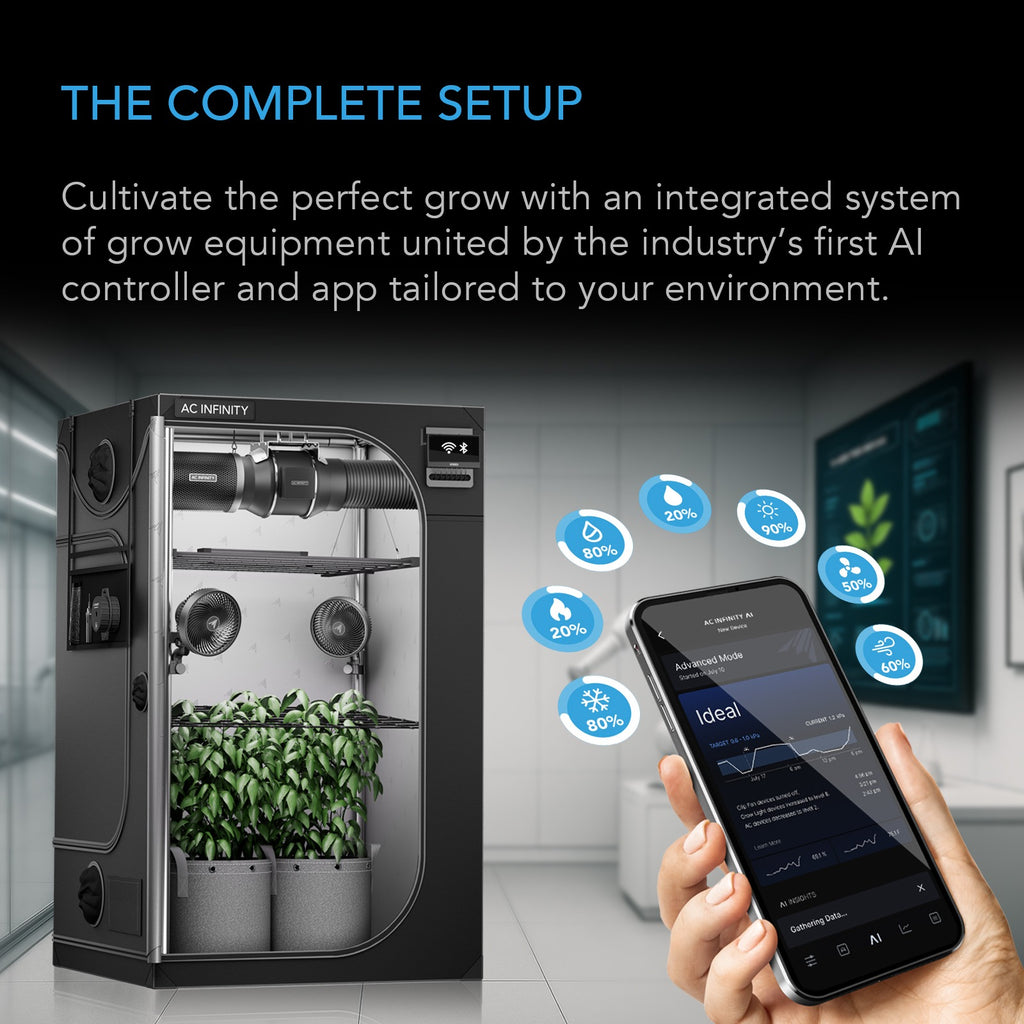

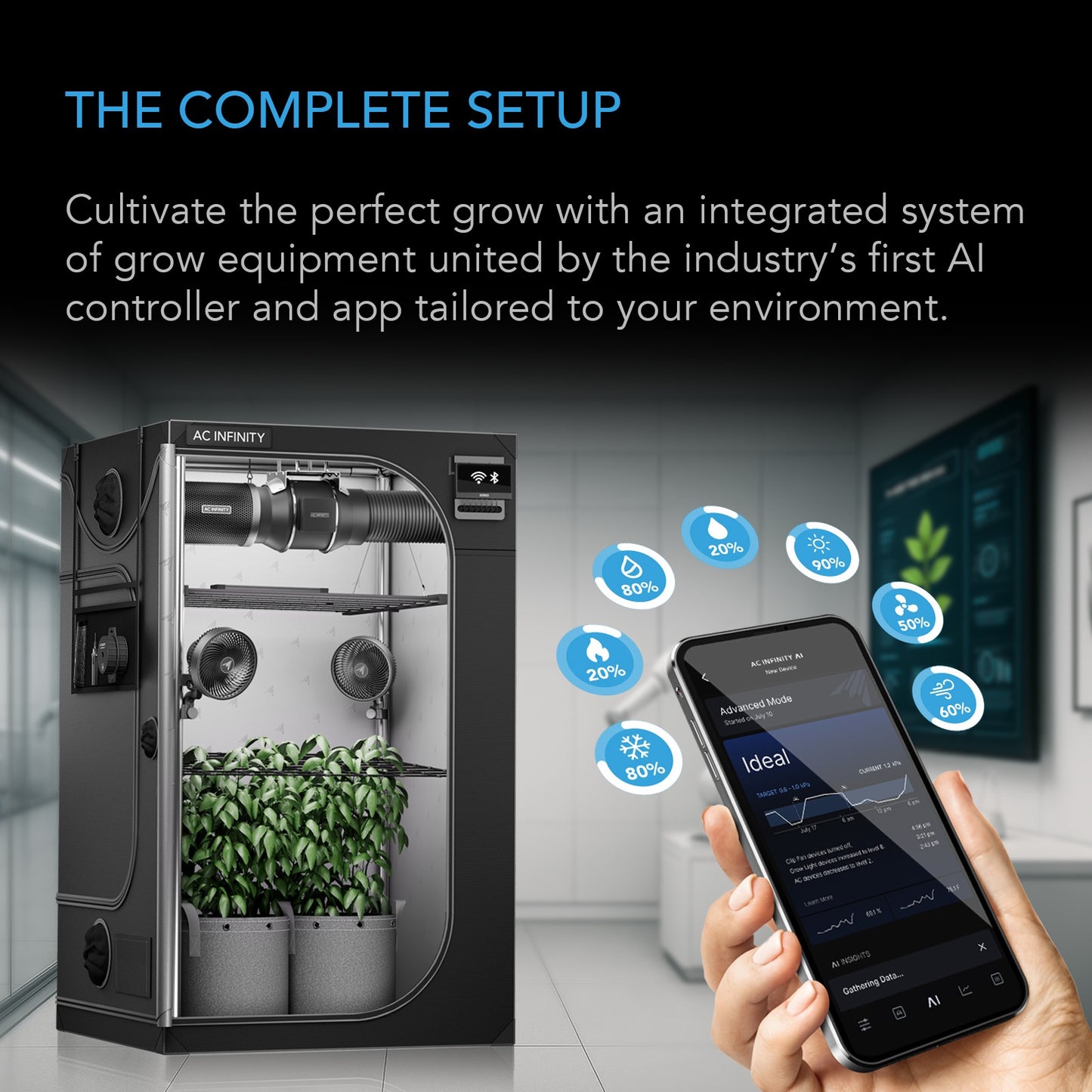

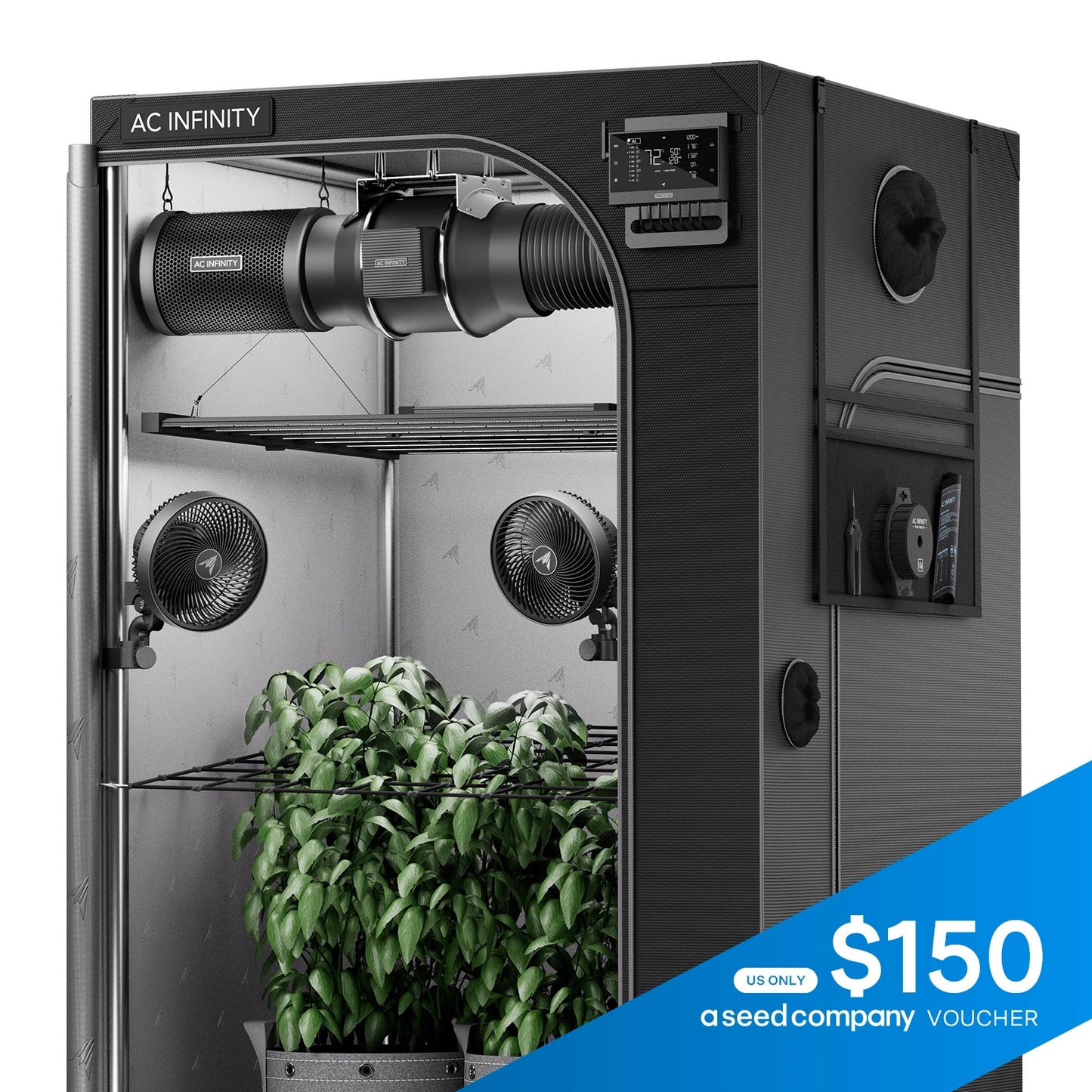

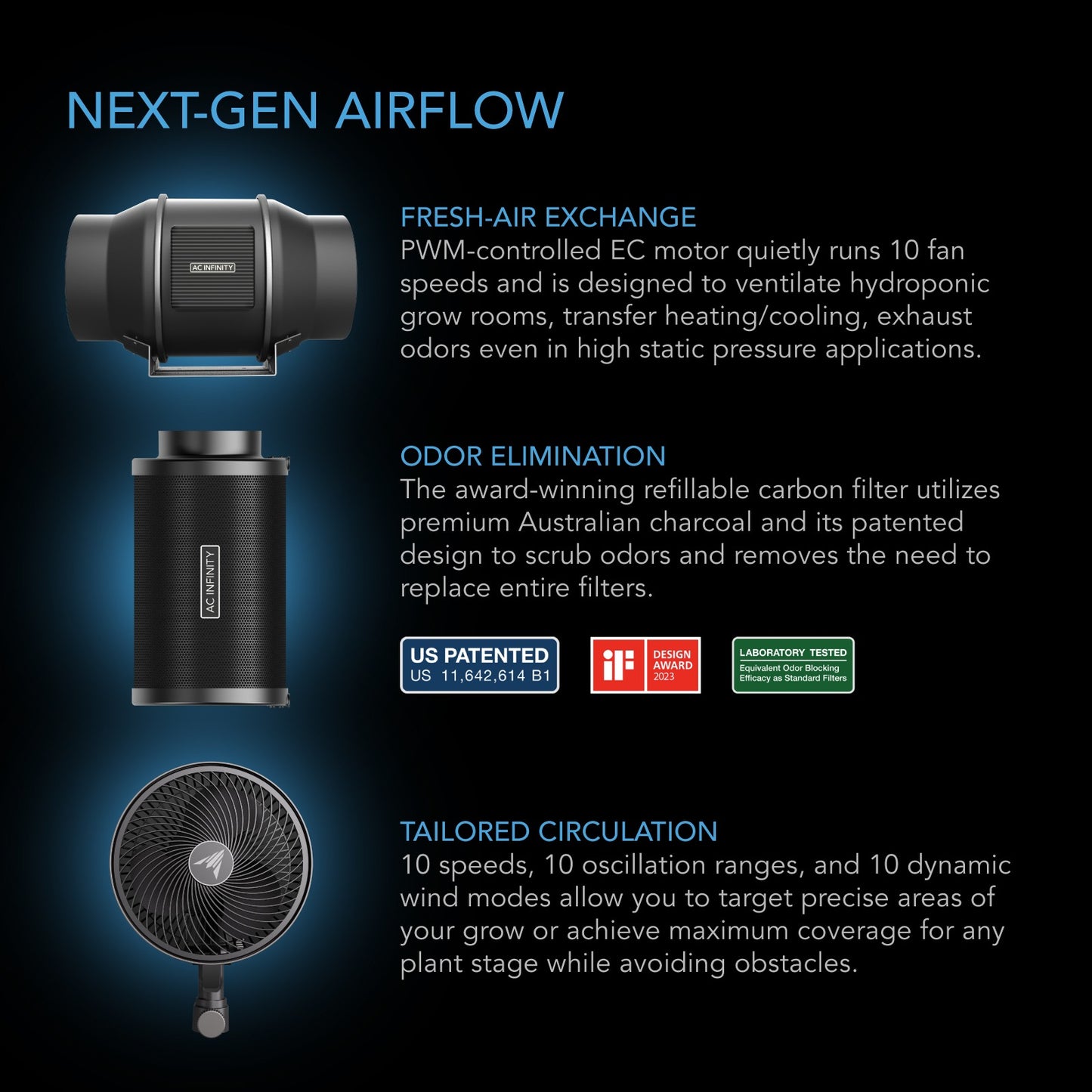

Product Description: An advanced grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, refillable carbon filter, and ducting manage your tent's climate conditions by routing heat, humidity, and odor away from it. The highly innovative carbon filter features a patented, eco-friendly design that eliminates the need to replace your entire filter. Air is circulated through the next-gen clip fan with oscillation range control, re-engineered to provide tailored, custom airflow to your plants over a longer period of time. Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs. The devices are housed in a high-density oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.

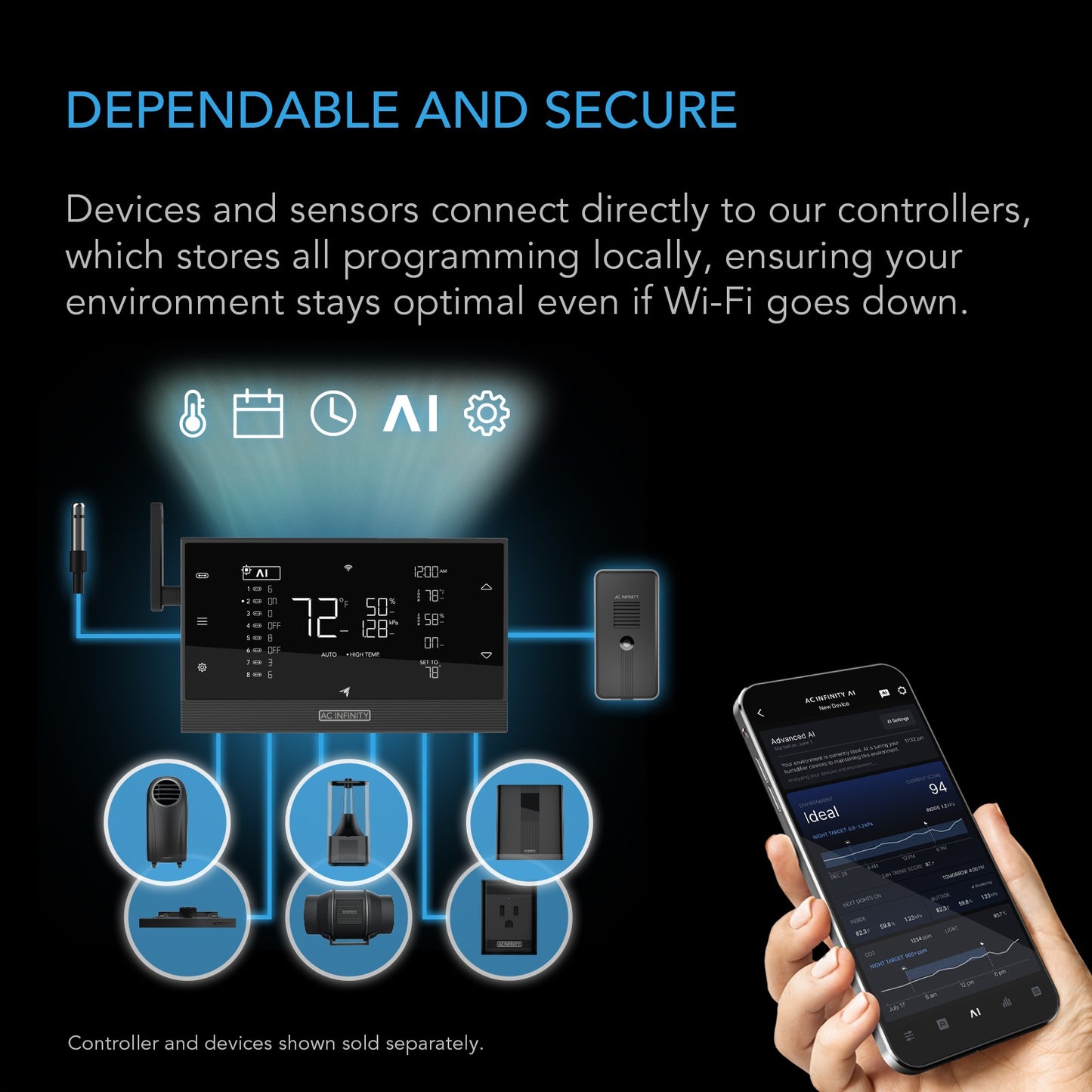

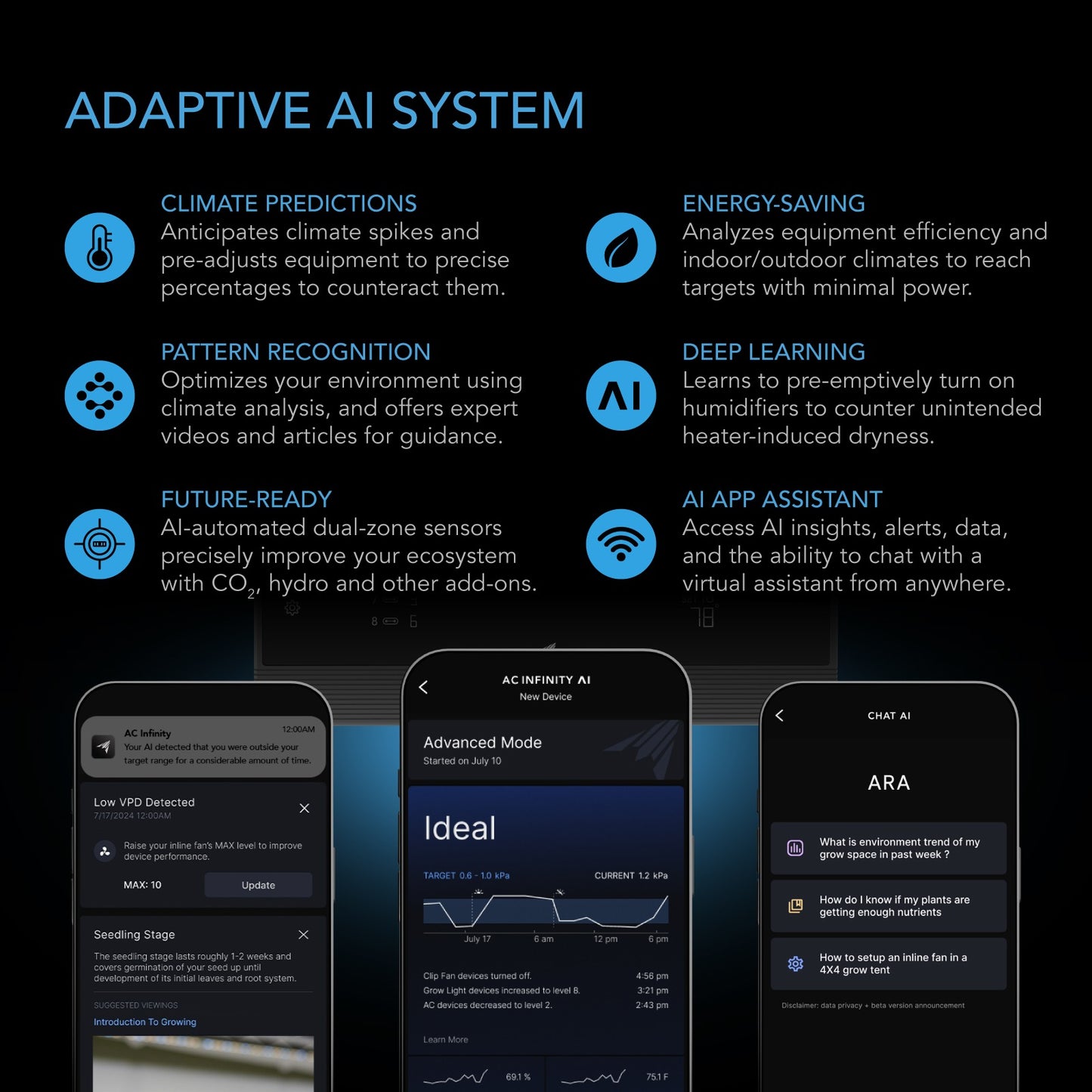

Intelligent Programming: Integrating these components is the CONTROLLER AI+ that observes your grow space, pairing with the inline fan, clip fan, and LED grow light, and makes environmental adjustments to ensure its stability. Going beyond on/off triggering and timer programming, it is always learning, analyzing previous results to avoid over or undershooting output levels and better optimize your climate. Connect this controller to the AC Infinity app to select between two AI inputs that adjust automatically or fine-tuned control for greater customization. You can also get access to helpful grow guides, recipes, articles, video tutorials, and chatbot assistance that will equip you with the knowledge to improve how you grow.

Installation and operating conditions

Read the selected model’s manual before assembly. Match each device to its specified electrical supply. Vent ducted products outdoors. Do not hardwire the equipment, cover cords with fabric, obstruct airflow openings or place the system in flammable, explosive, chemical-laden or wet conditions. Keep fingers, loose objects and cables clear of moving fan parts. Unplug before installation, service or moving; programmed off is not electrical isolation. Supervise children and users who need qualified assistance. Do not operate damaged equipment.

Power the AI+ controller through its adapter, connect its sensor near the plants and connect each grow device using the supplied UIS cords while powering the device through its own AC cord. Additional splitters, adapters and grow devices are sold separately. All devices on one splitter chain must be the same type; splitters are not compatible with UIS adapters such as the RJ11 lighting adapter.

Specifications

Product Identification

• Manufacturer: AC Infinity Inc.
• Product Name: AI Grow System PRO 4x4
• Product Model: AC-PKC44
• UPC Code: 819137024335

Product and Mounting Dimensions - Grow Tent

• Tent Dimensions: 47.24" x 47.24" x 78.74" (120.0 x 120.0 x 200.0 cm)
• Duct Opening Sizes: 4-Inch (x4), 8-Inch (x5)
• Viewing Window Size: 13.78 x 47.24 in. (35.0 x 120.0 cm)
• Rear Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)
• Side Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Product Performance and Technical Specs - Grow Tent

• Outer Tent Material: Oxford
• Inner Tent Material: Mylar
• Pole Material: Steel
• Pole Thickness: 22 mm
• Beam Weight Capacity: 250 lbs.
• Hanging Bars: 3 (+1 Extra)
• Plant Capacity: 4 Plants (5 gal.)

Product and Mounting Dimensions - Inline Fan

• Duct Size: 6"
• Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
• Screw Hole Diameter: 0.236 in. (0.6 cm)
• Cord Length to Controller: 120 in. (10 feet)
• Cord Length to Plug: 96 in. (8 feet)

Performance and Technical Specs - Inline Fan

• Total Airflow: 402 CFM
• Total Noise: 32 dBA
• Static Pressure: 503 Pa
• Voltage: 100-240V AC
• Frequency: 50/60Hz
• Max Power Draw: 70 W
• Average Power Usage: 38 W
• Current: 0.94 A
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Ingress Protection: IP 44
• Fan Bearings: Dual Ball
• Mounting Positions: Horizontal or Vertical
• Life Expectancy: 67,000 Hours

Product and Mounting Dimensions - Clip Fan

• Impeller Size: 6.5"
• Total Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)
• Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs - Clip Fan

• Maximum Airflow: 325 CFM
• Total Noise: 31 dBA
• Static Pressure: 25 Pa
• Operating Voltage: 100-240V AC
• Power: 11 W
• Current: 0.15 A
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Waterproof Rating: IP-44
• Rotation Range: 90°
• Tilt Angle: 55°
• Oscillation: Automatic Oscillation
• Fan Bearings: Dual Ball Bearing
• Mounting Positions: Horizontal or Vertical
• Life Expectancy: 67,000 Hours

CONTROLLER AI+ — selected controller component

• Total Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)
• Display Size: 4.5 in.
• Sensor Probe Length: 144 in. (12 feet)
• Maximum Devices Controlled: 8 (32 with Splitters)
• Buttons: Capacitive Touch
• Sensors Supported: 3 (1 Built In)
• Onboard Sensor: Temperature & Humidity
• Corded Sensor: Temperature & Humidity
• Controller: Temperature Humidity VPD Controller
• Power Source: Adapter
• App Control: Wi-Fi + Bluetooth
• Wattage: 2 W Max
• Voltage: 100 to 240V AC
• Operating Temperature: 32° to 140°F
• Operating Humidity: 35% to 85% RH

Product and Mounting Dimensions - LED Grow Light

• Light Dimensions: 32.28 x 32.67 x 3.38 in. (82.0 x 83.0 x 8.6 cm)

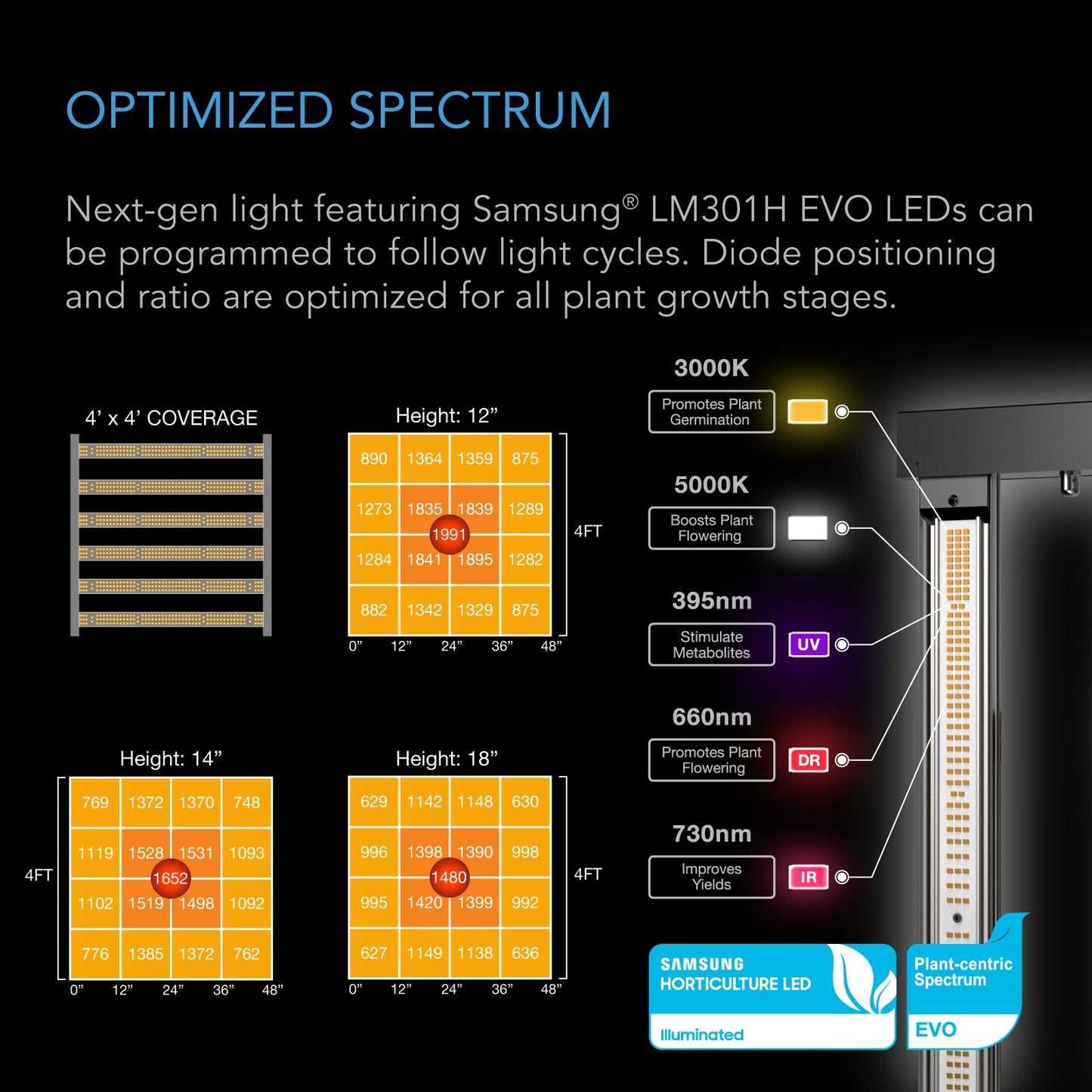

Product Performance and Technical Specs - LED Grow Light

• Coverage: 4 x 4 ft.
• Diodes: Samsung LM301H EVO
• Spectrum: 395nm, 660nm, 730nm, 3000K, 5000K
• Chip Count (Total): 1680
• Chip Count (EVO 3000K): 1074
• Chip Count (EVO 5000K): 540
• Chip Count (Seoul 395 nm): 6
• Chip Count (OSRAM 660 nm): 54
• Chip Count (OSRAM 730 nm): 6
• LED Driver: SOSEN-500W
• Efficiency (Single Diode): 3.14 µmol/J
• PPFD: 1991 PPFD
• Wattage: 500 W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 5.0 A
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Waterproof Rating: IP-65
• Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

• Duct Opening Size: 6"
• Total Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)
• Flange Length: 1.57 in. (4.0 cm)

Product Performance and Technical Specs - Carbon Filter

• Flange Material: Aluminum
• Flange Design: Reversible
• Mesh Material: Rust-Resistant Galvanized Steel with Gunmetal Finish
• Carbon Type: Australian Virgin RC412
• Carbon Grade: 1200+ IAV
• Carbon Thickness: 38mm
• Maximum Airflow: 410 CFM

Product Dimensions - Ducting

• Ducting Size: 6 in. (15.2 cm)
• Length: 96 in. (8 ft)

Product Performance and Technical Specs - Ducting

• Outer Layer: PVC Thermoplastic
• Inner Material: Aluminum Foil
• Internal Structure: Spiral Steel-Wire

Data Sheet

AI-powered grow-system manual PK2410X1

CONTROLLER AI+ setup, modes and app overview

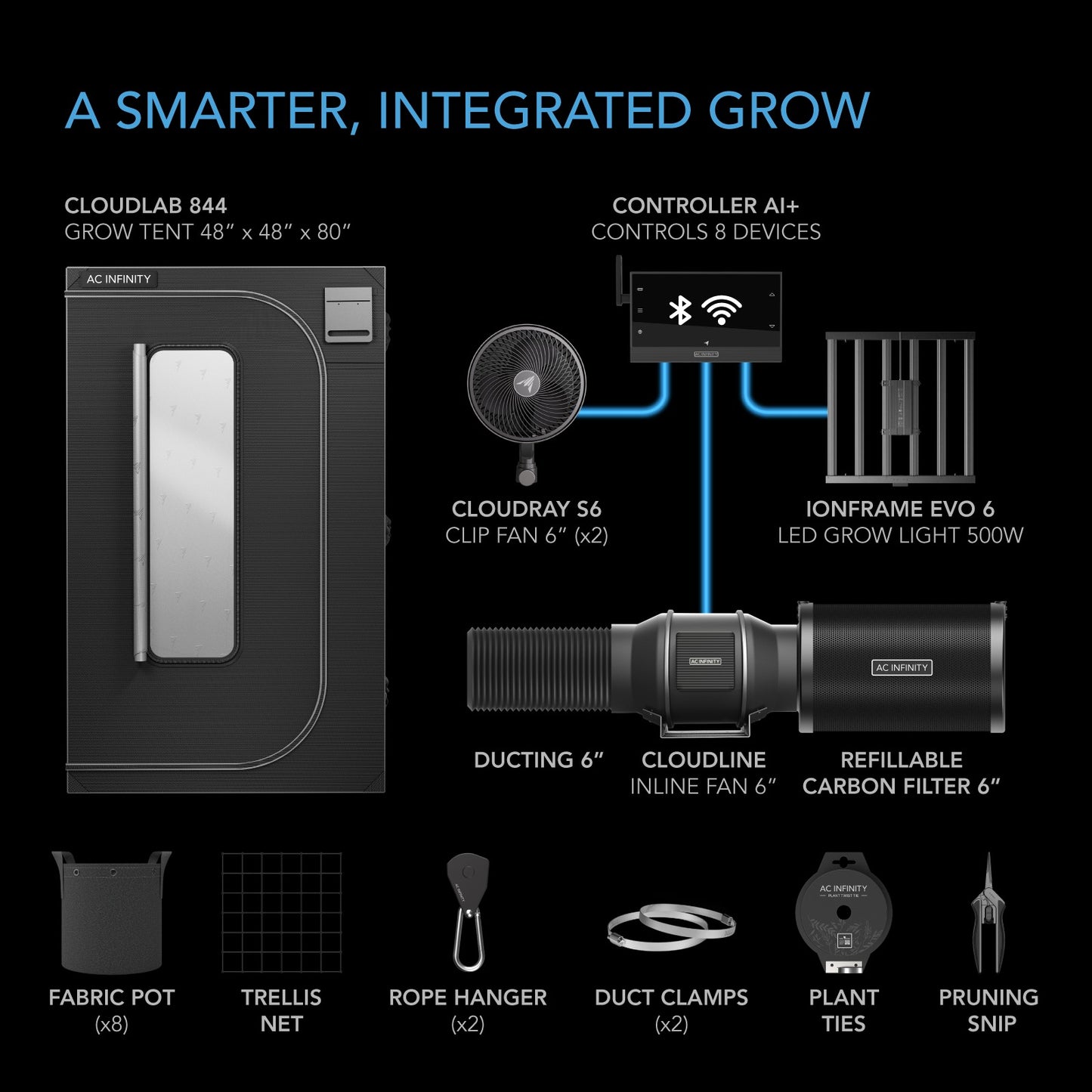

Kit Contents

• CLOUDLAB 844 grow tent, 48 x 48 x 80 inches (1).
• CONTROLLER AI+ eight-port grow controller (1).
• CLOUDLINE T6 inline fan, 6 inches (1).
• IONFRAME EVO6 grow light, 4x4 coverage (1).
• CLOUDRAY S6 oscillating clip fans (2).
• Refillable carbon filter, 6 inches (1).
• Nylon hanging straps: 2 in each inline-fan and carbon-filter box.
• Adjustable rope clip hangers (2).
• 6-inch flexible ducting, 8 feet long (1); 6-inch metal clamps (2).
• Aluminum ducting tape, 5 feet (1); hook-and-loop cable ties (10).
• Elastic trellis netting, 4x4 feet (1); black plant twist ties (1); micro-tip pruning shears (1).
• 5-gallon fabric pots (8).
• Grow-light LED driver (1), driver brackets (2), driver extension cord (1), stainless-steel wire hangers (2), UIS male-to-male controller cord (1), wire tie with 3M base (1), nylon screws (6), driver wood screws (4), flat-head driver screws (4), round-head driver screws (4).
• Clip-fan UIS controller cords (2) and wire ties with 3M bases (2), as listed in the component package table.
• Controller temperature/humidity sensor probe (1), power adapter (1), cable dock (1), mounting screws with plastic anchors (2), hook-and-loop ties (2), wire tie with 3M base (1).
