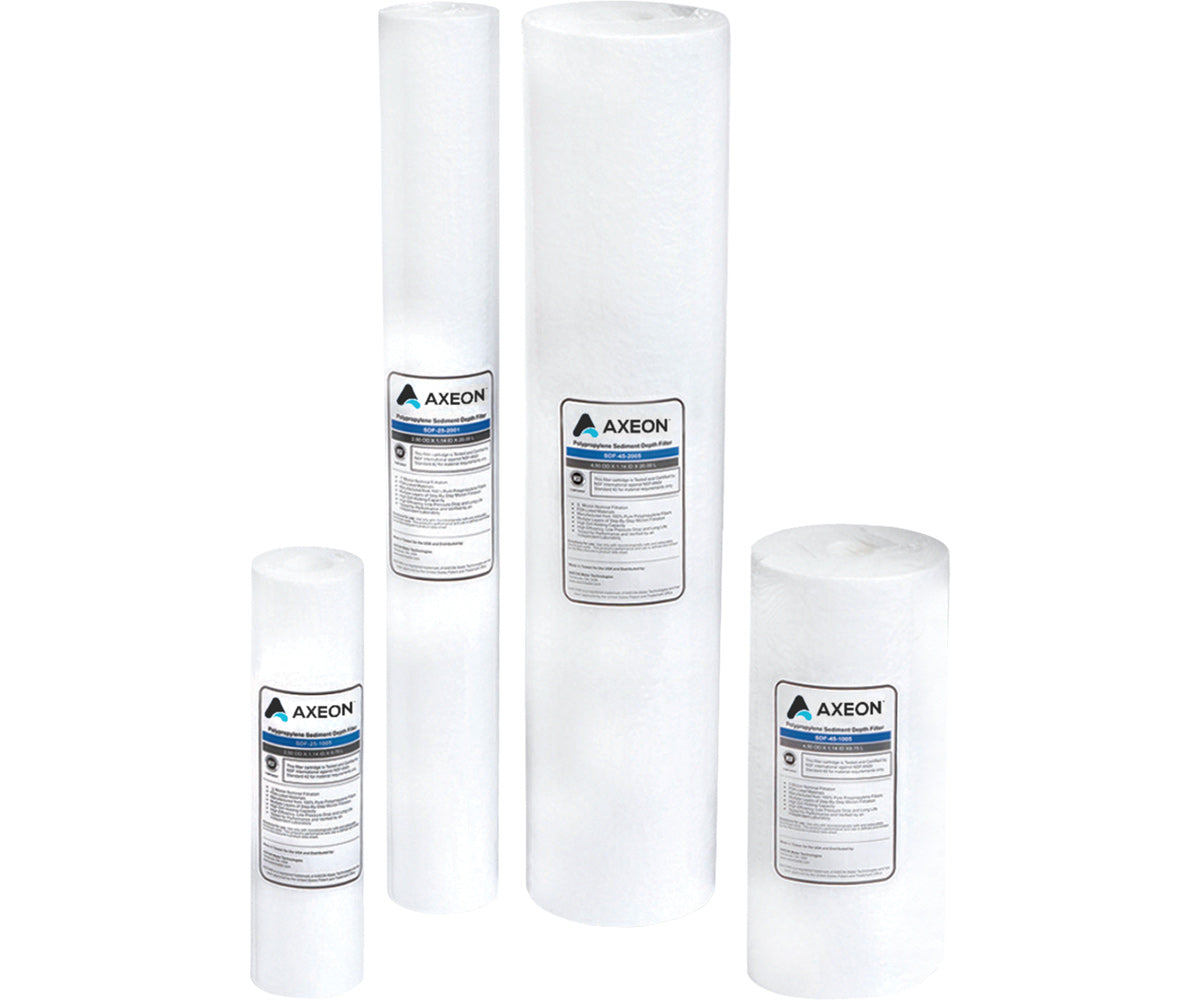

Description

• Manufactured from 100% pure polypropylene fibers
• Graded density for higher dirt holding capacity
• High chemical resistance
• Outside-In flow technology
• Four layers of step-by-step micron filtration
• Minimal pressure drop
• Tested and certified to ANSI/NSF Standard 42 for material requirements only
• FDA Listed Materials

Do not use with microbiologically unsafe water or water of unknown quality without adequate disinfection before or after the system.

Specifications

• Diameter and Length, 4.5" x 20"
• Pore size 5 micron
• Shipping Weight: 1 lbs.
• Micron-rating basis: 85% or greater removal of particles at the stated size
• Operating temperature: 40–145°F (4.4–62.8°C)
• Recommended replacement pressure drop: 15.6 psi (1.1 kg/cm²)
• Matching 4.5 × 20-inch, 5-micron SDF table row: Initial pressure drop 1 psi at 20 gpm; this is a test condition, not a selected retail flow rating

Data Sheet

• Download the data sheet: here
