ALIEN Hydroponics V-SYSTEM 4 Pot 2 Row Kit

ALIEN Hydroponics

1 total reviews

Regular price
Price: $2,224.38 USD
Regular price
List Price: $0.00 USD
Sale price
Price: $2,224.38 USD
View Cart

Bulk / Commercial Pricing

Email us or call 814-470-8368 TODAY!

Interest-Free Financing

Estimated Arrival: Between Jun 01 and Jun 12.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Why Buy From Grow Tents Depot
Description
  • Key V-SYSTEM Benefits: The system offers direct nutrient distribution and maximum oxygen saturation without the need for an air pump. It doesn't transfer heat and maintains vortex fluid motion. It's naturally aspirated and capable of supporting large plants. This system ensures the pots and system completely drain, thereby preventing root clogging. Last but not least, it's proudly made in Britain.
  • Key V-SYSTEM Features: The system includes a 15-gallon (equivalent to approximately 60 quarts) V-POT, a water fill line, total-drainage bases, venturi injectors, and inspection covers. It also features 5" spiral tubing and 5" Dual-Flow™ fittings. An integrated filtration system, T304 Stainless clamps, and heavy-duty components are other major features. For simple setup, push-fit feed connections are provided, and to ensure efficient water movement, a JET-STREAM® Vortex™ pump is included.
  • Specifications

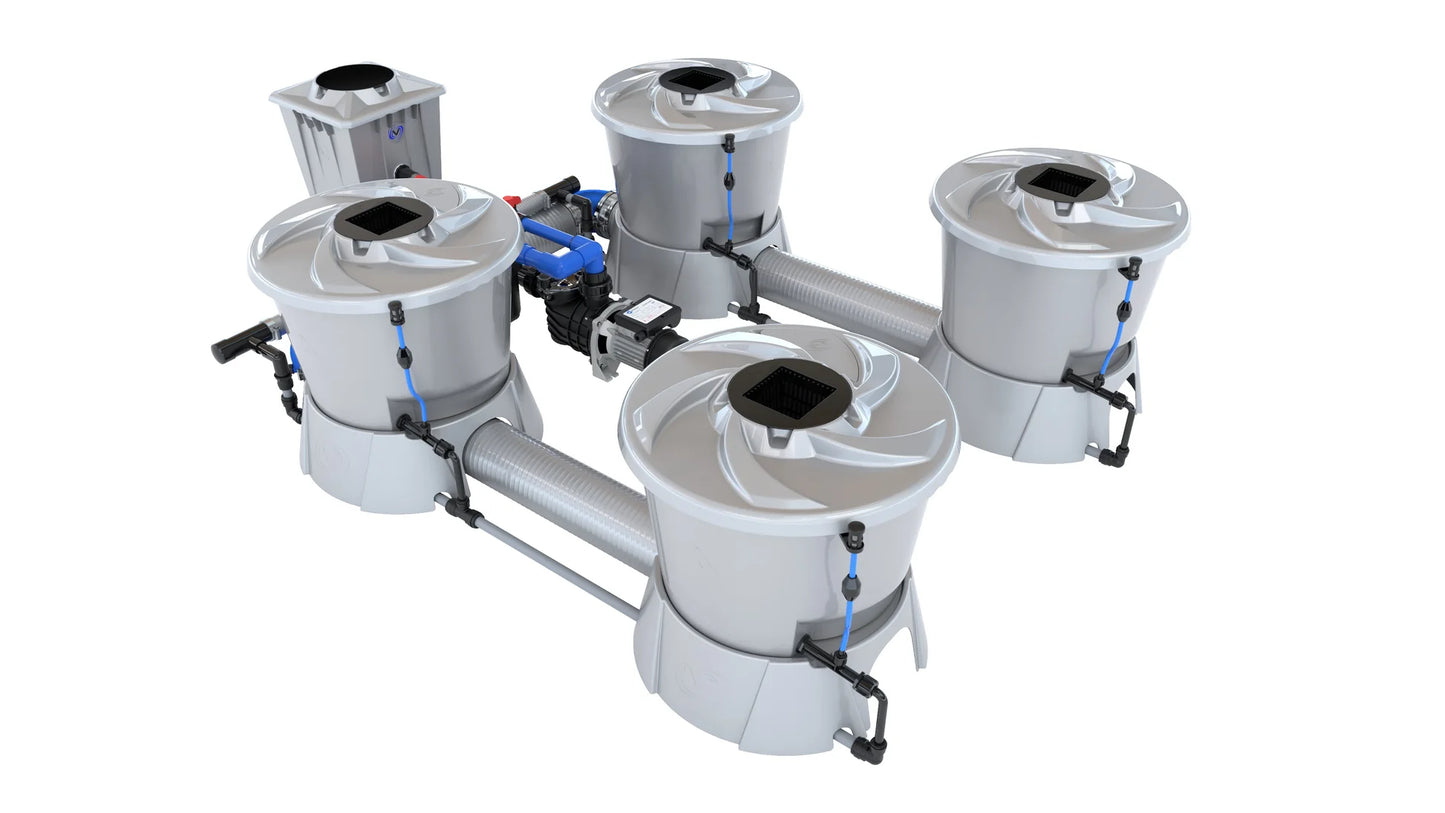

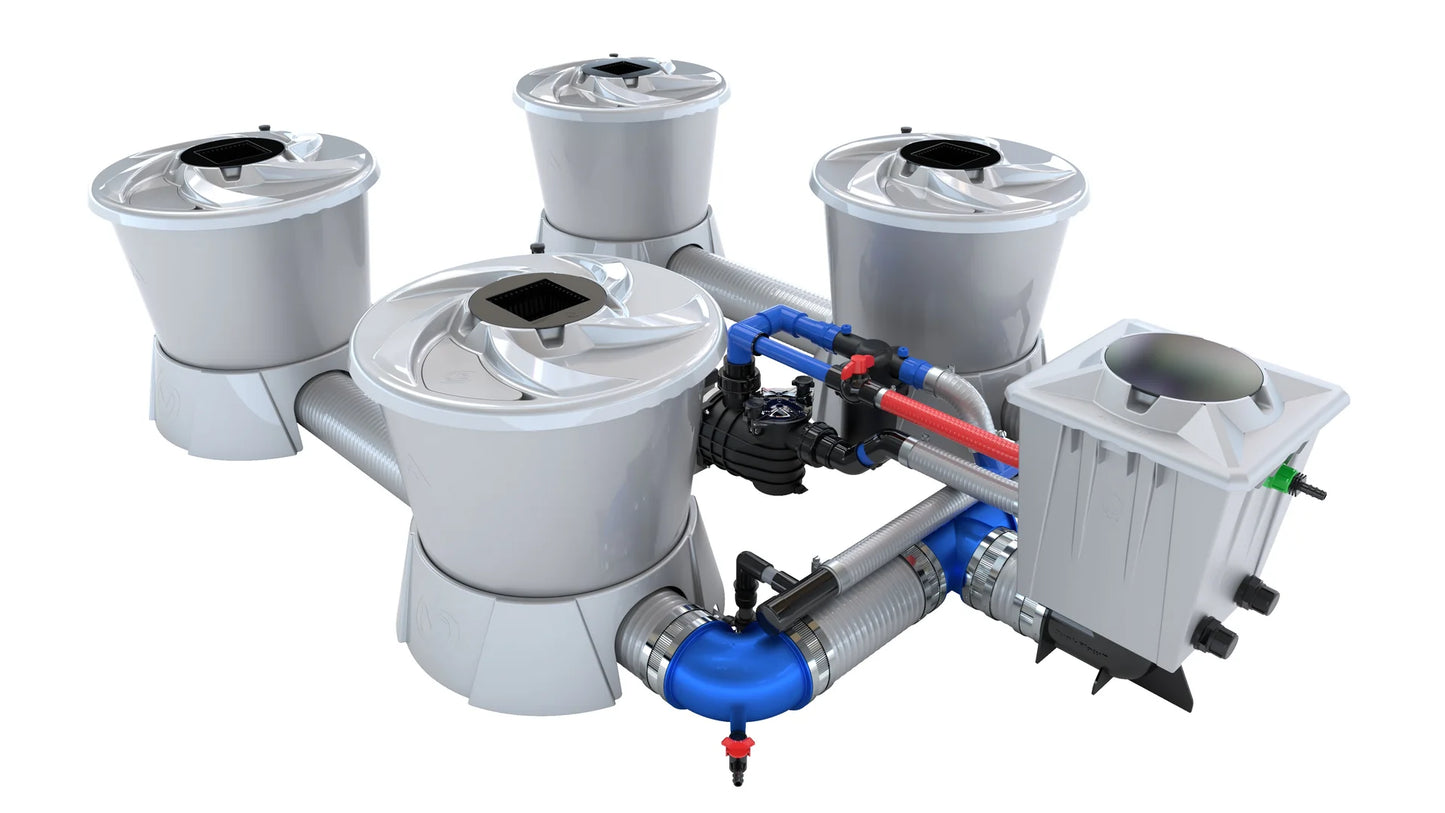

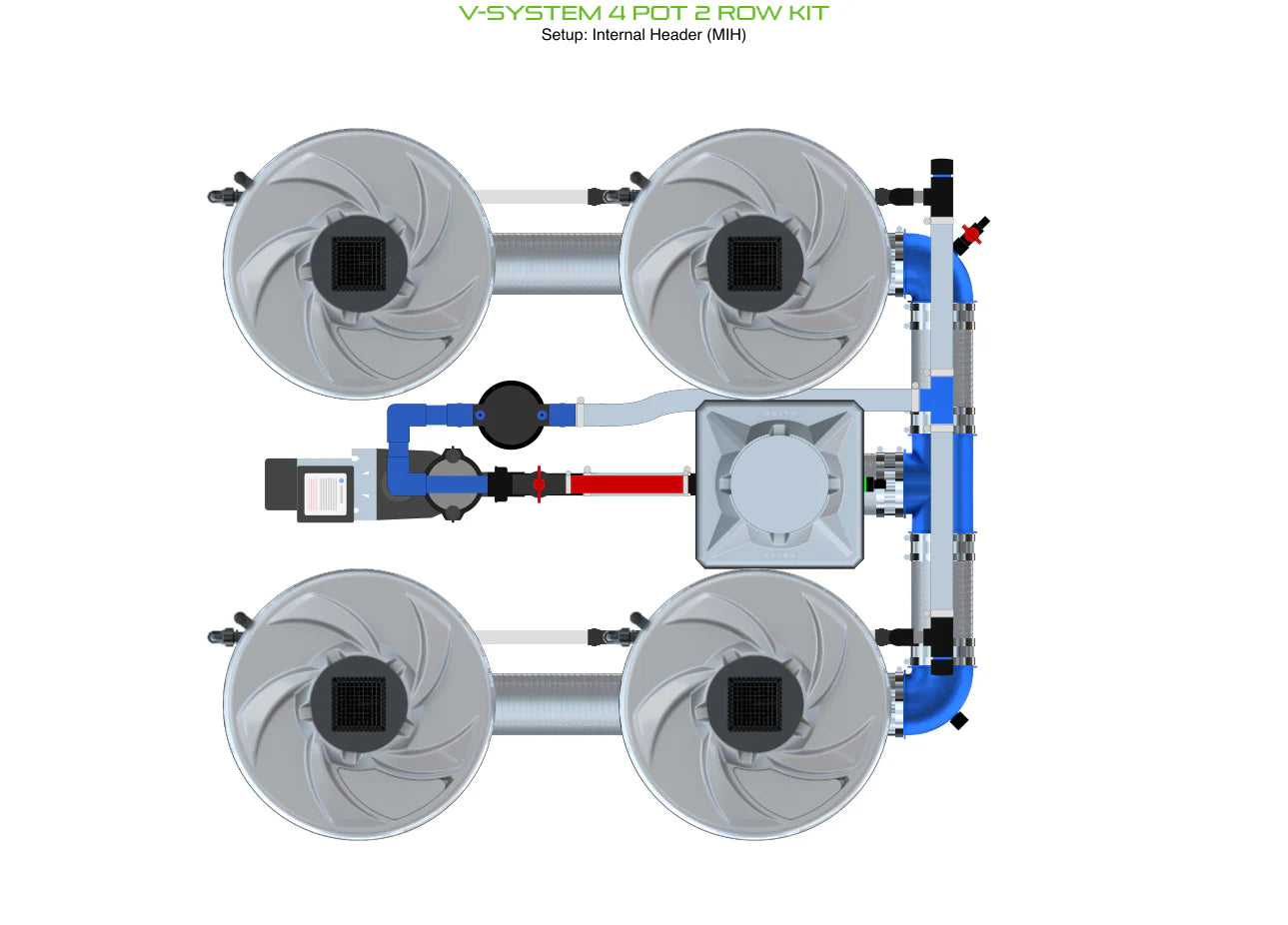

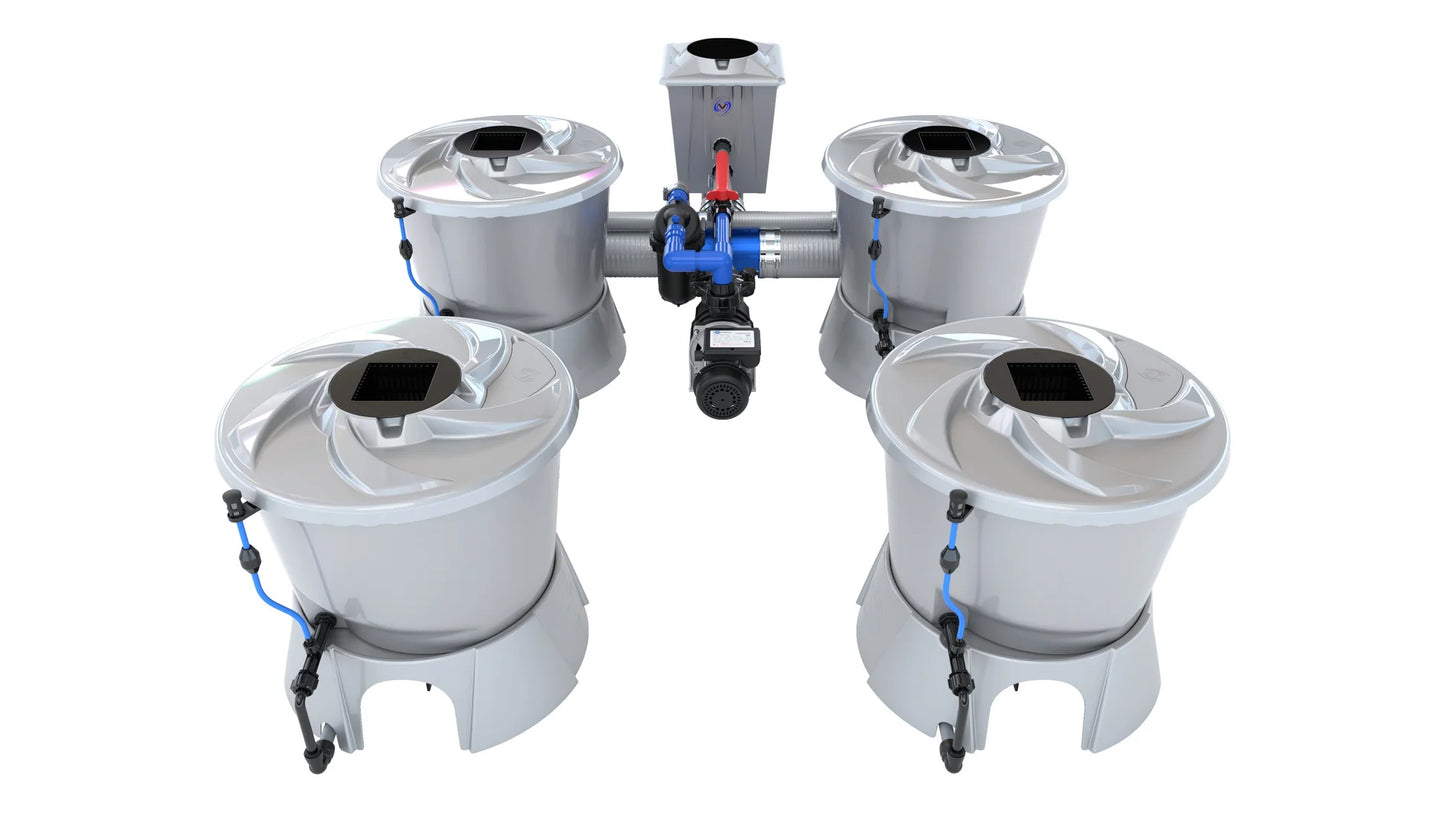

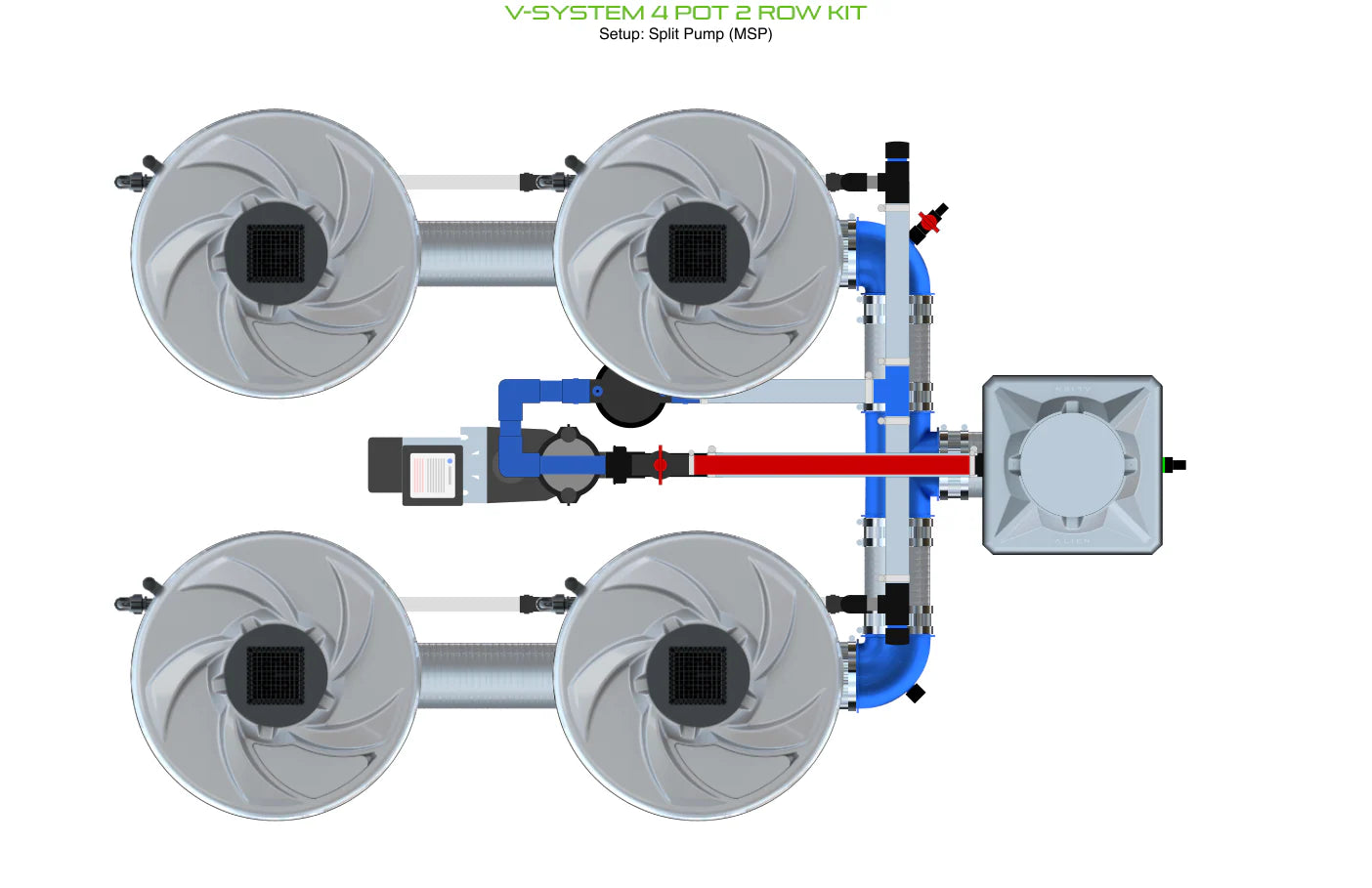

  • V-SYSTEM 4 Pot 2 Row Kit
  • Technical Information
  • Number of Pots: 4
  • Number of Rows: 2
  • Kit Total Fluid Volume: 63.4 gallons (240 L)

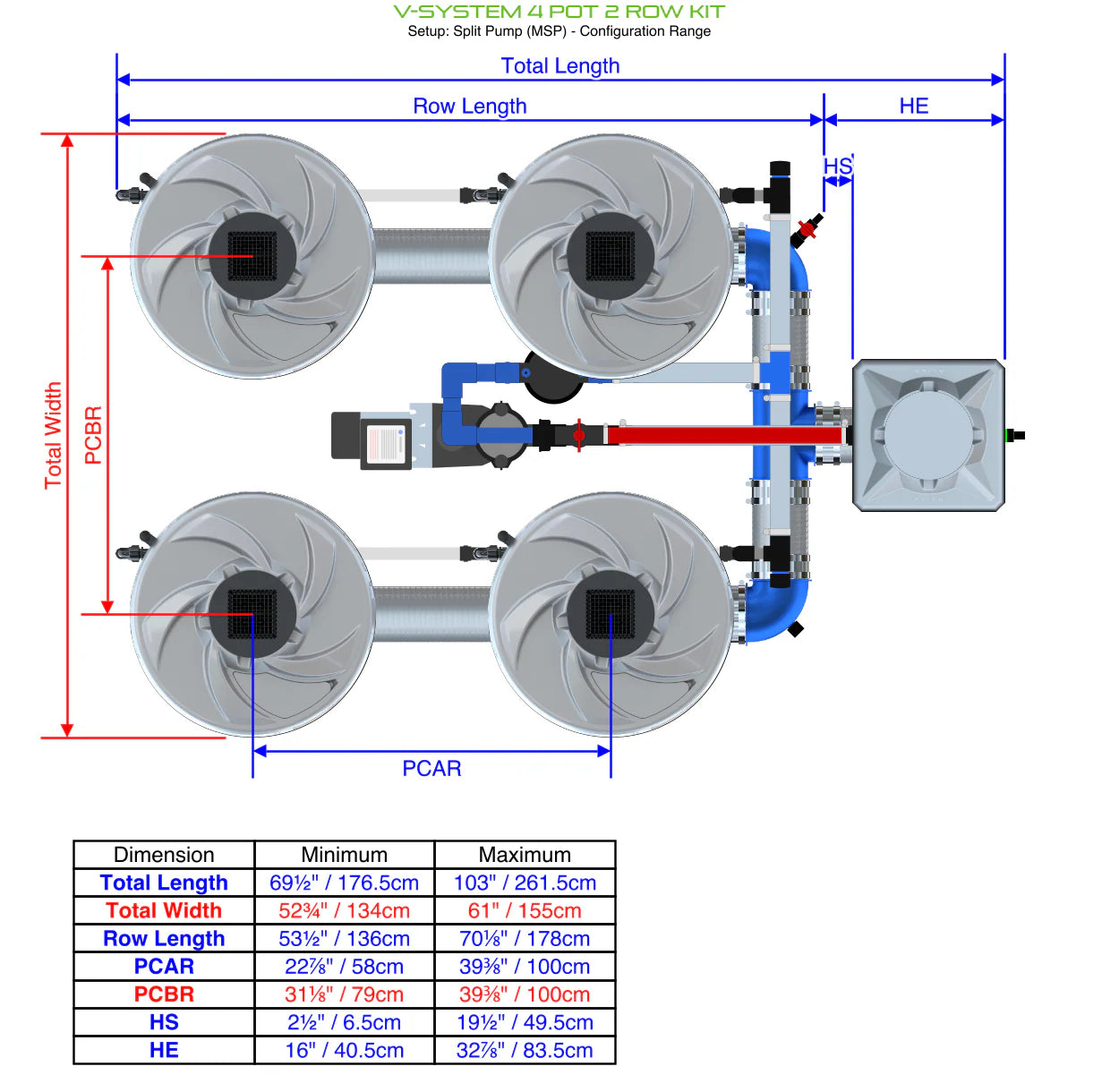

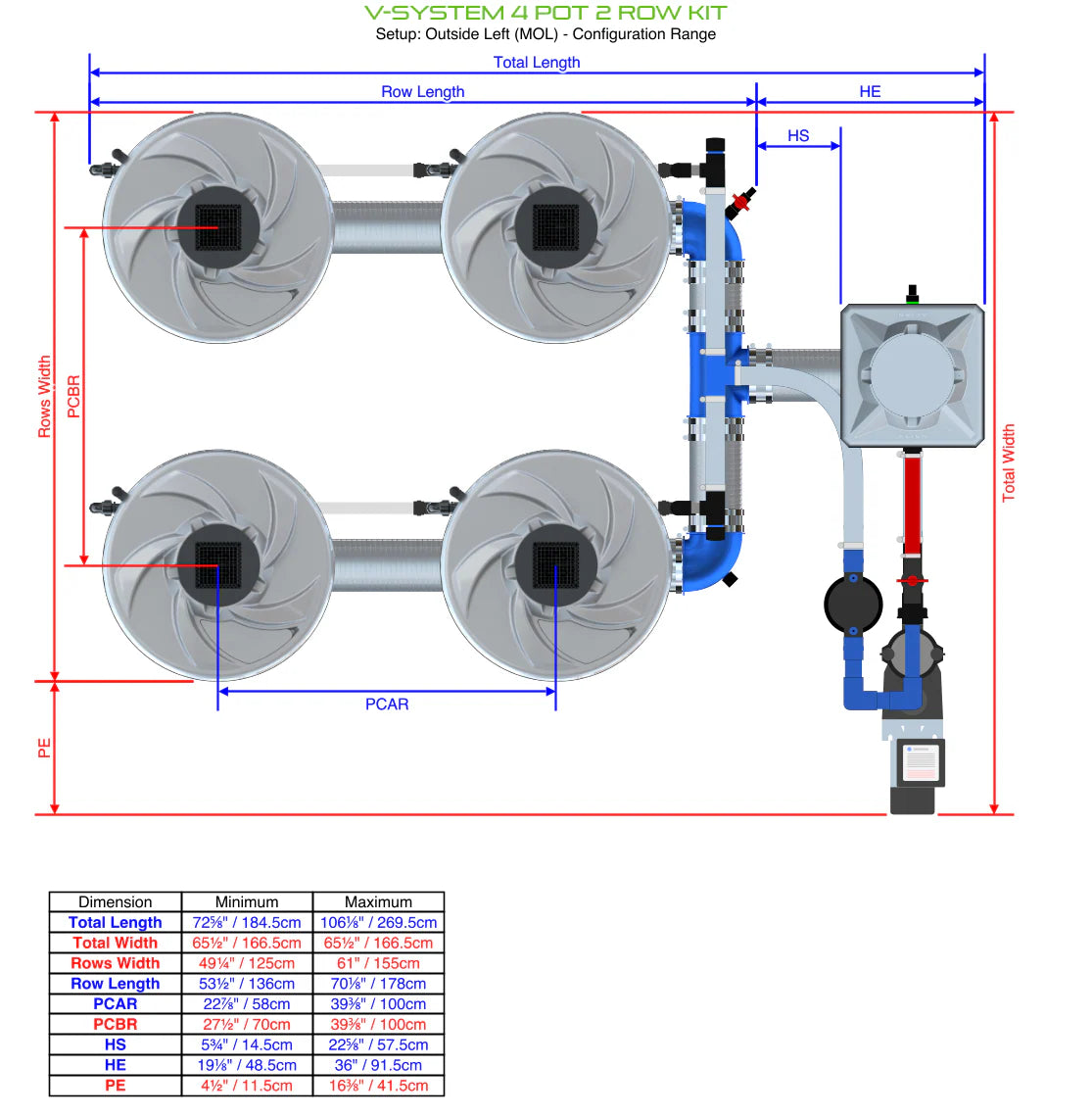

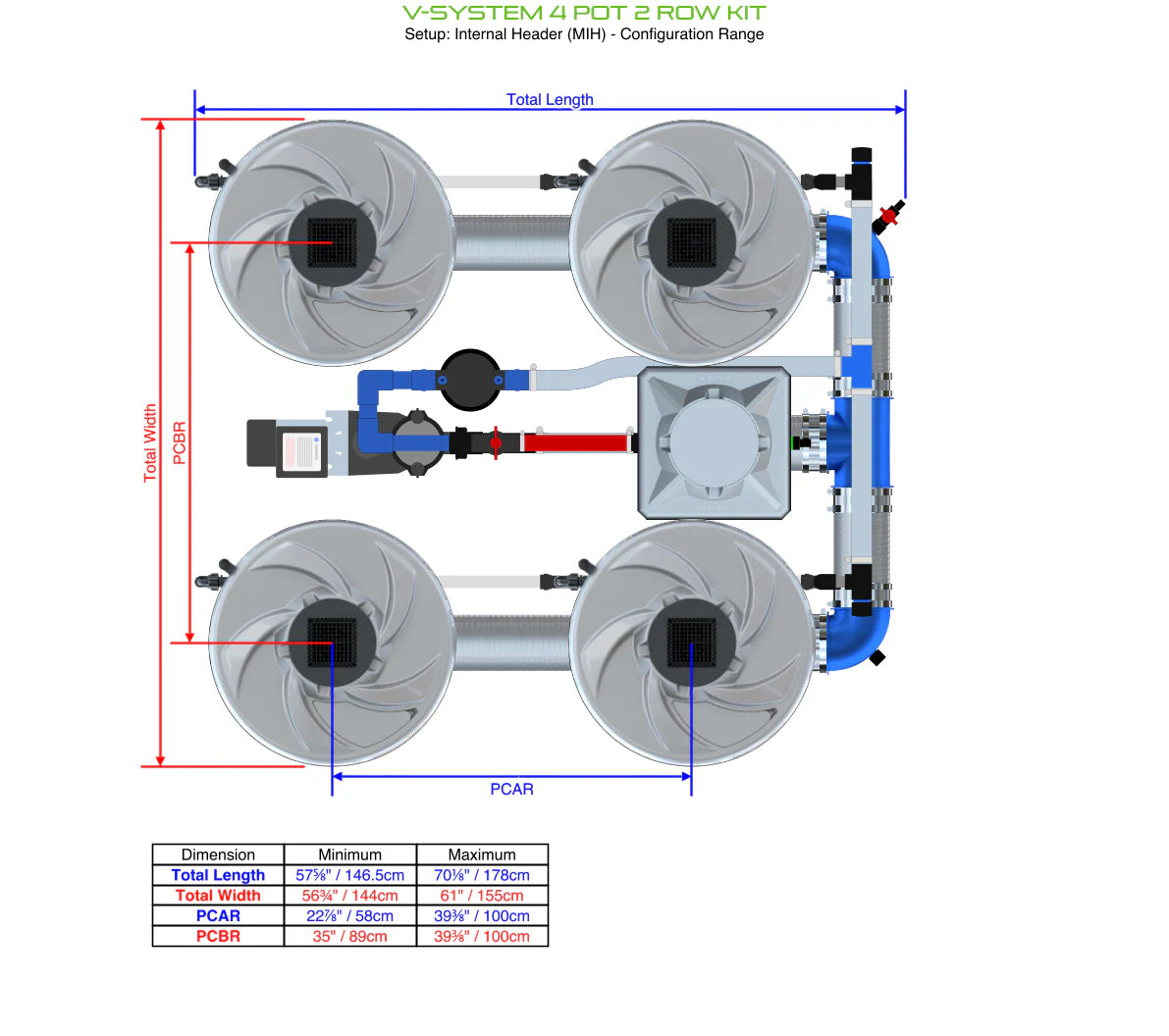

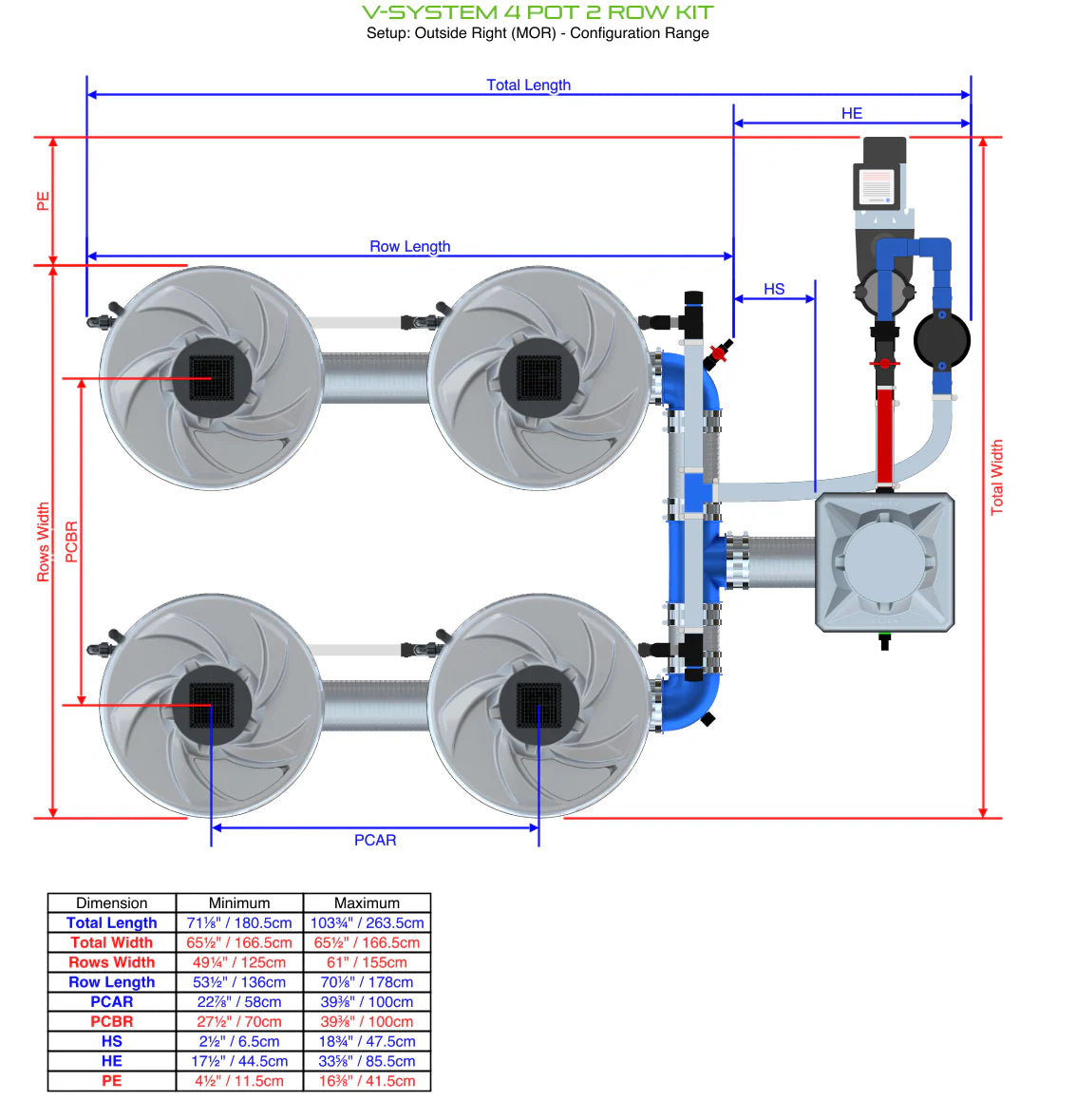

  • Minimum Assembled Size (can space pots more widely for a larger footprint):
  • Length: 4' 7.1" (55.1 inches / 1400 mm)
  • Width: 3' 11.2" (47.2 inches / 1200 mm)
  • Water Pump Included with the Kit:
  • Model: V-SYSTEM Vortex Water Pump 180W 120V 10800 l/h
  • Wattage: 180 watts
  • Flow Rate: 2853 gal/hr (10800 L/hr)
  • Recommended Water Chiller Minimum Capacity: 132 gallons (500 L)
  • Data Sheet
  • Download the instruction manual: here
  • Download the technical drawing: here
  • Bulk Discount
  • Buy 2 or more of this item and receive 5% off!
  • Discount will be automatically applied at checkout.
  • Kit Contents
  • The V-SYSTEM 4 Pot 2 Row Kit Includes:
  • 1 x V-SYSTEM Vortex Water Pump 180W 120V 10800 l/h
  • 4 x V-Pot 58L
  • 4 x V-Pot Base
  • 4 x V-Pot Lid
  • 4 x V-Pot Lid Inspection Cover
  • 4 x Square Net Pot
  • 4 x V-Pot Clip

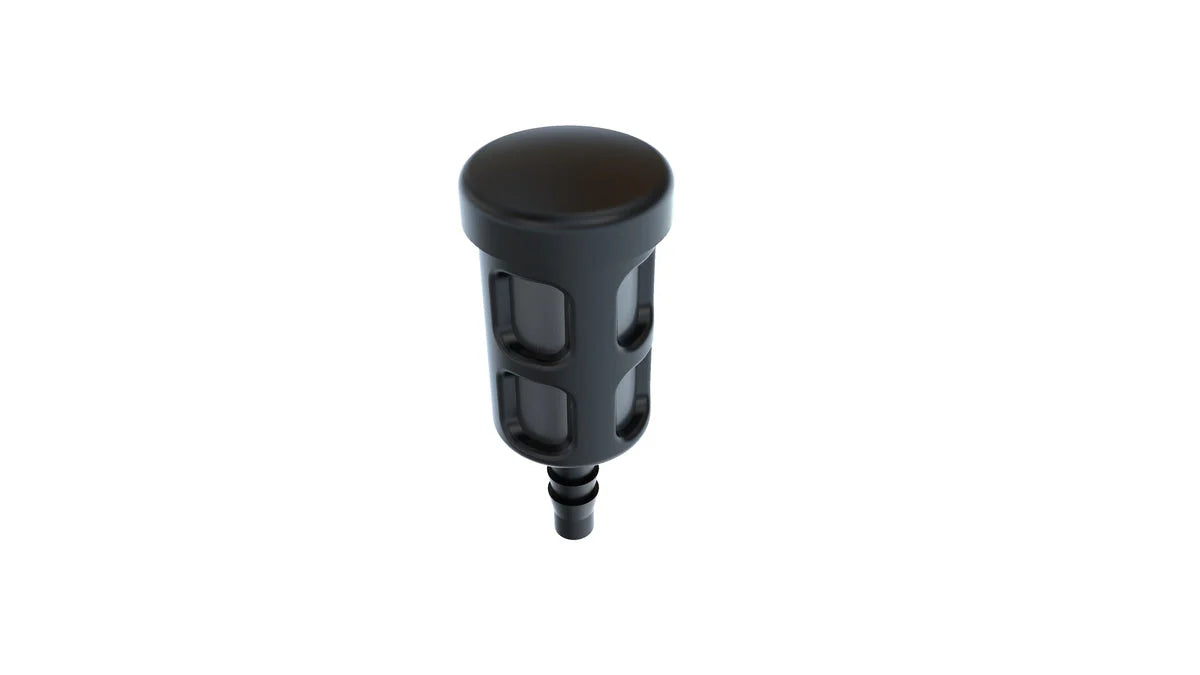

  • 4 x Air Filter for V-SYSTEM Venturi, 6mm
  • 4 x Silencer for Venturi
  • 4 x Venturi Fitting
  • 4 x Venturi Air Inlet Pipe 6mm Blue (2X 4")
  • 4 x Venturi Inlet Fitting for 22mm Pipe
  • 5 x Nut 5"
  • 5 x Washer 5" Green Silicone
  • 14 x 5" Stainless Steel Clamp
  • 1 x Distribution Tee 40mm
  • 2 x DM Push-Fit Elbow 22-15mm V-SYSTEM
  • 2 x DM Push-Fit Elbow 22mm V-SYSTEM
  • 2 x DM Push-Fit Tee 22-15mm V-SYSTEM
  • 1 x 1/2" Drain Cap Fitting
  • 1 x Drain Tap 1/2"-16mm Barb
  • 2 x Elbow 5" Barbed with Drain Point
  • 3 x Elbow 5" Threaded Dual-Flow
  • 1 x Filter Manifold Complete 40mm
  • 1 x Float Valve
  • 1 x V-SYSTEM Header Pot 20L 40mm
  • 1 x Silver Lid
  • 1 x Header Pot Blank
  • 1 x Hosetail 16mm-3/4" Female Green
  • 4 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed
  • 1 x Pipe 32mm Red 1 Meter Spiral
  • 3 x Pipe 40mm Silver 1 Meter Spiral
  • 5 x Pipe 5" Silver Spiral 80cm
  • 1 x Tee 5" Barbed
  • 2 x Tee Threaded 5" Dual-Flow
  • 2 x Threaded Tank Connector 1"
  • 1 x Vortex Pump Inlet Manifold 40mm Long
  • 2 x 1" Cap for Chiller Connections
  • 1 x Tank Connector Straight 32mm
  • 1 x Tank Connector Straight 40mm
  • 1 x Terminal Manifold Left 40mm
  • 1 x Terminal Manifold Right 40mm
  • 12 x 22mm Insert for 22mm Rigid Pipe
  • 2 x Clamp Size 2
  • 8 x Clamp Size 3
  • 1 x 8mm Screwdriver for 5" Clamp
  • 1 x Wrench 5"
  • 1 x Wrench for Float Valve
  • 1 x 8mm Socket for 5" Clamp
  • 1 x Pipe Cutter 50mm
  • 1 x Silicone Grease - Food Grade
