AC Infinity Fan Speed Controller for AC Axial Muffin Fans Single

Price: $35.99 USD
List Price: $0.00 USD
Price: $35.99 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 814-470-8368 for your custom quote!

Free Shipping

Free and discreet shipping in the lower 48. Ships in 1 to 3 business days!

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between May 29 and Jun 09.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description

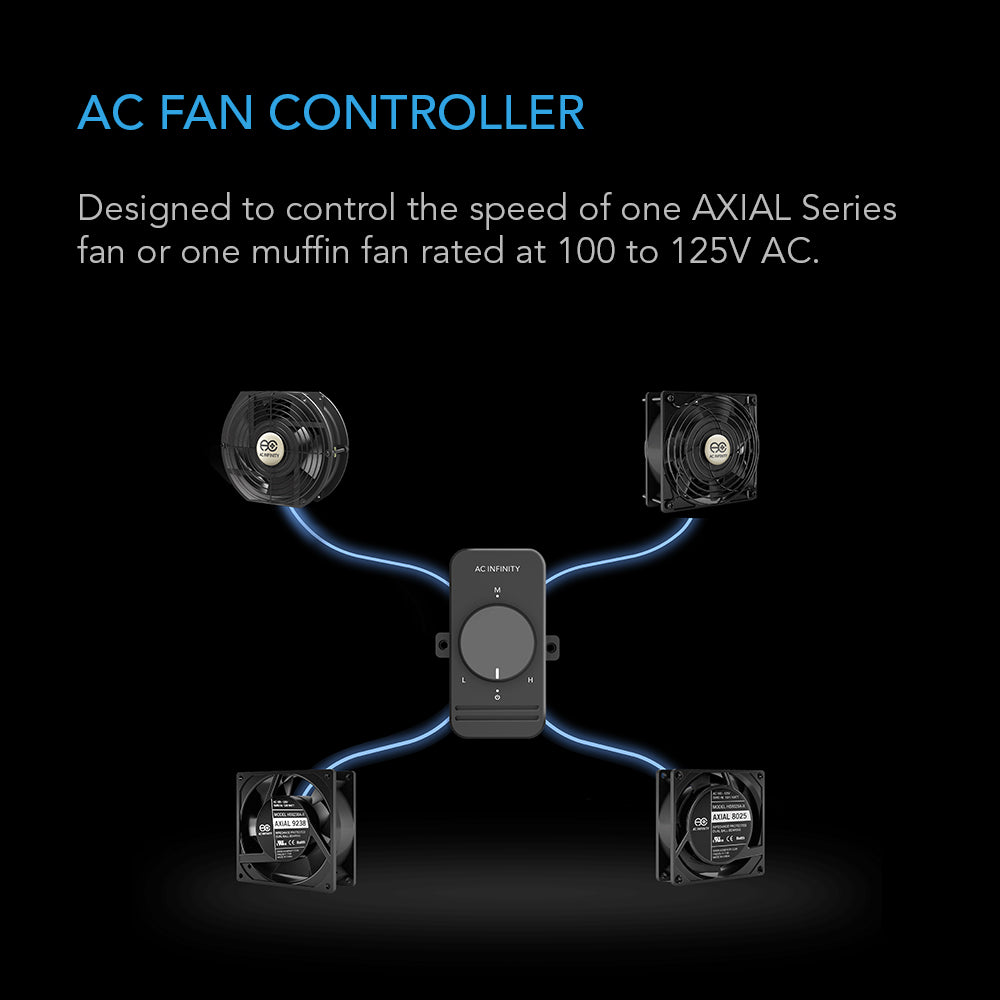

  • Designed to control the speed of AC axial muffin fans rated at 100 to 125V AC.

  • Adjust your fan's speed to optimize the airflow and noise for your application.

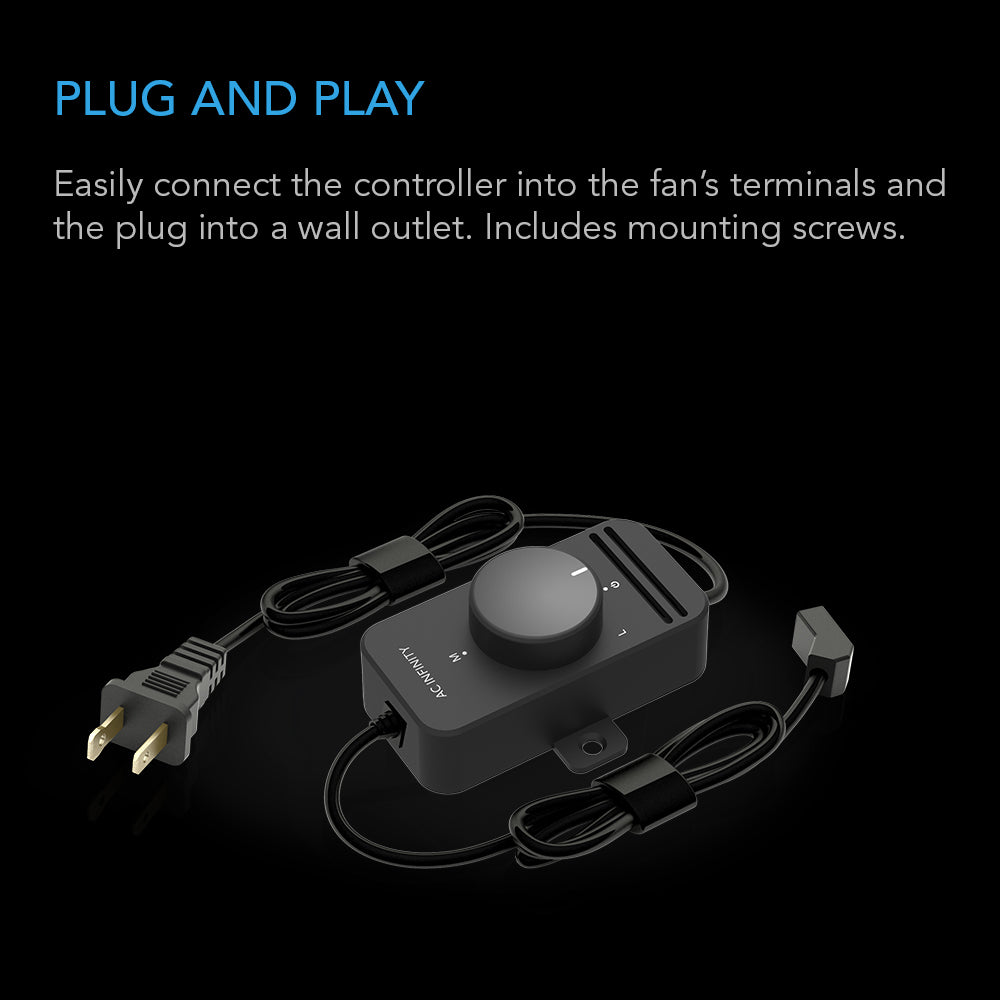

  • Features connectors that can be attached to one muffin fan's terminals.
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity
  • Product Name: AC Fan Speed Controller, Single
  • UPC Code: 819137020382
  • Product Model: AI-SC72A

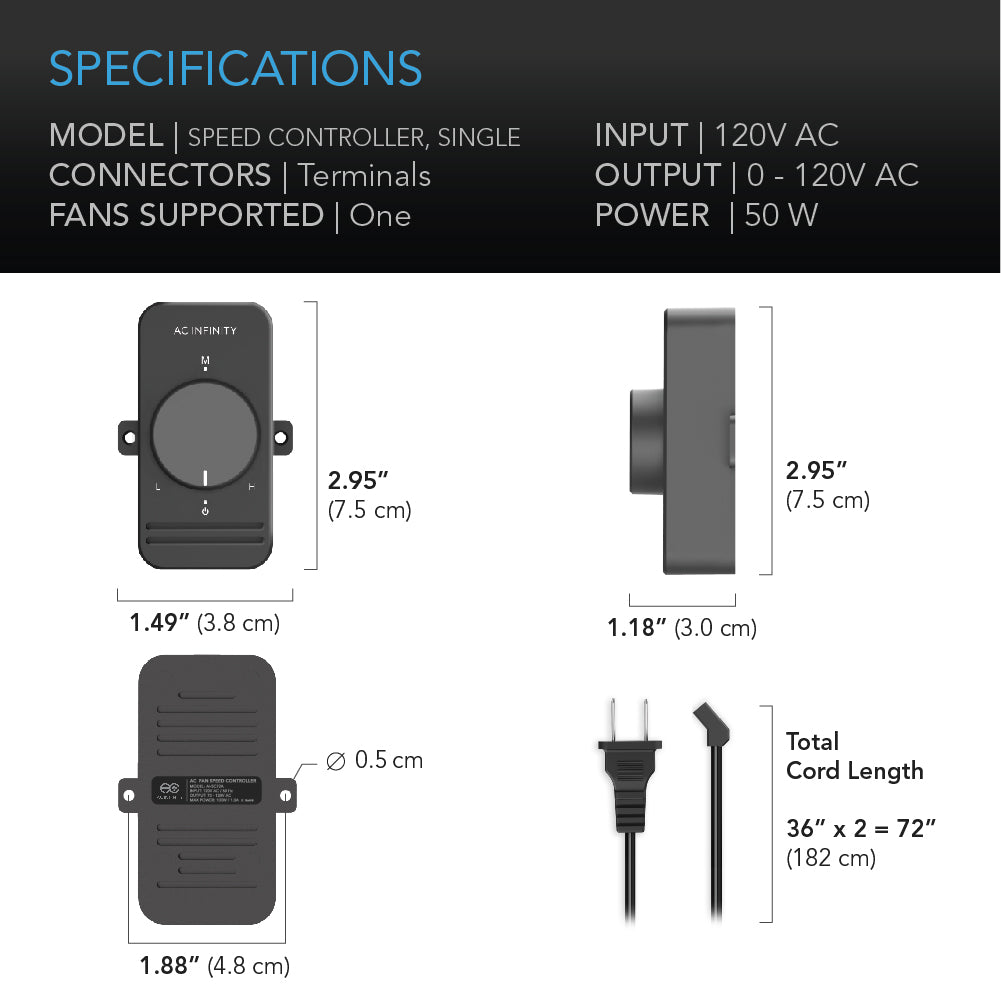

  • Product Dimensions
  • Total Dimensions: 2.9 x 1.5 x 1.2 in. (7.5 x 3.8 x 3 cm)
  • Total Cord Length: 72 Inches (6 Feet)
  • Fan Connector to Controller: 36 Inches (3 Feet)
  • Controller to Power Plug: 36 Inches (3 Feet)
  • Fans Controlled: 1
  • Voltage Input: 100-125V AC 50/60 Hz
  • Voltage Output: 0-125V AC
  • Power: 50W
  • Amperage: 0.4A
  • Cord Rating: SPT 105 degrees C 300 Volts
  • Fan Connectors: Terminal 2-Pin
  • Power Plug: NEMA 1-15P Power Plug
    • Data Sheets
  • Download the data sheet: here
    • Kit Contents
  • wall-mount screws so you can secure the controller onto a flat surface.
  • Length: 6 Feet | Power: 50W or 0.4 A | Input: 100 to 125V AC | Output: 0 to 125V AC
  • Product Description: The fan speed controller is designed for AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC to enable speed control. Axial muffin fans are used for DIY projects requiring cooling and ventilation, with sizes including 80mm, 92mm, 120mm, and 172mm. The cord length is 6 feet. The cord contains one fan connector which can be attached to one muffin fan with 2-pin terminal connectors. Compatible fan's that do not have terminal connectors may need to be hardwired. Speed controller range is limited on fans that have a capacitor or high wattage rating. The power plug can be plugged into standard wall outlets. Includes optional wall-mount wood screws to secure the controller onto a flat surface.

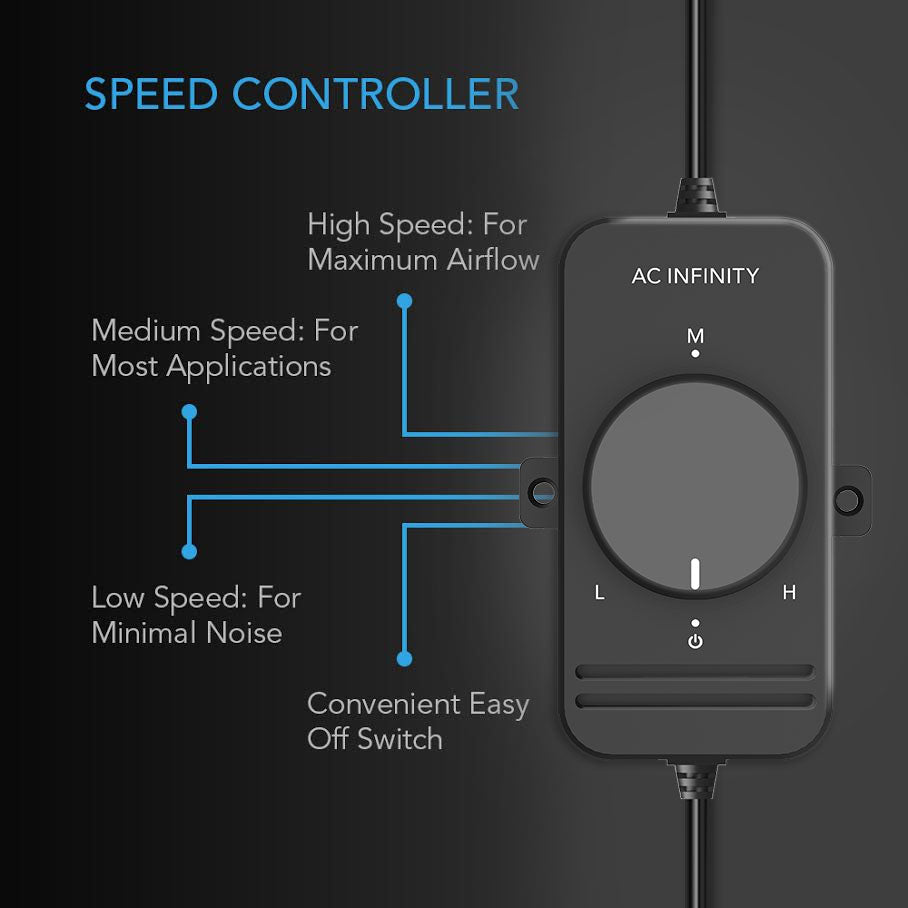

  • Speed Controller: The inline variable-speed controller can turn the fan and off, as well as control its speed. Easily turn the knob to optimize the fan's airflow and noise levels for your application. Or simply use it respond to situations that may require additional or less air movement.
  • Applications: The fan controller can be used with any AC Infinity AXIAL series fans and other muffin AC fans rated 100 to 125V AC. Axial muffin fans are popular in a wide range of cooling, heating, and air circulation applications. This includes various DIY projects for doorways, room-to-room, fireplaces, stoves, and cabinets.
