Description

A digital controller designed to equip AC Infinity devices with smart controls to produce the optimal environment.

Control up to eight devices from fans to grow lights and provide each with their own independent programming.

Automate devices to dynamically change speed and brightness levels in response to temperature, humidity, and VPD.

Additional programming includes grow cycles, scheduling, timers, minimum levels, and custom transitions.

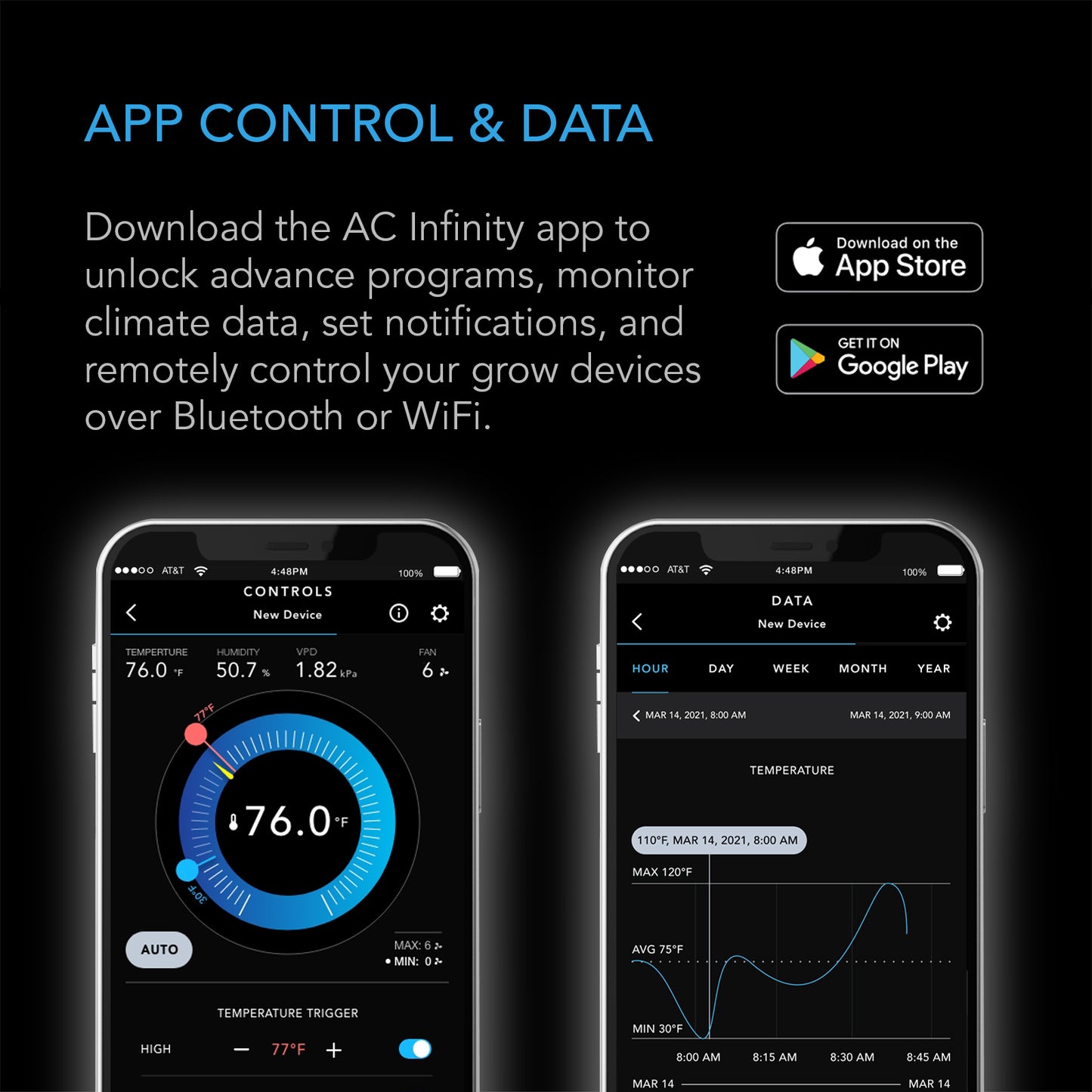

Pair with the app through Bluetooth or Wi-Fi to unlock advanced programs, set alarms, notifications, and view climate data.

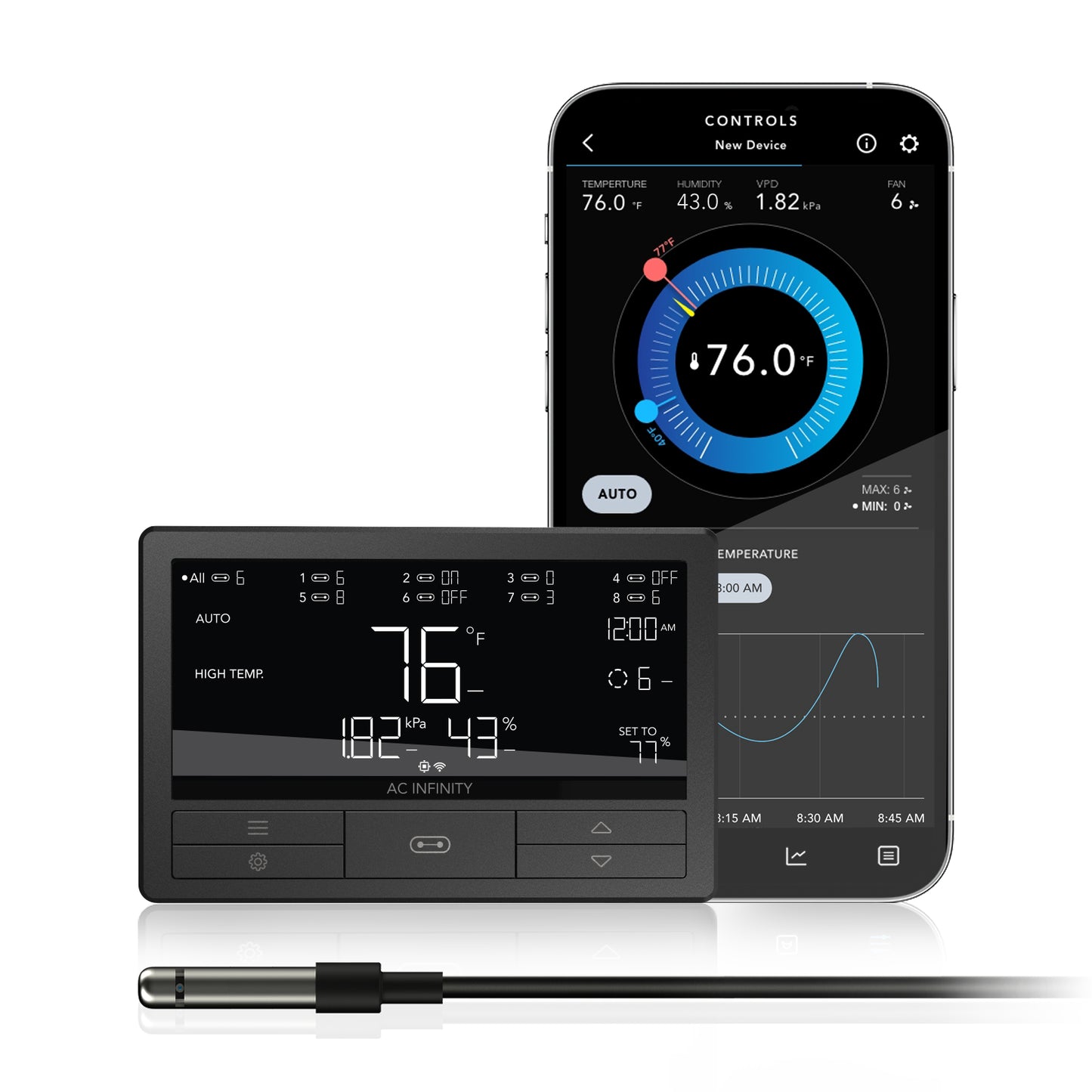

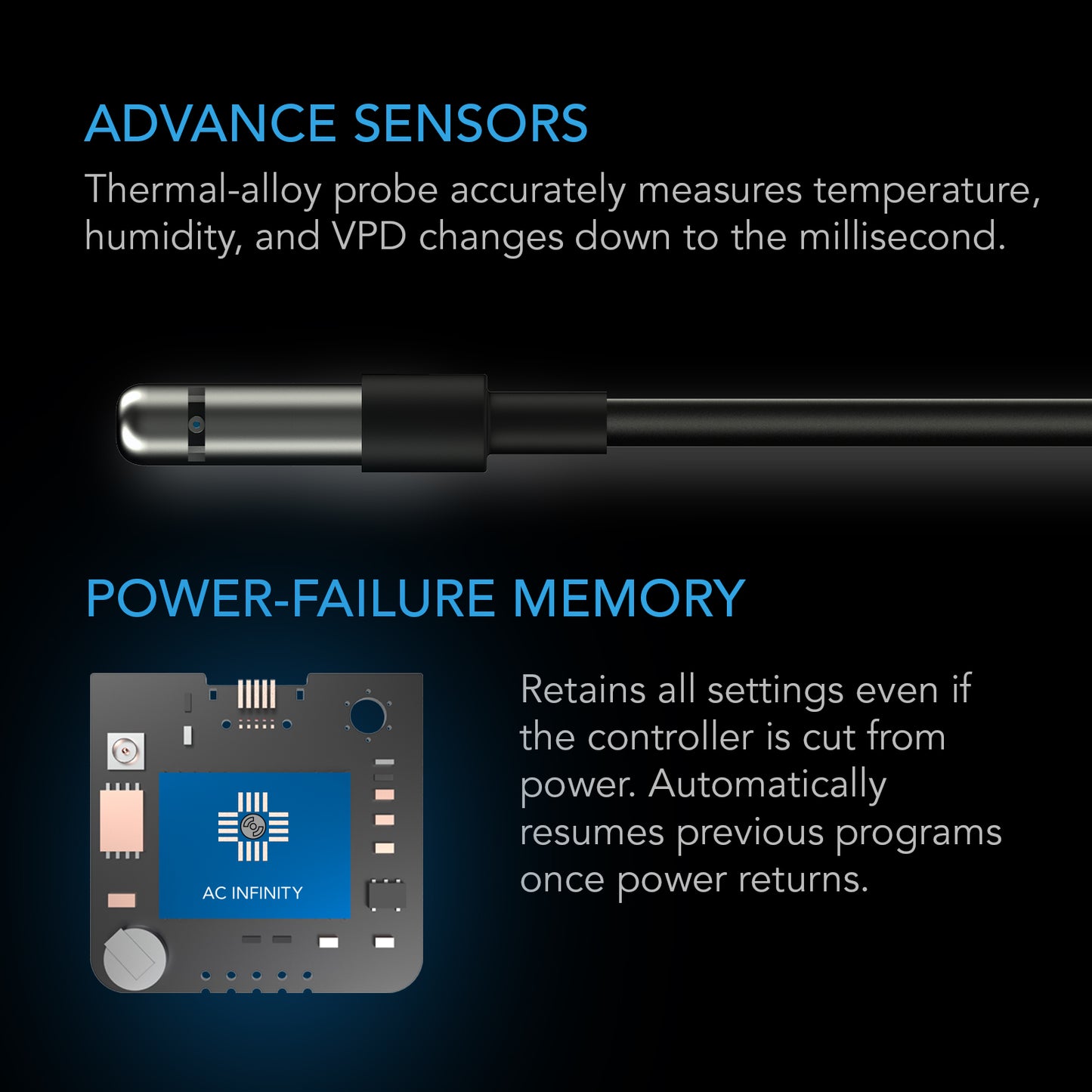

Product Description: The CONTROLLER 69 PRO+ is a next-gen digital thermostat controller designed to provide AC Infinity devices with smart programming to produce the most optimized environment. This central command unit connects with up to eight different devices from fans to lights to provide each with independent climate and time-based programming. The backlit display reads temperature in Fahrenheit or Celsius and can be switched off while programs run in the background. Built with a kickstand and includes hardware to be hung on walls. The 12-foot sensor probe with thermal-alloy head accurately detects current temperature and humidity. It calculates VPD (vapor pressure deficit) from the ambient temperature and relative humidity, with a configurable leaf-temperature offset to account for the plant’s leaf conditions. This allows you to monitor growing conditions more closely than if you were to rely on temperature and humidity alone. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

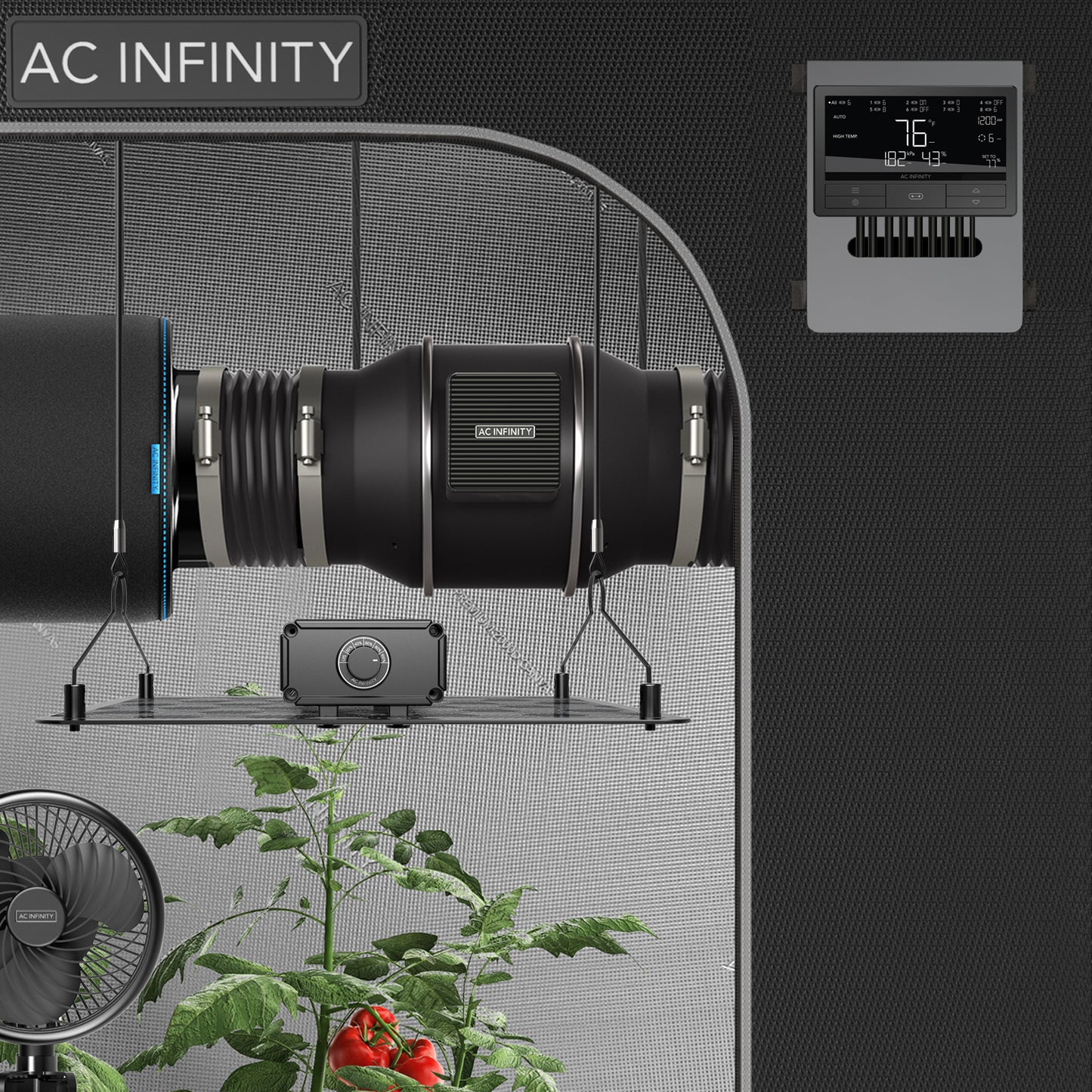

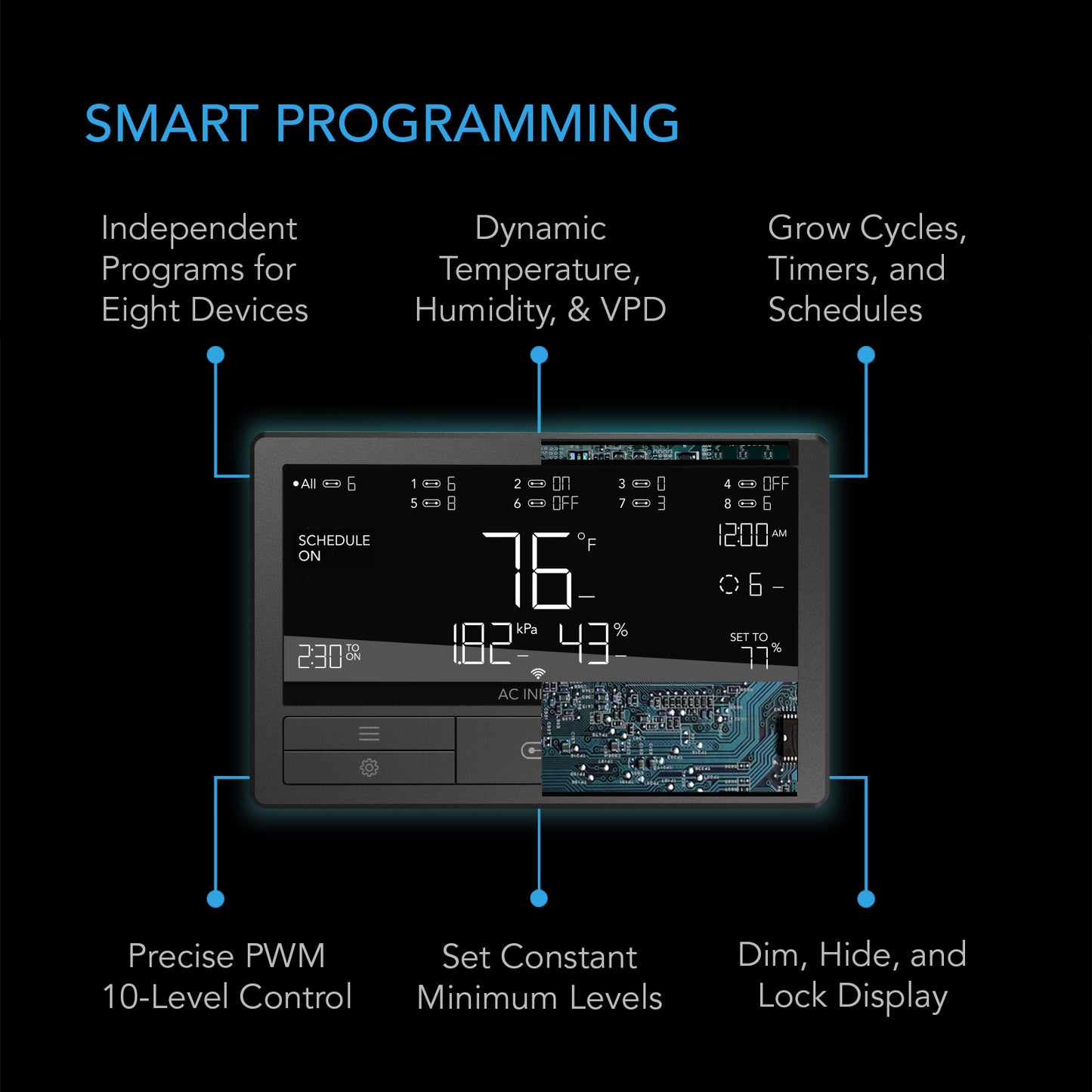

Intelligent Programming: Connect up to eight devices to provide each with shared or independent programming. Go beyond basic on/off triggering by setting dynamic programs that adjust fan speed and light intensity in response to changing temperature, humidity, and VPD. Set minimum baseline levels that your devices will constantly run at, only increasing when triggers are activated. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect with the AC Infinity app through Bluetooth or Wi-Fi to remotely access your devices, unlock advanced programs, set alarms, notifications, view historical charts, and export CSV data.

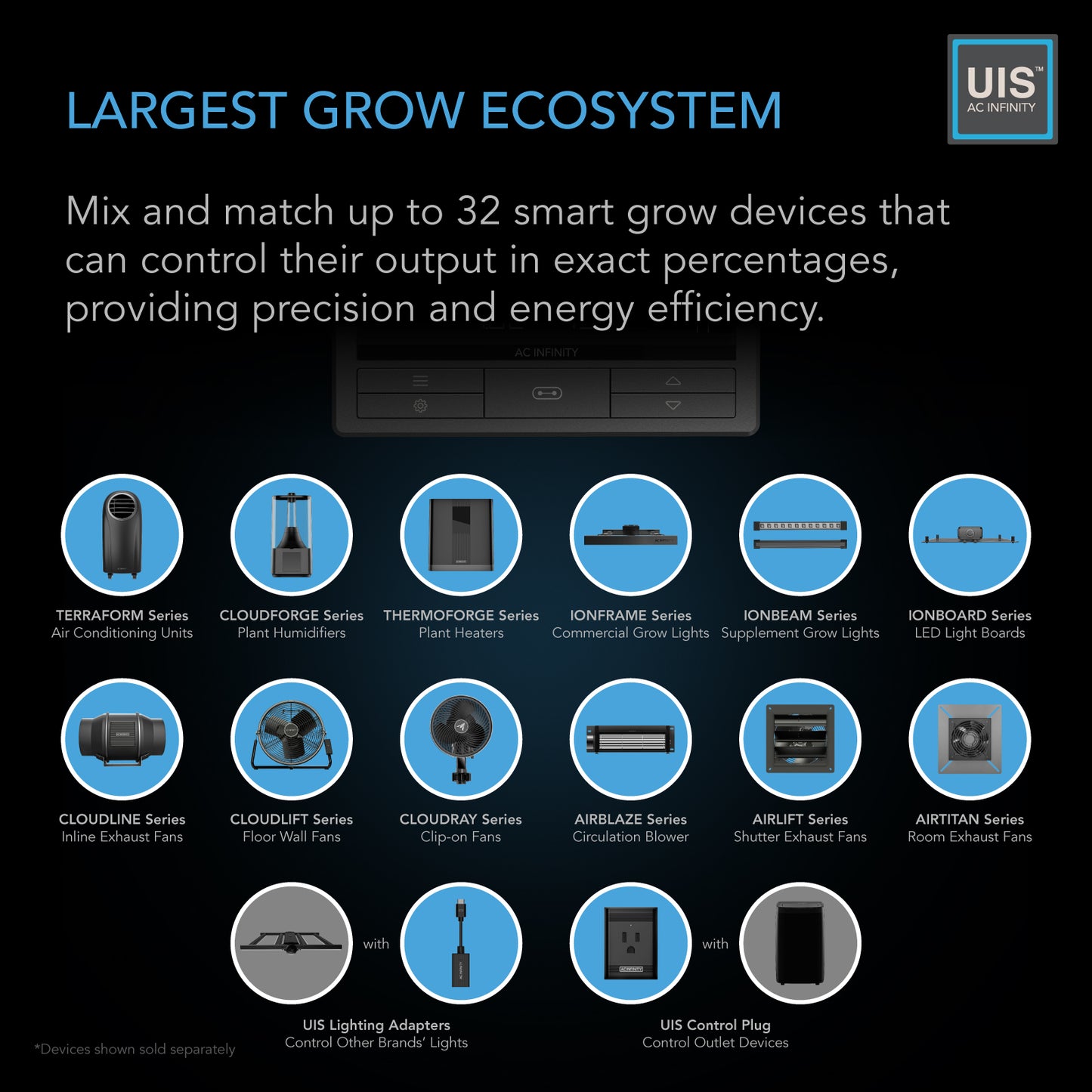

Compatibility: Devices in the UIS platform, including all AC Infinity LED grow lights and EC fans, are compatible. Compatible AC Infinity devices include those like:

AIRLIFT Series - Shutter Exhaust Fans

CLOUDFORGE Series - Environmental Humidifiers

CLOUDLIFT Series - Floor Wall Circulation Fans

CLOUDLINE Series - Inline Duct Fans

CLOUDRAY Series - Clip-on Circulation Fans

CLOUDWAY Series - Whole House Fans

IONBEAM Series - LED Grow Light Bars

IONBOARD Series - LED Grow Light Boards

UIS Control Plug - Control Outlet Devices (0=Off, 1-10=On)

UIS Lighting Adapters - Control Other Brand Lights

Connection and programming conditions

The controller receives power from a connected UIS device; connect the sensor to its 3.5mm jack and power the device through its own AC supply. Each port runs one programming mode at a time. OFF sets the minimum baseline and ON sets the maximum level for other modes; a nonzero minimum keeps the device running when a climate trigger is inactive. Use transition and buffer settings to control response around a trigger.

Specifications

Product Identification

• Manufacturer: AC Infinity Inc.
• Product Name: CONTROLLER 69 PRO+
• Product Model: CTR69Q
• UPC Code: 819137024144

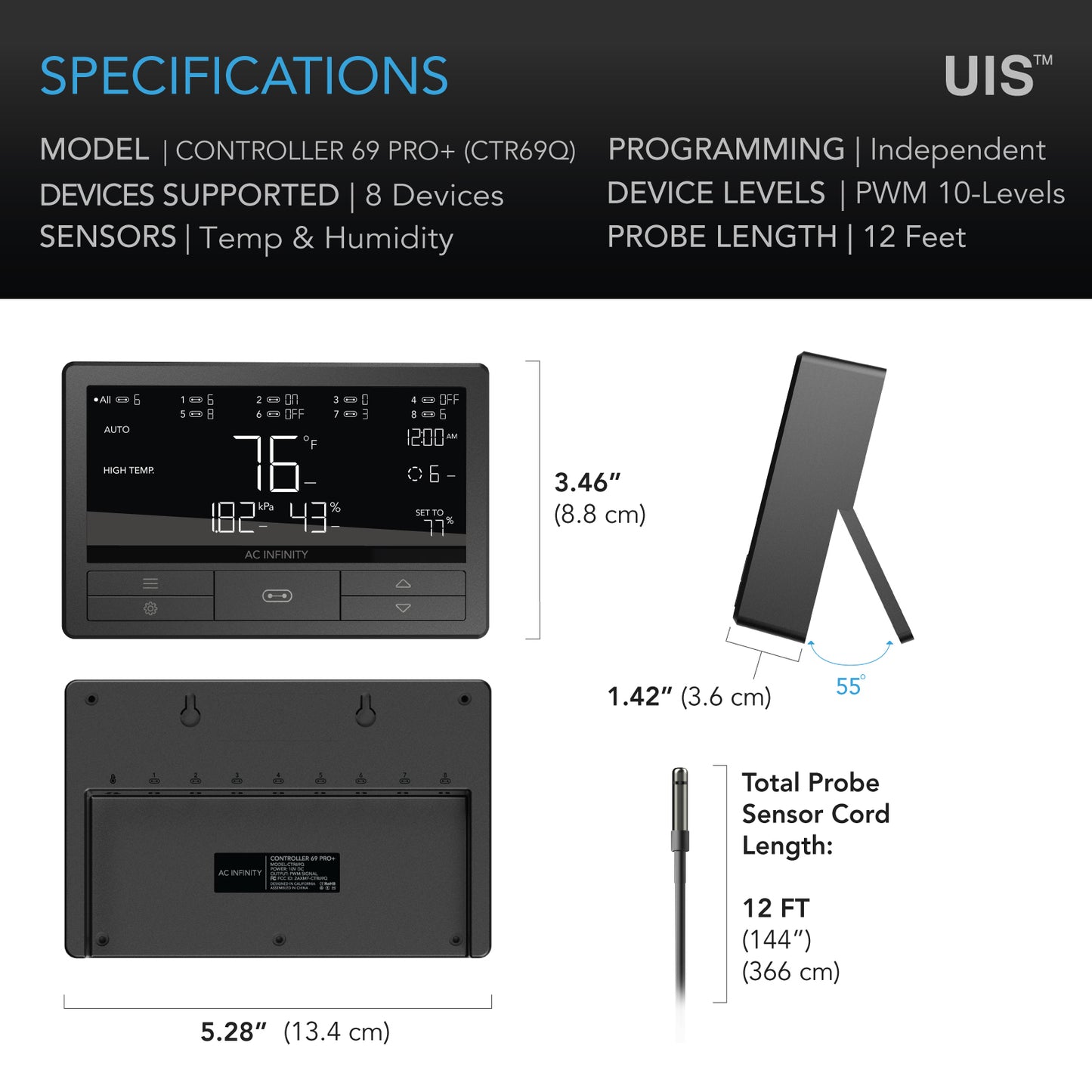

Product and Mounting Dimensions - Controller

• Total Dimensions: 5.28 x 3.46 x 1.42 in. (13.4 x 8.8 x 3.6 cm)
• Display Size: 4.56 x 1.96 in.
• Sensor Probe Length: 144 in. (12 feet)

Product Performance and Technical Specs

• Maximum Devices Controlled: 8
• Programming Temperatures: 32 to 140°F
• Operating Voltage: 9 to 11V
• Power: 1.4 W
• Current: 0.14 A
• Power Input: 10V from Device
• Operating Humidity: 35 to 85% RH
• App Connection: 2.4 Ghz WiFi

Data Sheet

CTR69Q manufacturer operating guide

Kit Contents

• Smart controller (1), sensor probe (1), controller plate bolts (2), hex nuts (3), wall-hang wood screws (2), wire tie (1), cable dock (1).
