Description

Specially designed for mushroom growing to quietly ventilate grow spaces and help control indoor climate levels.

IP65-rated to ensure performance in high-humidity spaces while resisting dust, debris, and moisture.

Includes a fan speed controller with precise 10-level control for exact airflow and CO 2 buildup prevention.

EC motor with PWM control enables quiet and energy-efficient performance for consistent fresh air exchange.

Duct Size: 4" | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 212 CFM | Noise: 27 dBA | Bearings: Dual Ball

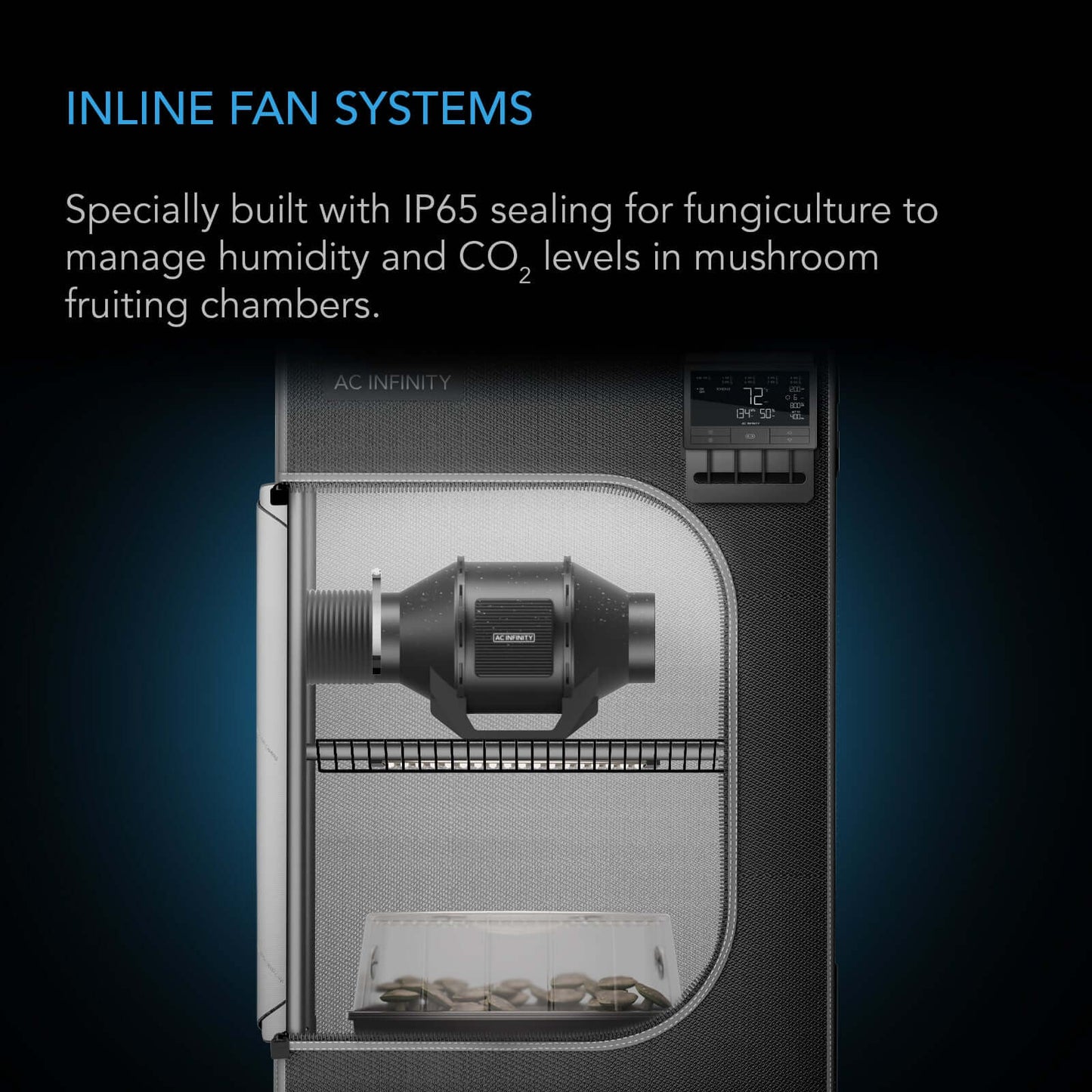

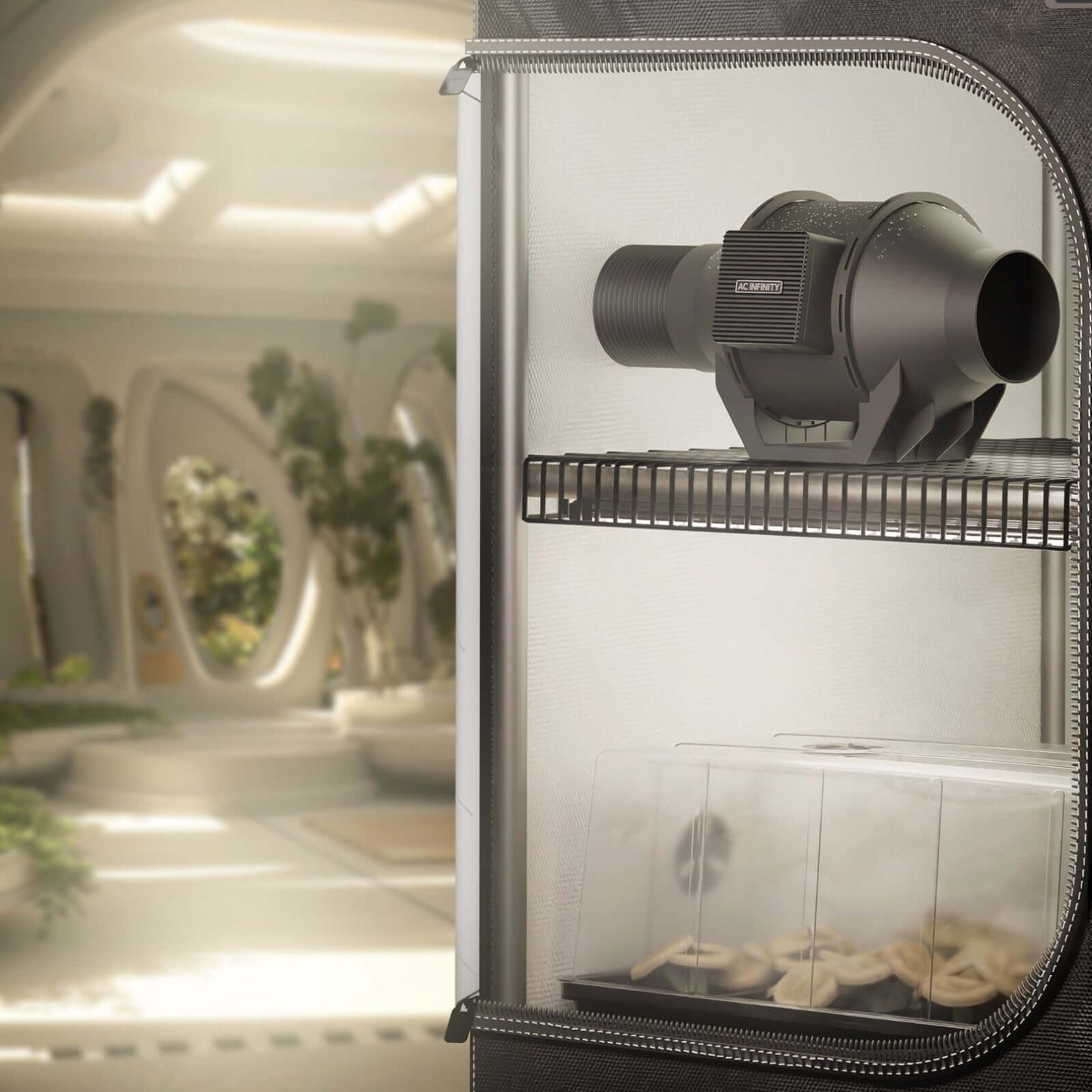

Product Description: An inline duct fan specially designed for mushroom cultivation and fungiculture to quietly ventilate grow tents, grow rooms, and mushroom fruiting chambers. By installing this fan, you can control humidity and CO 2 levels to keep them stable while ensuring fresh air exchange in these spaces. It is built with IP65-level sealing that lets you place it in harsh environments, resisting moisture and spores. It also features a fan speed controller with 10 exact levels to produce your ideal airflow. This precision output is powered by the inline fan's EC motor that utilizes PWM control to operate quietly and energy-efficiently. This product is a part of the UIS platform of grow devices and smart controllers, designed to unite with the AC Infinity app over Wi-Fi to achieve your ideal environment.

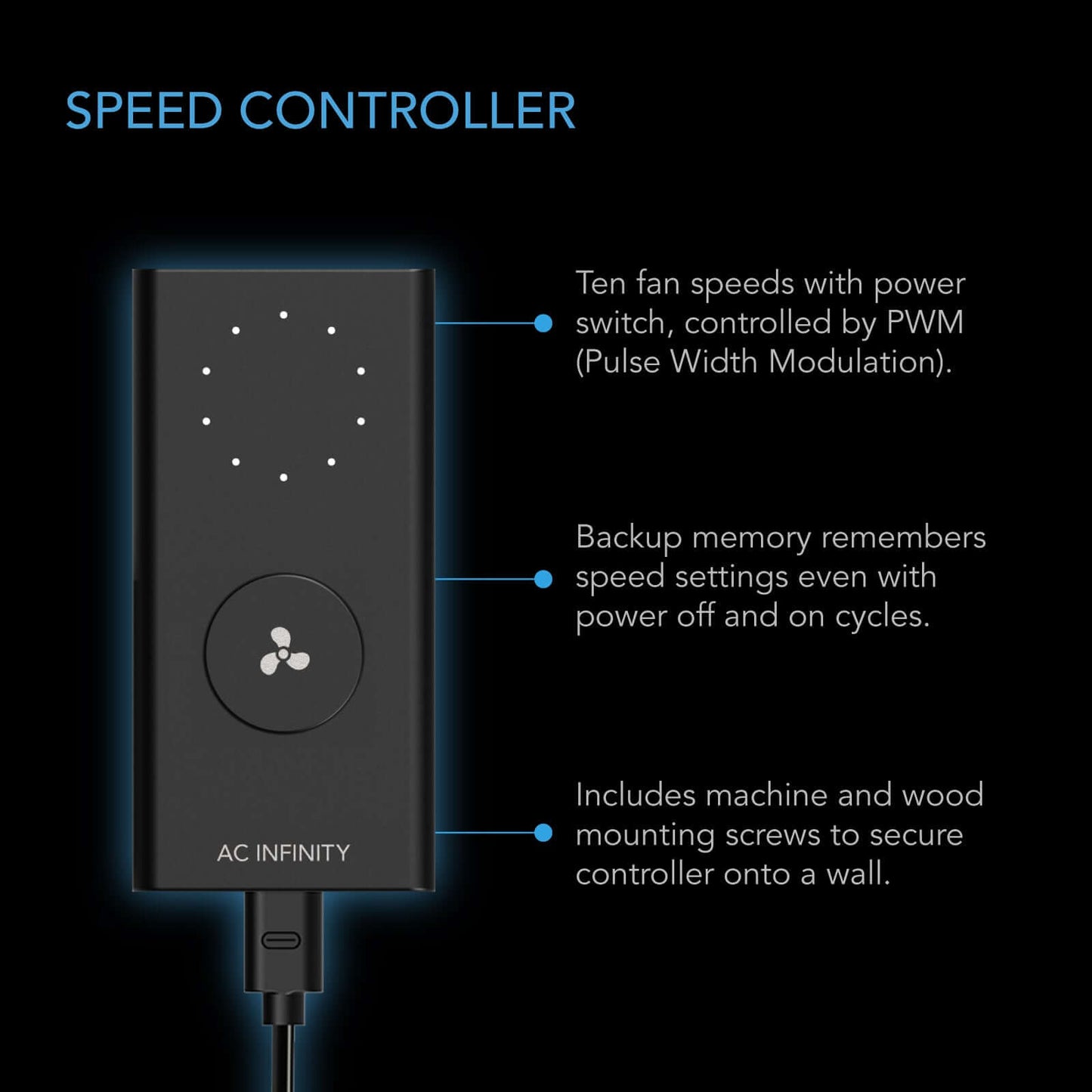

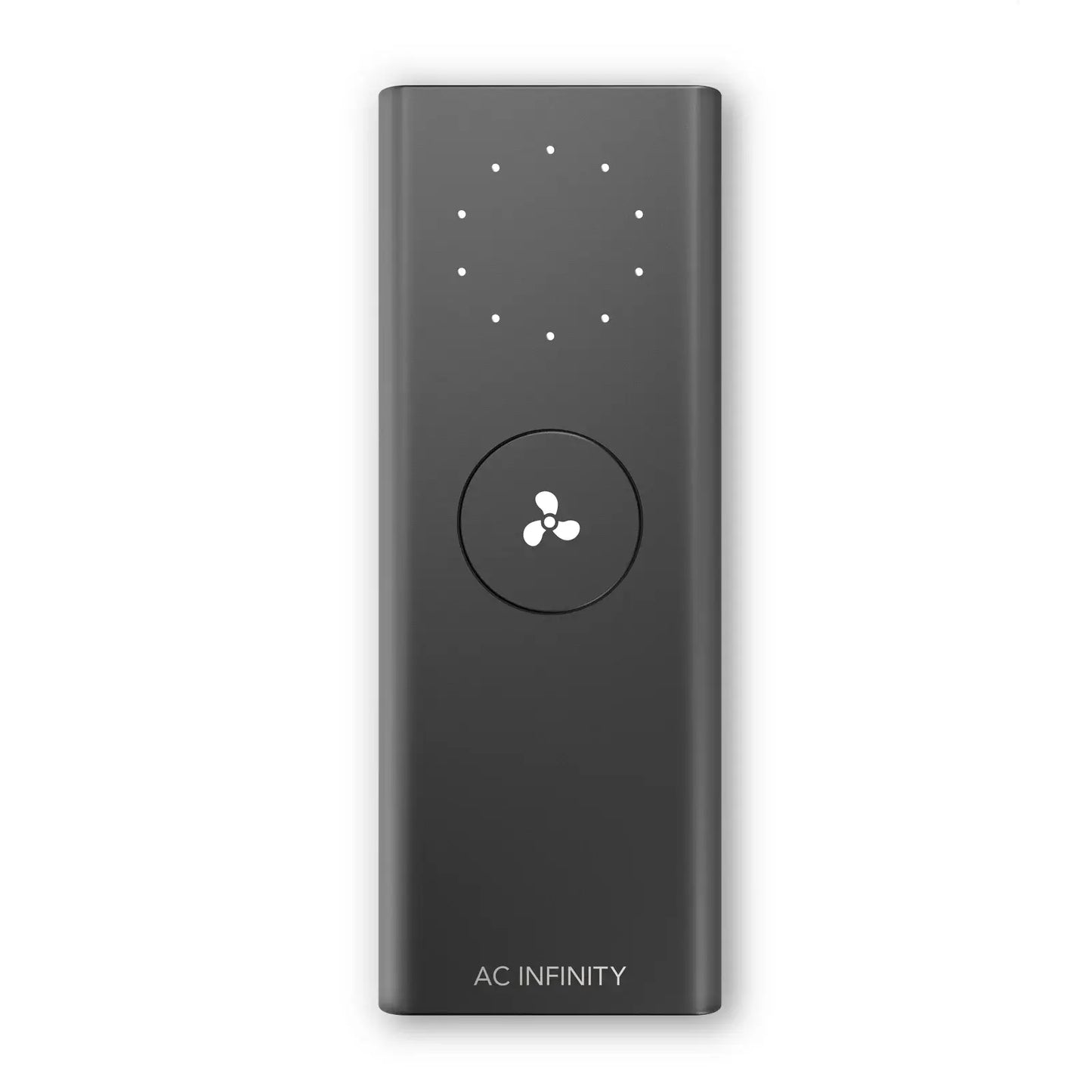

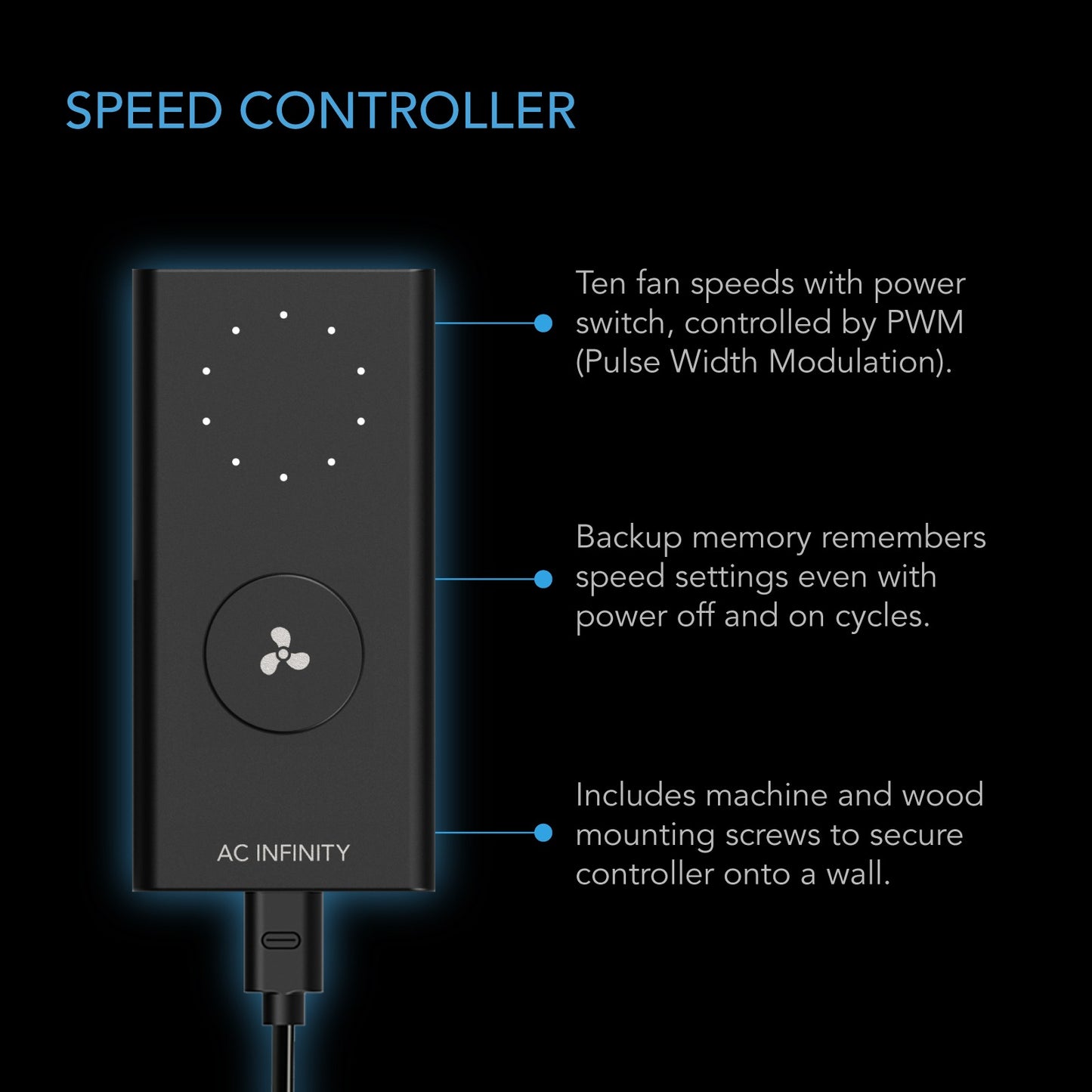

Precise Speed Controller: The speed controller lets you set between ten precise fan speed levels to optimal noise and airflow levels in mushroom-growing environments. This exact airflow control is enabled by the cutting-edge EC motor that is precisely controlled using PWM (Pulse Width Modulation). This allows it to run smoothly at extremely low RPM speeds without generating motor noise. It also features backup memory that retains the last speed setting whenever power is cut off from the controller.

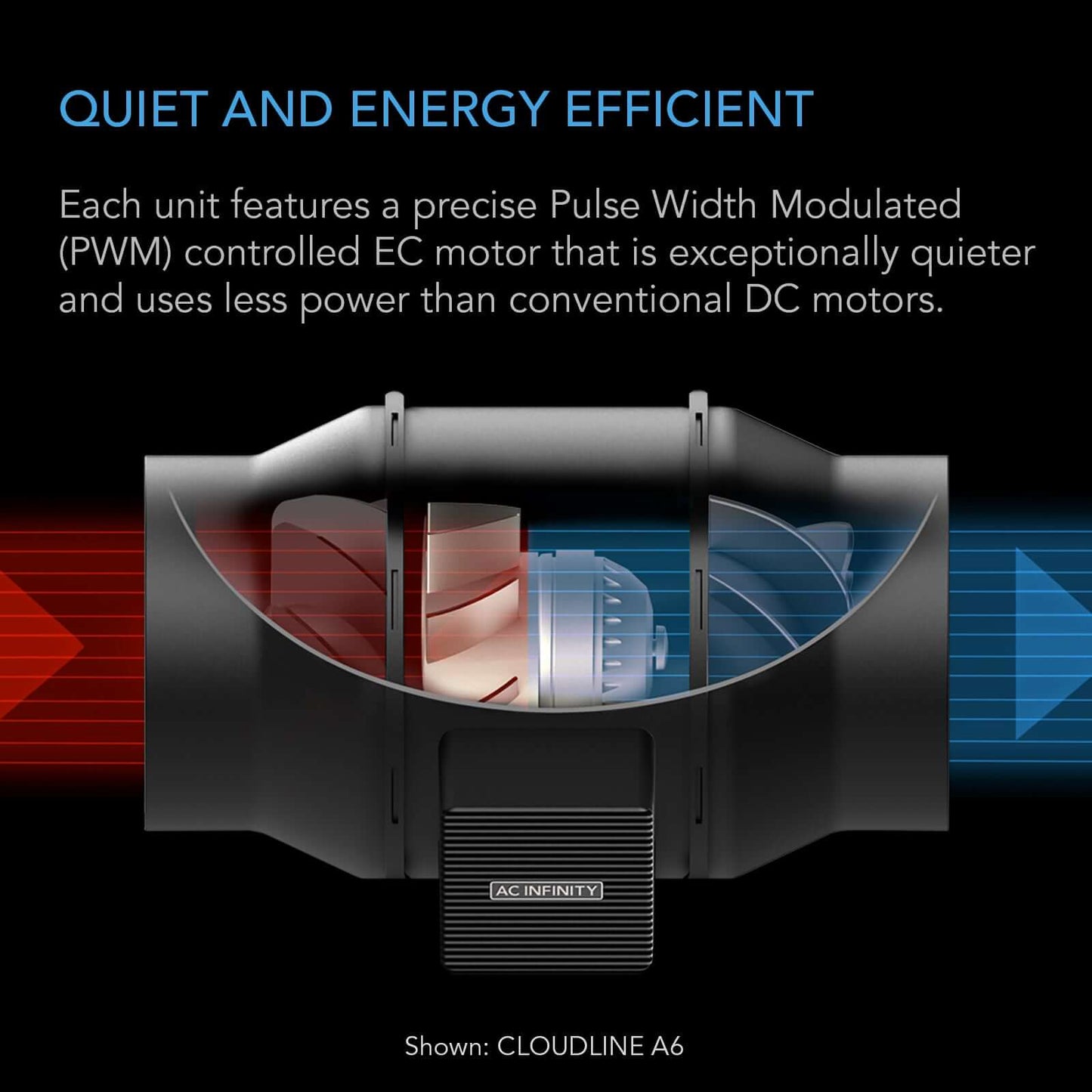

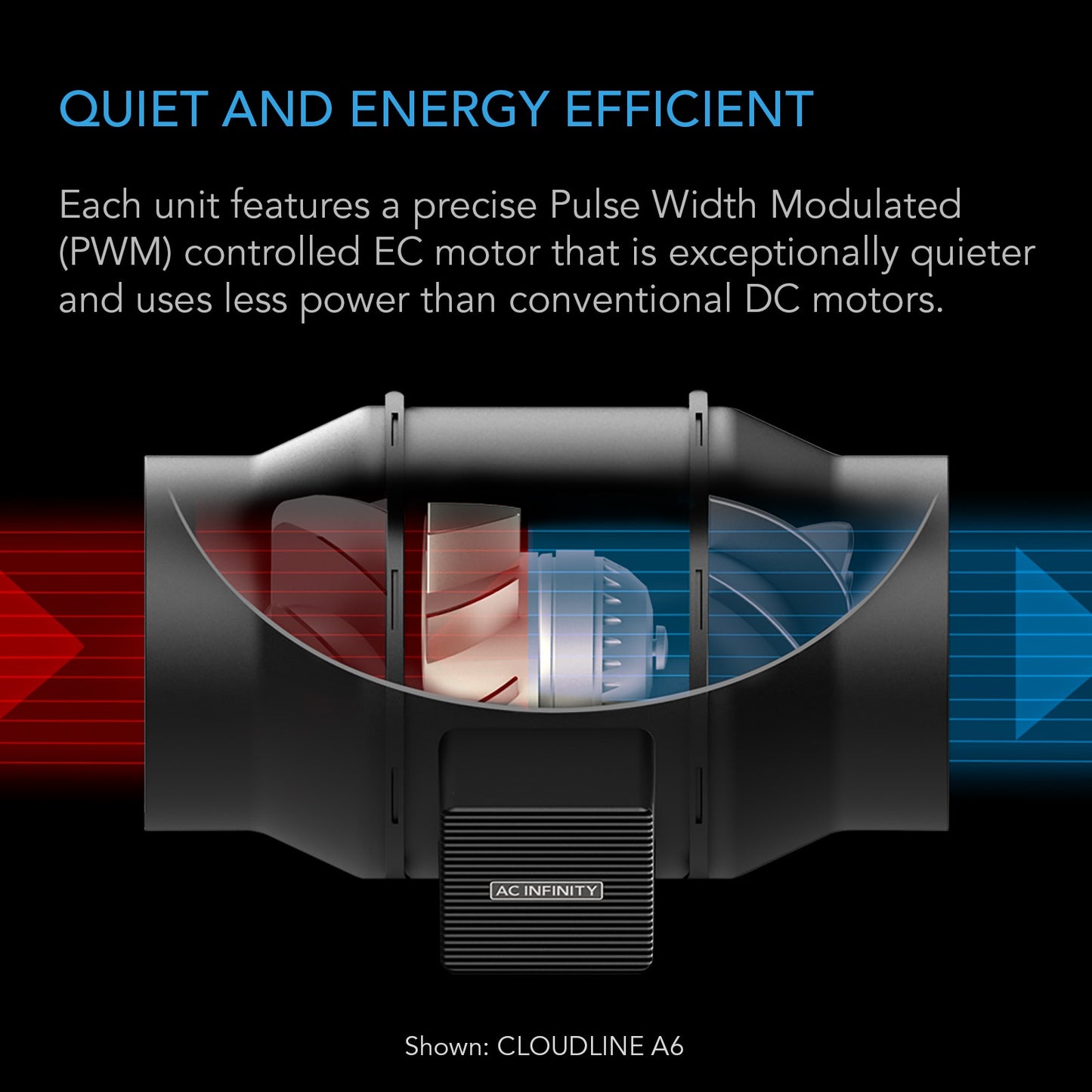

Quiet and Energy-Efficient Design: This inline fan utilizes a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to deliver airflow even in applications where air movement is restricted. In addition, it is built with dual ball bearings that have a 67,000-hour lifespan, allowing you to mount it in any direction. The motor box containing the fan's impeller and blades can be detached from the mounted frame for easy cleaning and maintenance.

Installation and Safety

Read the linked manual before installation and use. Match the power source to the product requirements and follow local electrical codes. If you are unsure about installation, use a qualified, trained and licensed professional. Keep fingers and foreign objects away from rotating parts and openings. Do not block the fan, cover its power cord, or use it with a damaged cord or after damage or malfunction. Unplug it before installation, servicing or movement; the on/off control is not a substitute for disconnecting power.

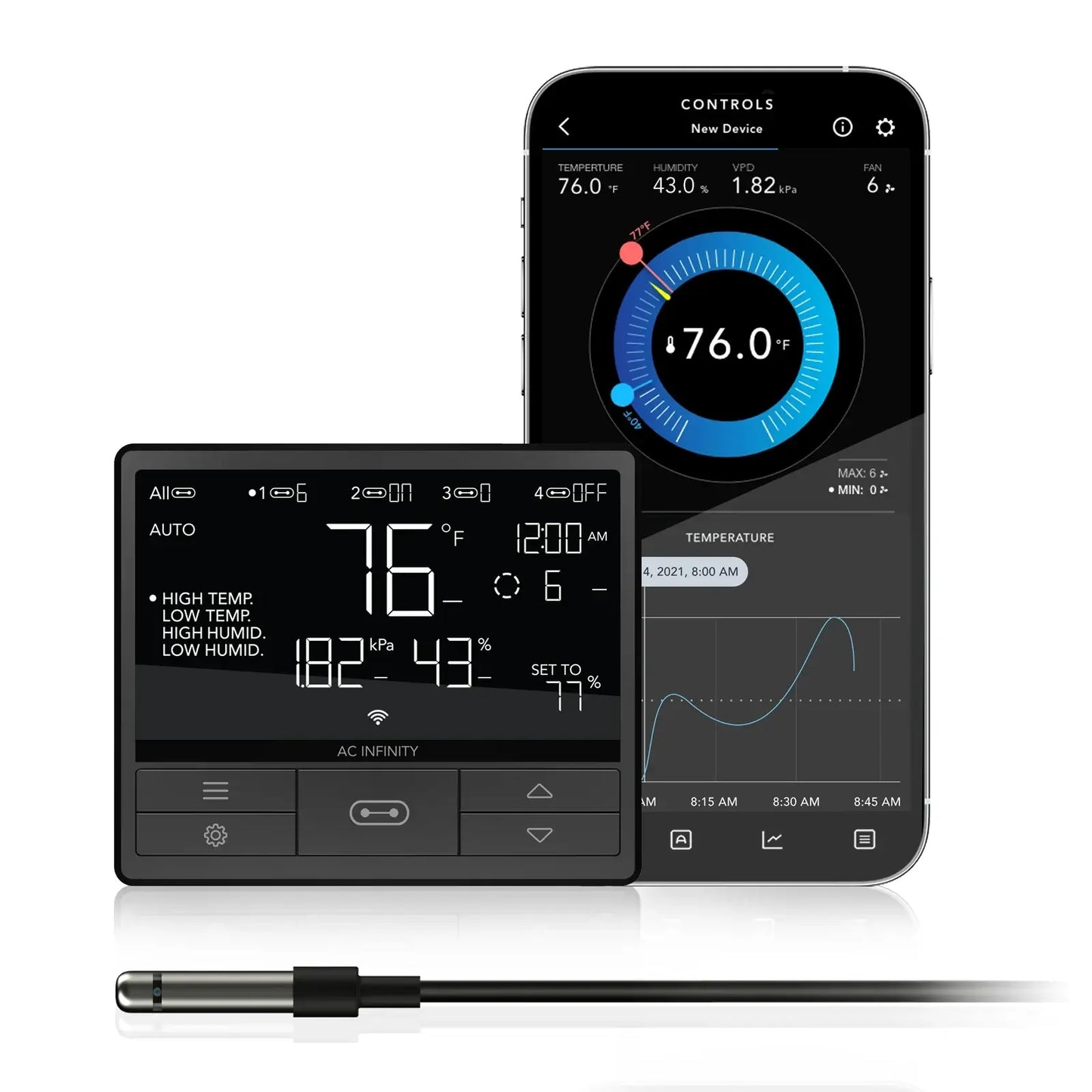

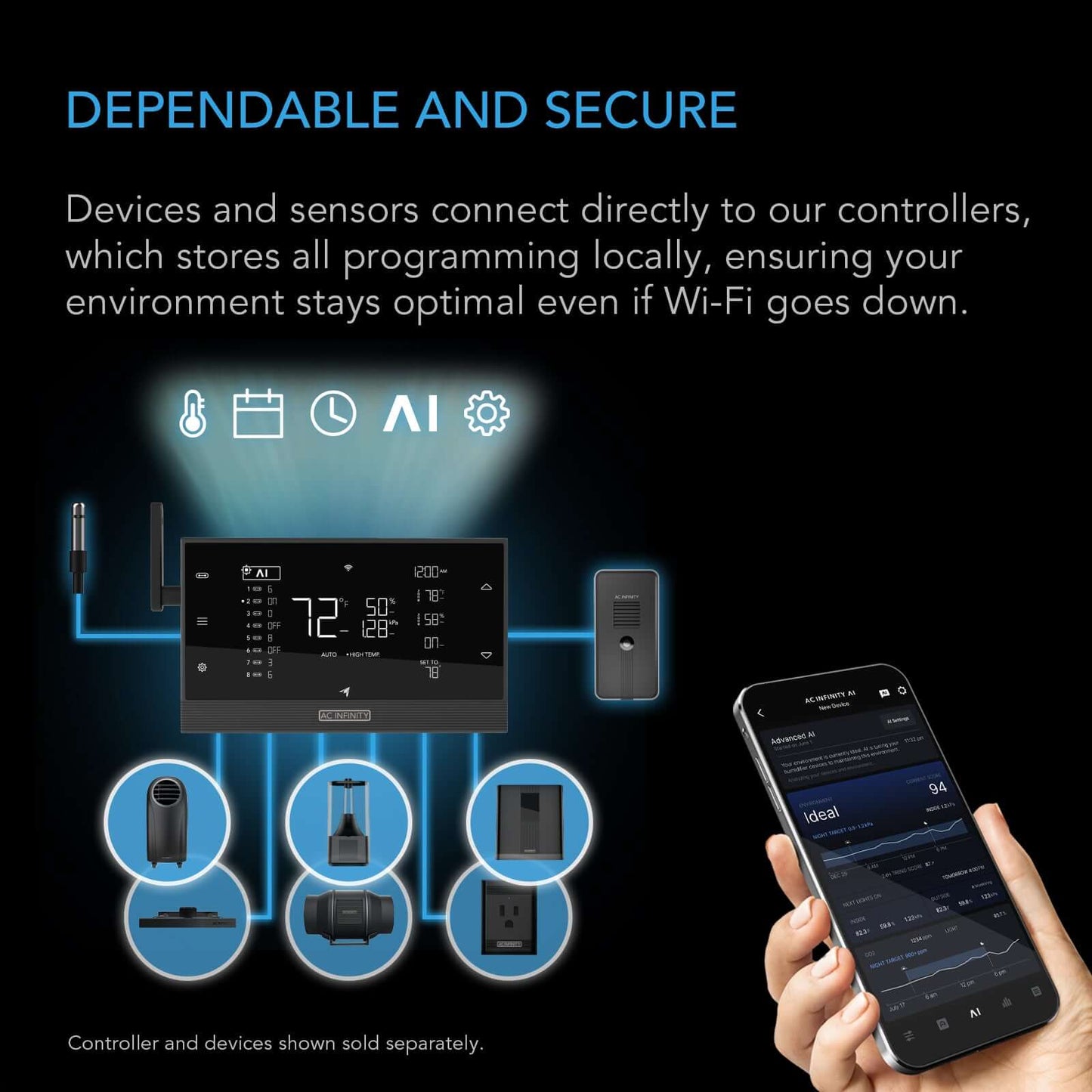

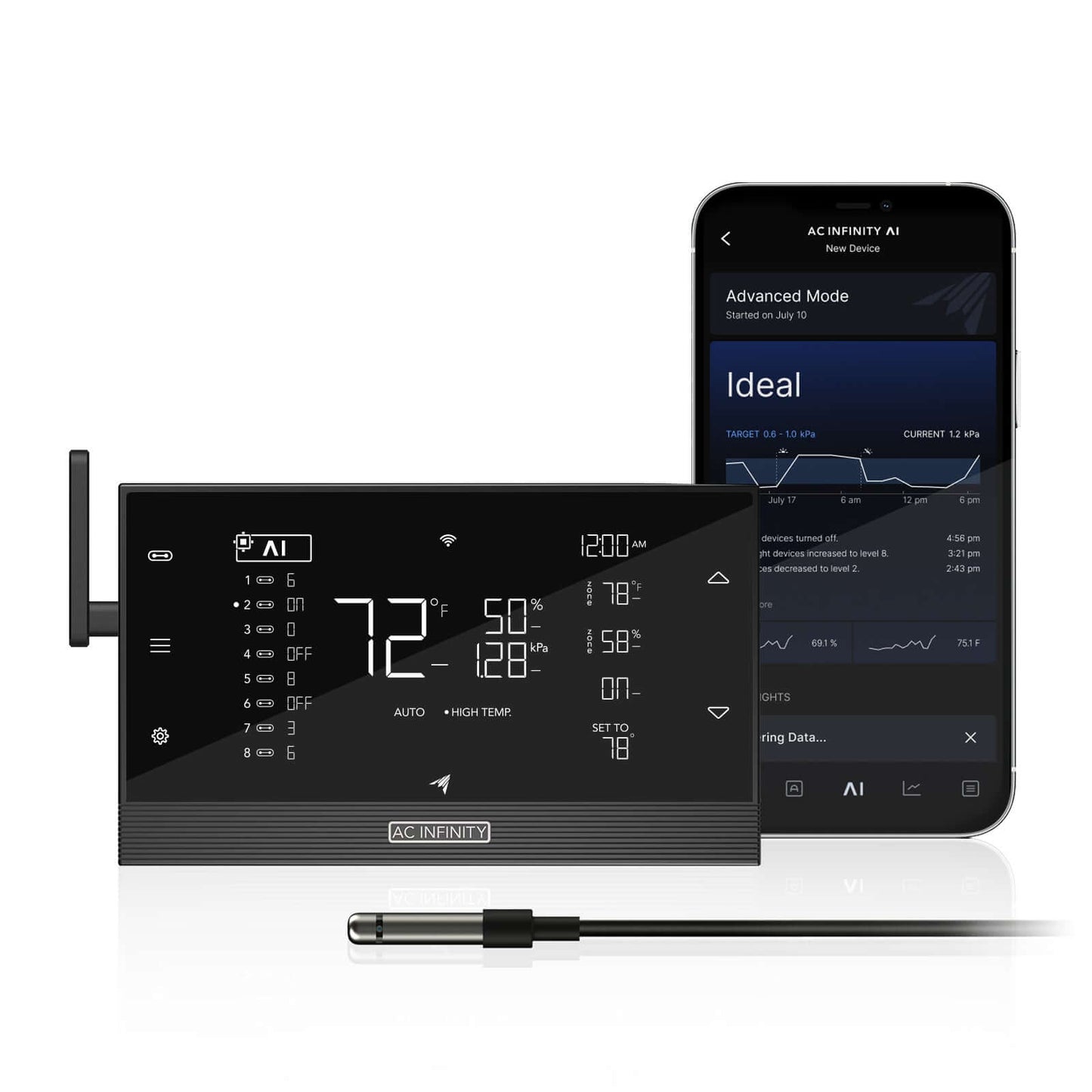

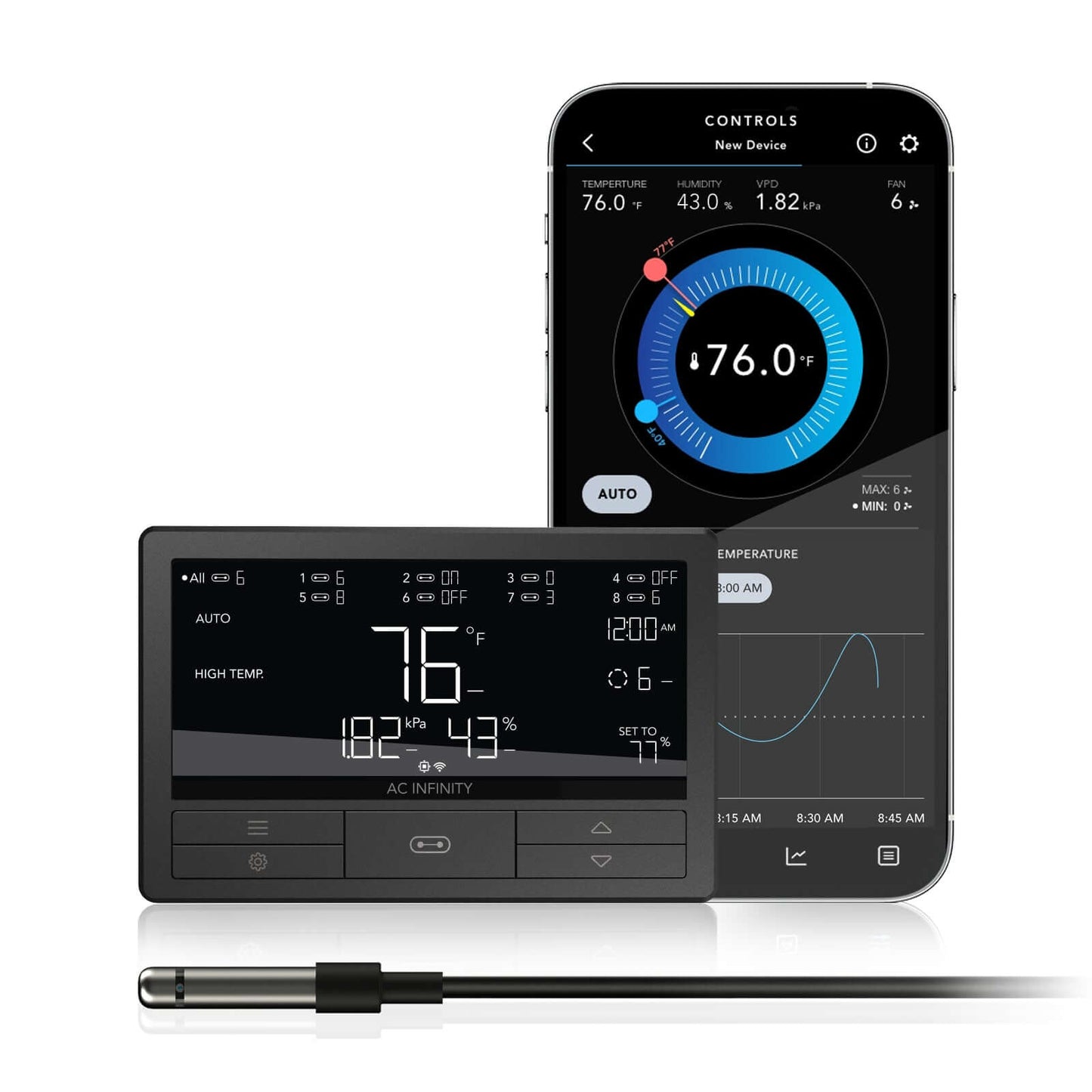

App-based control requires a compatible optional central controller. Central controllers, other grow devices and optional adapters are sold separately. Follow the linked manual for the EC-motor fan configuration; do not infer compatibility with a DC-motor fan from a shared family name.

Do not use this product in flammable, explosive, chemical-laden or wet locations. Follow the linked manual and local installation codes.

Ducted products must be vented outdoors as instructed in the manual.

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: CLOUDLINE H4

Product Model: AI-CLH4

UPC Code: 819137024595

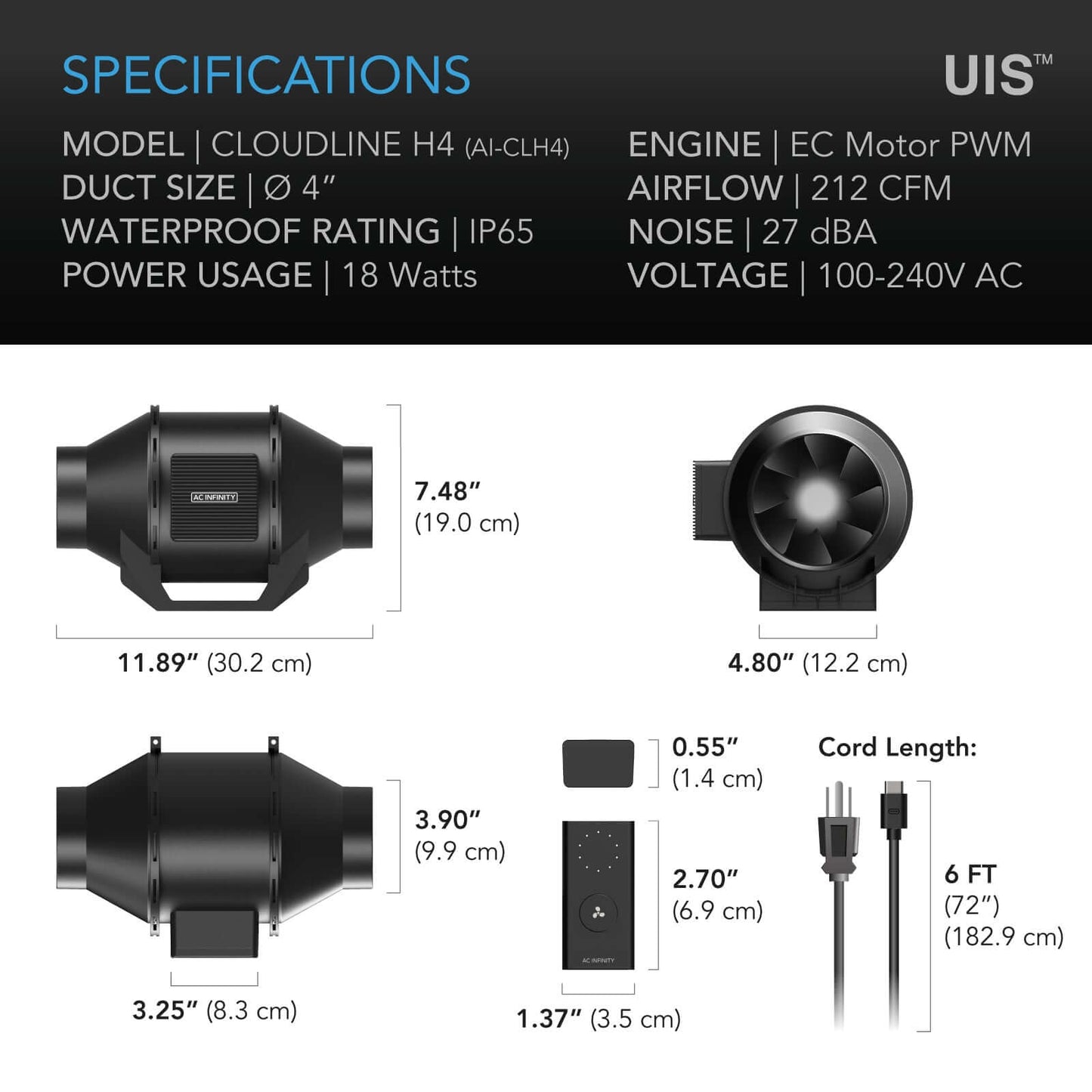

Product and Mounting Dimensions - Fan Unit

Duct Size: 4"

Total Dimensions: 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)

Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)

Screw Hole Diameter: 0.197 in. (0.5 cm)

Cord Length to Controller: 72 in. (6 feet)

Cord Length to Plug: 72 in. (6 feet)

Product and Mounting Dimensions - Controller

Total Airflow: 212 CFM

Total Noise: 27 dBA

Max Speed: 3000 RPM

Static Pressure: 324 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 35 W

Average Power Usage: 18 W

Current: 0.55 A

Power Connector Type: US Plug (NEMA 5-15 Type B)

Operating Humidity: 35 to 95% RH

Operating Temperature: 32 to 140 degrees F

Ingress Protection: IP 65

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Data Sheet

• CLOUDLINE duct-fan compliance certificate 5021417
• Fan RoHS report SZXEC1900177001 (2019-02-01; submitted samples/material declaration)
• CLOUDLINE fan-kit ICES-003 attestation HK2303090704E
• CLOUDLINE A/H CLAB2312X1 user manual

Certificate references apply only to the models, components and standards stated in the actual documents. The fan RoHS report concerns submitted samples and applicant-declared material equivalence; it is not certification of every part of a complete controller or kit.

Kit Contents

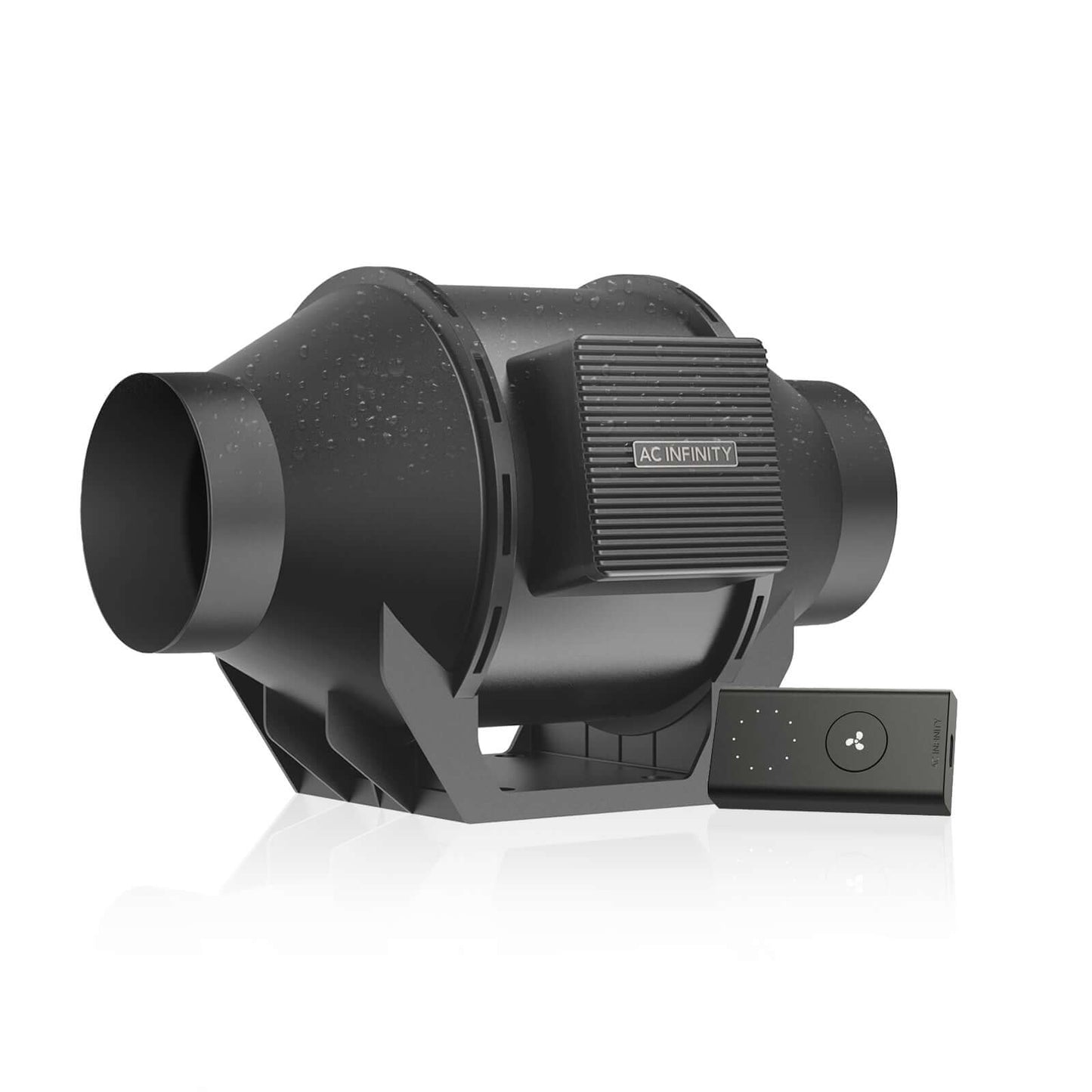

• CLOUDLINE H4 inline fan unit
• Wired 10-speed fan controller
