Description

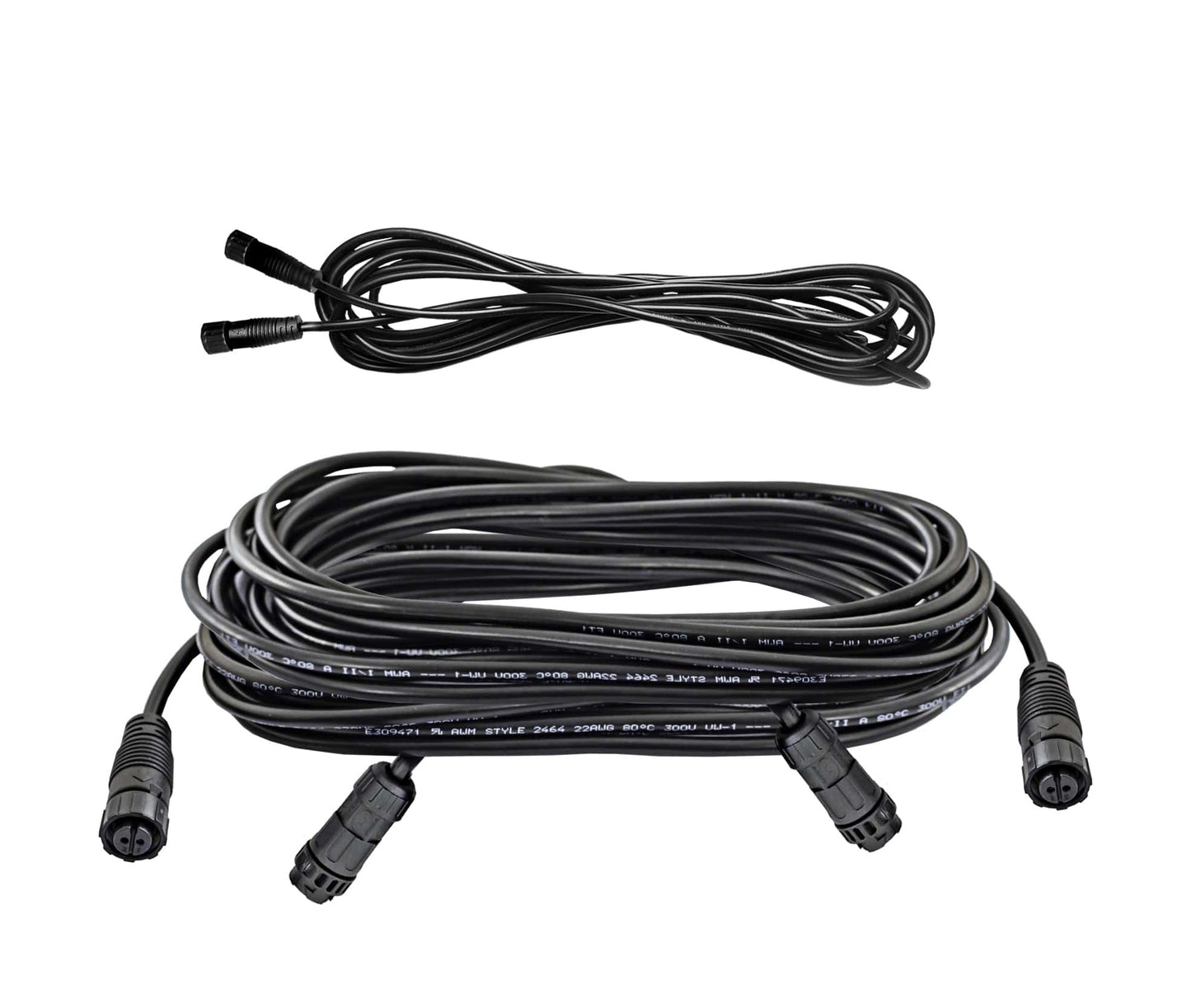

These three 5 m extension cables are designed to connect the PhotonTek driver to the LED fixture when the driver is used remotely, away from the fixture. They provide a stable, precise connection without interference. The product consists of three elements:

• 2 x 5 m extension power cables for the LED driver: M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL SJTW 2x16AWG, 300 V, 105 degrees Celsius).
• 1 x 5 m extension dimming cable for the LED driver: M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL 21996 3x22AWG, 300 V, 105 degrees Celsius, VW-1).

Specifications

These three 5 m extension cables are designed to connect the PhotonTek driver to the LED fixture when the driver is used remotely, away from the fixture. They provide a stable, precise connection without interference. The product consists of three elements:

2 x 5 m extension power cables for the LED driver

M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL SJTW 2x16AWG, 300 V, 105 degrees Celsius).

Technical/test data: power cables

• Withstand voltage between any two poles: 500 VAC, 2 mA, for 3 s, with no breakdown or leakage current.
• Withstand voltage between the outer cover and electrode: 500 VAC, 2 mA, for 3 s, with no breakdown or leakage current.
• Insulation resistance: 100M@100V.
• Temperature resistance: 105 degrees Celsius.
• Working temperature: -20 degrees Celsius to 105 degrees Celsius.
• Storage temperature: -25 degrees Celsius to 105 degrees Celsius.
• IP65.
• RoHS compliant.

1 x 5 m extension dimming cable for the LED driver

M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL 21996 3x22AWG, 300 V, 105 degrees Celsius, VW-1).

Technical/test data: dimming cable

• Withstand voltage between any two poles: 500 VAC, 1 mA, for 3 s, with no breakdown or leakage current.
• Withstand voltage between the outer cover and electrode: 500 VAC, 1 mA, for 3 s, with no breakdown or leakage current.
• Insulation resistance: 100M@100V.
• Temperature resistance: 105 degrees Celsius.
• Working temperature: -20 degrees Celsius to 105 degrees Celsius.
• Storage temperature: -25 degrees Celsius to 105 degrees Celsius.
• RoHS compliant.

Kit Contents

• 2 x 5 m extension power cables for the LED driver: M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL SJTW 2x16AWG, 300 V, 105 degrees Celsius).
• 1 x 5 m extension dimming cable for the LED driver: M19-2 self-locking male and female injection-molded connectors with a 5 m extension cable (wire gauge: UL 21996 3x22AWG, 300 V, 105 degrees Celsius, VW-1).
