Description

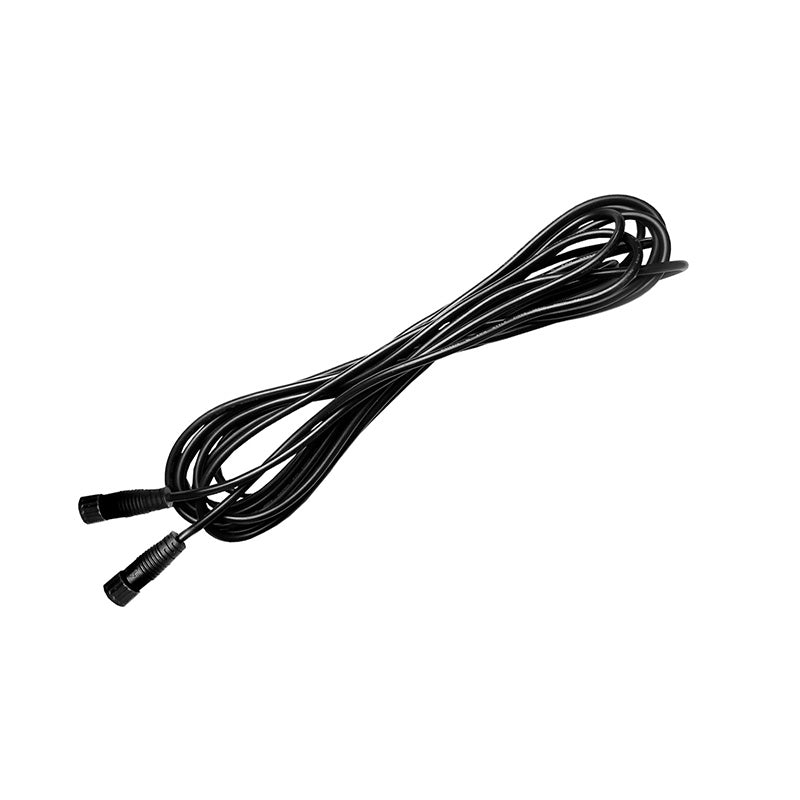

This 5 m Control Link Cable is designed to daisy-chain PhotonTek controllable LED fixtures, providing a stable, precise connection without interference.

Connect the M12 self-locking male plug to the LED structure's Signal Out output, and connect the M12 self-locking female plug to the next fixture's Signal In input.

Specifications

• Product code: PTEKM0018.
• Wire gauge: UL 2464 3x22AWG, 80 degrees Celsius, 300 V, VW-1.
• Withstand-voltage test: 800 VAC between the conductor and insulator, 2 mA, for 60 s, with no breakdown or leakage current.
• Temperature resistance: 80 degrees Celsius.
• Working temperature: -20 degrees Celsius to 105 degrees Celsius.
• Storage temperature: -25 degrees Celsius to 105 degrees Celsius.
• Ingress protection: IP65.
• Compliance: RoHS.

Kit Contents

• 1 x 5 m daisy-chain control link cable.
