Description

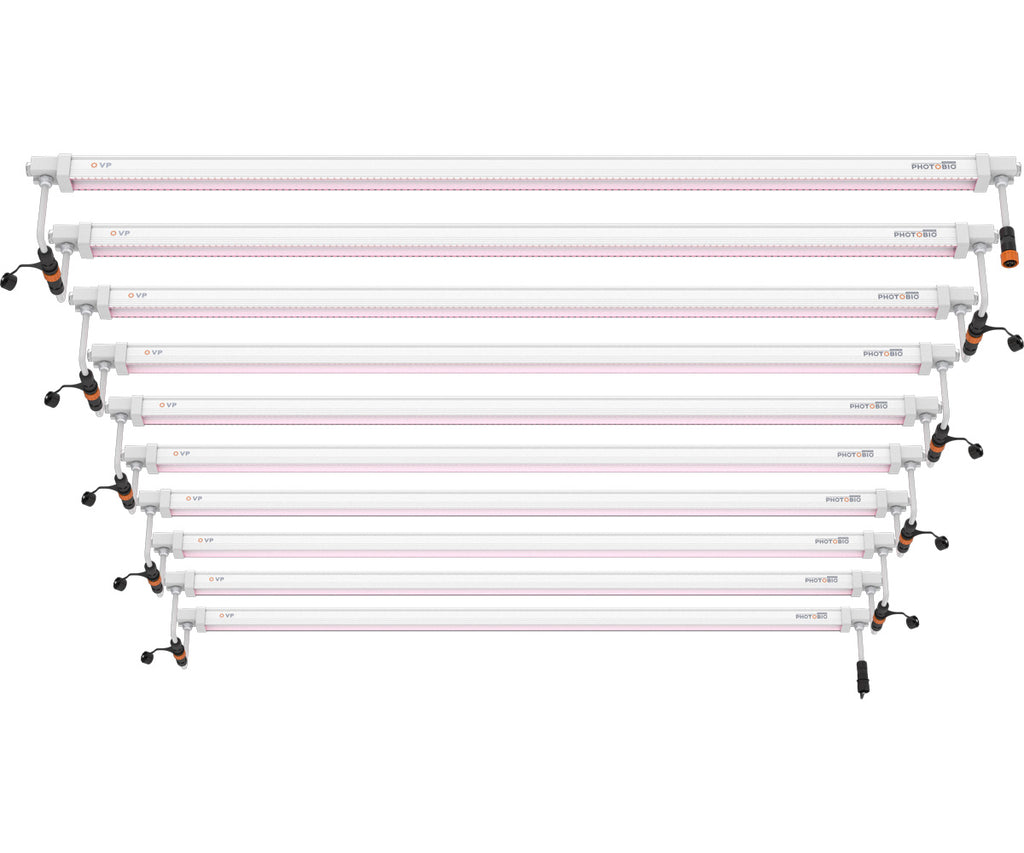

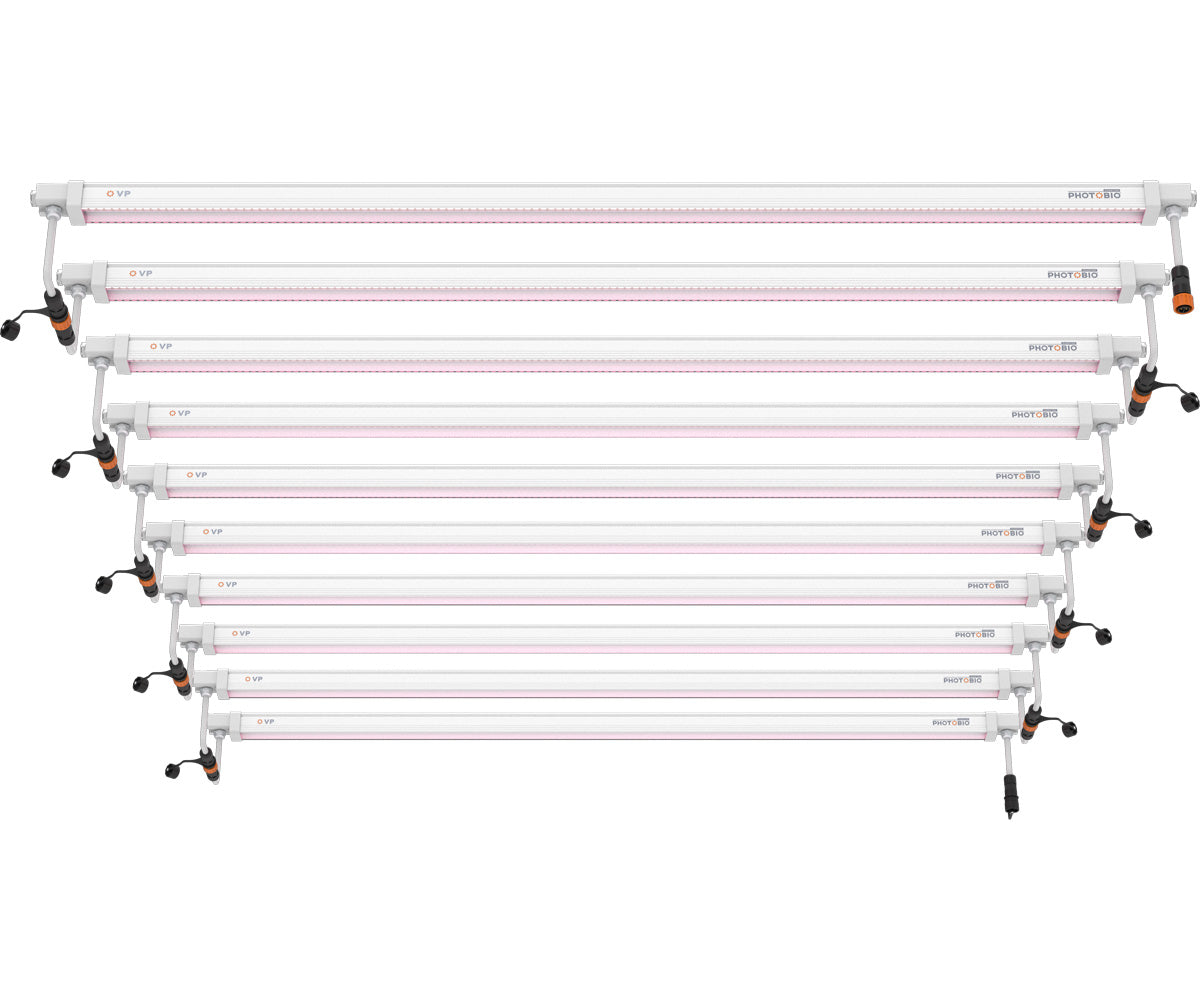

Product Details: PHOTOBIO-VP is a modular, high-efficiency LED system designed for vegetative, propagation, and vertical farming. PHOTOBIO-VP's slim vertical profile maximizes vertical real estate allowing greater production space, and its modular design lets you link and power multiple 100-277V fixtures from a single input power. PHOTOBIO-VP features a tailored spectrum for vegetative and propagation growth stages, ideal for vertical farming and propagation. IP65 ingress protection rating from dust and liquids. IP65 power connection allows quick attachment at the fixture for easy installation and maintenance. Sold in pairs.

Features

• 32W horticultural LED solution with slim vertical profile 47.25" length x 1.375" width x 1.375" height and 1.54 lbs per fixture
• 73.6 umol/s Photon Flux @ 277V
• 67.2 umol/s PPF
• 2.3 umol/J efficacy @ 277V
• Lumiled diodes produce the VE Spectrum
• Daisy chain 10-23 fixtures together from a single power source depending on the voltage
• Passive cooling
• Liquid tight push lock connectors compatible with existing PHOTOBIO cable environment
• Power cords sold separately
• Fixture input voltage: 100-277V
• 5-year warranty
• IP65 rated
• CE, ETL, FCC, DLC Certified

Specifications

• Average Rated Life Hours: 50000
• Fixture input voltage range (V): 100-277
• CE registration: Yes
• ETL registration: YES
• FCC registration: Yes
• Frequency: 50/60 Hz
• Rated Wattage: 32 W
• RoHS registration: Yes
• Net weight, two-pack: 3.09 lbs (1.4 kg)
• Fixture width: 1.375 inches (35 mm)
• Fixture length: 47.25 inches (1200 mm)
• Fixture height: 1.375 inches (35 mm)
• Voltage: 100-277
• Wire Gauge (AWG): 18
• Barcodes: 638104027984 (UPC-A) 10638104027981 (GTIN)
• Dimensions: 48.0L x 2.1W x 3.7H (EA) 48.3L x 10.2W x 5.9H (CS) 48.0L x 44.0W x 98.0H (PL)
• Shipping Weight: 4.4 lbs.

Data Sheet

• Download the Cut Sheet PHOTOBIO VP: here
• Download the instructions: here
• Download the PPFD Map PHOTOBIOVP: here

Kit Contents

• 4 mounting clips
• Screws
• Zip-ties for installation
• Sold in pairs. Performance specifications are for a single fixture.
