Description

The FloraFlex Quick Disconnect Pipe System is an eight-outlet manifold that delivers water and nutrients to your plants at the pressure you choose. Its manifold components can be assembled and taken apart quickly.

Use PVC primer and glue for the PVC pipe-to-fitting connections. The Flora Pipe Fitting snaps into the Flora Valve without glue; the Quick Disconnect allows the bubbler to be disconnected.

This assembled unit includes the components listed in Kit Contents.

Specifications

• Dimensions: 10.5L x 14.0W x 14.0H (CS) 3.5L x 3.0W x 12.0H (EA)
• Barcodes: 10817593020332 (GTIN) 817593020335 (UPC-A)
• Shipping Weight: 0.56 lbs.

Kit Contents

• Flora Pipe Fitting T, 3/4 inch.
• Flora Valve.
• Quick Disconnect.
• Multi Flow Bubbler.

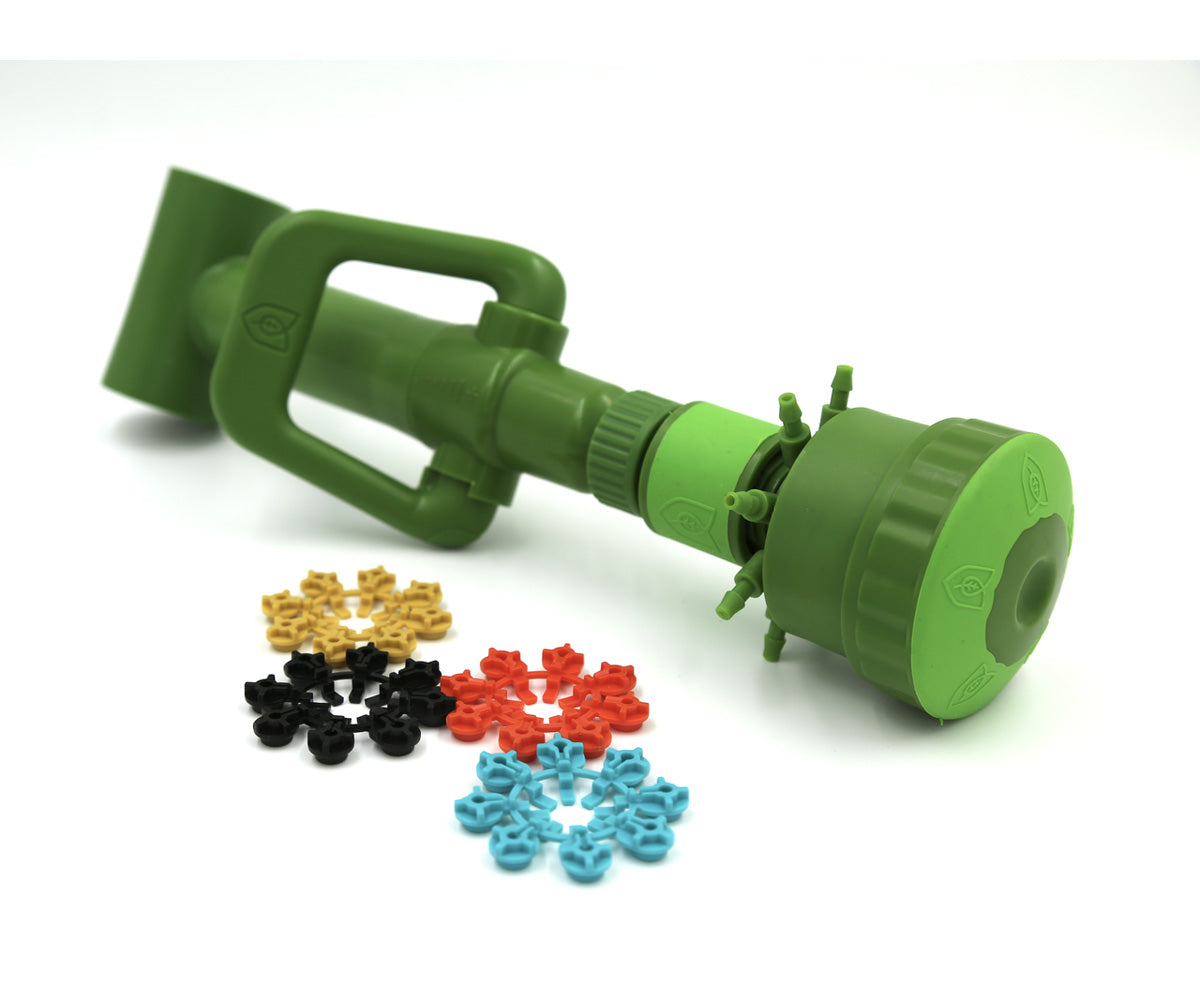

Multi Flow Bubbler

The eight-outlet manifold delivers water and nutrients at the pressure you choose and connects to the valve using the Quick Disconnect. Bubblers are available with or without flow inserts. The Open Flow Bubbler version has no pressure regulation. This Multi Flow version includes four color-coordinated, interchangeable, quick-loading flow inserts:

• 2 GPH: yellow.
• 6 GPH: black.
• 10 GPH: red.
• 20 GPH: blue.

• 1/2-inch inlet for the Quick Disconnect.
• Eight barbed ports for 1/4-inch OD tubing.
• Rubber grip on top for easy use.
• Material: ABS.
