Description

What’s in the Box?

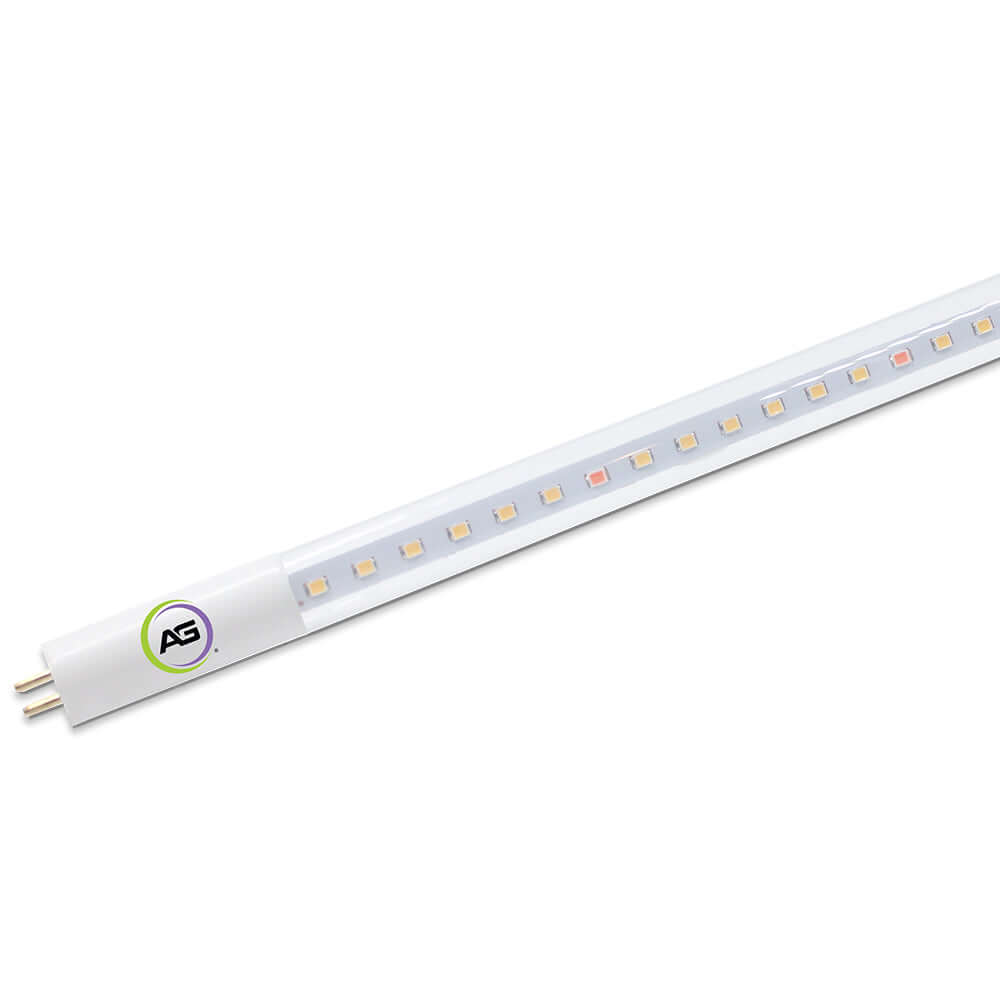

• 4x 25W T5 HO Ballast Bypass 4FT LED Grow Lamps
• 1x Lamp installation guide
• 2x Fixture modification stickers

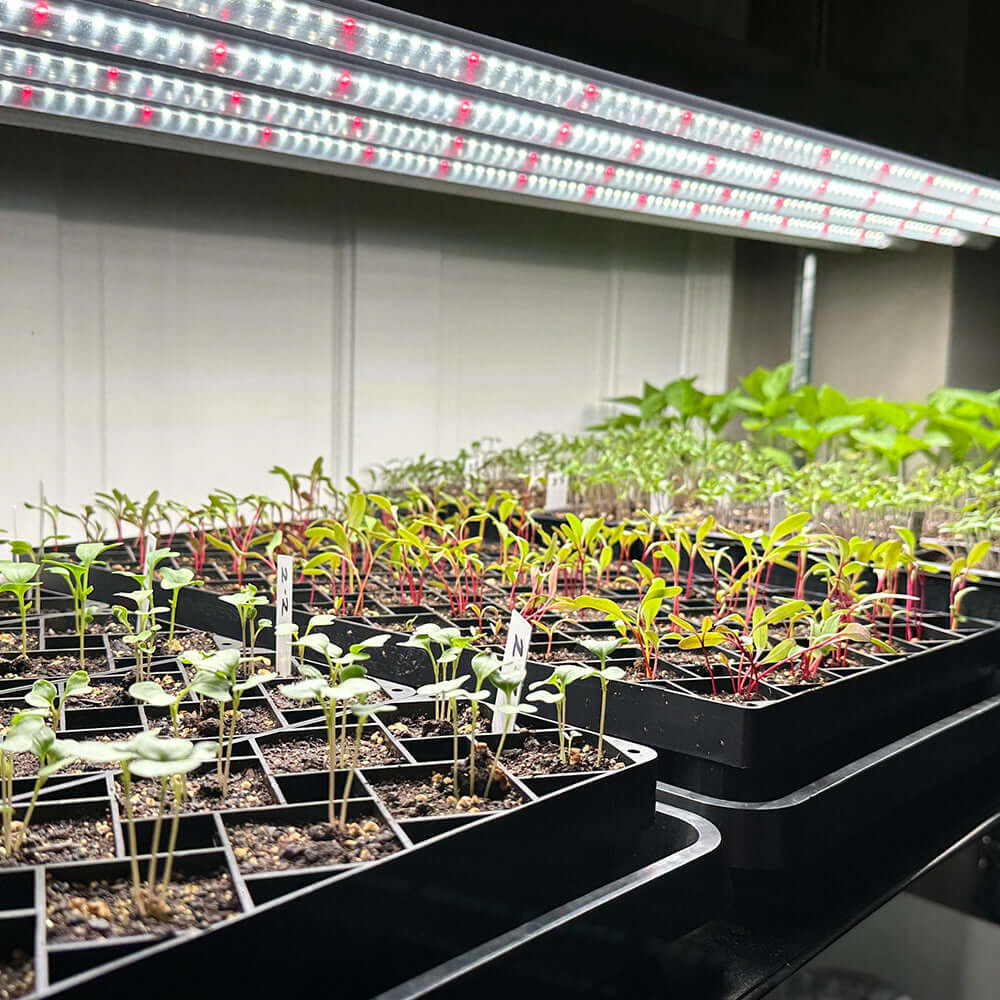

What Can I Grow?

Ideal for use in commercial or home grow applications for seed starting, microgreens (dark green varieties, mustards, radishes, spicy mixes, etc.), leafy greens (mixed greens, red leaf, red lolla rosa, etc.), herbs (chives, cilantro, mint, peppermint, etc.), vegetable starts, and for the vegetative stage of growth.

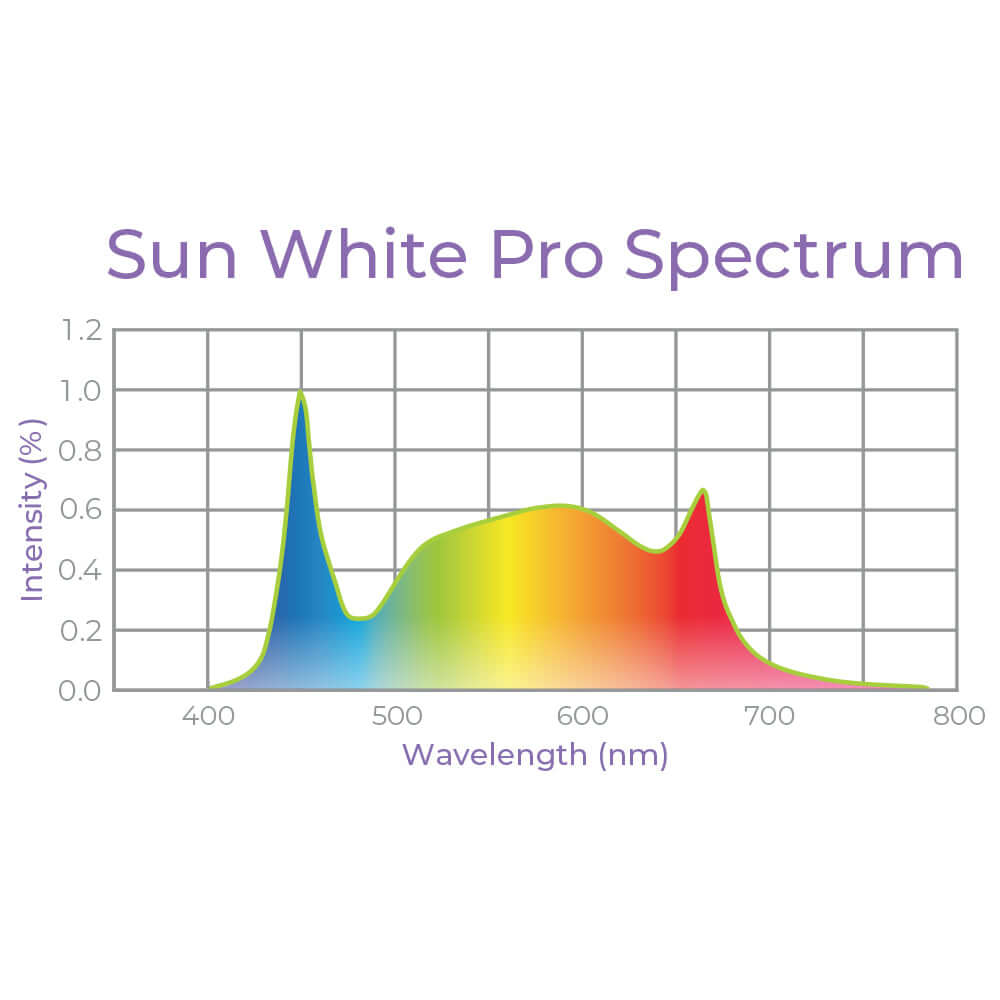

Sun White Pro Spectrum

This professional-grade production spectrum is designed for commercial facilities and formulated with higher blue light content and dedicated 660 nm (red) wavelengths to promote healthy vegetative growth, root development, tight internodal spacing, phytochemical production and increased flavonoid content.

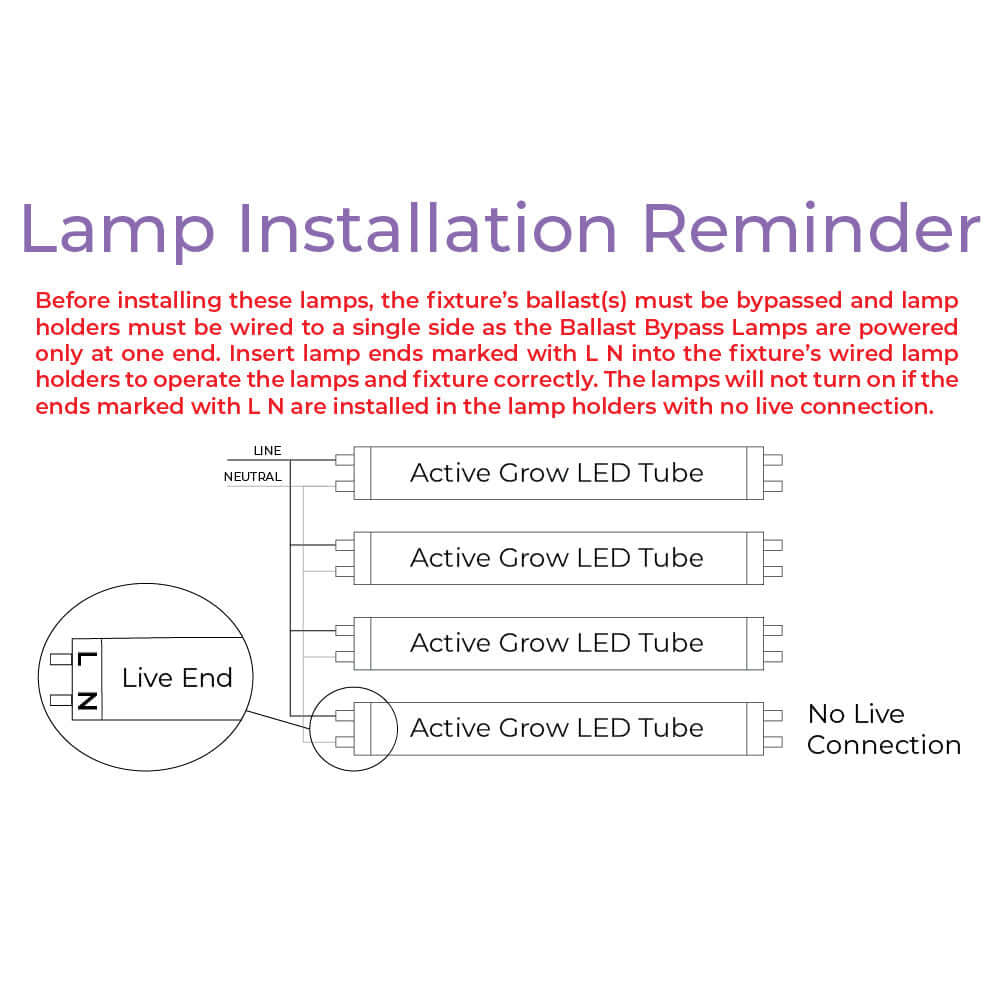

Bypass the Hassle

This ballast bypass LED grow lamp works with existing T5 fluorescent light fixtures by bypassing the ballast and wiring the lamp holders (tombstones) to a single end. Without the need for a ballast, these universal voltage 120-277V lamps do not flicker, buzz or experience longevity issues. *Requires bypassing the ballast during installation. Requires non-shunted lamp holders (tombstones). Please refer to the T5 LED Grow Light Bypass Ballast Instructions video for detailed installation steps.

Sustainable Horticultural Lighting

Replaces 54W T5 HO 4FT fluorescent lamps. Uses 60% less energy, greatly reducing heat output, HVAC costs and the need for more vertical space.

Plant Centric Design

Designed specifically for horticulture use with a 100% more effective spectrum for plant growth and a high PBAR (280-800nm) output and efficacy.

Shatterproof Design

The lamp’s transparent PC body protects against water damage and shattering without sacrificing photon output.

Long Lifetime & Guarantee

Features an exceptional 30,000-hour lifetime and a 1-year limited warranty. Active Grow is locally based in Seattle, WA providing same-day response and friendly support.

Certified Safe

All lamp components and manufacturing processes meet the highest industry safety standards.

Rebates Available

This LED retrofit solution may be eligible to receive large utility rebates for commercial projects.

Specifications

• Model number: AG/25T5HOBB/4FT/PS/4
• Base: G5
• Power: 25 watts
• Input voltage: 120-277V 50-60Hz
• Ballast compatible: No
• Rated power factor: >95%
• PPF output (400-700 nm): 51 umol/s
• PBAR output (280-800 nm): 52 umol/s
• PPF efficacy: 2.04 umol/J
• PBAR efficacy: 2.08 umol/J
• Spectrum: Sun White Pro Spectrum
• CRI: 88 (typical)
• Dimensions: 45.63"x0.75"x0.75" (1159x19x19mm)
• Weight: 0.40 lbs (181 g)
• Dimmable: No
• Lifetime: 30,000 hours
• Warranty: 1 year

Data Sheet

• Download the data sheet: Active Grow 25W T5 HO Ballast Bypass 4FT Sun White Pro Lamp Data Sheet
