Description

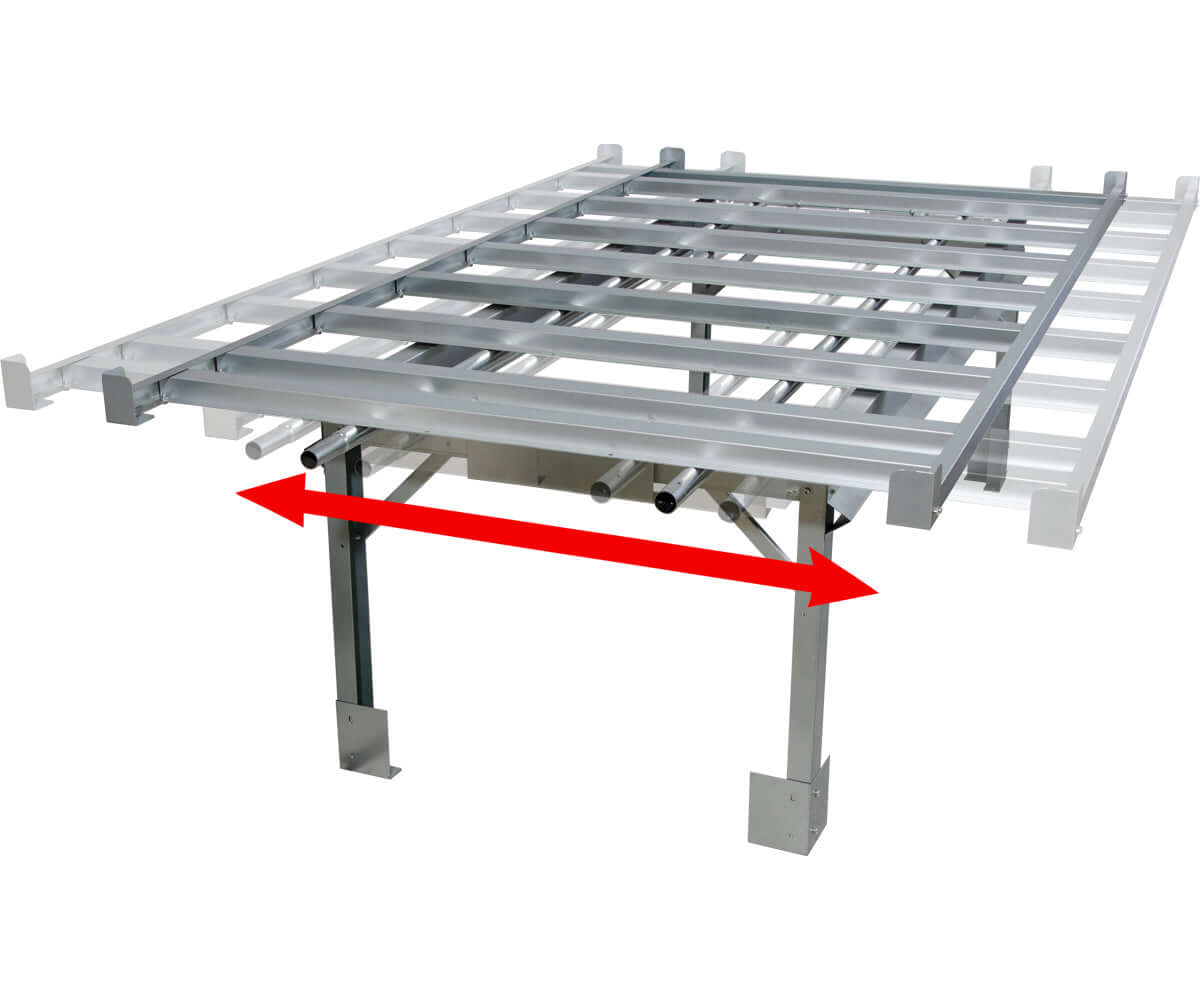

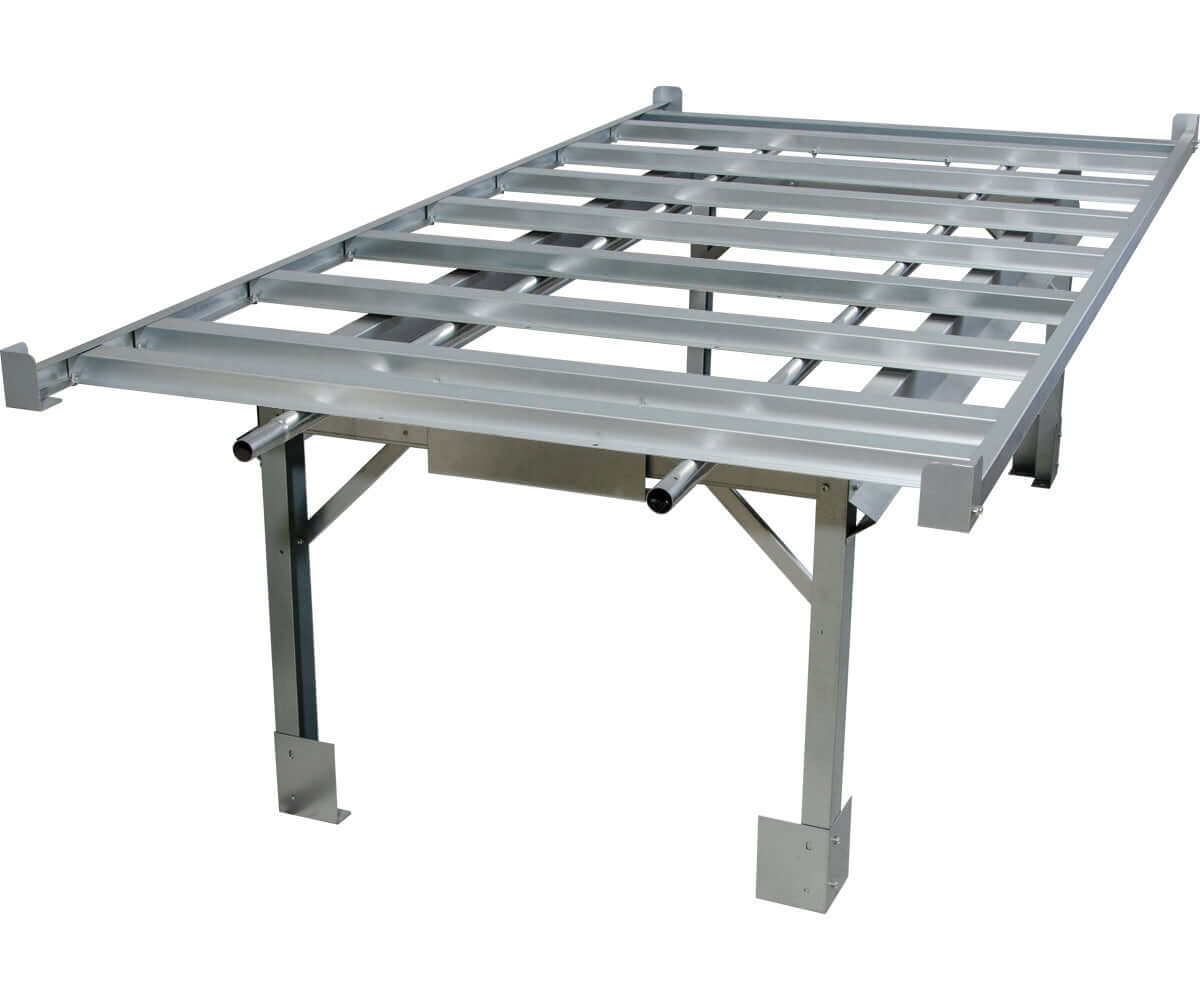

The Active Aqua AARBK48 rolling bench moves from side to side to create an aisle where it is needed. Its heavy-duty galvanised-steel construction accepts flood tables, expanded-metal tops or wire-mesh tops. Benches connect end-to-end in 8 ft increments for custom lengths.

Peaked roll bars support smooth movement and help prevent soil, chemical and water buildup. A special retainer helps prevent the bench top from tipping. Parts have pre-punched holes for assembly.

The bench measures 4 ft wide by 8 ft long by 28¾ inches high and rolls 7¾ inches to either side. The manual states a load limit of 18 lb per square foot with a 576 lb maximum concentrated load when properly installed and bearing evenly distributed weight.

Install on a hard, level surface and securely bolt every leg anchor to the floor. For concrete floors, ¾-inch anchor bolts are recommended. Distribute the load evenly on the cross-bars; do not load only the cantilever side. Failure to bolt the leg anchors to the floor voids the manual’s warranty condition.

Note: Tray AATUL84 is compatible if only one 4x8 rolling bench is needed.

The manual lists the 4 ft × 8 ft Active Aqua Flood Table AAHR84W as an optional accessory.

Specifications

• Model: AARBK48.
• Width × length × height: 4 ft × 8 ft × 28¾ inches.
• Travel: 7¾ inches to either side.
• Construction: heavy-duty galvanised steel.
• Load statement: 18 lb per square foot and 576 lb maximum concentrated load, subject to proper installation and evenly distributed weight.
• Anchoring: leg anchors must be securely bolted to a hard, level floor.
• Barcodes: 638104023757 (UPC-A)
• Dimensions: 98.0L x 12.0W x 7.0H (EA) 99.0L x 46.0W x 41.0H (PL)
• Shipping Weight: 97 lbs.

Unboxed figures (units not specified):

• Height (Unboxed): 36
• Length (Unboxed): 96
• Weight (Unboxed): 87
• Width (Unboxed): 48

Data Sheet

Operating instructions and technical document references:

Active Aqua AARBK48 Rolling Bench Manual

Kit Contents

• 20 nuts
• 96 bolts
• Four corner pieces: two left and two right
• Four leg anchors
• Four corner braces
• Four bench legs
• Two V-bars
• Nine cross-bars
• Two stop keepers
• Two bench shaft pipes
• Two side rails
• Two Z-runners
• Four corner support brackets
• One hex wrench
• One open-ended wrench
