Description

Amphibious next-gen pump engineered for hydro, irrigation, and water systems with versatile submerged and dry operation.

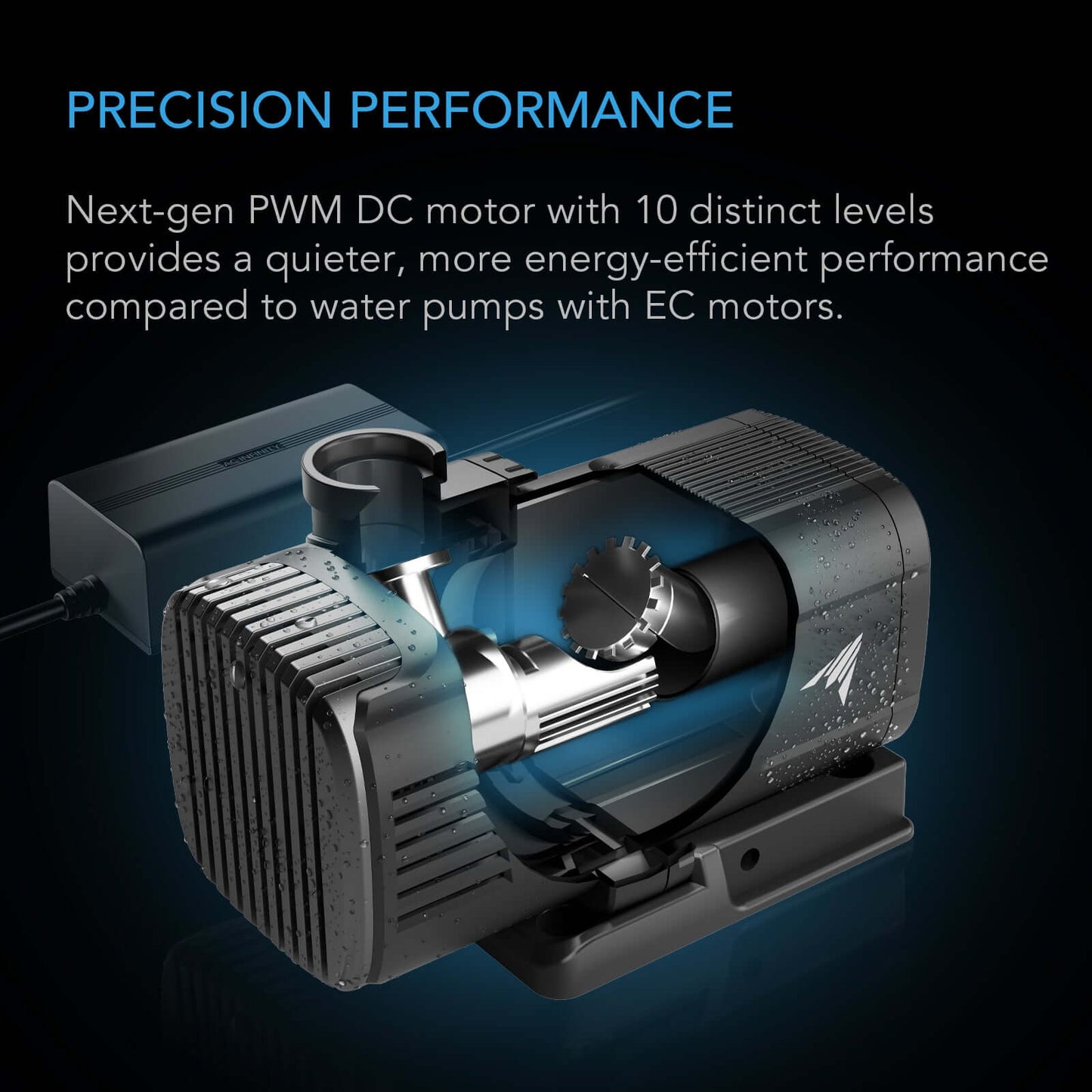

Precision DC motor with 10-speed controller delivers ultra-quiet efficiency, precise water flow, and boosted lift capacity.

Includes three interchangeable nozzles to adapt effortlessly across hydroponic and irrigation systems.

When connected to UIS controllers, unlock seamless automation with advanced controls, scheduling, and performance insights.

5.86 x 3.18 x 3.85 in. | 24W | IP-68 | Flow Rate: 528 GPH (2000 L/H) | Max Lift Height: 6.5 ft. | Cord Length: 16 ft.

Versatile Amphibious Performance: Engineered for seamless operation in hydroponic systems, this water pump delivers precise circulation adaptability across a wide range of applications. Its amphibious design, paired with an attachable input adapter, enables smooth function both submerged in water and operating on dry land. With three interchangeable nozzles included, it connects effortlessly to various hydroponic and irrigation setups, ensuring compatibility and convenience.

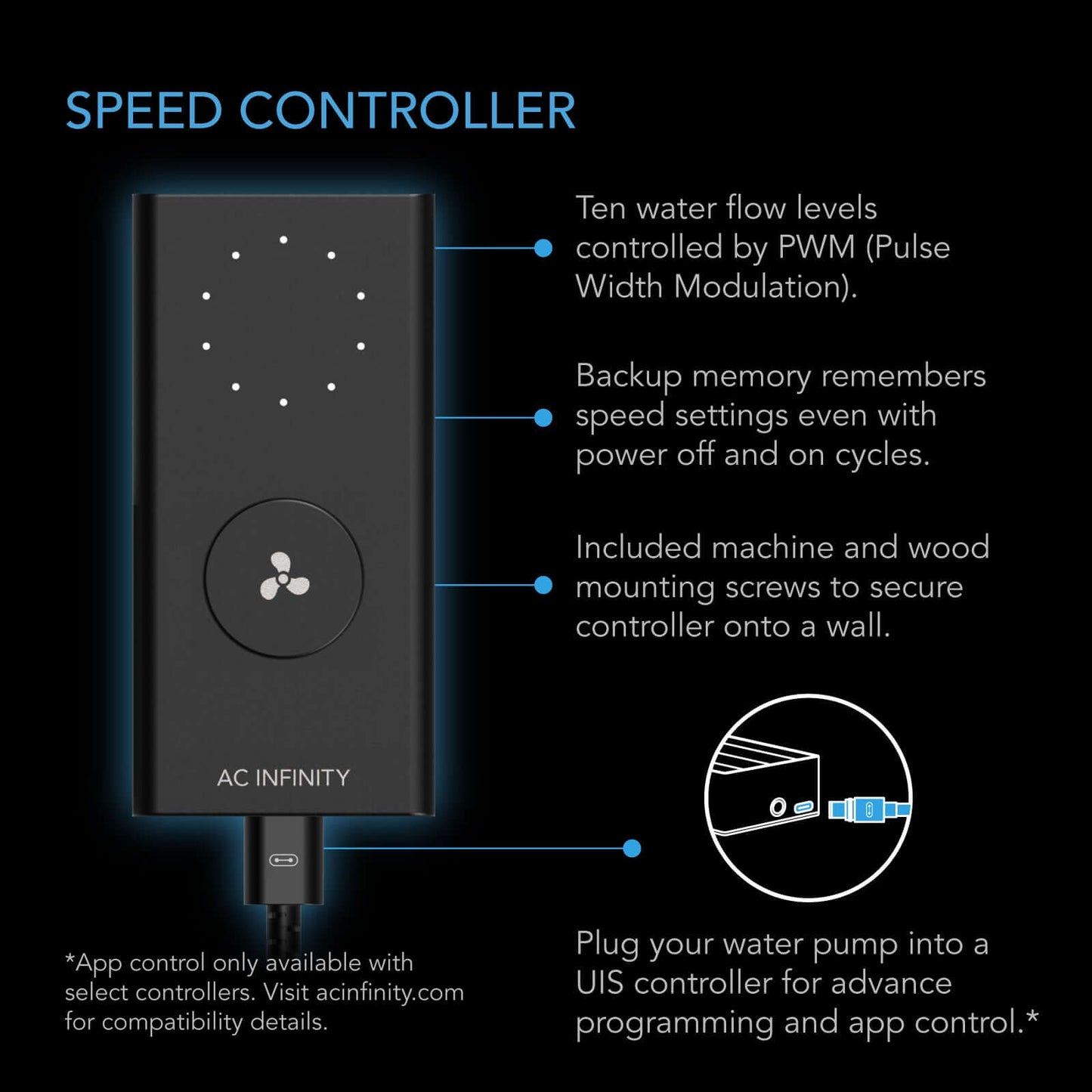

Precision Flow Control: A high-performance 10-speed controller powers the system, offering ultra-quiet efficiency and precision water flow adjustments to suit any stage of growth or irrigation demand. Enhanced lift height expands its range, supporting demanding applications while maintaining stable, consistent output.

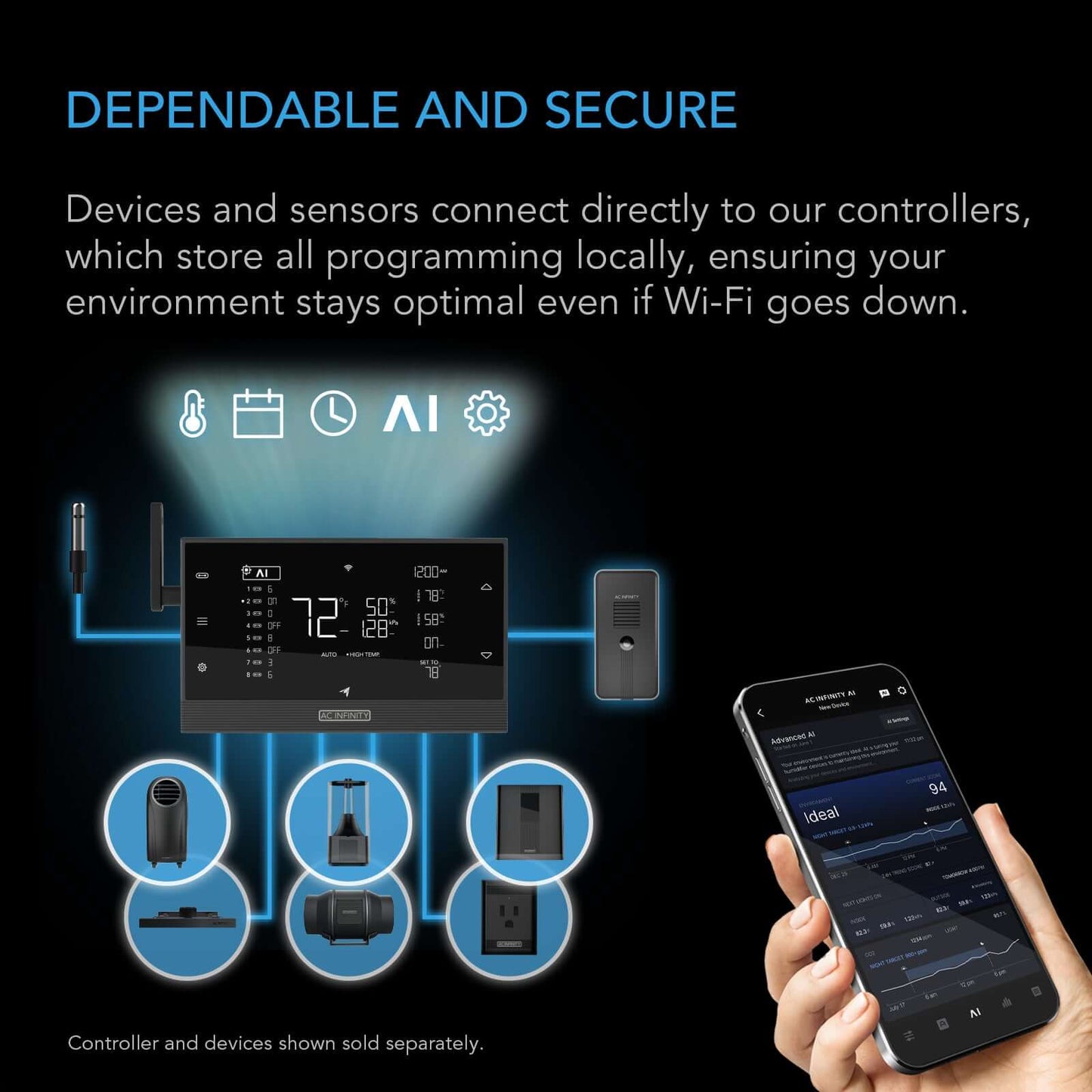

Smart Connected Automation: When connected with UIS technology, this pump integrates seamlessly into advanced automation systems, unlocking scheduling, remote adjustments, and system-wide synchronizations. This smart connectivity ensures your setup runs at peak efficiency, freeing you from constant monitoring and allowing for hands-off, optimized water management.

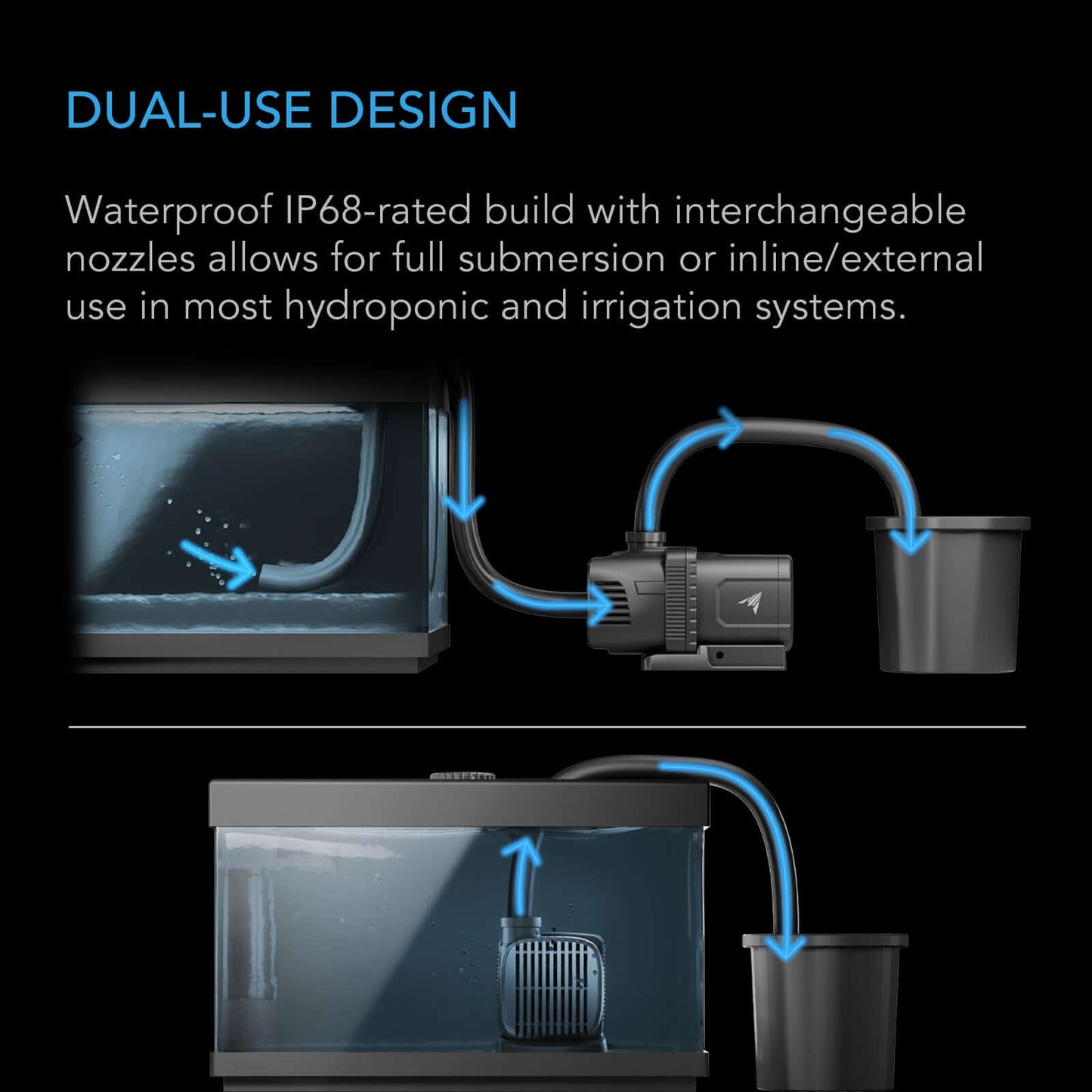

Submerged and External Placement

External placement is supported after the pump has been primed with water. Fit the front inlet nozzle and washer, connect the inlet tubing into the water, and follow the guide by starting the pump submerged for a few seconds to remove air pockets. Once water flows smoothly, place it on a dry, safe nearby surface. Do not let it run without water for long periods; follow the guide to re-prime if air enters the inlet or outlet.

Keep the EC power box and its ports dry. Route the cord below the outlet to prevent water from entering the socket. Use sturdy tubing, which is not included; soft or weak tubing can bend under pressure. The guide describes automatic shutoff when a blocked vent is sensed and gives cleaning and re-priming steps. Optional smart UIS controllers are sold separately.

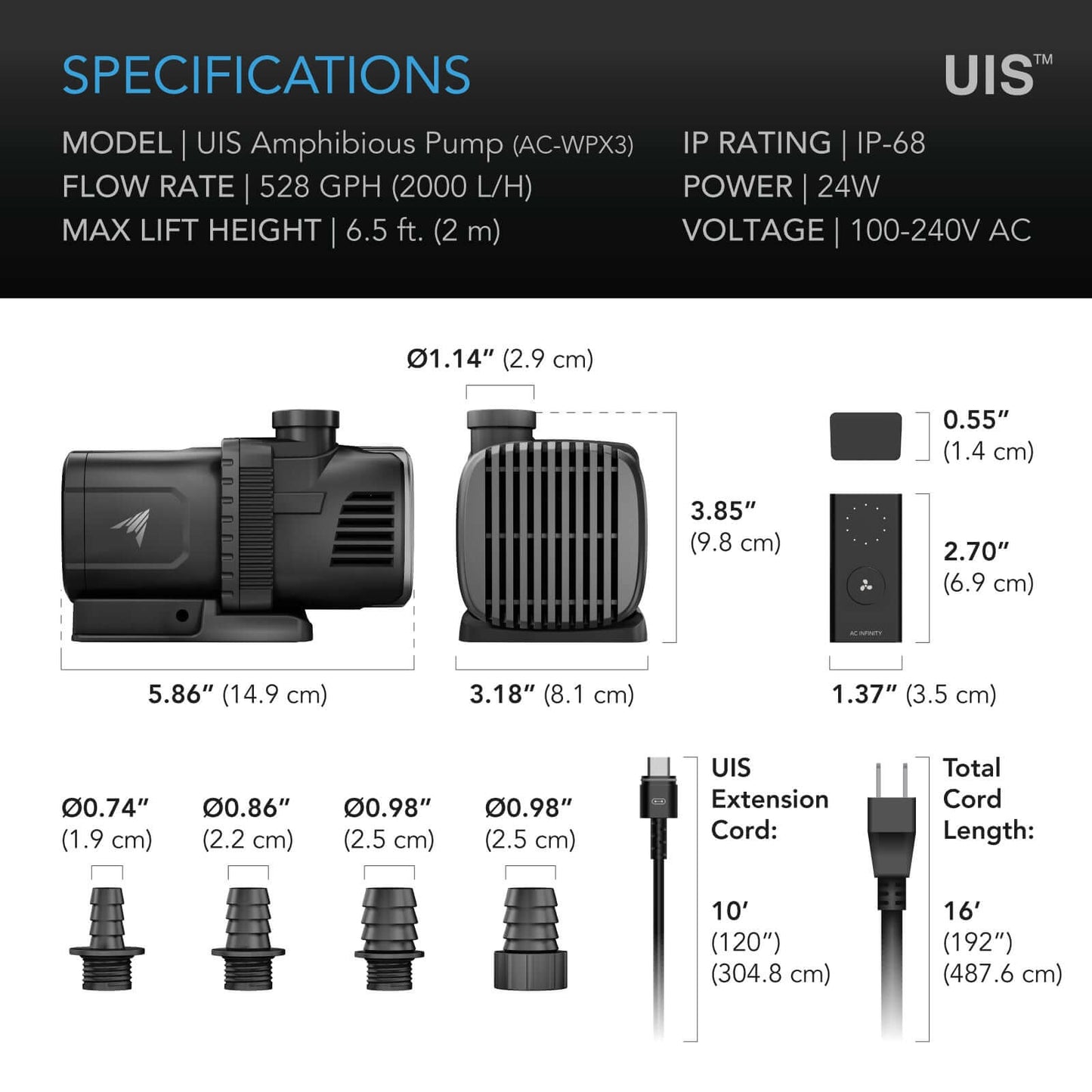

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: 10-Speed UIS Water Pump

Product Model: AC-WPX3

UPC Code: 819137025141

Product Dimensions

Total Size: 5.86 x 3.18 x 3.85 in. (14.9 x 8.1 x 9.8 cm)

Power: 24 W

Voltage: 100-240V AC

Frequency: 50/60Hz

Flow Rate: 528 GPH (2000 L/H)

Lift Height: 6.5 ft. (2 m)

Waterproof Rating: IP-68

Guide-Listed Flow and Lift by Speed Level

Data Sheet

• UIS water pump WPX2508X1 quick-start guide

Kit Contents

• Water pump (x1)
• Speed controller (x1)
• Small nozzle,19mm diameter (x1)
• Medium nozzle,22mm diameter (x1)
• Large nozzle,25mm diameter (x1)
• Front nozzle with washer,25mm diameter (x1)
• EC power box (x1)
• UIS male-to-male extension cord (x1)
• Wall-hanging wood-screw hardware (x1)
• Controller plate bolts (x2)
• Wire tie (x1)

Tubing and the controller mounting plate are not included. Optional smart UIS controllers are sold separately.
