Description

• US only: All-in-one A/C delivers complete climate control through one duct, using dynamic AI to self-regulate your grow environment.

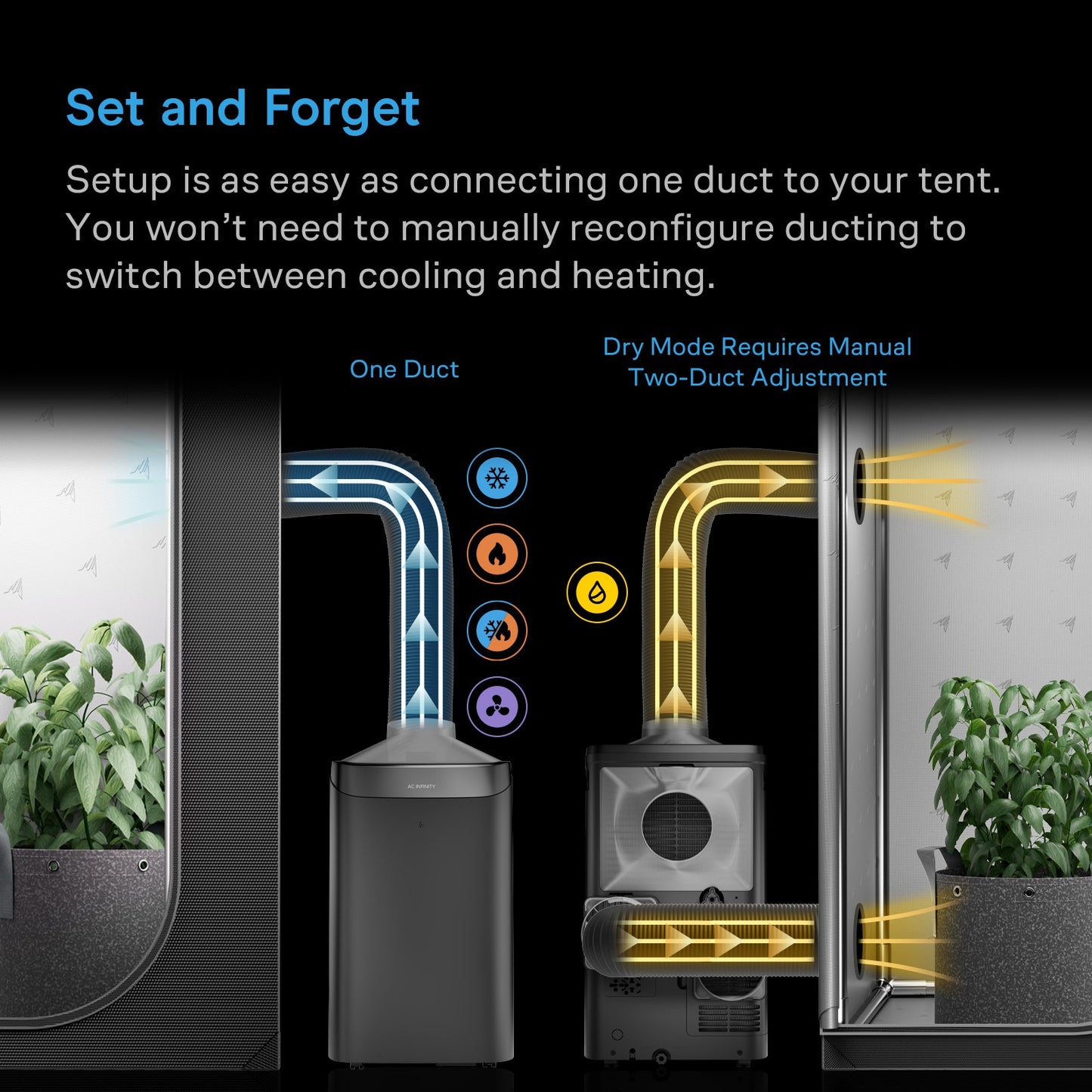

• Simply connect a single duct to output cooling, heating, or air exchange to your tent. Drying requires manual two-duct adjustments.
• Set your desired temperature or VPD, and the system will auto-switch between cool, heat, and fan to maintain the climate.
• Advanced dual-cylinder DC inverter delivers stronger climate output, higher precision, and quieter performance.
• Two additional duct ports enable precise odor control and let you customize positive, negative, or neutral pressure.

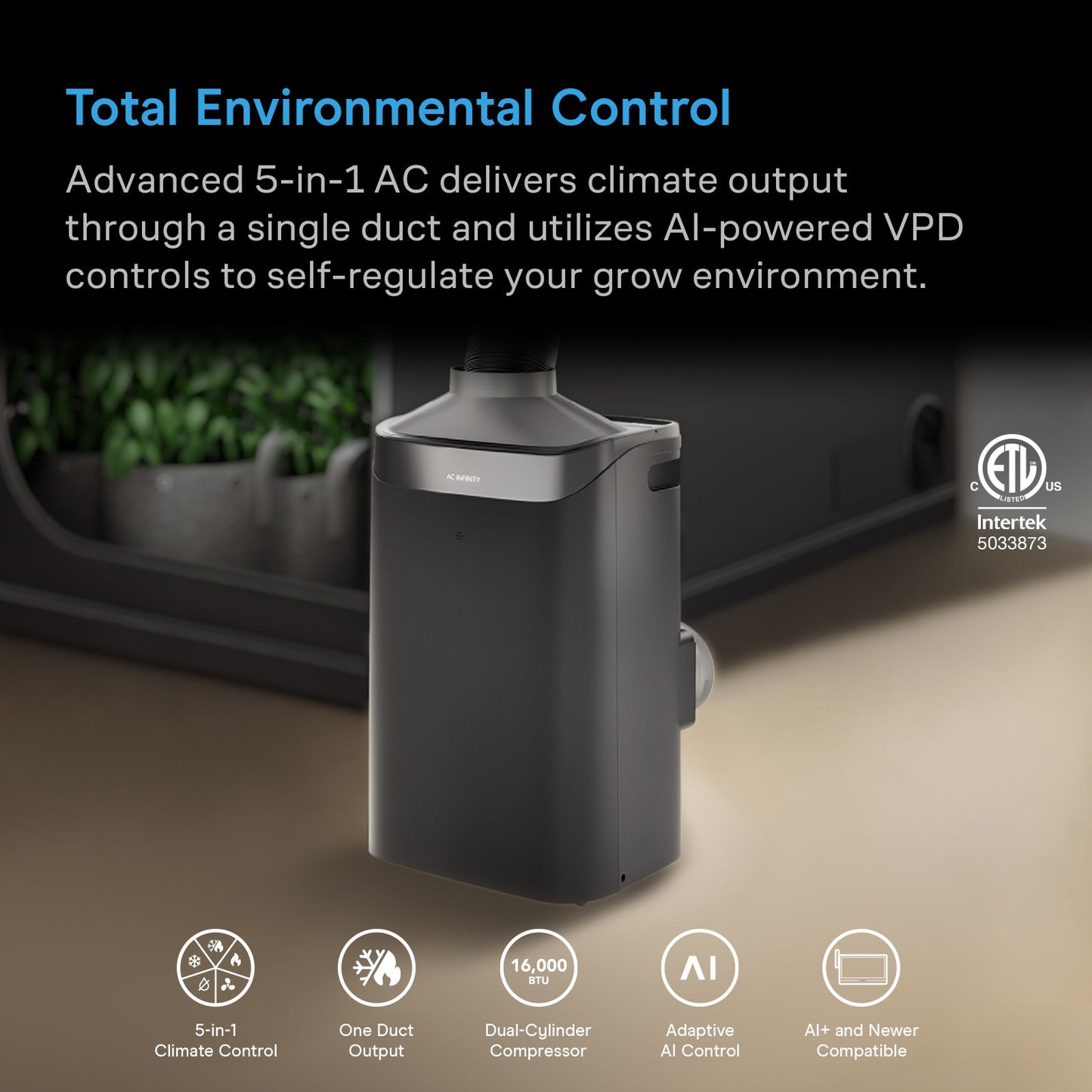

Total Environmental Control

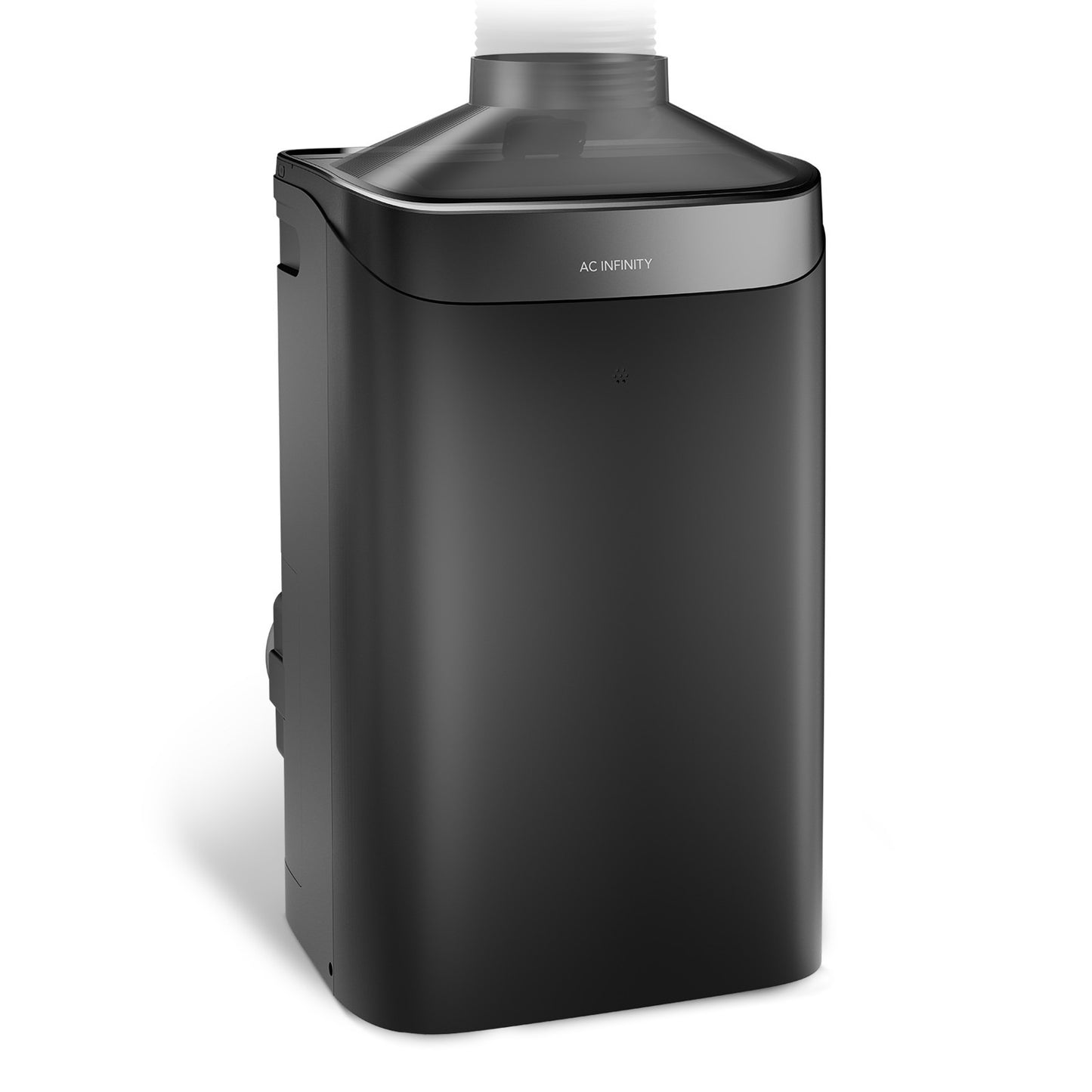

Experience effortless environmental management with the Terraform 12. Engineered for growers, this 5-in-1 AC unit delivers full climate control, automatically regulating temperature, humidity, and VPD for year-round plant stability. It shifts between cooling, heating, and fan modes through a single duct with no manual adjustments required.

Set and Forget

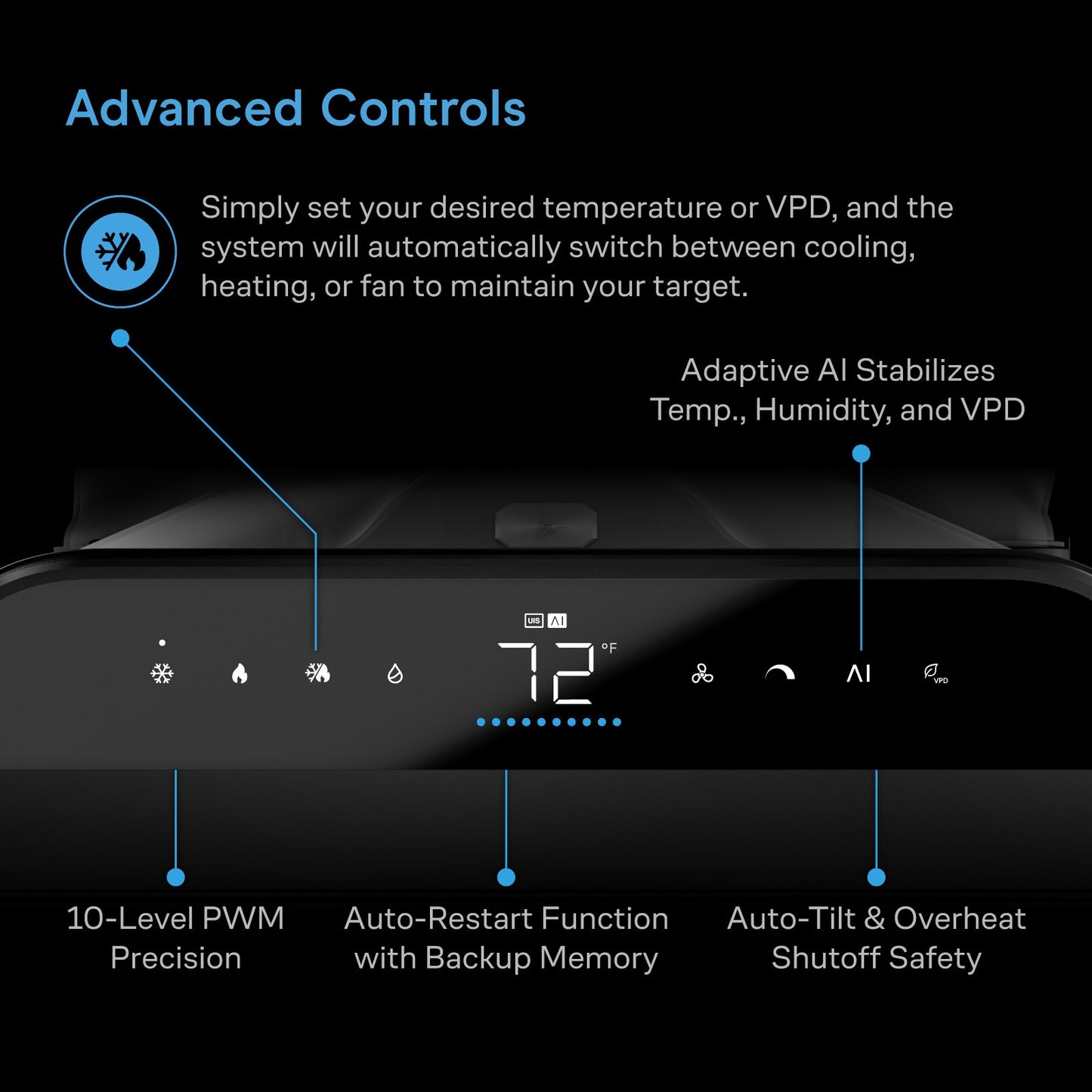

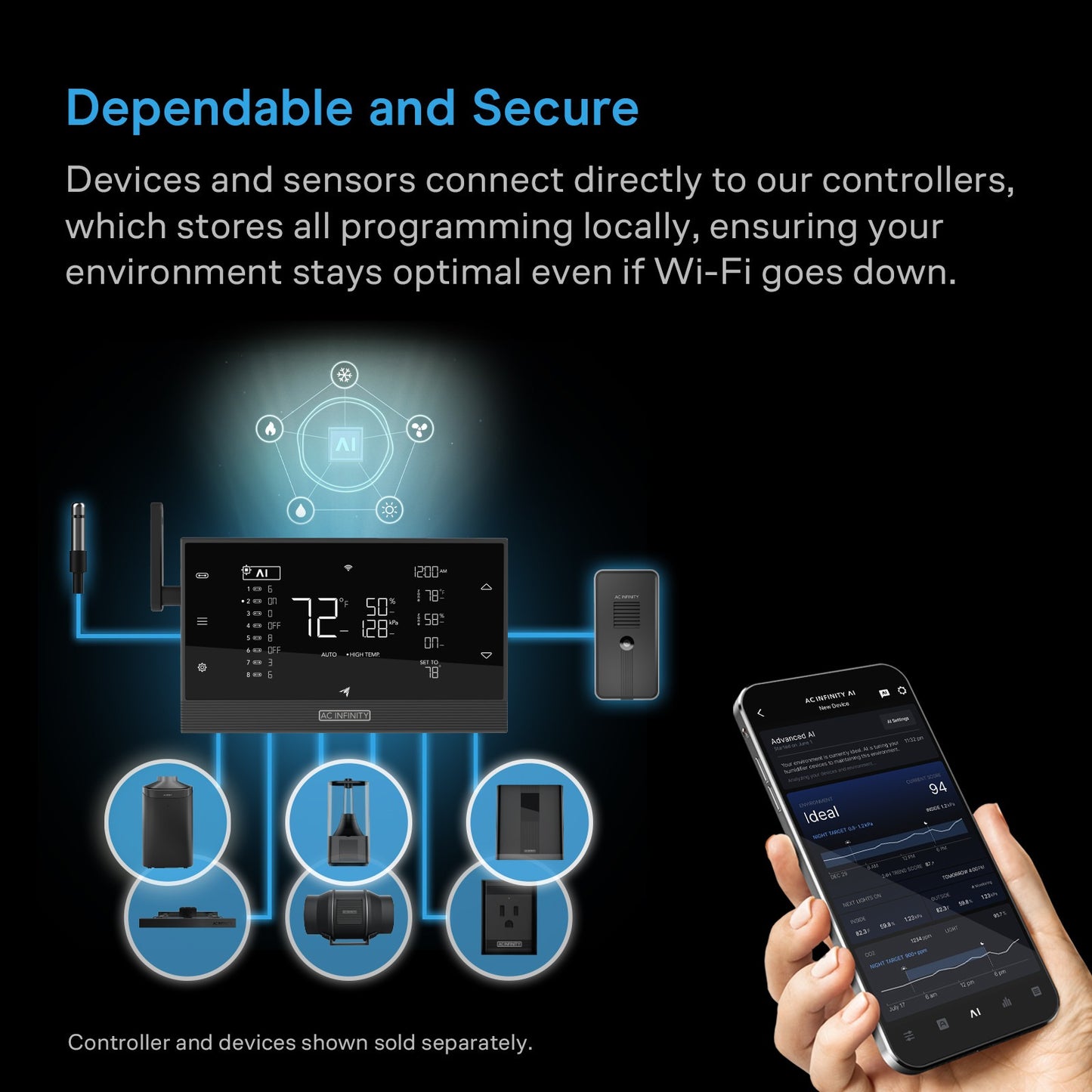

Set your desired temperature or VPD target and let adaptive AI handle the rest. The system responds in real time, switching between cool, heat, and fan as conditions change, when paired with Controller AI+ and newer controllers. This function is not available when using Controller 69 Pro+ or earlier models. For advanced dehumidification, utilizing dual ducts enables precise moisture control when needed.

Next-Gen Design

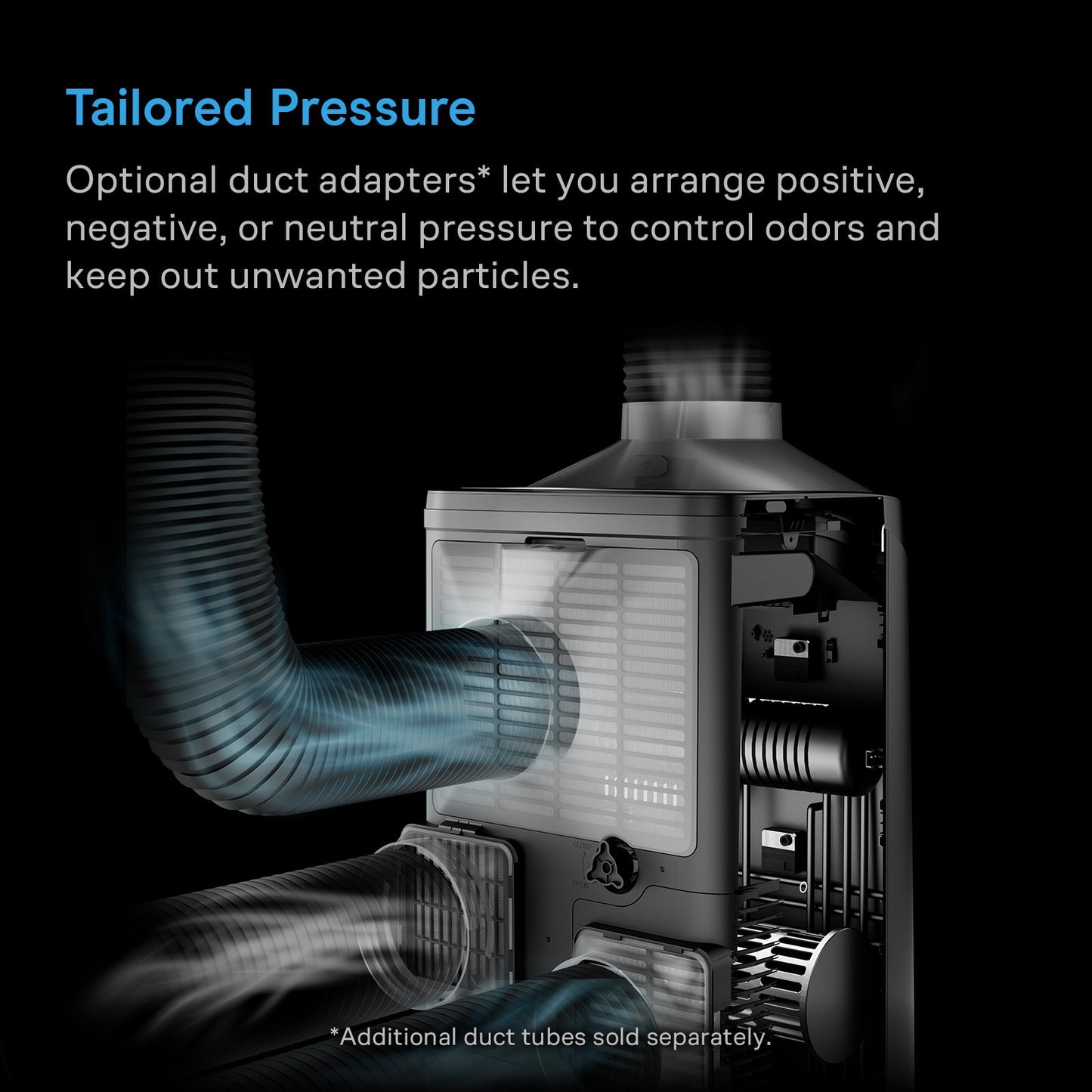

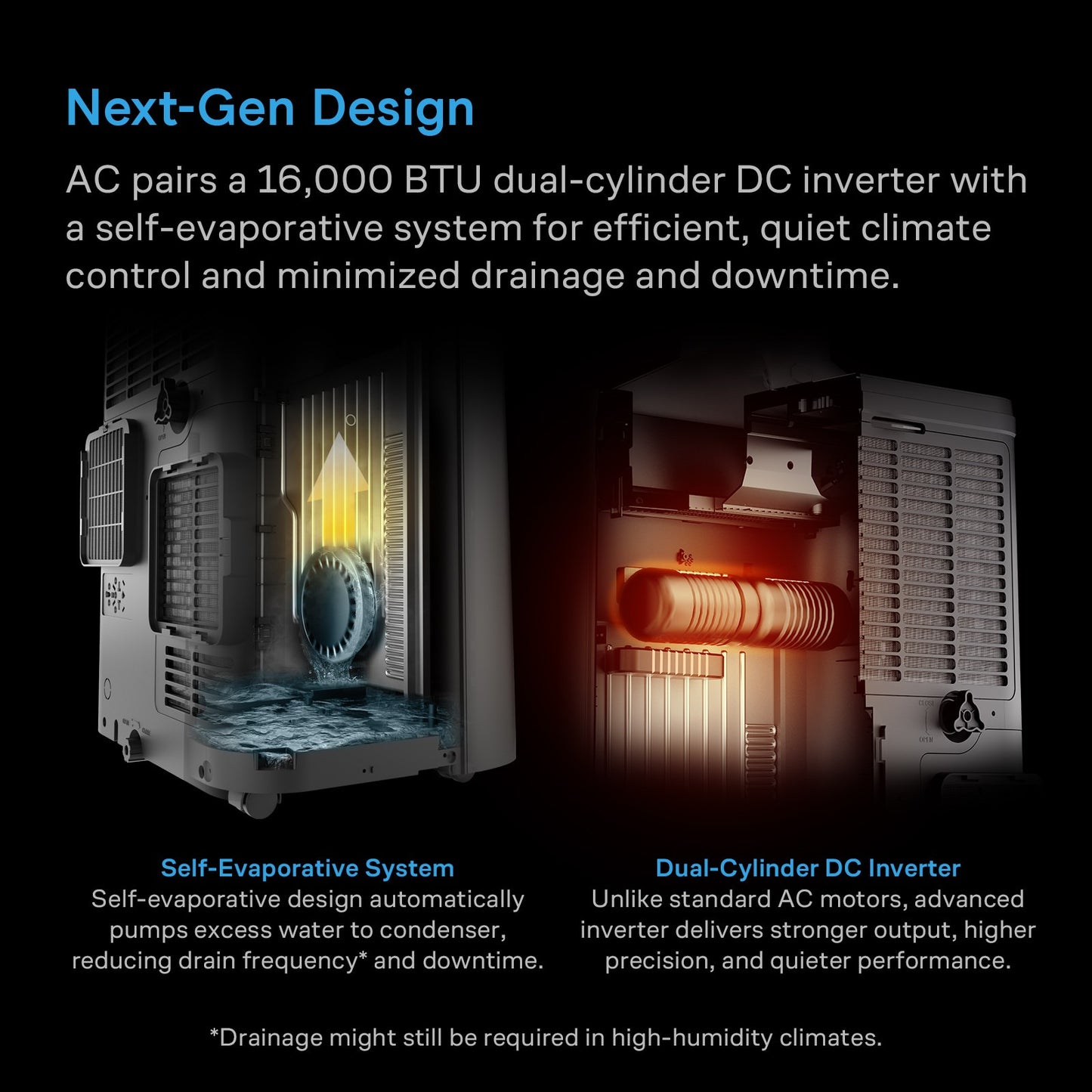

Powered by a high-performance 16,000 BTU dual-cylinder DC inverter, the Terraform 12 sets a new standard for cooling performance. Unlike traditional AC motors that repeatedly start and stop, its variable-speed inverter technology continuously adjusts output to maintain stable temperatures, delivering quieter operation, greater efficiency, and more precise climate control. Its self-evaporative system recycles excess water to the condenser, reducing drainage and maximizing uptime. Two optional ports enable 4-way ducting (additional ducting sold separately) to set positive, negative, or neutral pressure, balancing airflow and controlling odors for healthier growth and cleaner grow spaces up to 20’×20’ in size. Designed with portability in mind, transportation wheels make it easy to reposition for flexible grow setups.

Ducting and Operating Conditions

Follow the TERRAFORM 12 ducting configurations in the linked ACN2602X1 guide. The positive-pressure configuration supports COOL, HEAT, COOL/HEAT and FAN modes; the negative-pressure configuration is specified for COOL mode. The two optional intake adapters allow additional aluminum ducting, which is sold separately. Drying requires manual two-duct adjustment. Automatic switching requires CONTROLLER AI+ or a newer compatible controller and is unavailable with CONTROLLER 69 PRO+ or earlier models.

The programming guide states that operation pauses when the condensation tray is full or if the unit falls or tilts. Follow the guide for handling the condensation tray and returning the unit to its proper upright position.

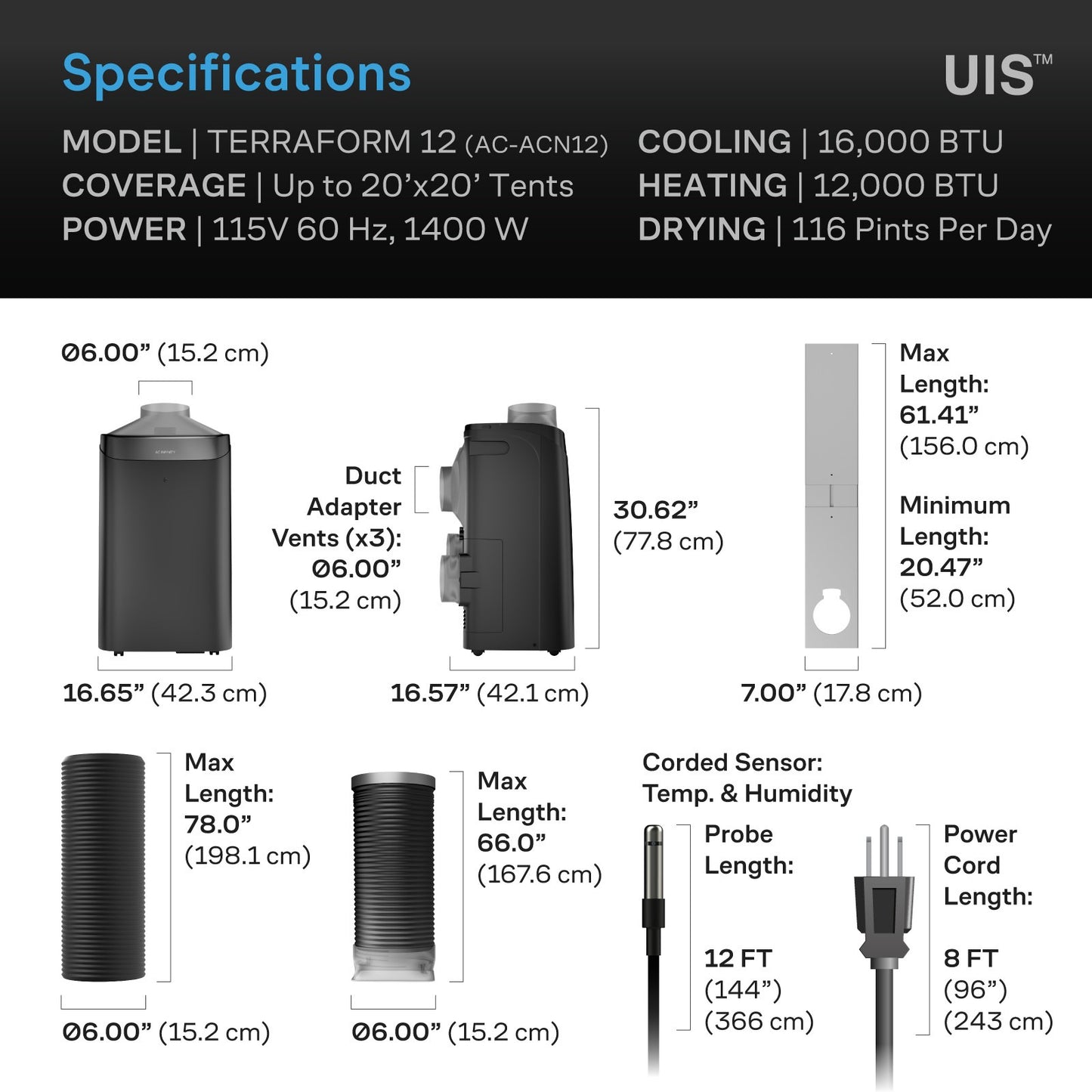

Specifications

• Brand: AC Infinity
• Product Details: Product Identification
• Manufacturer: AC Infinity Inc.
• Product Name: TERRAFORM 12
• Product Model: AC-ACN12
• UPC Code: 819137025295
• Unit Length: 16.57 in. (42.1 cm)
• Unit Width: 16.65 in. (42.3 cm)
• Unit Height: 30.62 in. (77.8 cm)
• Duct Tube Lengths: 78.00 in. (198.1 cm), 66.00 in. (167.6 cm)
• Smart Controls: Temperature, Humidity, VPD
• Available Modes: Cooling, Heating, Dehumidifying, Circulation
• Control Range: 10 Levels
• Cooling Power: 16000 BTU
• Heating Power: 12000 BTU
• Max Power Draw: 1750 W
• Voltage: 115V AC
• Frequency: 60 Hz
• Current: 11.8 A
• Operating Temperature: 61 to 95°F
• Operating Humidity: 35 to 85% RH
• Instructions: PDF | Programming

Data Sheet

• TERRAFORM Series quick-start guide ACN2602X1; includes TERRAFORM 12
• TERRAFORM 12 product specifications and operating-mode information
• TERRAFORM 12 programming and alert guide

Kit Contents

• Air conditioner (x1)
• V2 sensor probe (x1)
• UIS male-to-male extension cord (x1)
• Exhaust adapter (x1)
• Duct tube (x1)
• Duct tube and couplers (x1)
• Window duct main plate (x1)
• Track plate (x1)
• Extension plate (x1)
• Adhesive foam seals (type A) (x4)
• Non-adhesive foam seals (type B) (x2)
• Bolts and wing nuts (x2)
• Duct clip (x1)
• Drainage pipe (x1)
• TERRAFORM 12 main intake vent (x1)
• TERRAFORM 12 secondary intake vent (x1)

Additional aluminum ducting for the optional intake adapters is sold separately.
