Description

Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.

Utilizes full-spectrum Samsung LM301H LEDs to achieve powerful lighting optimized for all plant stages.

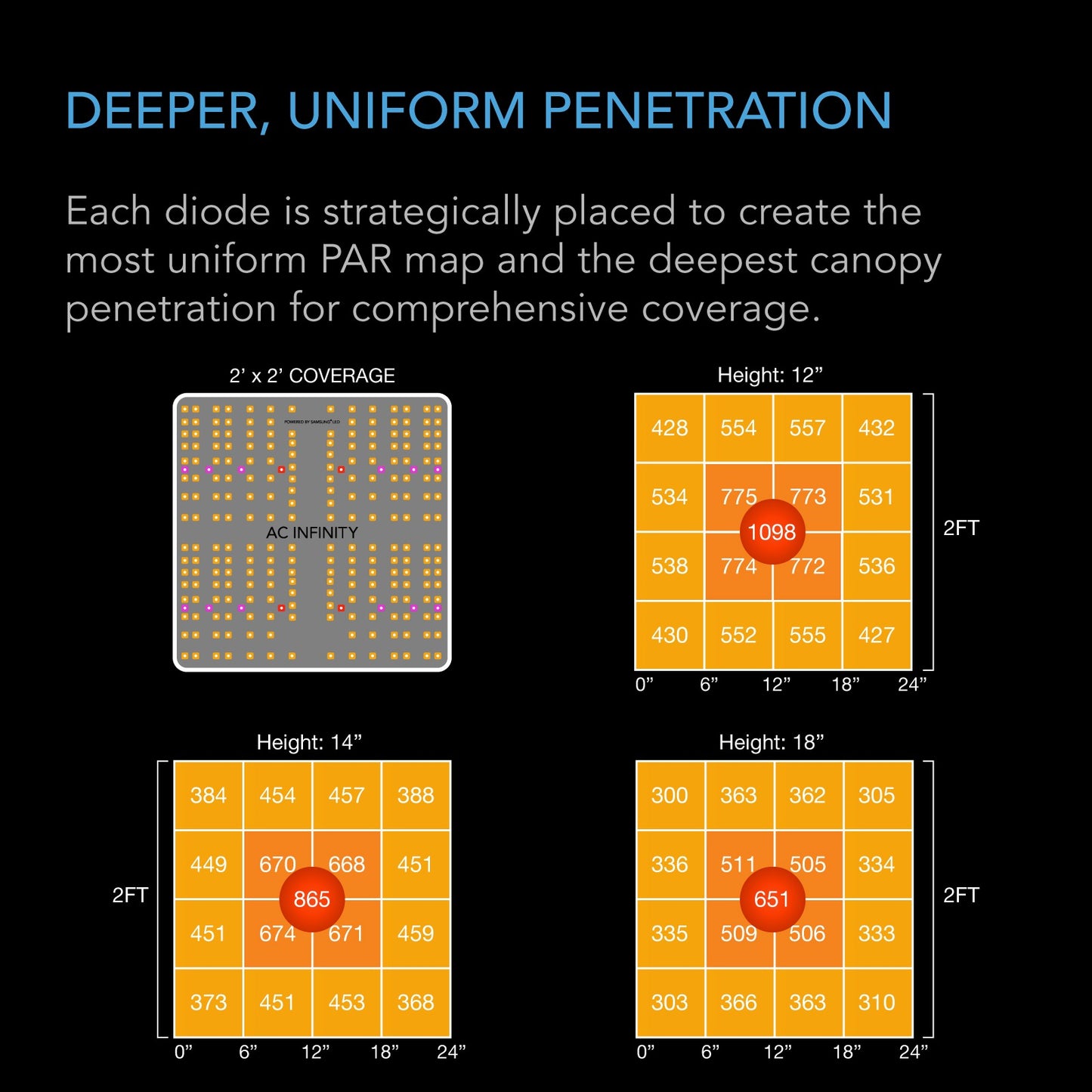

Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.

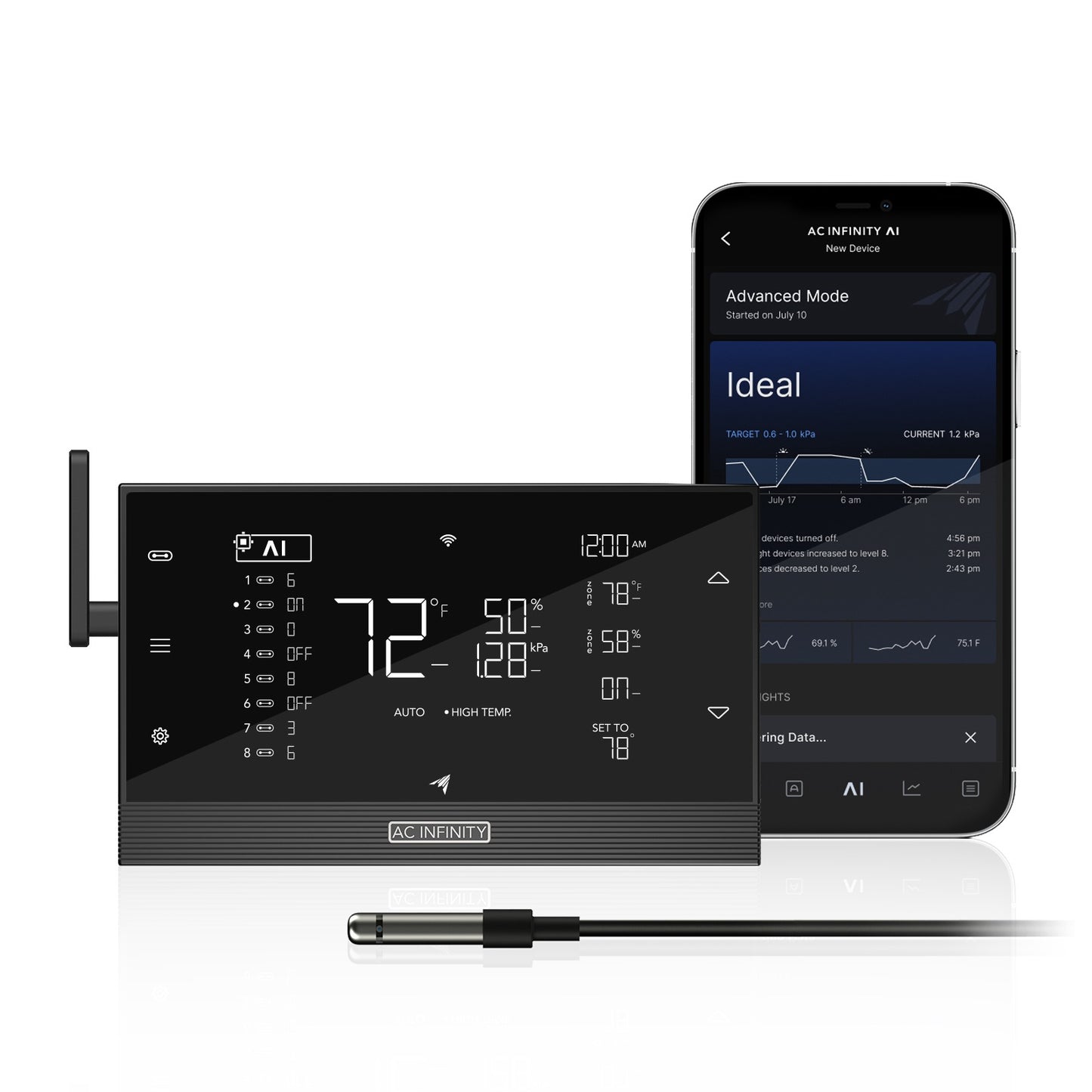

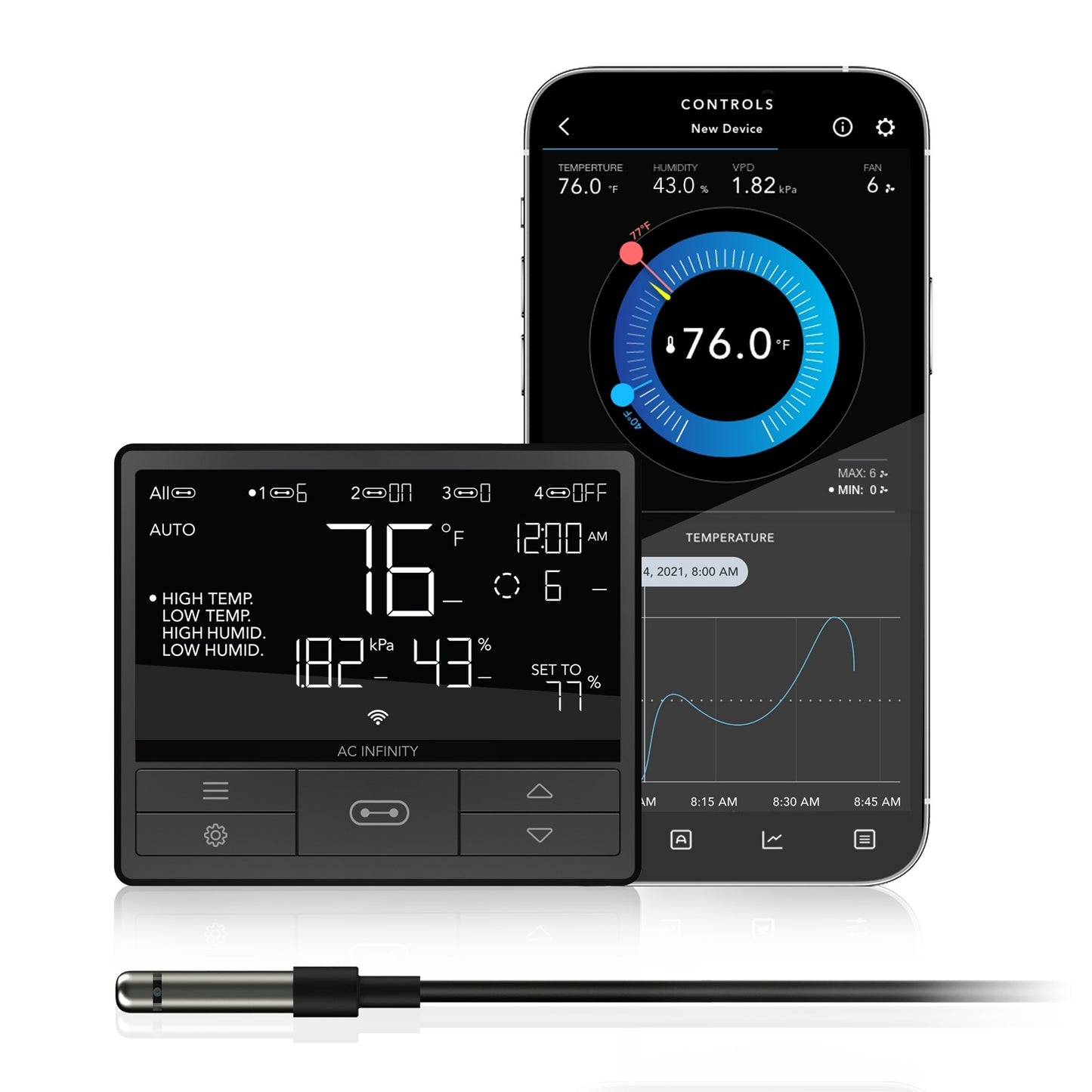

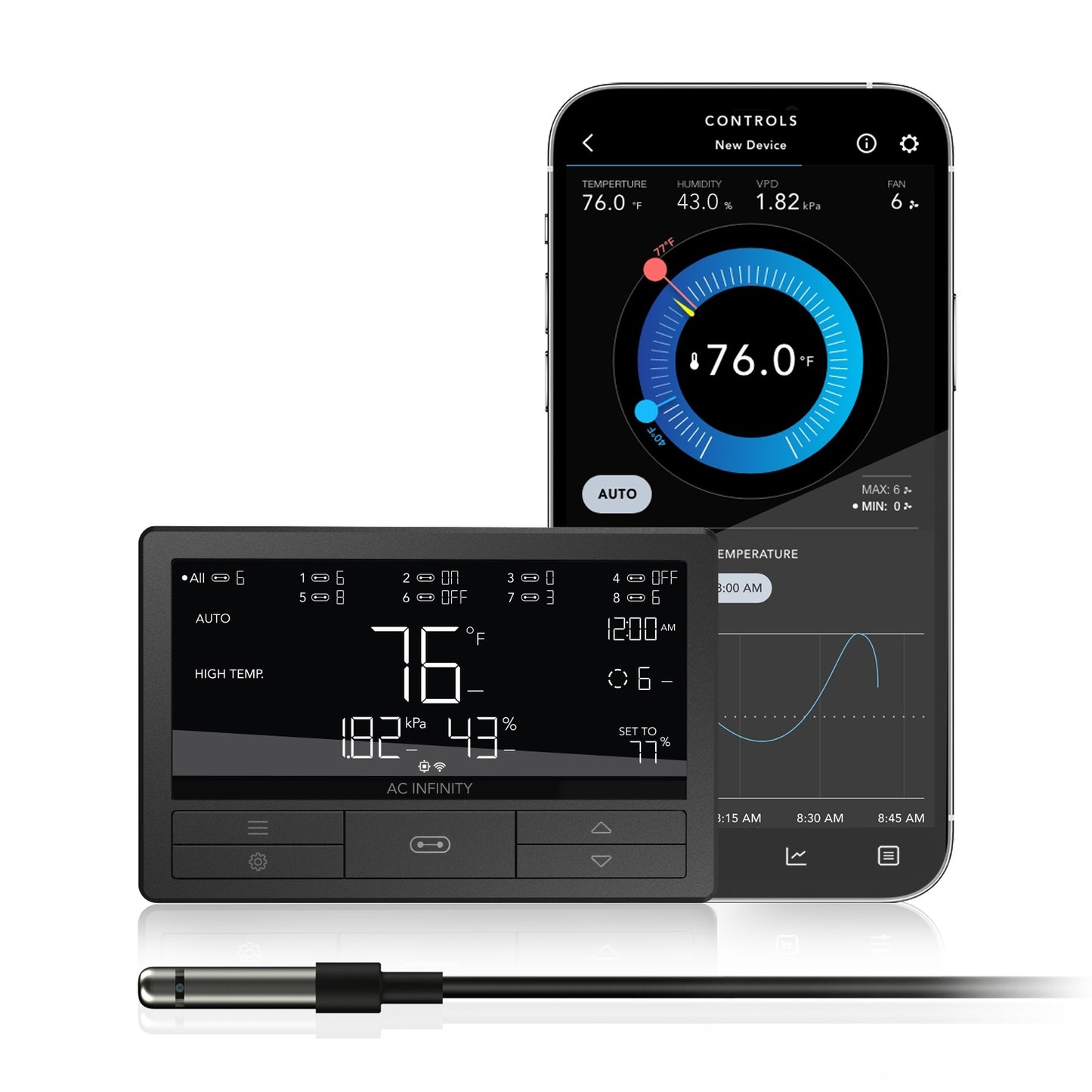

Dimmer enables 0 to 100% brightness. Can connect with the smart controllers to access grow cycles, scheduling, and app.

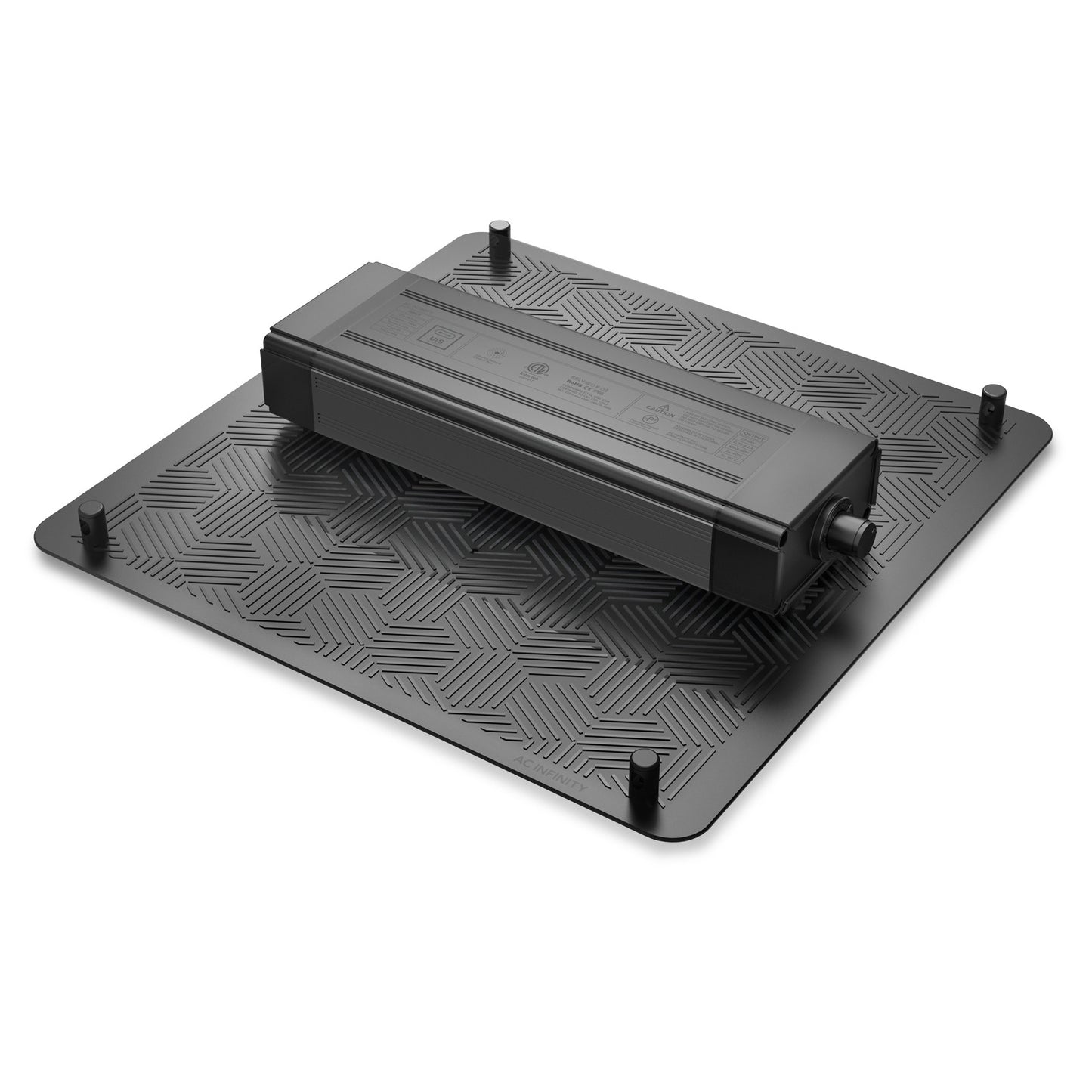

Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.

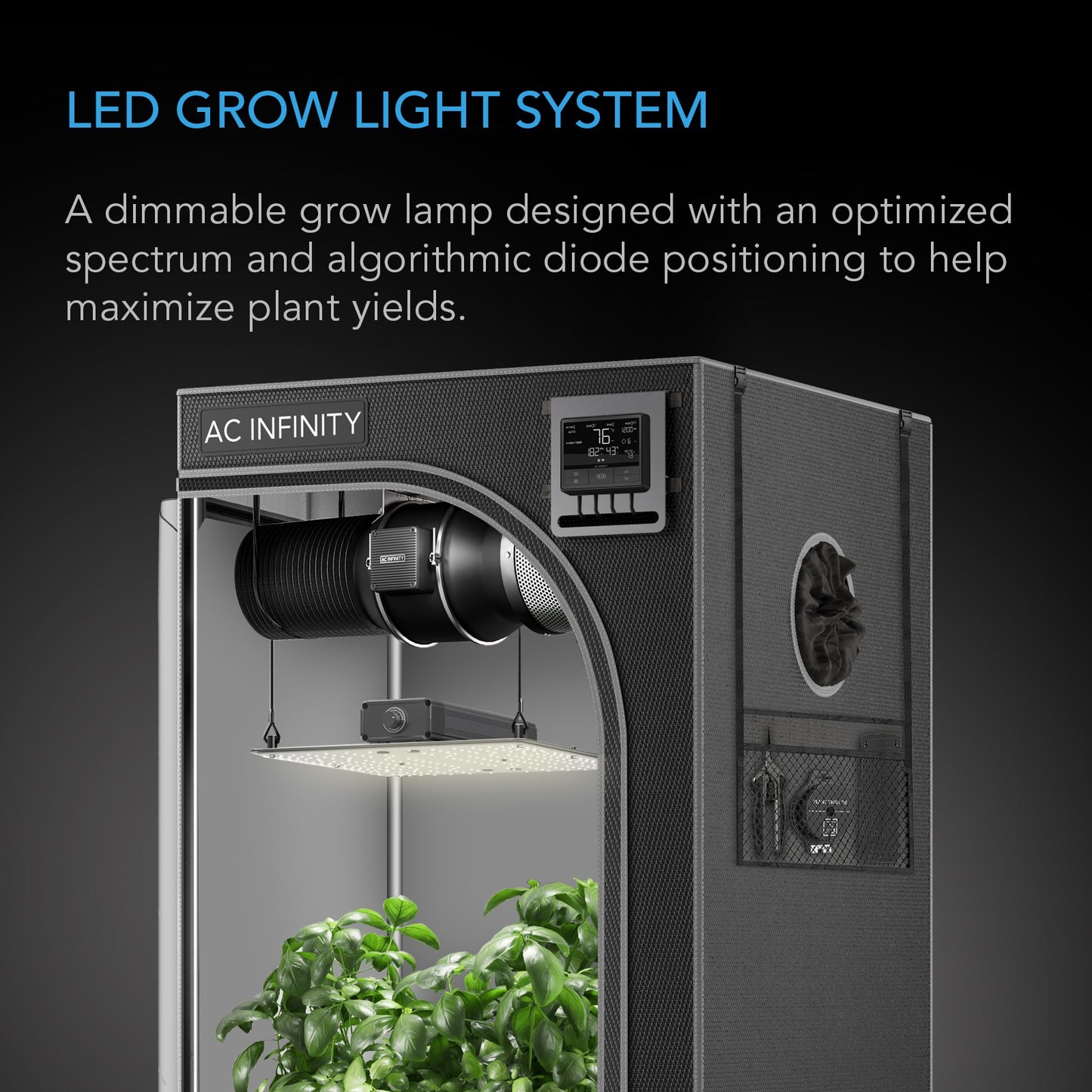

Product Description: A full spectrum LED grow light designed with algorithmically positioned Samsung LM301H diodes to maximize plant yields. Features a proprietary driver that enables light dimming and can connect with the smart controllers. These enable pairing with additional LED light fixtures when using expansion dongles (sold separately). Built on a fanless, unibody aluminum board to dissipate heat and extend the diodes' lifetime. All components are sealed to IP-65 standards to maintain peak performance even in a grow environment with higher temperatures and humidity. Includes a pair of metal bar hangers and rope hangers. This LED grow fixture is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS platform of grow devices and smart controllers, designed to unite with the AC Infinity app over Wi-Fi to achieve your ideal environment.

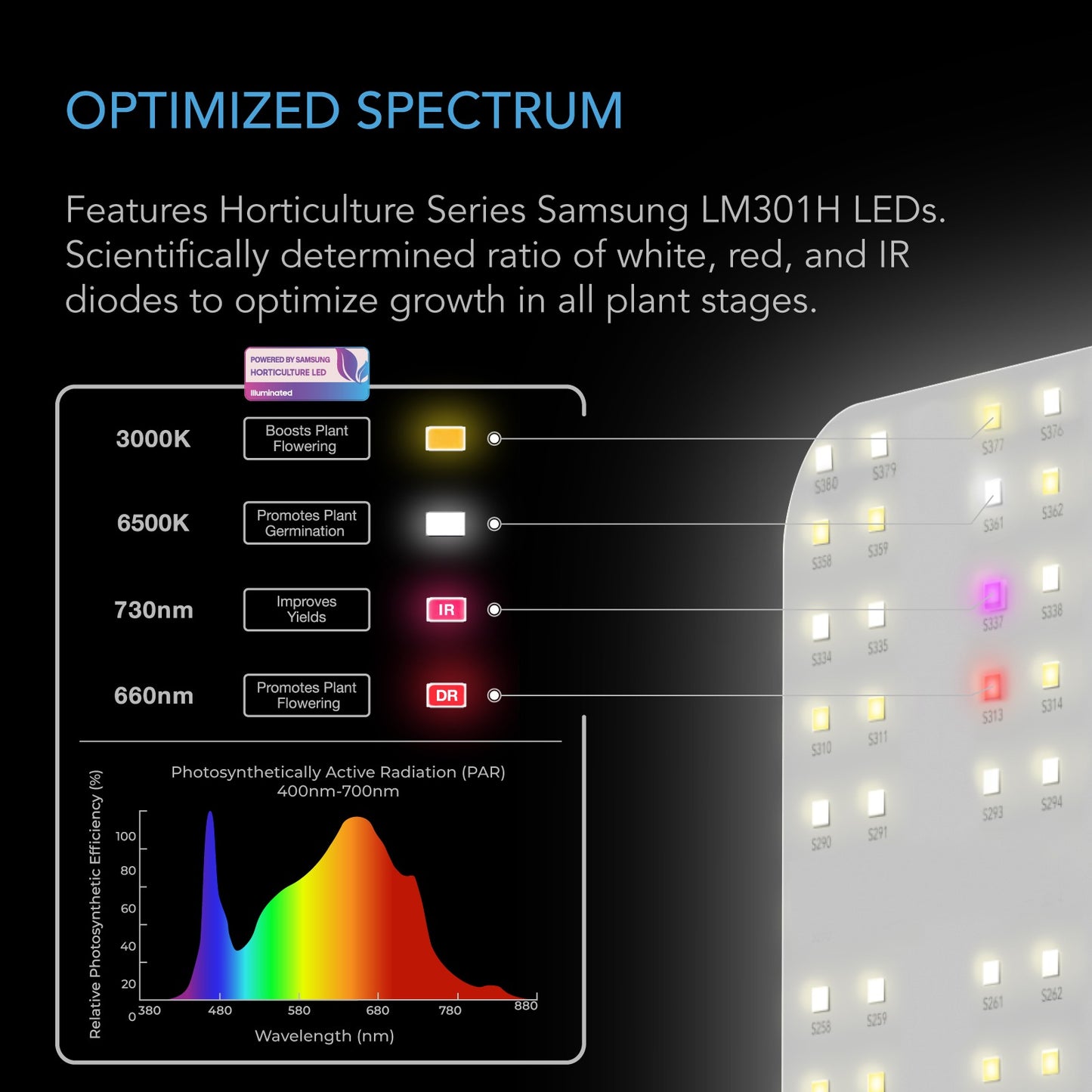

Optimized Spectrum: Each light contains Horticulture Series Samsung LM301H 3000K and 6500K white diodes specifically formulated to help maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

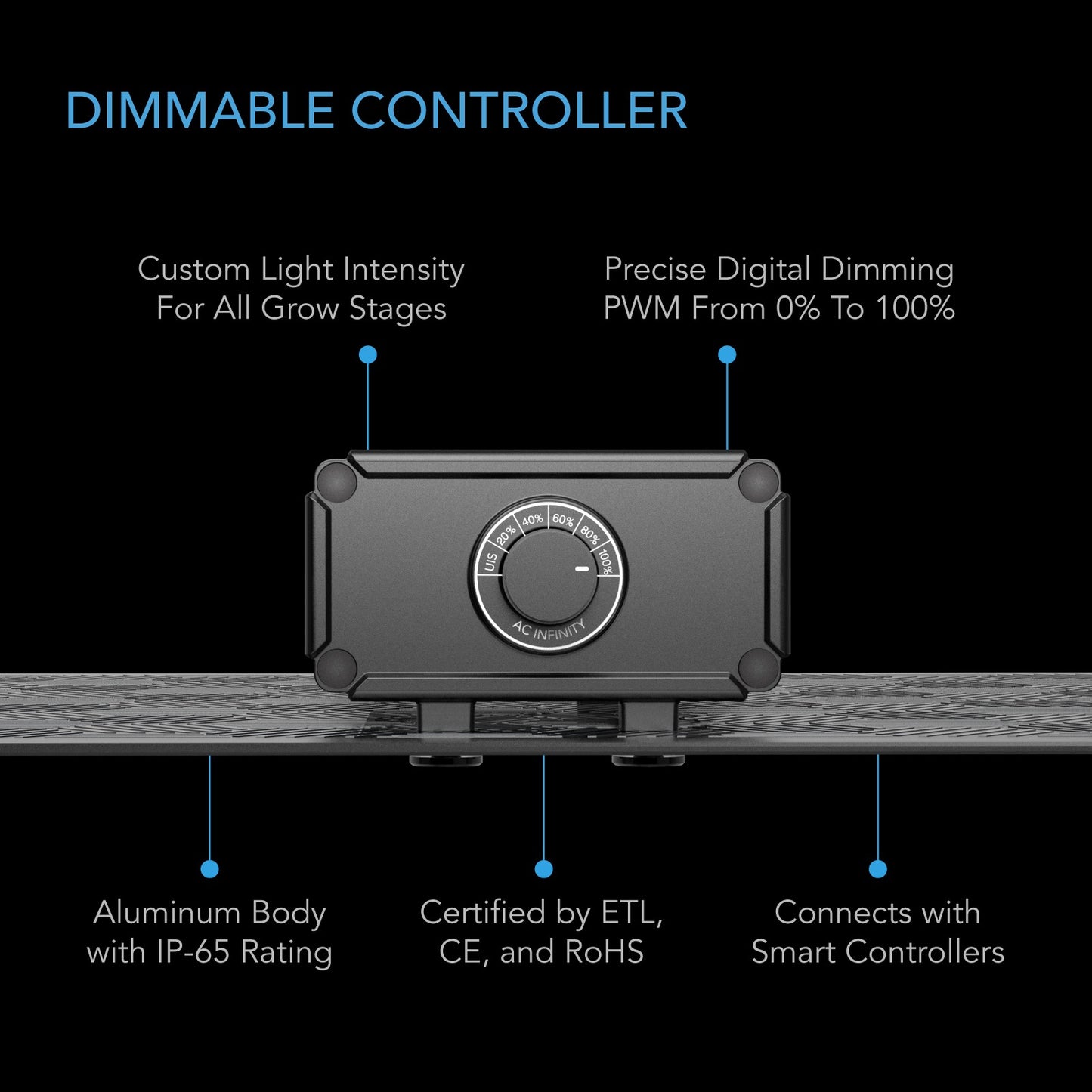

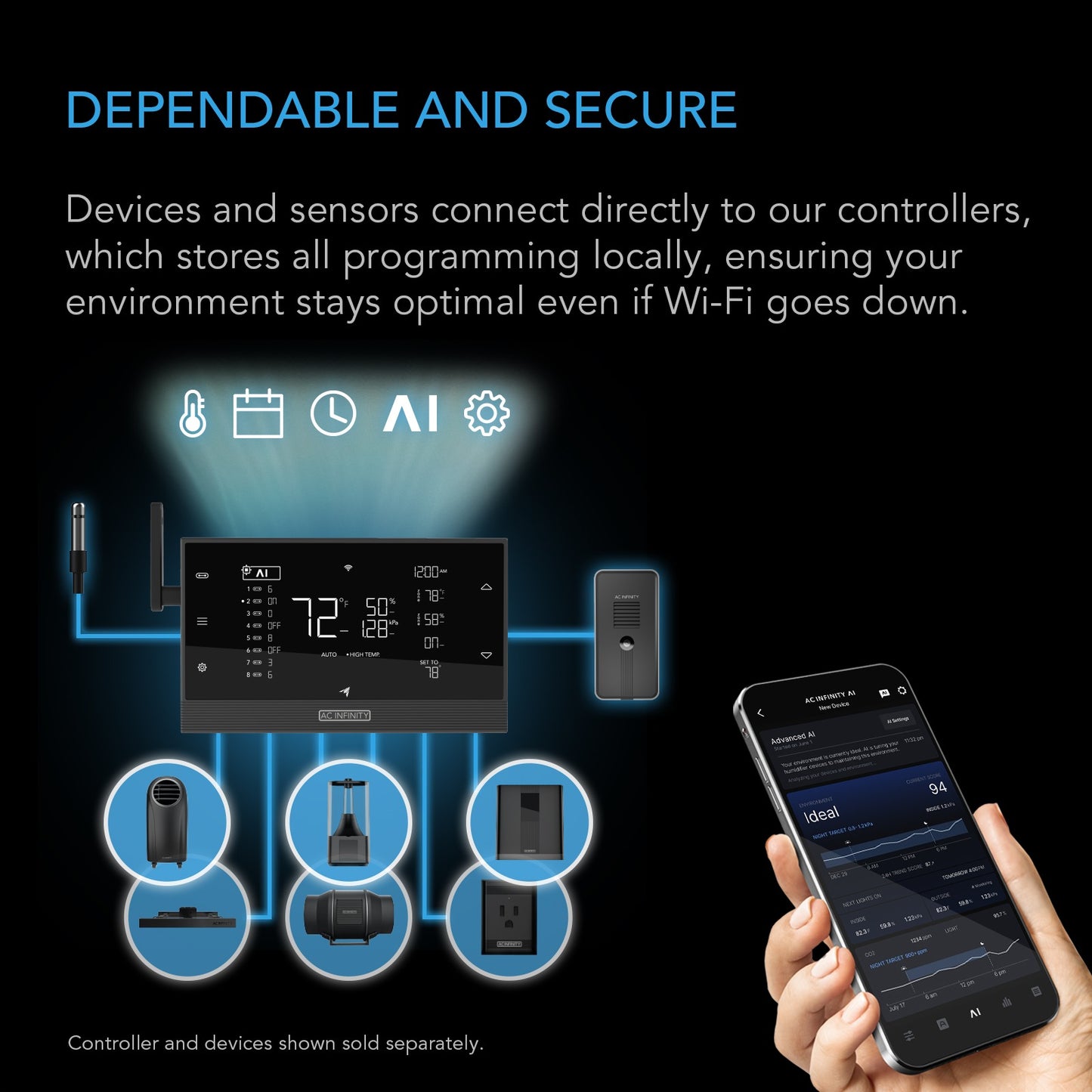

Future Ready Controls: Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with the smart controllers to access grow cycles, scheduling, app-based control, and more. Join the ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

Installation and electrical conditions

Use the specified power supply and follow local installation requirements. Keep the light away from flammable, explosive, chemical-laden or wet atmospheres; its ingress rating does not permit those uses. Do not cover cords or obstruct the light. Unplug before installing, servicing or moving it, and do not operate damaged equipment. Use qualified installation assistance where needed. App access requires a compatible external UIS smart controller; expansion/splitter dongles are sold separately.

Specifications

Product Identification

• Manufacturer: AC Infinity Inc.
• Product Name: IONBOARD S22
• Product Model: AC-IBS22
• UPC Code: 819137022515

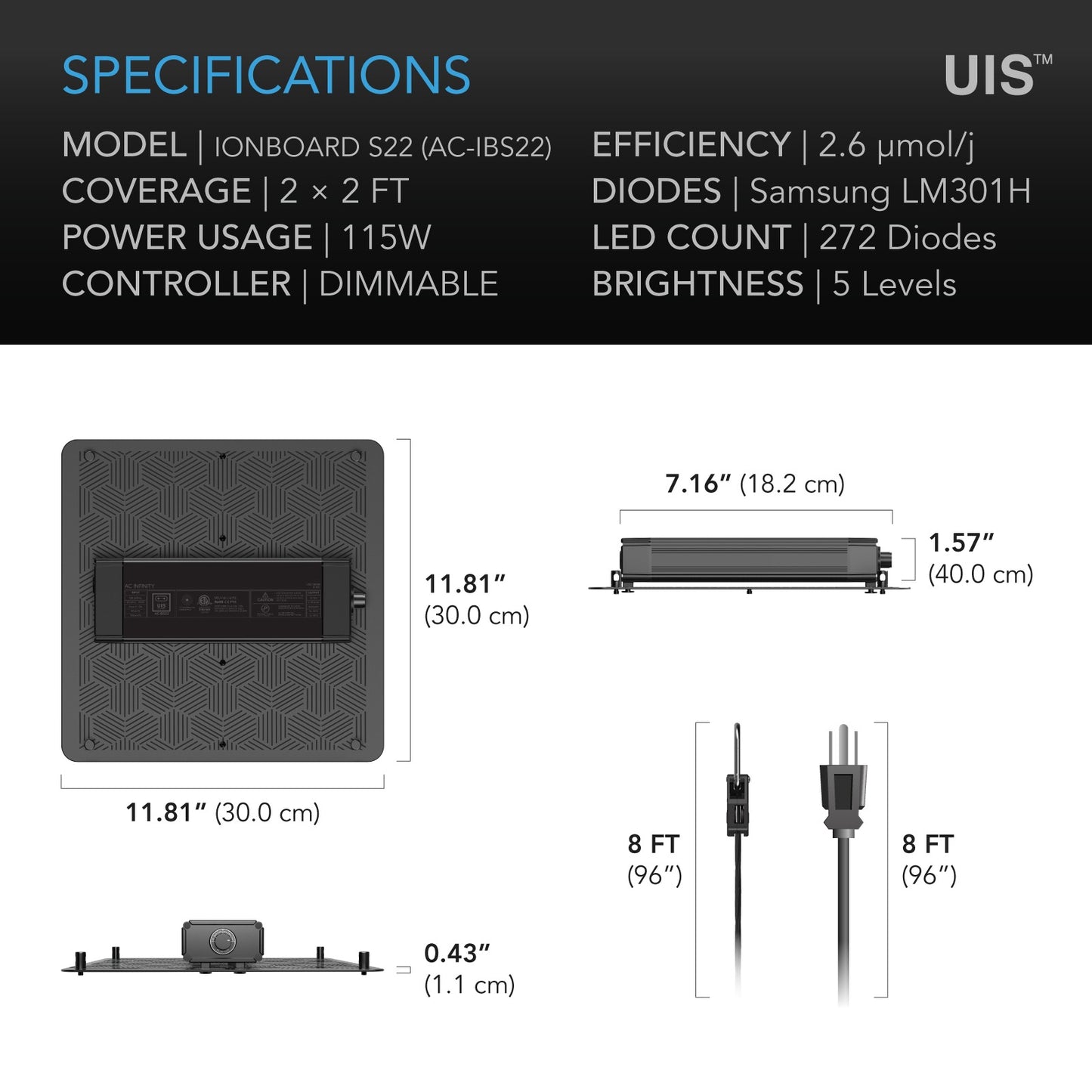

Product and Mounting Dimensions

• Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)
• LED Board Thickness: 0.43 in. (1.1 cm)
• Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

Product Performance and Technical Specs

• Coverage: 2 x 2 ft.
• Diodes: Samsung LM301H
• LED Chip Count: 272
• LED Driver: AC Infinity Proprietary Driver IB-150
• Efficiency: 2.7 µmol/j
• PPFD: 1098 PPFD
• Spectrum: 660nm, 730nm, 3000K, 6500K
• Wattage: 115 W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
• Controller: Driver dimmer knob, 20/40/60/80/100%; optional external UIS smart-controller programming
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Life Expectancy: 50,000 Hours

Data Sheet

IONBOARD manual IB2306X1

IONBOARD ETL certificate, report 100012635AHM-001

Kit Contents

• Grow light (1), LED driver (1), stainless-steel hanging hooks (2), rope clips (2), UIS male-to-male cord (1), hook-and-loop tie sets (4), wire-tie set (1).
