Description

• Designed to be mounted into any standard 19-inch rack to provide a secure storage space.
• Features an aluminum faceplate, with an anodized brushed finish and CNC-machined detailing.

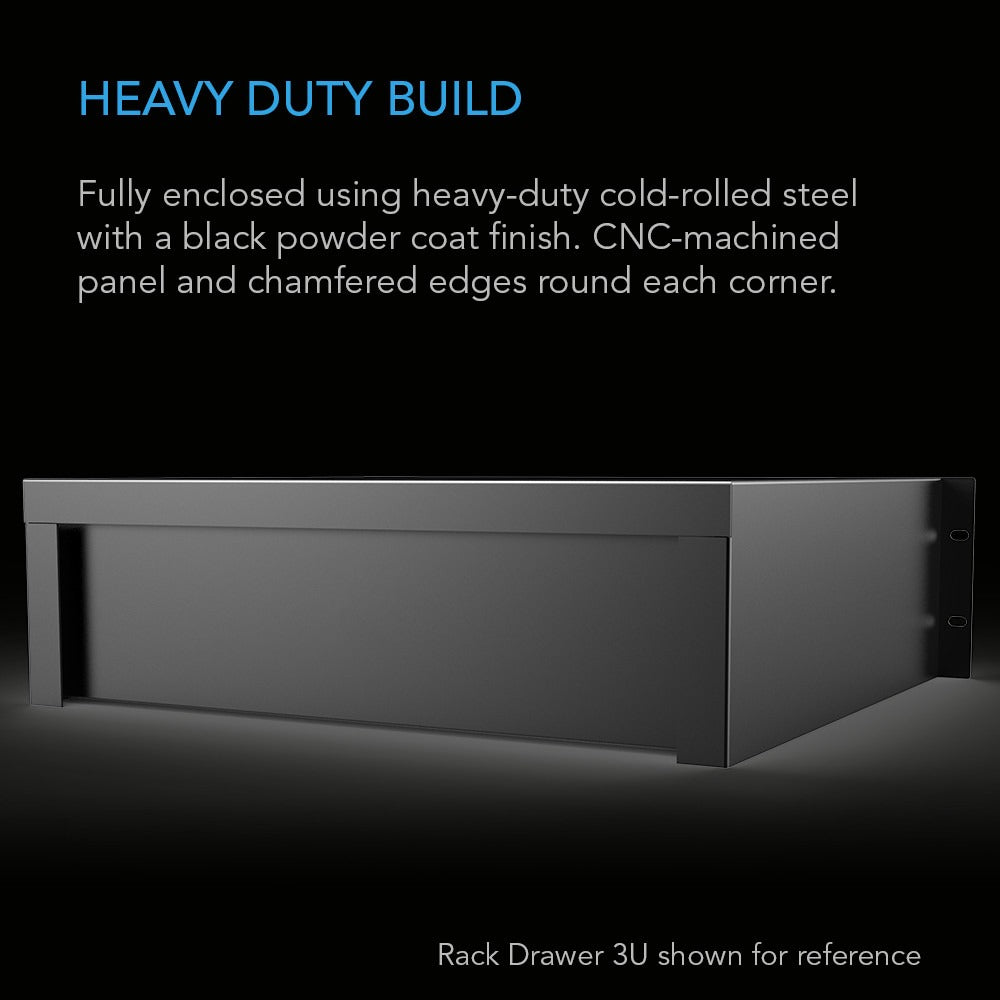

• Fully enclosed using heavy-duty 2mm cold-rolled steel with chamfered edges for rounded corners.
• Retractable drawer handle is concealed when not in-use for a clean and professional appearance.
• Takes up 3U of space. Includes mat, 10-32 screw set, lock, and keys.

Product Description

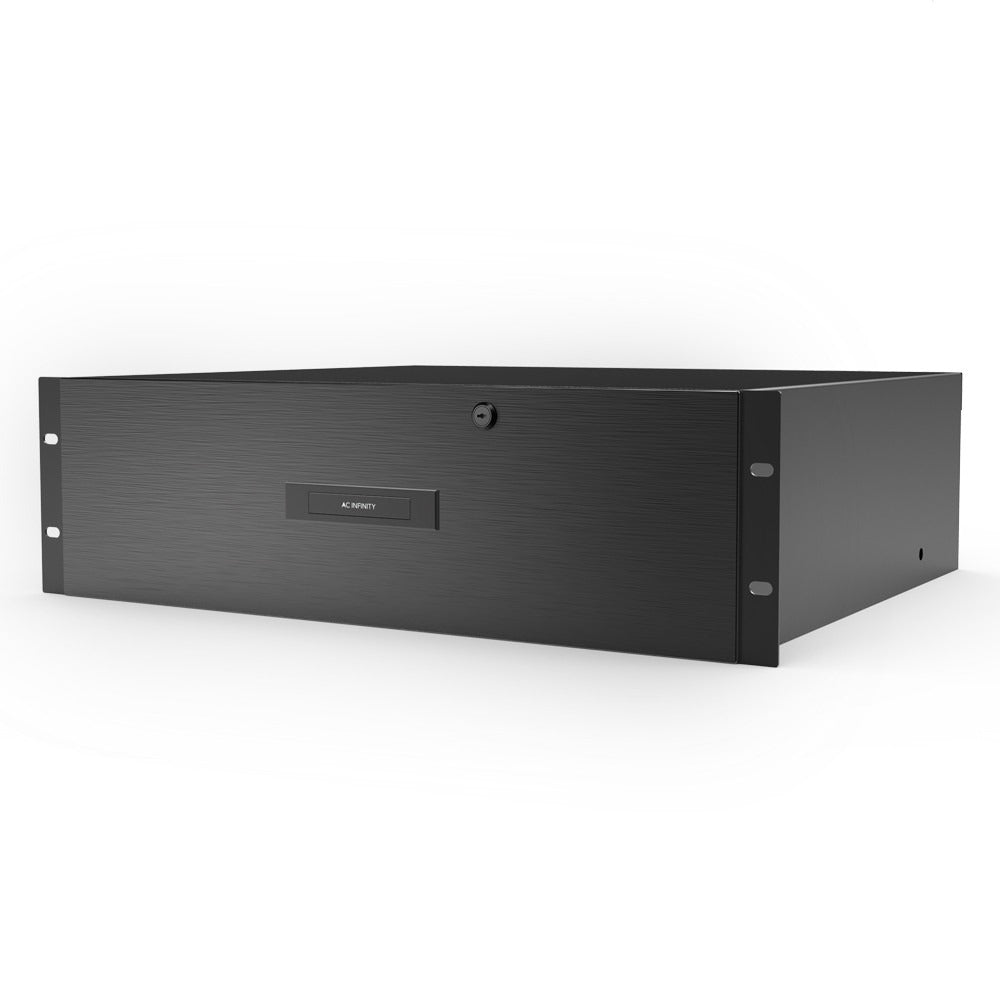

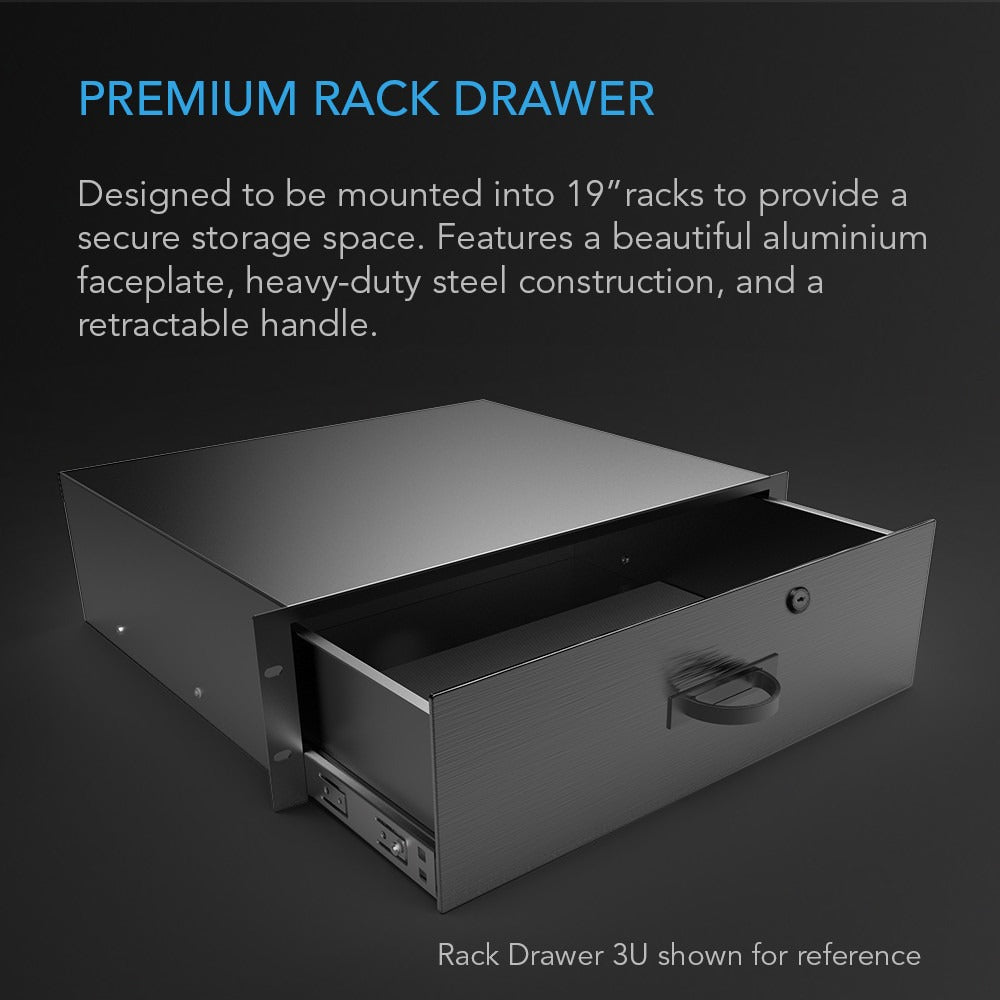

The AC Infinity aluminum rack mount drawer is designed to be mounted into standard 19-inch racks to provide storage space. The drawer can securely hold various rack equipment such as cables, headphones, tools, manuals, and microphones. Features a black anodized aluminum faceplate. The remaining sides are fully enclosed using heavy-duty 2mm thick cold-rolled steel with a powder coat finish, and a cable passthrough slot in the rear. This rack drawer takes 3U of rack space and includes a mat and a 10-32 rack mounting screw set. Includes optional lock and keys for security use.

Premium Build

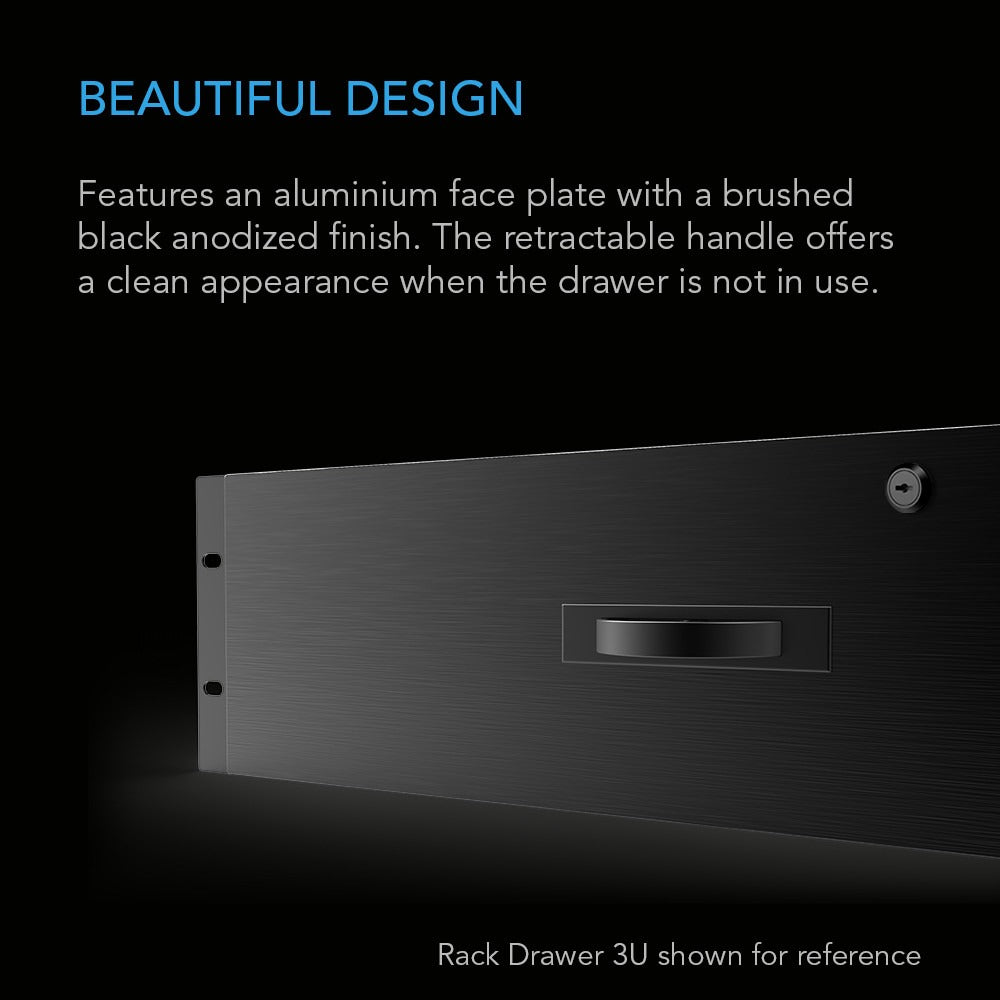

The aluminum faceplate is constructed from a solid block of high-grade alloy aluminum at 3mm thickness, then finished with a brushed black appearance. The panel is then CNC-machined, rounding each corner and chamfering each edge for a high-end look. The handle is designed to be concealed when not in use for a clean appearance and can be retracted when you need to pull open the drawer. This design makes it the perfect match for high-end audio/video and home theater racks.

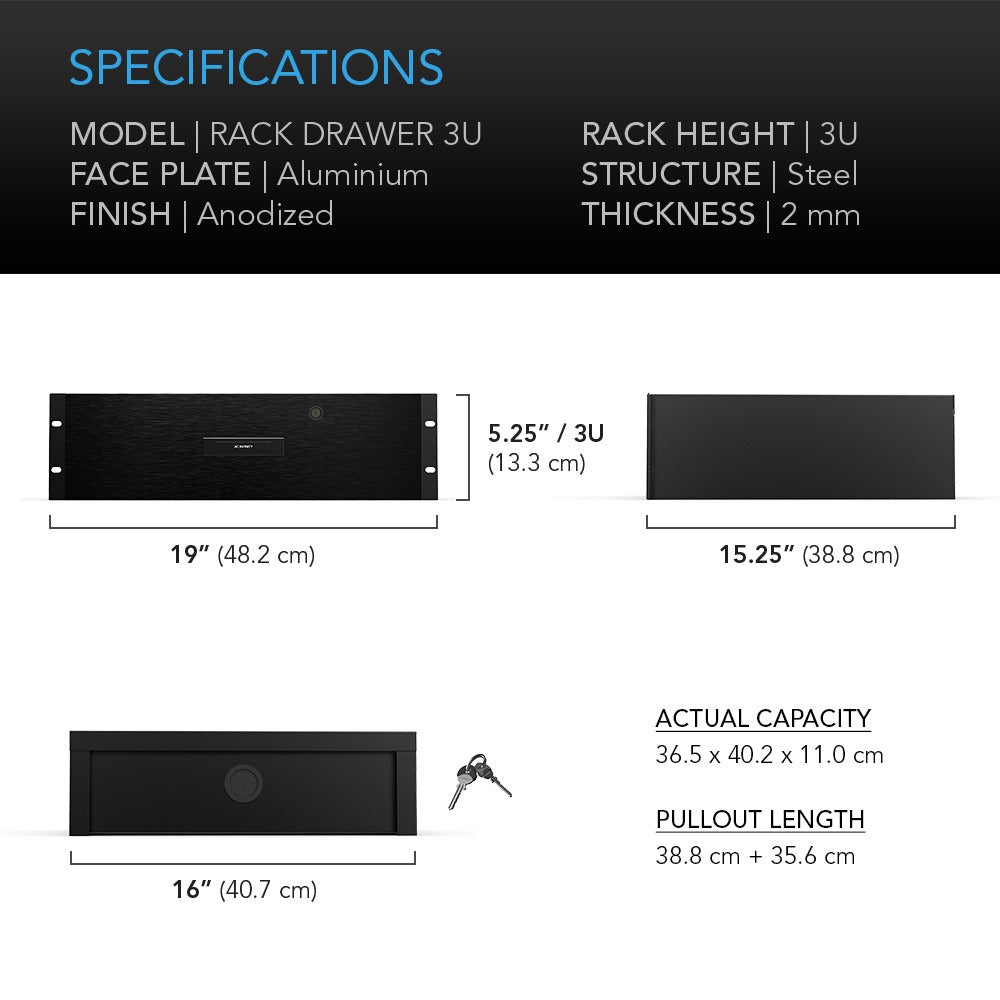

Specifications

• Brand: AC Infinity
• Product Details: Product Identification
• Manufacturer: AC Infinity Inc.
• Product Name: Rack Drawer 3U
• Product Model: AC-RDA3
• UPC Code: 854759004907
• Total Dimensions: 15.25 x 19 x 5.25 in. (38.8 x 48.2 x 13.3 cm)
• Rack Mount Size: Two Rack Units (3U)
• Screw Hole Diameter: .24 x 0.35 in. (6.1 x 9.0 mm) Obround
• Hole to Hole Distance: 18.2 x 3.0 in. (46.4 x 7.7 cm)
• Capacity: 36.5 x 40.2 x 11.0 cm
• Pull Out Length: 38.8 cm + 35.6 cm
• Faceplate Material: Aluminium
• Faceplate Finish: Anodized Black with Brush
• Structure: Cold Rolled Steel
• Structure Finish: Black Powder Coat Paint
• Steel Thickness: 2mm
• Drawer Handle: Retractable Rotating

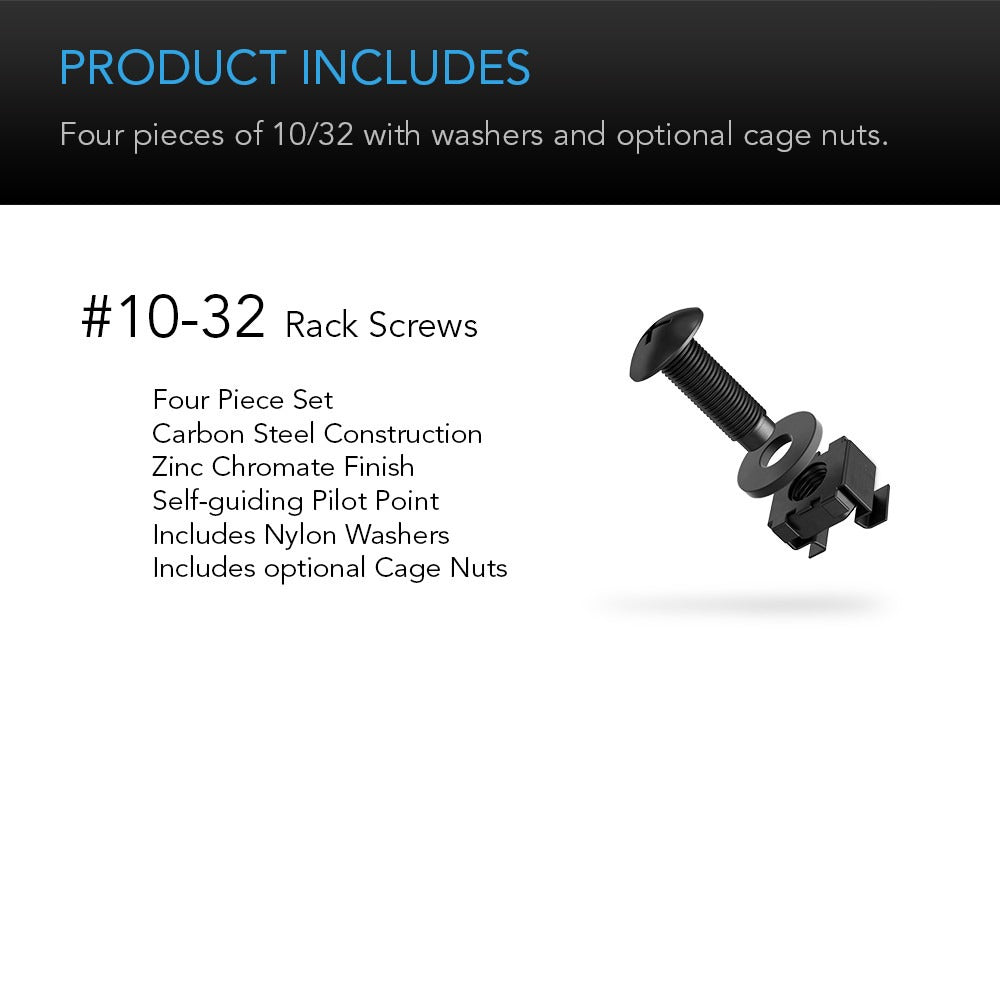

• Screws Sets Included: Four Piece #10-32 Rack Screws plus Washers and Cage Nuts
• Drawer Mat Included: Yes
• Rear Cable Grommet Included: Yes
• Keylock Included: No Key and Lock
• Supplier Weight: 2,791 g (6.15 lb)
