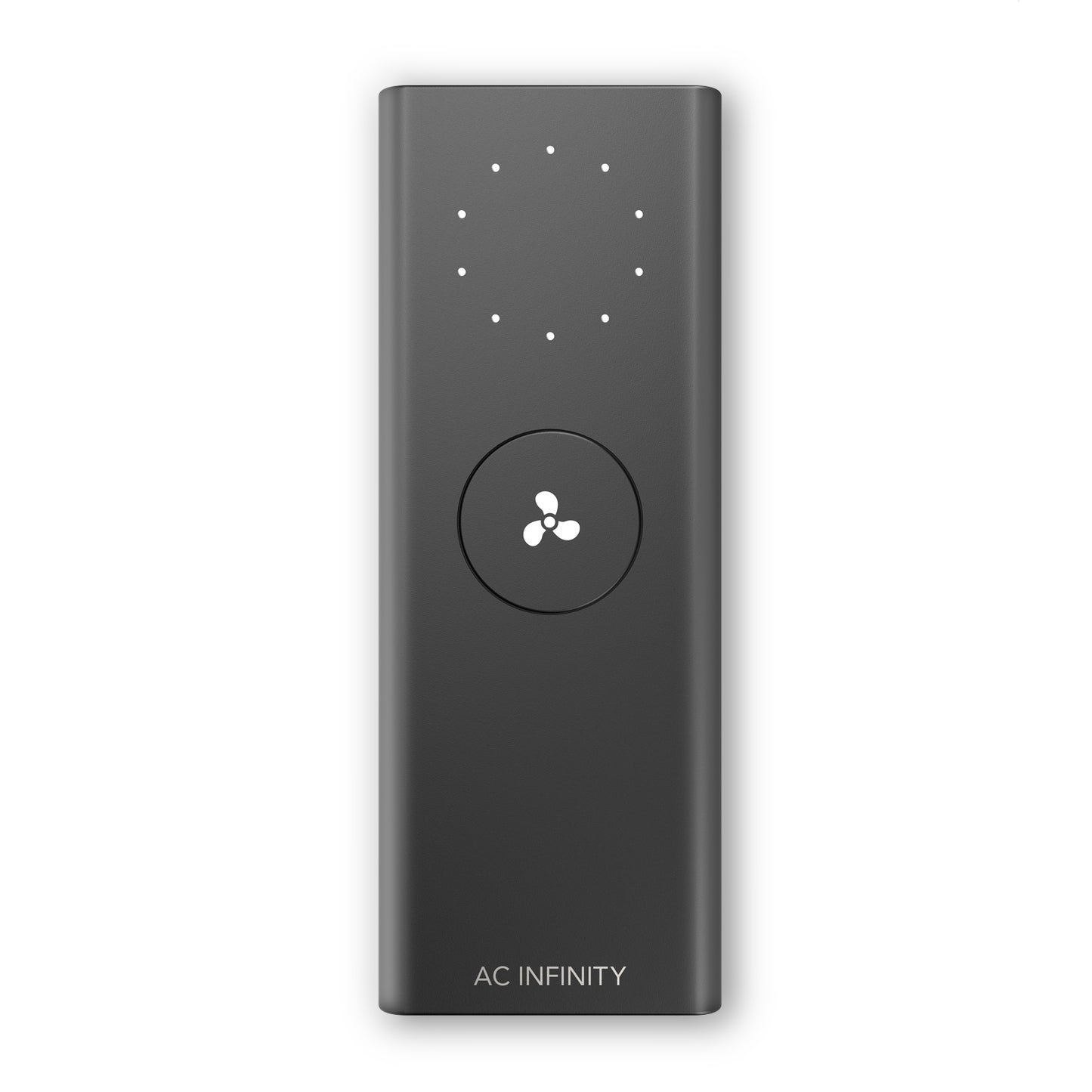

AC Infinity CONTROLLER 63, Wireless Remote Fan Controller

Price: $29.99 USD
List Price: $0.00 USD
Price: $29.99 USD
View Cart

Bulk Discount

Buy 3 or more items and receive 5% off this order! Discount will be automatically applied at checkout.

Commercial Pricing

Email us or call/text 814-470-8368 for your custom quote!

Free Shipping

Free and discreet shipping in the lower 48. Ships in 1 to 3 business days!

Interest-Free Financing

Checkout and pay with Affirm, PayPal Pay in 4, Sezzle or Shop Pay Installments.

Estimated Arrival: Between Sep 14 and Sep 25.

SAVE $10 on orders over $200 | Use Coupon Code: KEEP10

00 Days
00 Hours
00 Minutes
00 Seconds

Description
  • Fan Controller: This wireless speed controller is specifically designed for AC Infinity fans used in HVAC or growing applications. It allows for easy remote adjustment of fan speed using PWM controls, ensuring optimal airflow and noise management. The controller features 10-speed programming with clear white LED indicators and includes a backup memory to retain speed settings. It can also control multiple fans simultaneously when paired with additional receivers (sold separately). Compatible with AC Infinity EC motor fans from the CLOUDLINE, AIRLIFT, CLOUDWAY, and CLOUDLIFT Series.

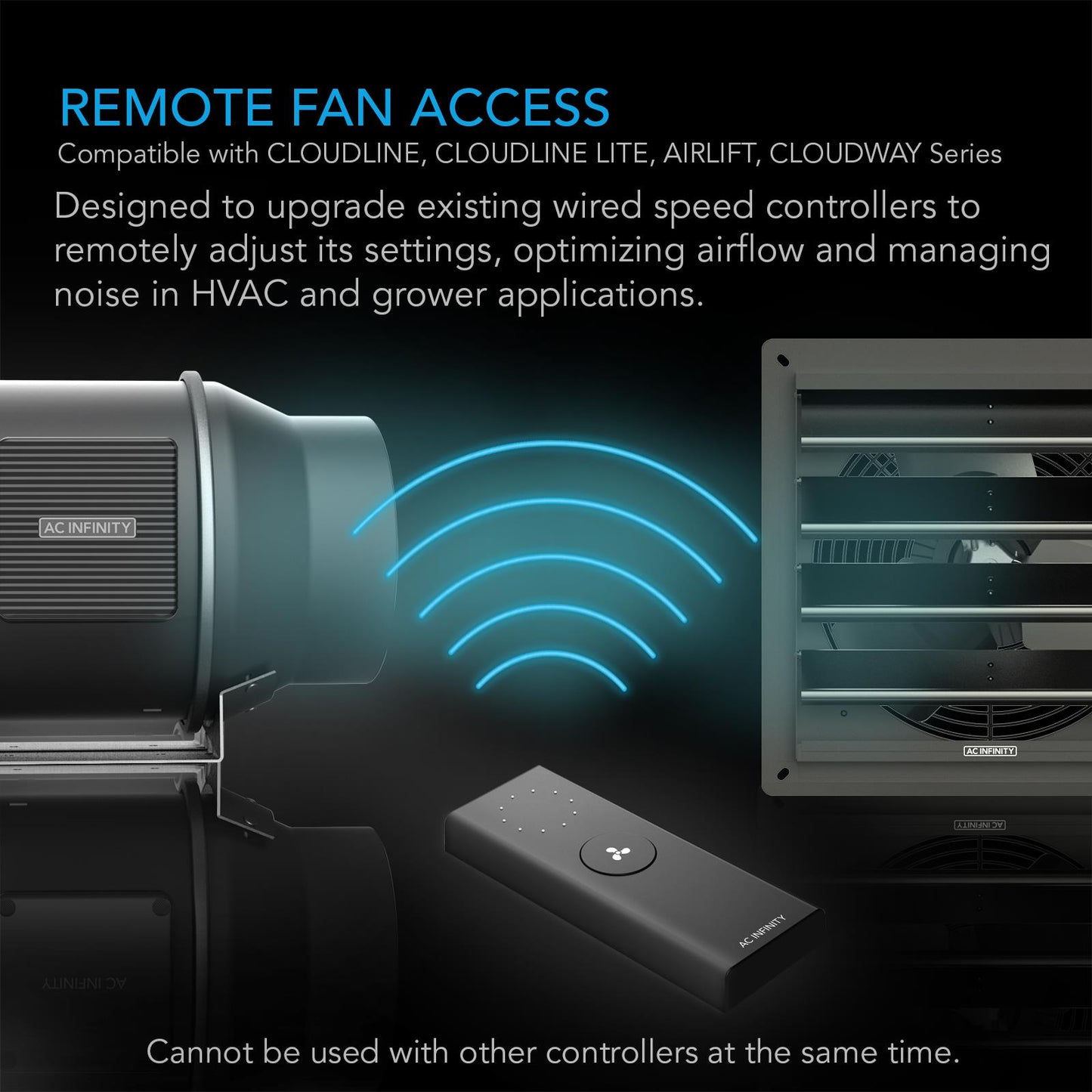

  • Variable Speed Controller: Upgrade your existing wired speed controllers with this remote controller and receiver kit. Utilizing PWM technology, it allows for precise adjustment of your AC Infinity fan speed, optimizing airflow and noise control. The controller features 10-speed programming, indicated by a circular array of white LED lights. The built-in memory chip retains speed settings even when power is shut off. Please note that only one receiver or wired controller can be used with each fan at a time and cannot be used together.

  • Wireless Remote Control: Powered by two AAA batteries, the remote speed controller communicates with the receiver using a 2.4 GHz signal. Simply match the three pins in both pieces of the remote kit and successfully pair them together. This allows you to transform your blower unit into a wireless exhaust fan and adjust fan speed from up to 65 feet away. Connect and pair multiple receivers with a single remote controller to set speeds of many fans at the same time. Additional receivers are sold separately.

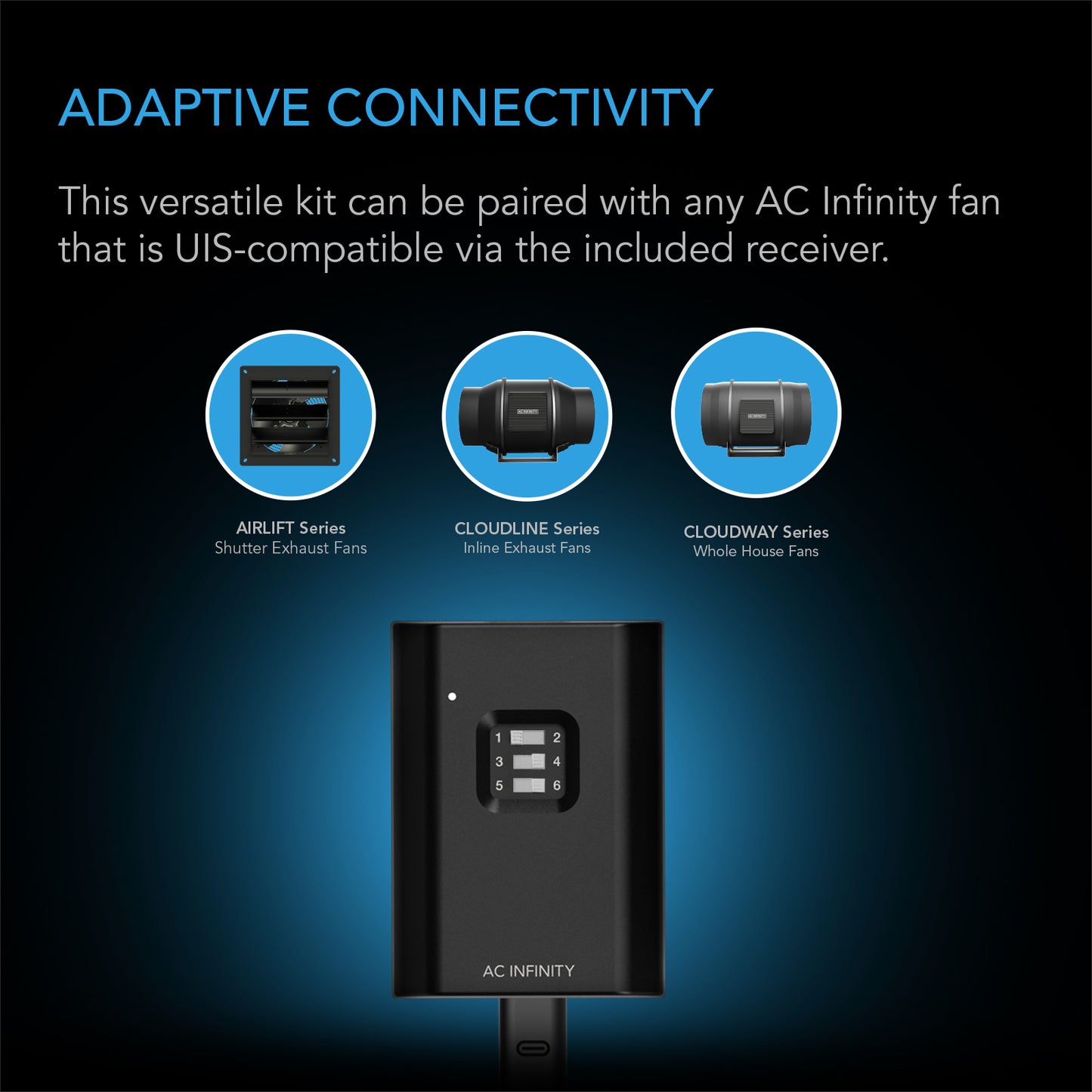

  • Each wireless fan remote kit includes a dongle that enables use with AC Infinity fans equipped with UIS and Molex connectors. Compatible EC-motor cooling fans include:

  • - CLOUDLINE Series: Inline Duct Fans
  • - AIRLIFT Series: Shutter Exhaust Fans
  • - CLOUDWAY Series: Whole House Fans
  • - CLOUDLIFT Series: Floor Wall Fans
    • Specifications
  • Product Identification
  • Manufacturer: AC Infinity Inc.
  • Product Name: CONTROLLER 63
  • Product Model: CTR63A
  • UPC Code: 819137021730

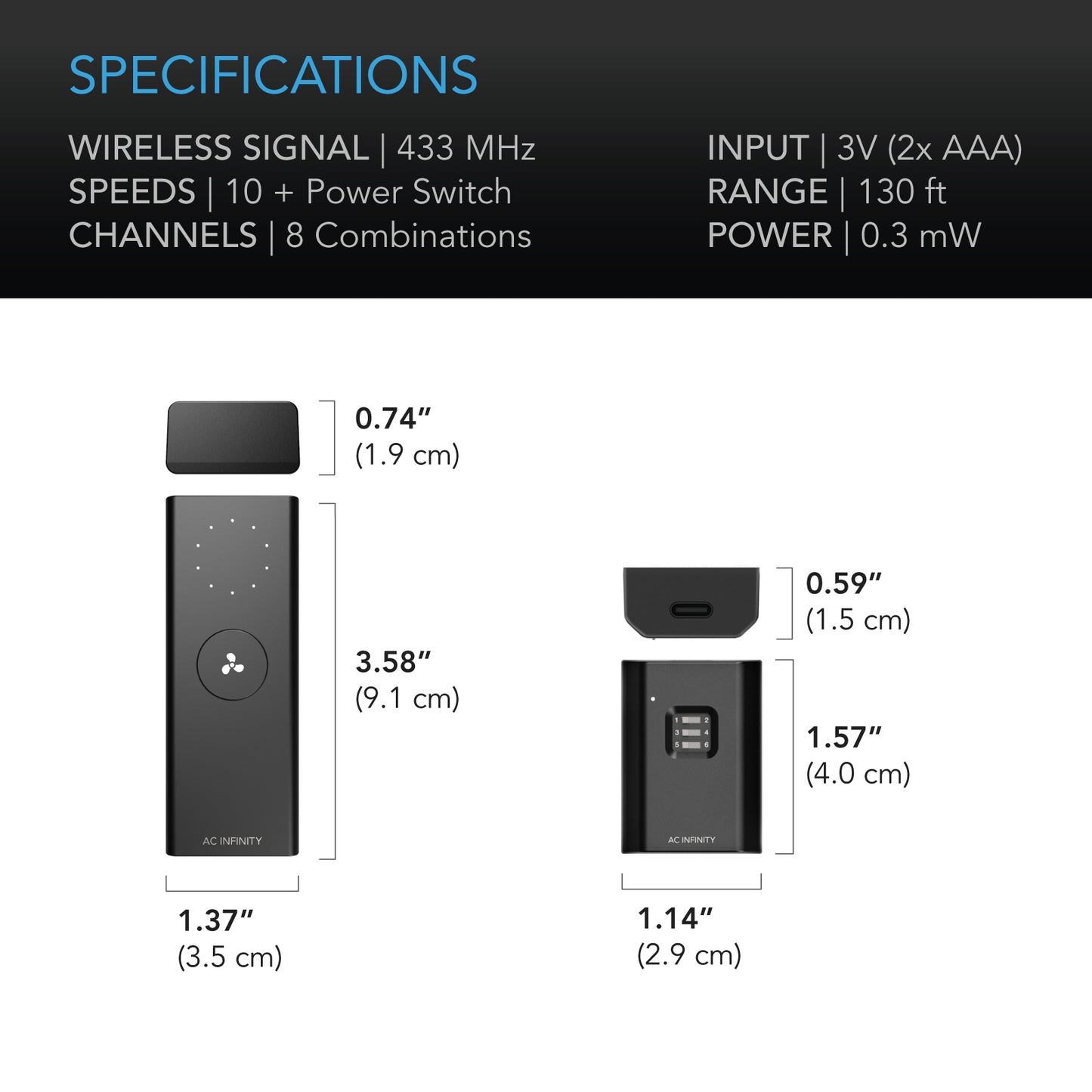

  • Product and Mounting Dimensions
  • Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
  • Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
  • Mounting Hole Size: Ø 0.25 in. (Ø 6.5 mm)

  • Product Performance and Technical Specs
  • Maximum Fans Controlled: 1
  • Wireless Signal: 2.4 Ghz
  • Signal Range: 65.62 ft. (20 m)
  • Included Adapter: 4-Pin Molex to UIS
  • Adapter Length: 4.07 in. (10.3 cm)
  • Operating Humidity: 35 to 85% RH
  • FCC Cert. (Whole Product)
  • Product Manual PDF

  • Speed Controller
  • Operating Voltage: 2 to 3.6V
  • Max Current Supported: 0.1 mA
  • Power: 0.3 mW

  • Receiver
  • Operating Voltage: 8 to 15V
  • Max Current Supported: 10 mA
  • Power: 100mW
    • Data Sheet
  • Download the Product Manual: here
  • Download the FCC Certification: here

    • Customer Reviews

    Based on 2 reviews
    100%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    Tony
    Remote Controller

    I purchased this for my in duct blower. Instead of running a wire from the basement to the wall I opted for the remote. Works great with multiple speeds.If it gets to cold I dial back the blower.

    T
    Tony
    Remote Controller

    I purchased this for my in duct blower. Instead of running a wire from the basement to the wall I opted for the remote. Works great with multiple speeds.If it gets to cold I dial back the blower.
