Description

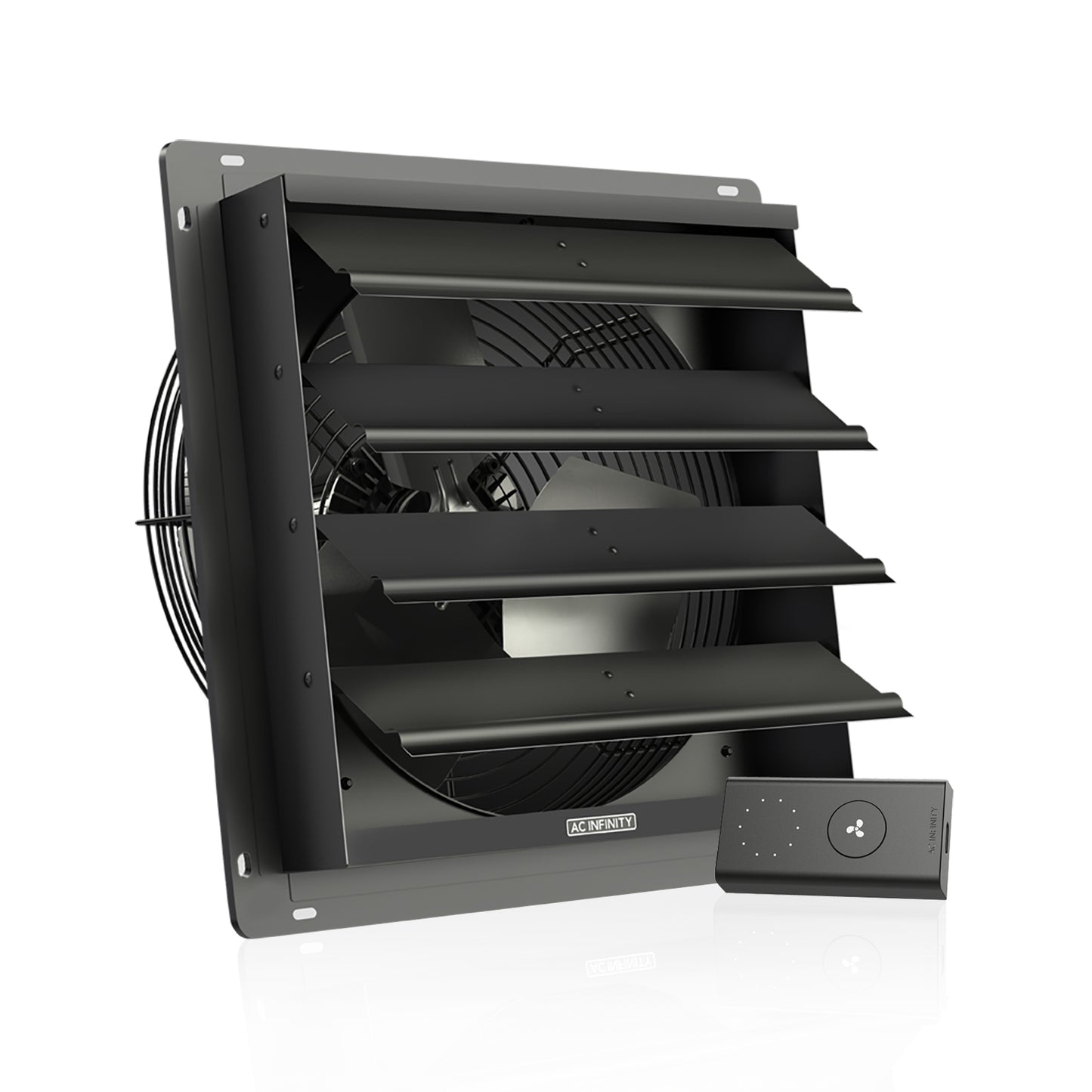

A high-airflow shutter fan designed to remove stale air and ventilate greenhouses, garages, and more.

Features a 10-level fan speed controller that utilizes PWM technology to generate precise airflow.

Innovative EC motor with PWM control maximizes airflow while reducing energy consumption and noise level.

IP44-rated frame features steel shutters and fan blades that block debris while resisting moisture and dust.

Fan Size: 14" | Dimensions: 16.93 x 16.93 x 8.1 in. | Airflow: 1513 CFM | Noise: 68 dBA | Bearings: Dual Ball

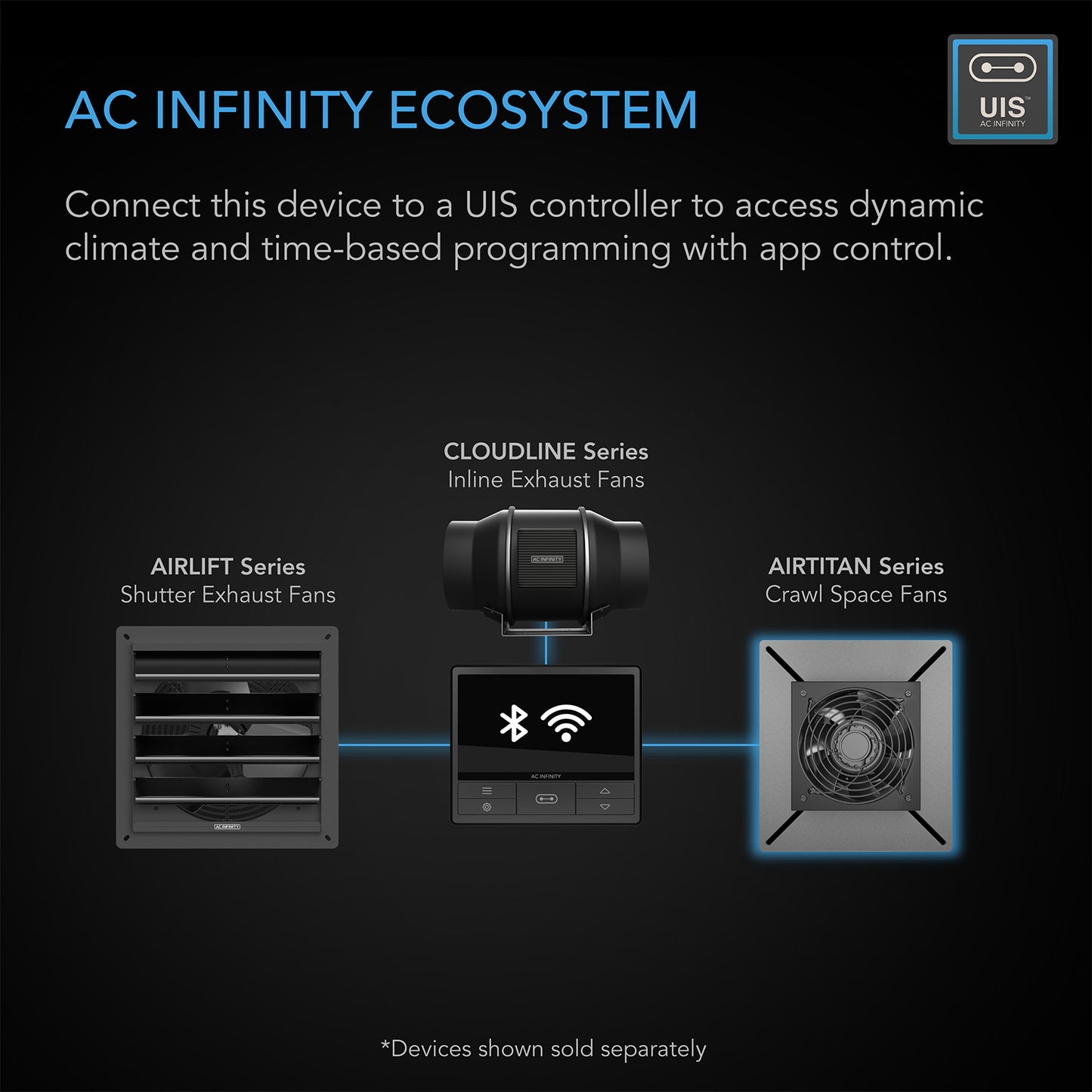

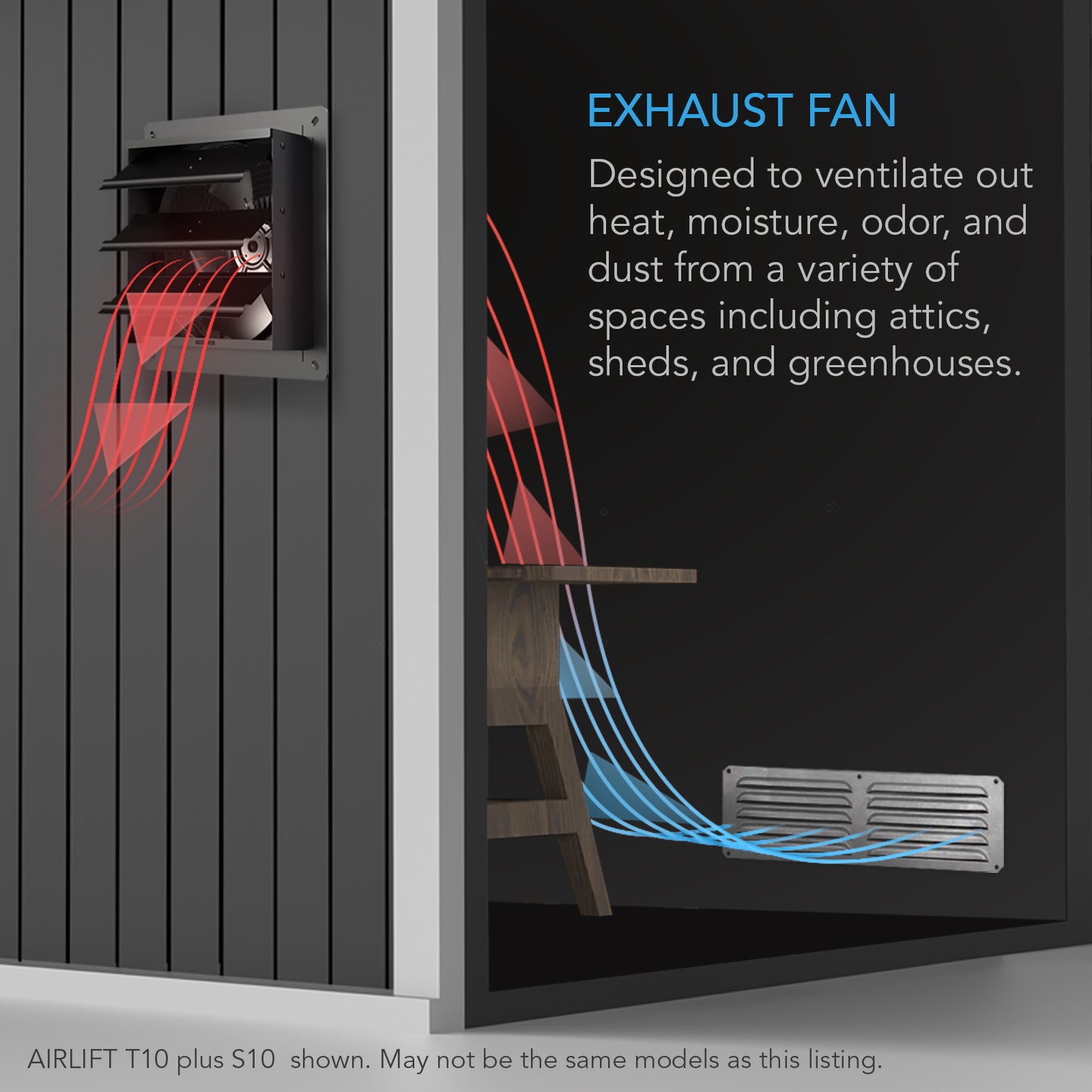

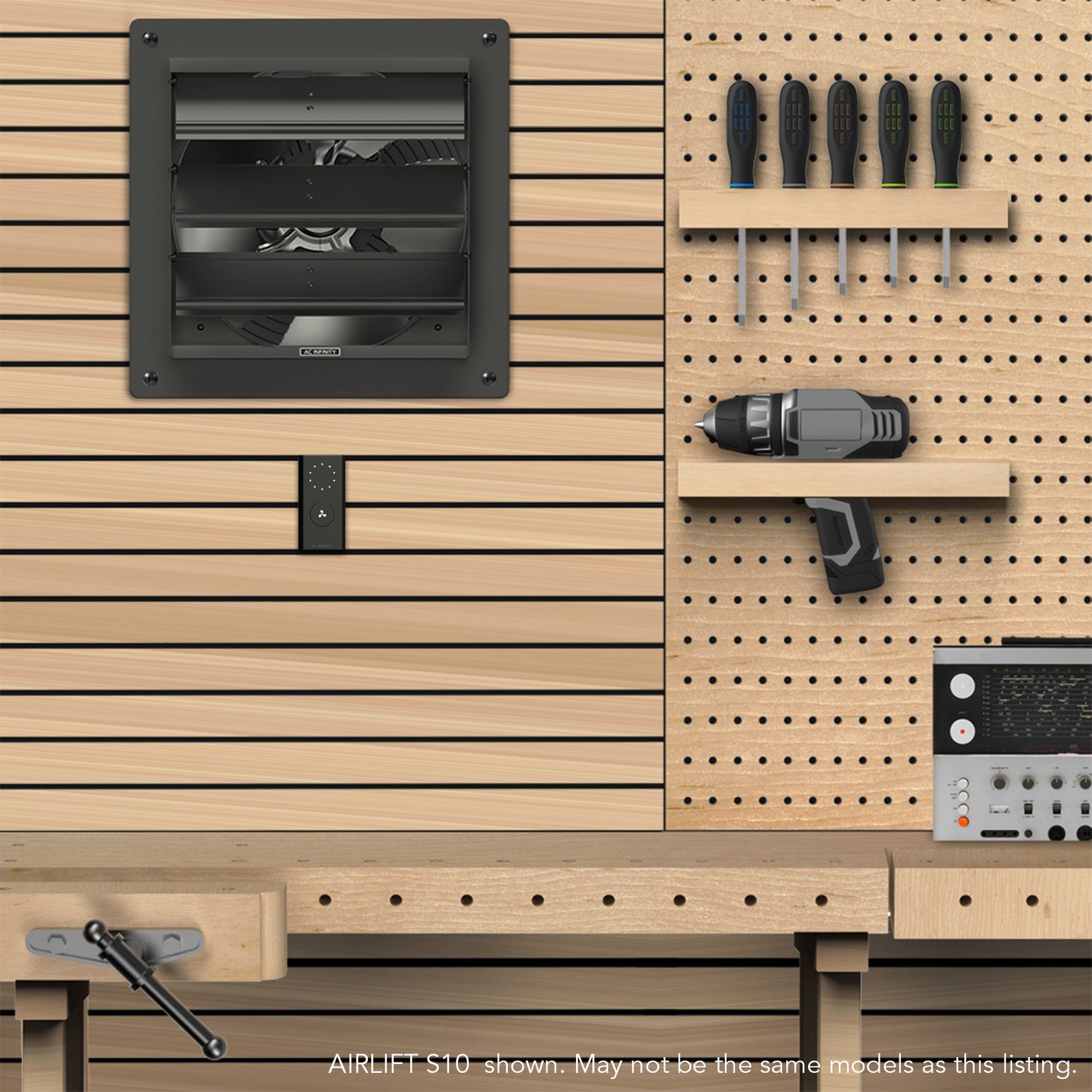

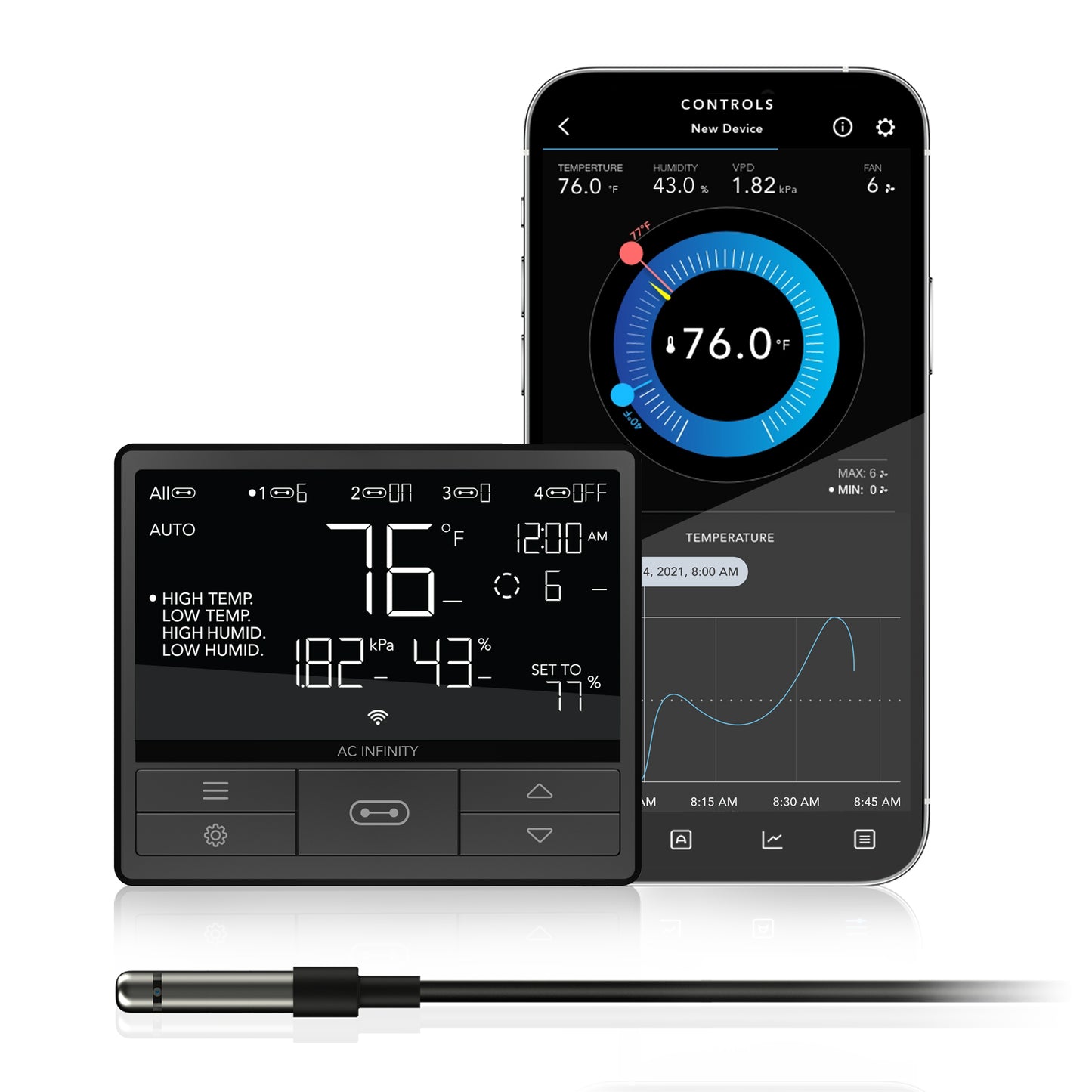

Product Description: A shutter exhaust fan designed to exchange air in large spaces, improving ventilation in workspaces like warehouses, greenhouses, garages, and workshops. By installing this exhaust fan, you can refresh your workspace and regulate heat, moisture, and odor levels to improve comfort. It is run by a PWM-controlled EC motor that is energy-efficient while enabling precise fan speed control to generate your ideal ventilation level. This control is powered by a speed controller that enables up to 10 fan speed levels. Its heavy-duty build features aluminum fan blades, steel wire guards, and lightweight steel shutters. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

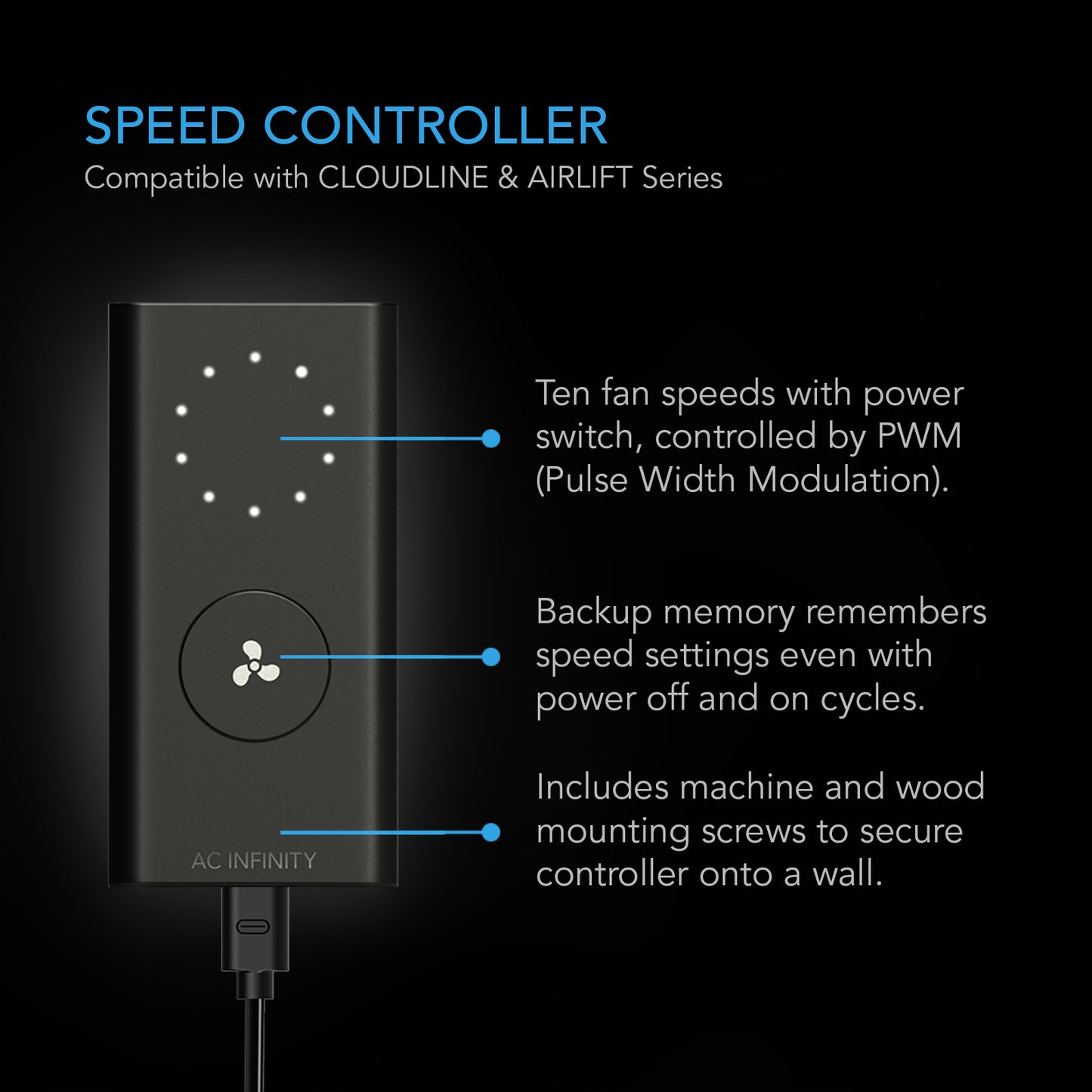

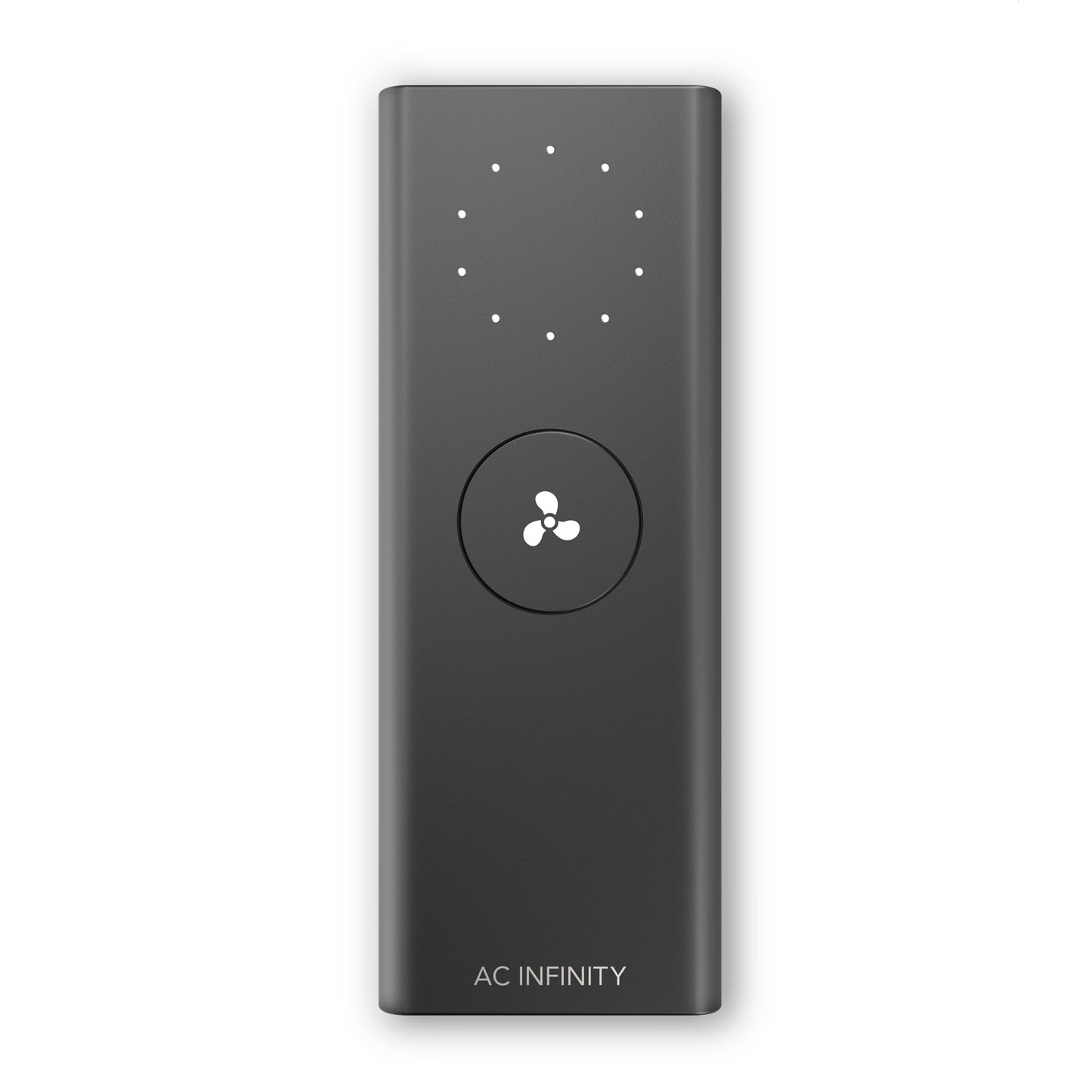

Precision Fan Speed Control: This shutter fan includes a speed controller that enables you to set its speed to optimize noise and airflow levels in various environments. The fan speed control is supported by its EC motor that is precisely controlled using PWM (Pulse Width Modulation), which enables it to run smoothly at extremely low RPM speeds without generating motor noise. Ten-speed options are available with a power switch and backup memory.

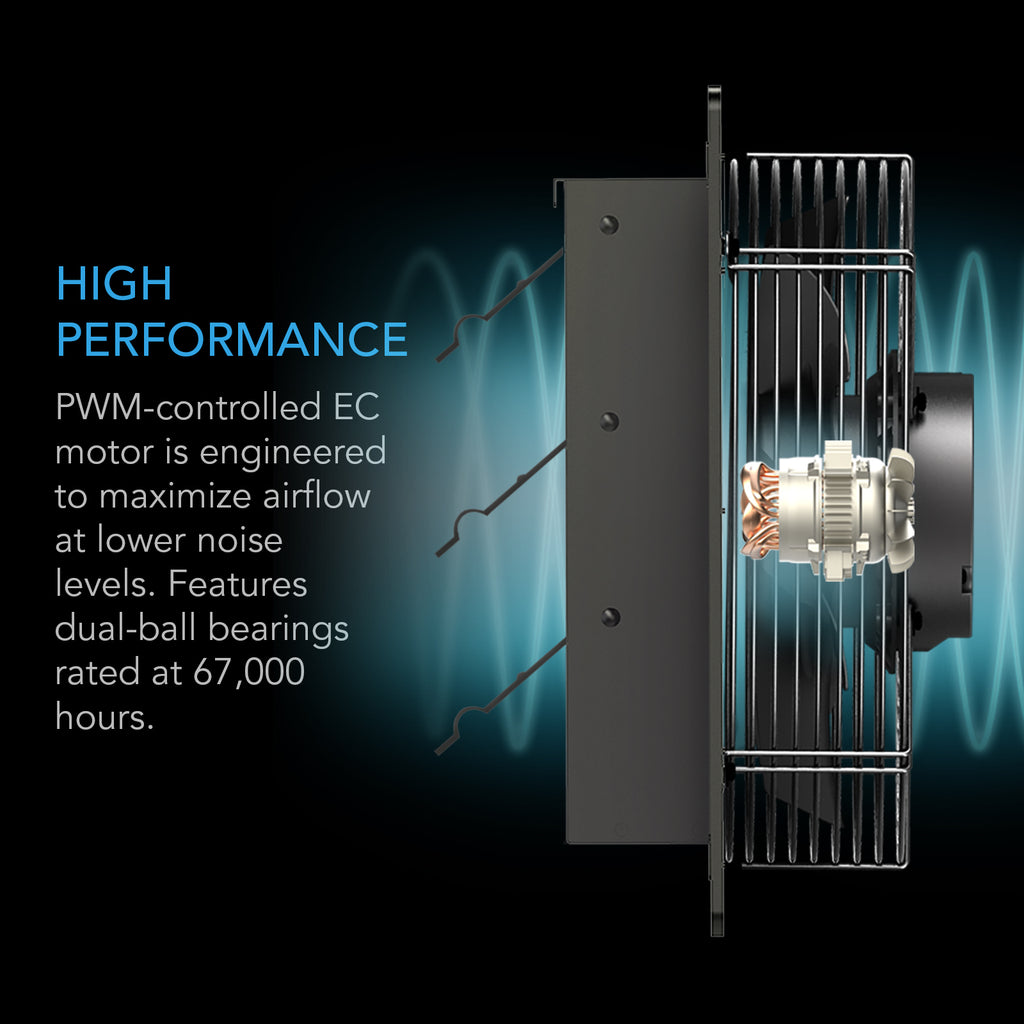

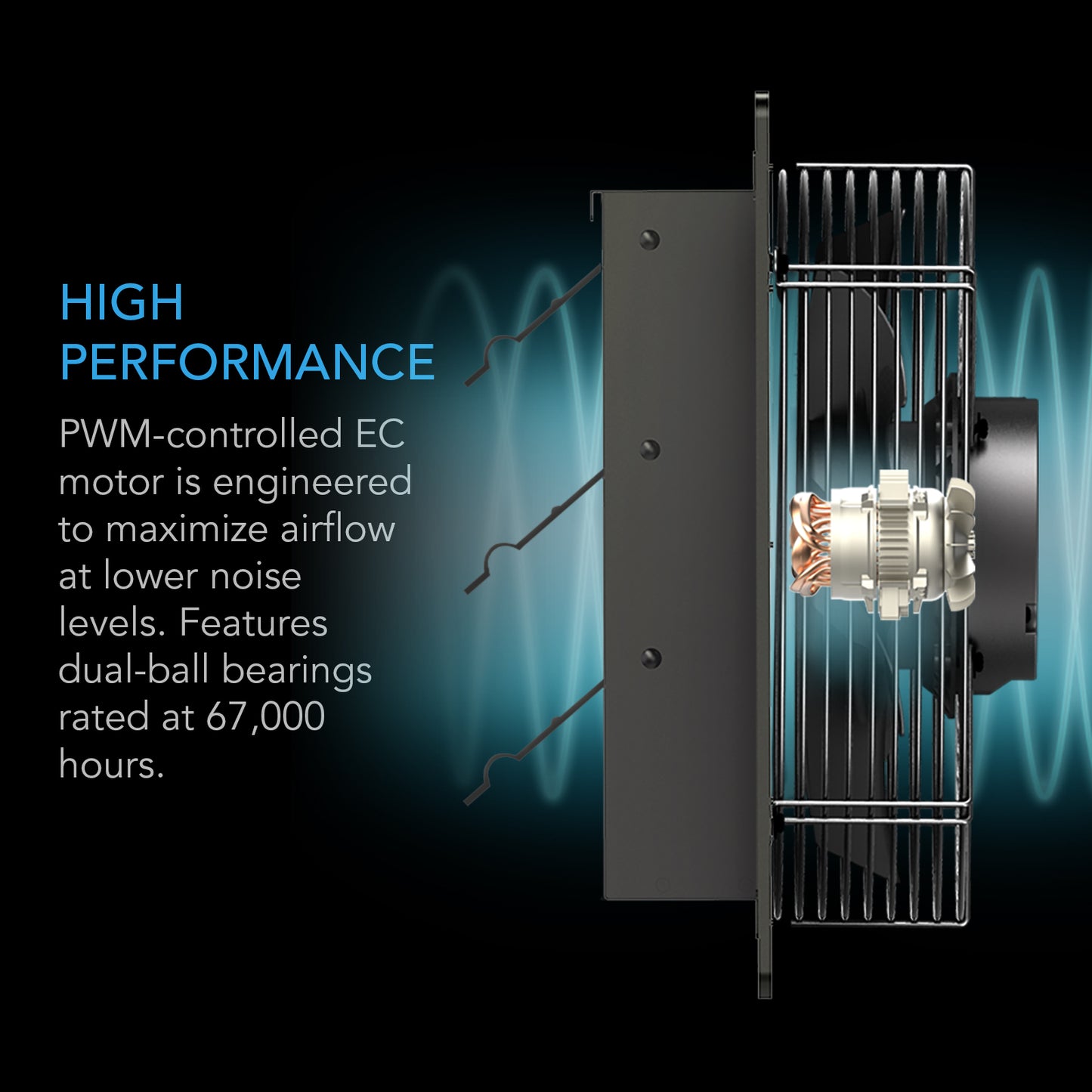

Heavy-Duty Performance: Features steel shutters that are weather and corrosion-resistant, automatically closing when not in use to prevent dust, debris, and moisture from entering your space. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.

Required installation conditions

Use a GFCI-protected receptacle. Install at least 8.2 feet (2.5 meters) above the floor and secure all nearby objects, wires and cables clear of the impeller and blades. Place the fan high in the room, preferably opposite ventilation openings. Measure the actual mounting frame before cutting and check for hidden wires or pipes. Do not hardwire the fan or retrofit it with solid-state speed controls. Supervise children and users who need assistance.

Electrical and rotating-part safety

Read the manual and match the specified supply. Do not use in flammable, explosive, chemical-laden or wet atmospheres. Keep fingers and foreign objects out of the grille, leave airflow openings clear and do not cover cords with fabric. Unplug before installing, servicing or moving the fan; programmed off is not power isolation. Do not use damaged equipment. Follow local installation requirements and seek qualified installation assistance when needed.

Specifications

Product Identification

• Manufacturer: AC Infinity Inc.
• Product Name: AIRLIFT S14
• Product Model: AC-ALS14
• UPC Code: 819137021457

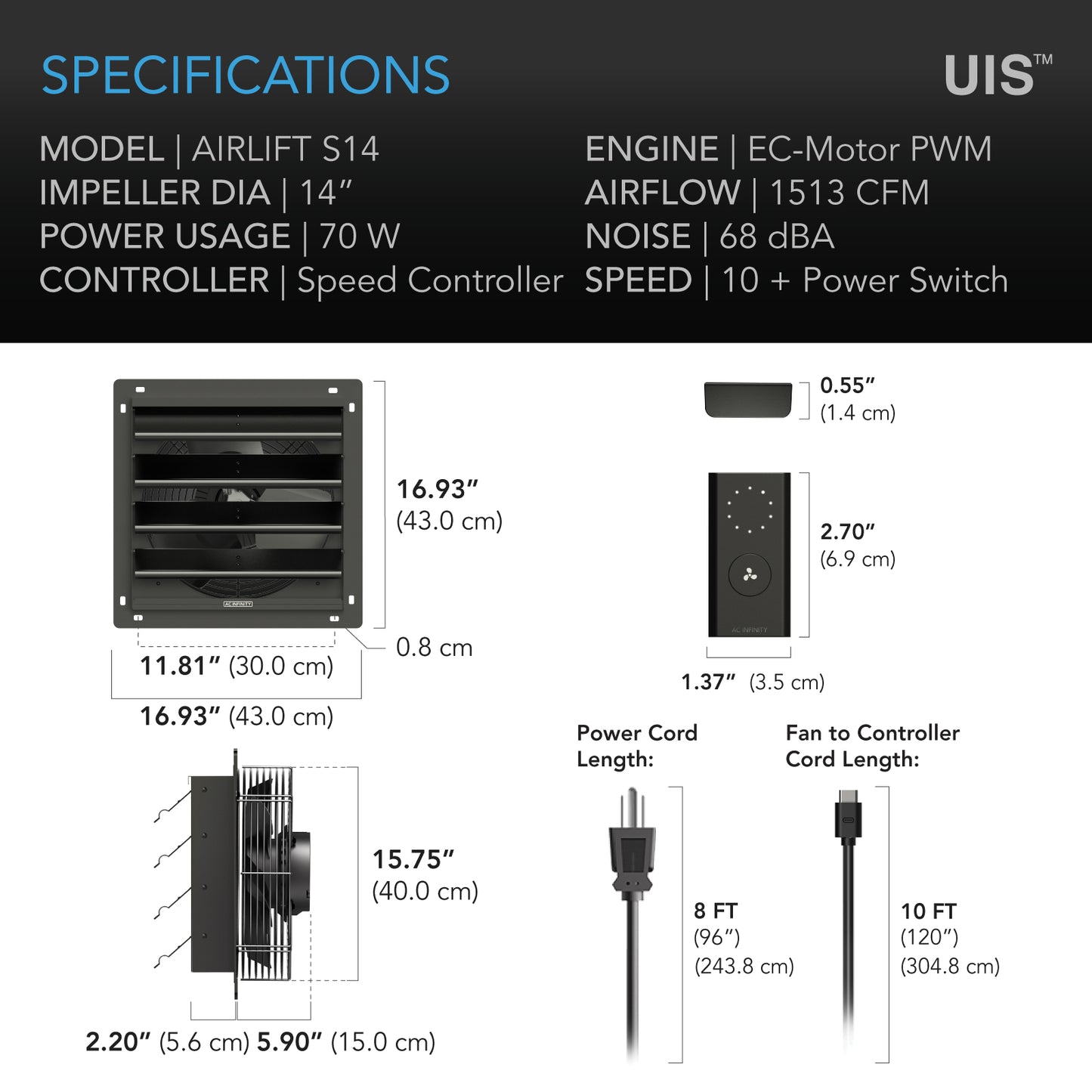

Product and Mounting Dimensions - Fan Unit

• Total Dimensions: 16.93 x 16.93 x 8.1 in (43.0 x 43.0 x 20.6 cm)
• Frontside Enclosure Dimensions: 14.52 x 14.52 in (36.9 x 36.9 cm)
• Required Mounting Hole: 14.68 x 14.68 in (37.3 x 37.3 cm)
• Hole to Hole Distance: 11.81 in (30.0 cm)
• Screw Hole Diameter: 0.27 in (0.7 cm)
• Cord Length to Controller: 120 in (10 feet)

Product and Mounting Dimensions - Controller

• Hole to Hole Distance: 2.87 in. (7.3 cm)
• Screw Hole Diameter: 0.157 in. (0.4 cm)
• Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs

• Total Airflow: 1513 CFM
• Total Noise: 68 dBA
• Static Pressure: 70.46 Pa
• Operating Voltage: 100-240V AC
• Power: 70W
• Current: 1.2A
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Fan Bearings: Dual Ball
• Life Expectancy: 67,000 Hours

Data Sheet

AIRLIFT AL2306X1 operating manual

AIRLIFT voluntary compliance certificate3K220725.ACITQ18, with model annex

Kit Contents

• Selected shutter fan unit (1),10-foot UIS male-to-male cord (1), shutter-mount machine screws (8), shutter-mount wood screws (8), wire ties (4).
• Speed controller (1), controller plate bolts (2), wall-mount wood screw (1).
