Description

An air filtration kit with everything you need to cool, ventilate, and control odors in your grow space.

Features the CLOUDLINE PRO inline fan with a PWM-controlled EC motor for quiet and energy efficient ventilation.

Smart controller sets triggers, schedules, and grow cycles. Remotely access through Wi-Fi app to enable automation.

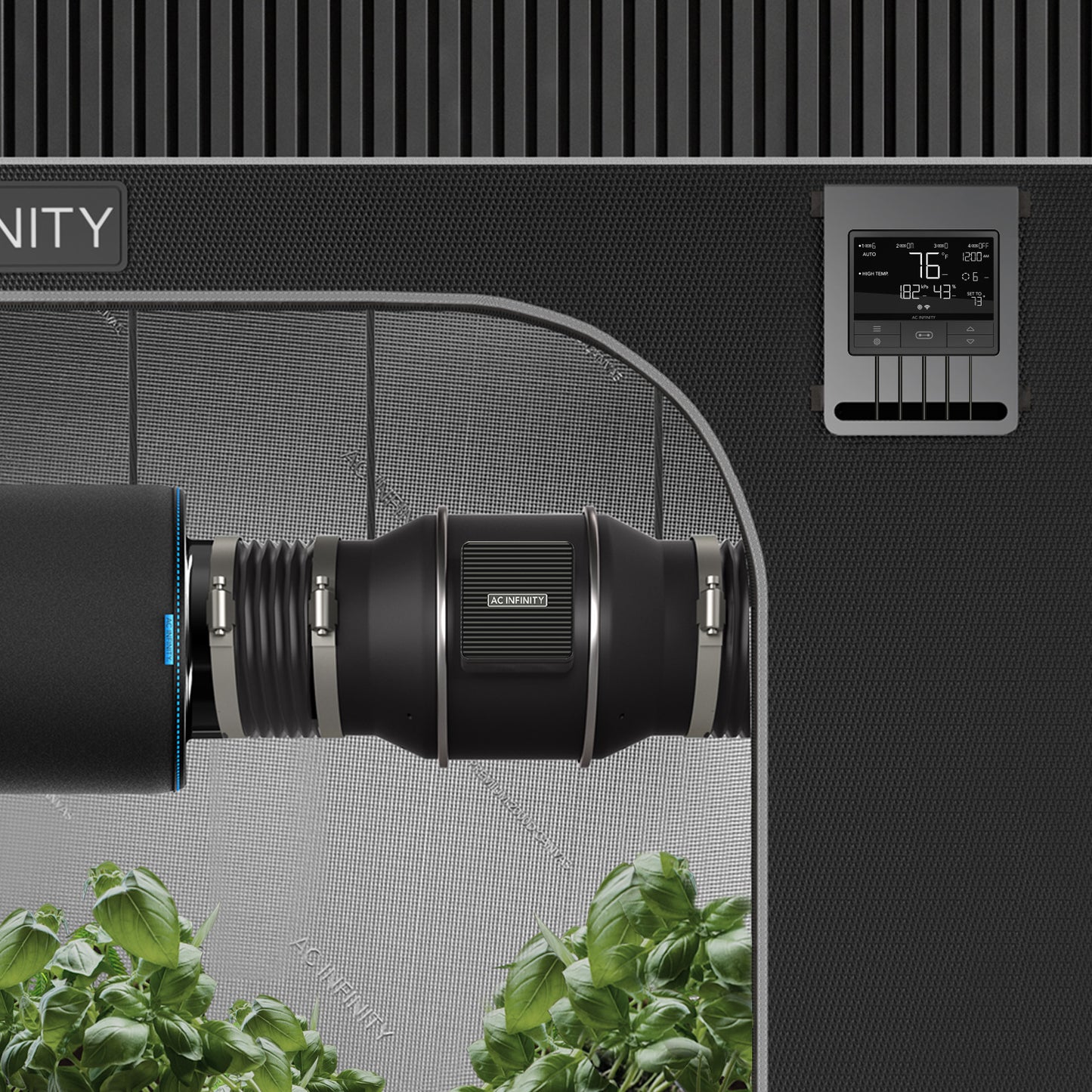

Australian carbon filter with flexible ducting traps odors while routing stale air away from your grow tent.

Kit Duct Size: 8" | Fan Airflow: 807 CFM | Noise 39 dBA | Carbon Thickness: 38 mm | Ducting Length: 25 ft.

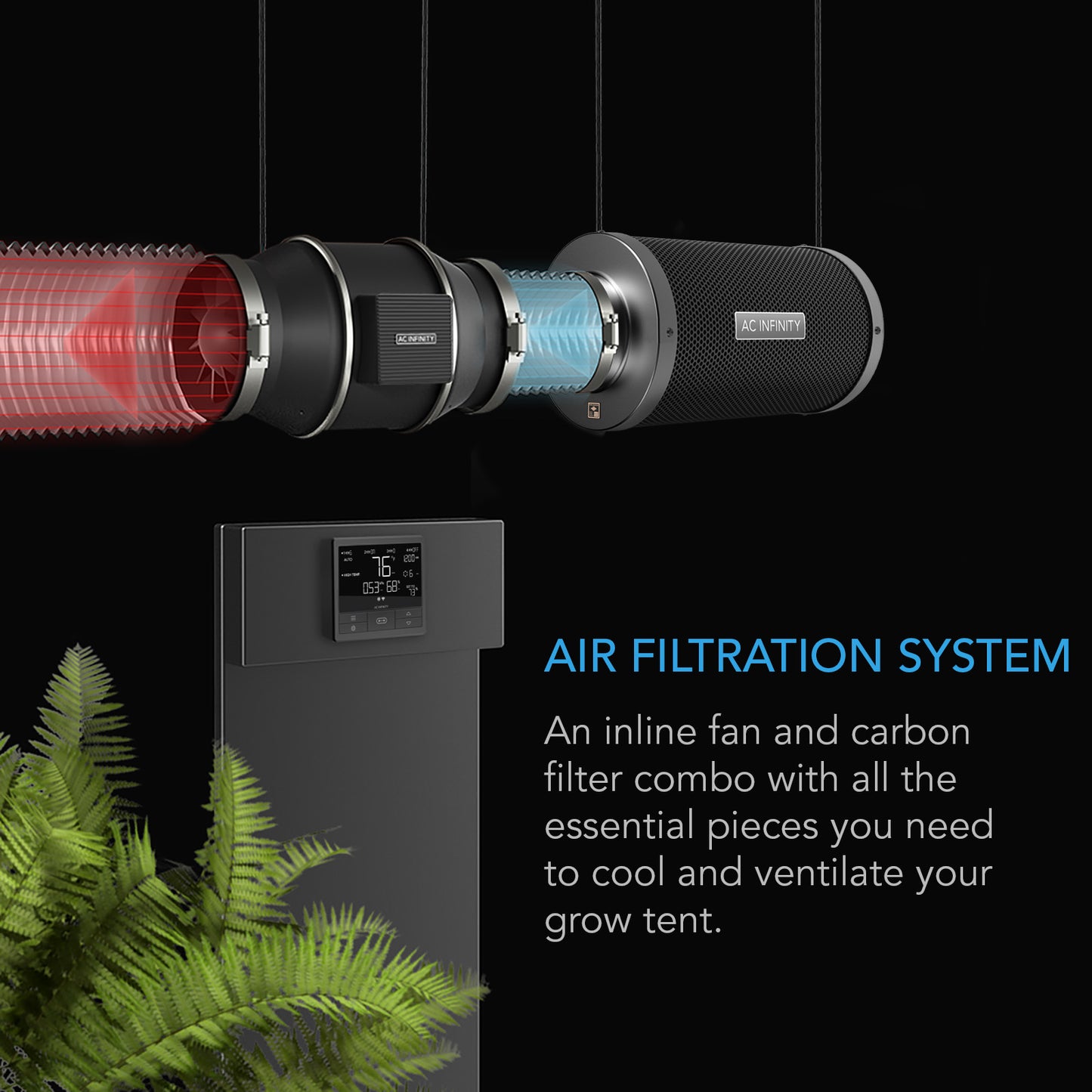

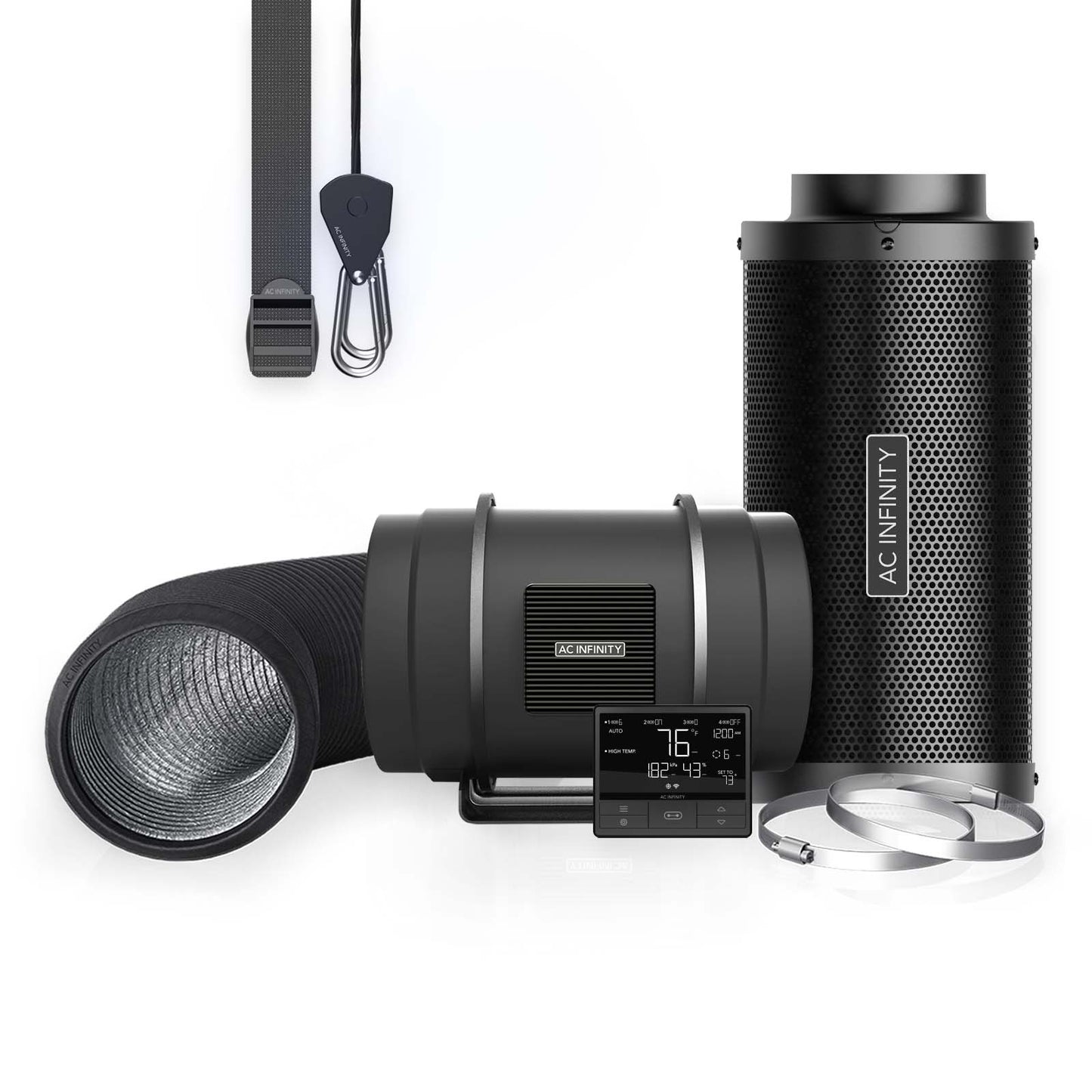

Product Description: A grow tent air filtration system with all the necessary inline components you need to ventilate your grow space. By assembling these essential pieces, this package will help you quickly get your grow build started and eliminate the guesswork of purchasing them individually. This inline fan kit features the CLOUDLINE PRO Series fan that can deliver a powerful yet quieter performance. Paired with a rust-resistant carbon filter with a gunmetal finish using Australian virgin charcoal to block odors from seeping out of your grow tent. These two pieces are connected by a set of flexible ducting with four layers of protection to properly direct airflow. Accessories include duct clamps, prefilter cloth, rope clip hangers, and hanging straps to complete the installation. This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

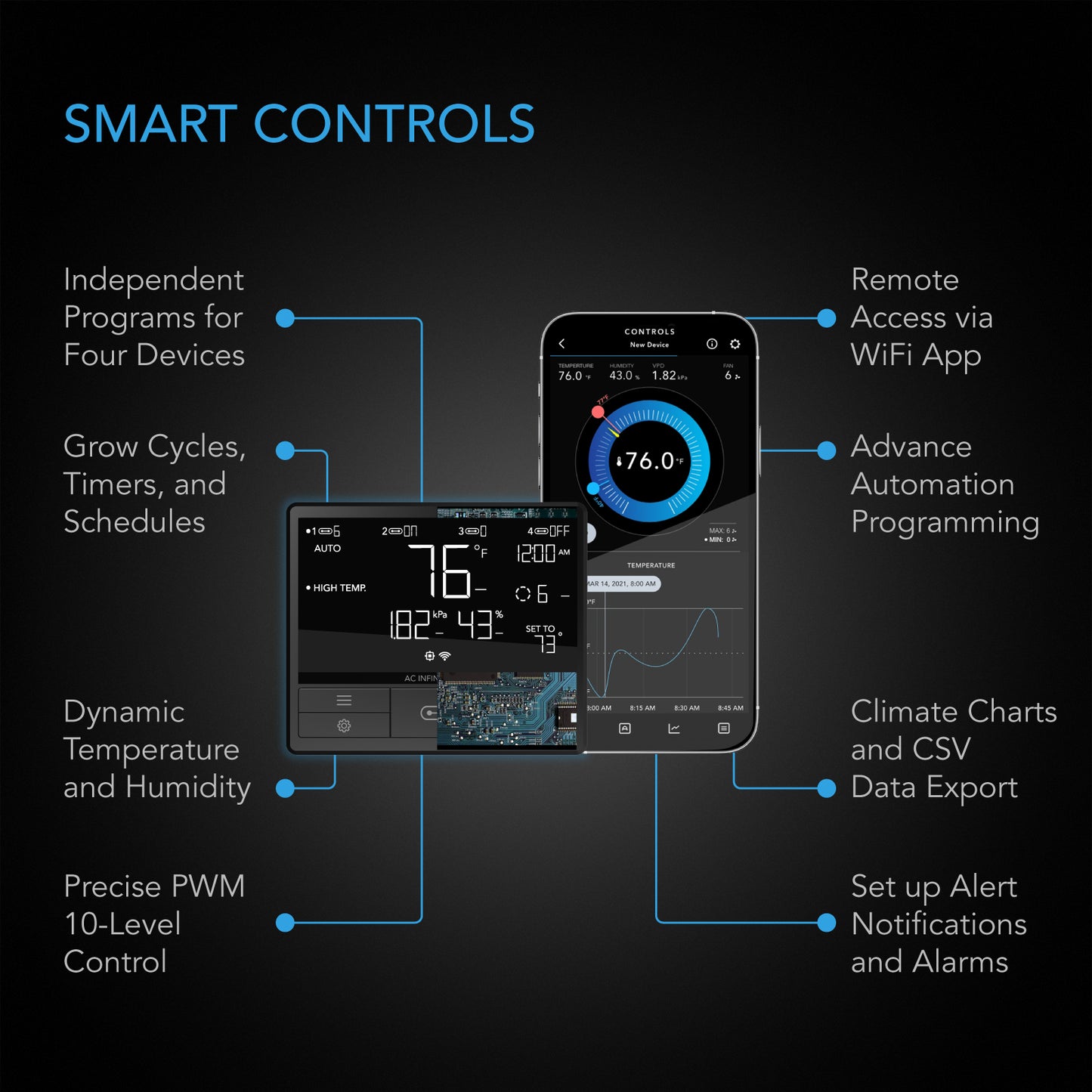

Intelligent Programming: CONTROLLER 69 PRO distributes smart programming to the quiet inline fan to keep temperature, humidity, and VPD in check and produce the optimal environment. Set dynamic programs that go beyond on/off triggering and adjust fan speed in response to changing indoor climate. Minimum baseline levels keep the inline fan running at low speeds for consistent airflow while timer, cycle, and schedule modes add custom on-demand activation. Securely connect to the AC Infinity app through Wi-Fi to utilize automation capabilities from anywhere throughout the day. Remotely access your devices, unlock advanced programs, set alarms, notifications, view historical charts, and export CSV data.

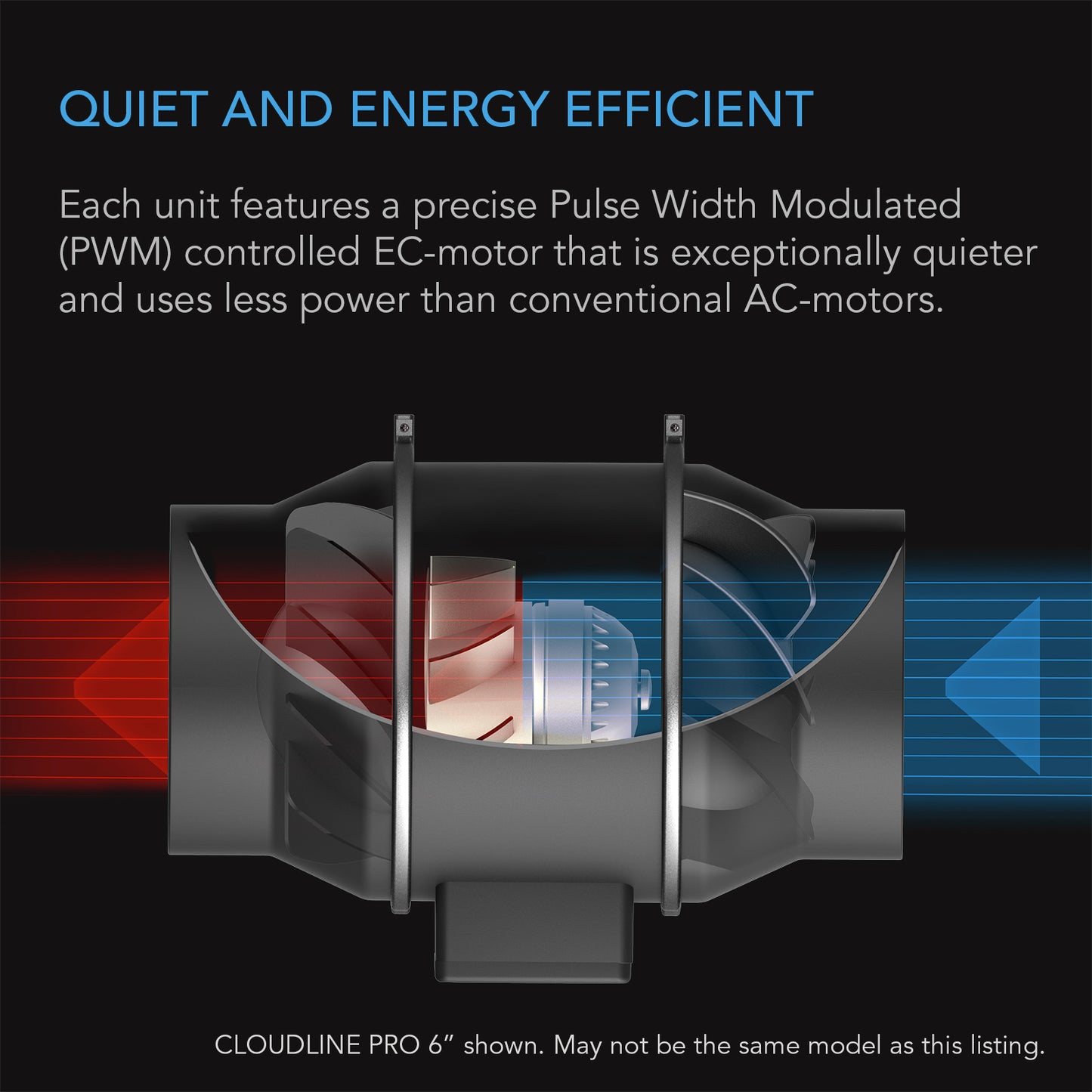

Quiet and Energy-Efficient Design: The included CLOUDLINE PRO Series inline fan features a PWM-controlled EC motor, enabling smooth operation at low RPM speeds with no additional heat or noise. It achieves high-performance airflow fit for grow tents thanks to its mixed-flow design and its use of stator blades and hydrodynamic wind circles. Dual ball bearings give this inline fan a 67,000-hour lifespan which is backed by its IP-44 sealing that resists dust and splashing liquids.

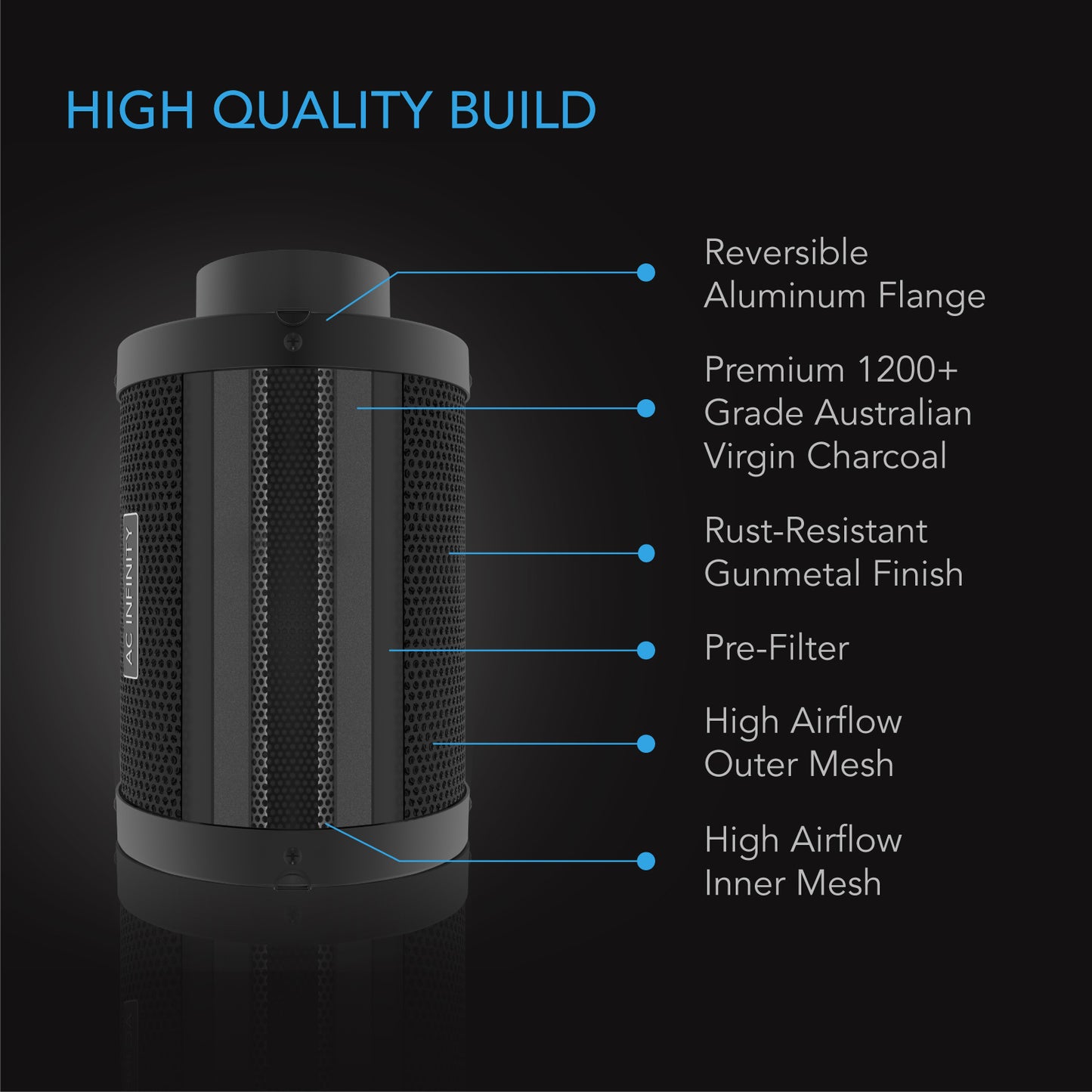

Premium Grade Carbon: The duct carbon filter effectively blocks out unwanted odors and chemicals using its bed of premium Australian charcoal. Featuring a 1200+ IAV rating, the activated carbon supports clean airflow more efficiently thanks to its increased adsorption rate and extended life rating. The filter's durable steel mesh body is protected by a powder-coated gunmetal finish to better defend against rust and corrosion in high-humidity growing environments.

Installation and Safety

Read the linked manual before installation and use. Match the power source to the product requirements and follow local electrical codes. If you are unsure about installation, use a qualified, trained and licensed professional. Keep fingers and foreign objects away from rotating parts and openings. Do not block the fan, cover its power cord, or use it with a damaged cord or after damage or malfunction. Unplug it before installation, servicing or movement; the on/off control is not a substitute for disconnecting power.

Do not use this product in flammable, explosive, chemical-laden or wet locations. Follow the linked manual and local installation codes.

Do not hardwire or retrofit the product. The manual warns that improper installation or retrofitting can cause injury or electrical damage and void the warranty.

Ducted products must be vented outdoors as instructed in the manual.

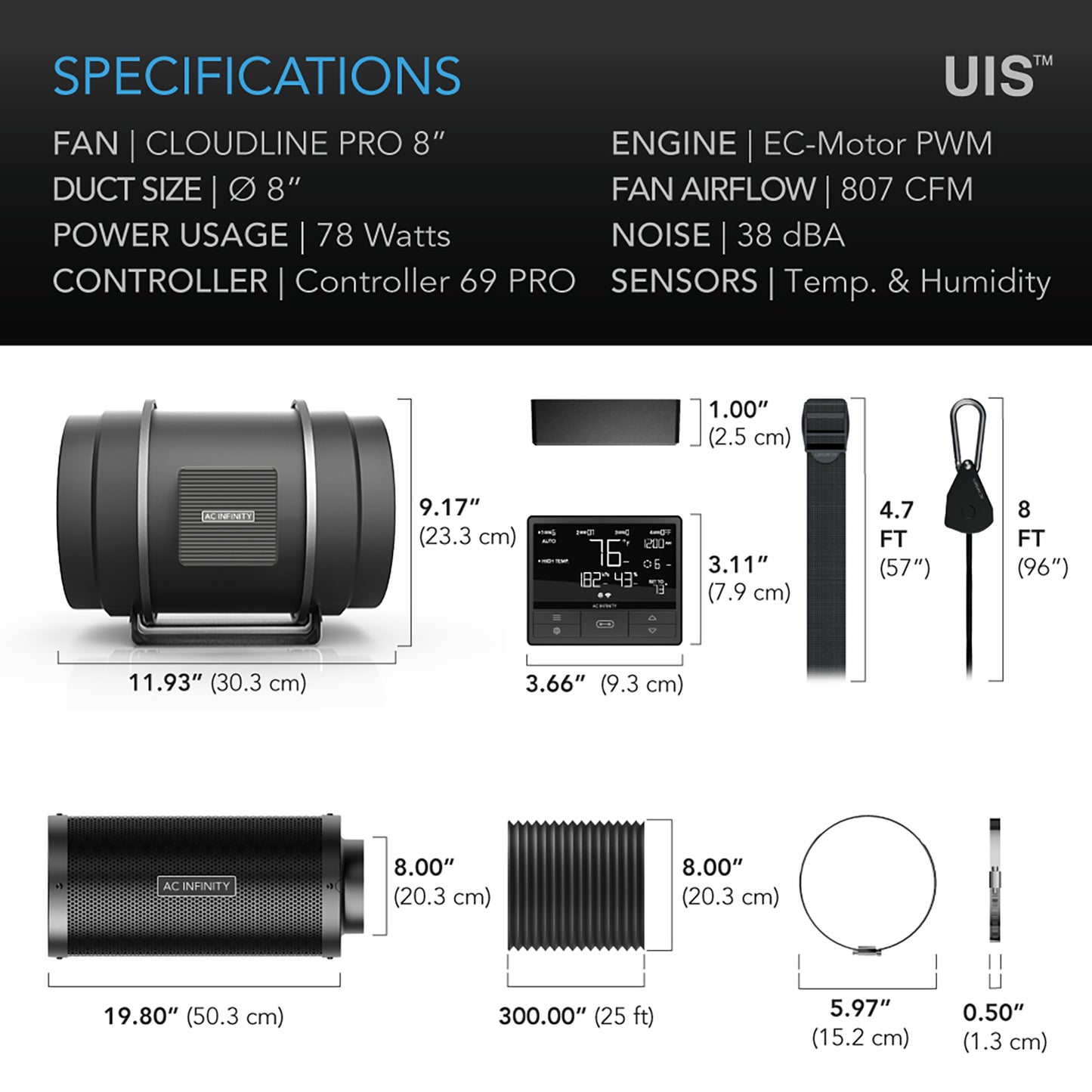

Specifications

Product Identification

Manufacturer: AC Infinity Inc.

Product Name: Air Filtration Kit PRO 8"

Product Model: AC-FKT8

UPC Code: 819137022980

Product and Mounting Dimensions - Fan Unit

Duct Size: 8"

Mounting Hole-To-Hole Distance: 3.94 x 3.70 in. (10.0 x 9.4 cm)

Screw Hole Diameter: 0.217 in. (0.55 cm)

Cord Length to Controller: 72 in. (6 feet)

Cord Length to Plug: 72 in. (6 feet)

Product and Mounting Dimensions - Controller

Total Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)

Total Airflow: 807 CFM

Total Noise: 39 dBA

Static Pressure: 746 Pa

Voltage: 100-240V AC

Frequency: 50/60Hz

Max Power Draw: 180 W

Average Power Usage: 78 W

Current: 2.3 A

Power Connector Type: US Plug (NEMA 1-15 Type-A)

Operating Humidity: 35 to 85% RH

Operating Temperature: 32 to 140 degrees F

Ingress Protection: IP 44

Fan Bearings: Dual Ball

Mounting Positions: Horizontal or Vertical

L10 Life Expectancy: 67,000 Hours

Manufacturer Document References: See the scoped manufacturer documents in Data Sheet.

Product and Mounting Dimensions - Carbon Filter

Duct Opening Size: 8"

Total Dimensions: 19.8 x 10.94 in. (50.3 x 27.8 cm)

Flange Length: 3.39 in. (8.6 cm)

Product Performance and Technical Specs - Carbon Filter

Flange Material: Aluminum

Flange Design: Reversible

Mesh Material: Galvanized Steel

Carbon Type: Australian Virgin RC412

Carbon Grade: 1200+ IAV

Carbon Thickness: 38mm

Maximum Airflow: 770 CFM

Product Dimensions - Ducting

Ducting Size: 8 in. (20.3 cm)

Length: 300 in. (25 ft)

Product Performance and Technical Specs - Ducting

Outer Layer: PVC Thermoplastic

Inner Material: Aluminum Foil

Internal Structure: Spiral Steel-Wire

Data Sheet

• CLOUDLINE filtration AFK2306X1 user manual
• Fan RoHS report SZXEC1900177001 (2019-02-01; submitted samples/material declaration)

Certificate references apply only to the models, components and standards stated in the actual documents. The fan RoHS report concerns submitted samples and applicant-declared material equivalence; it is not certification of every part of a complete controller or kit.
