Description

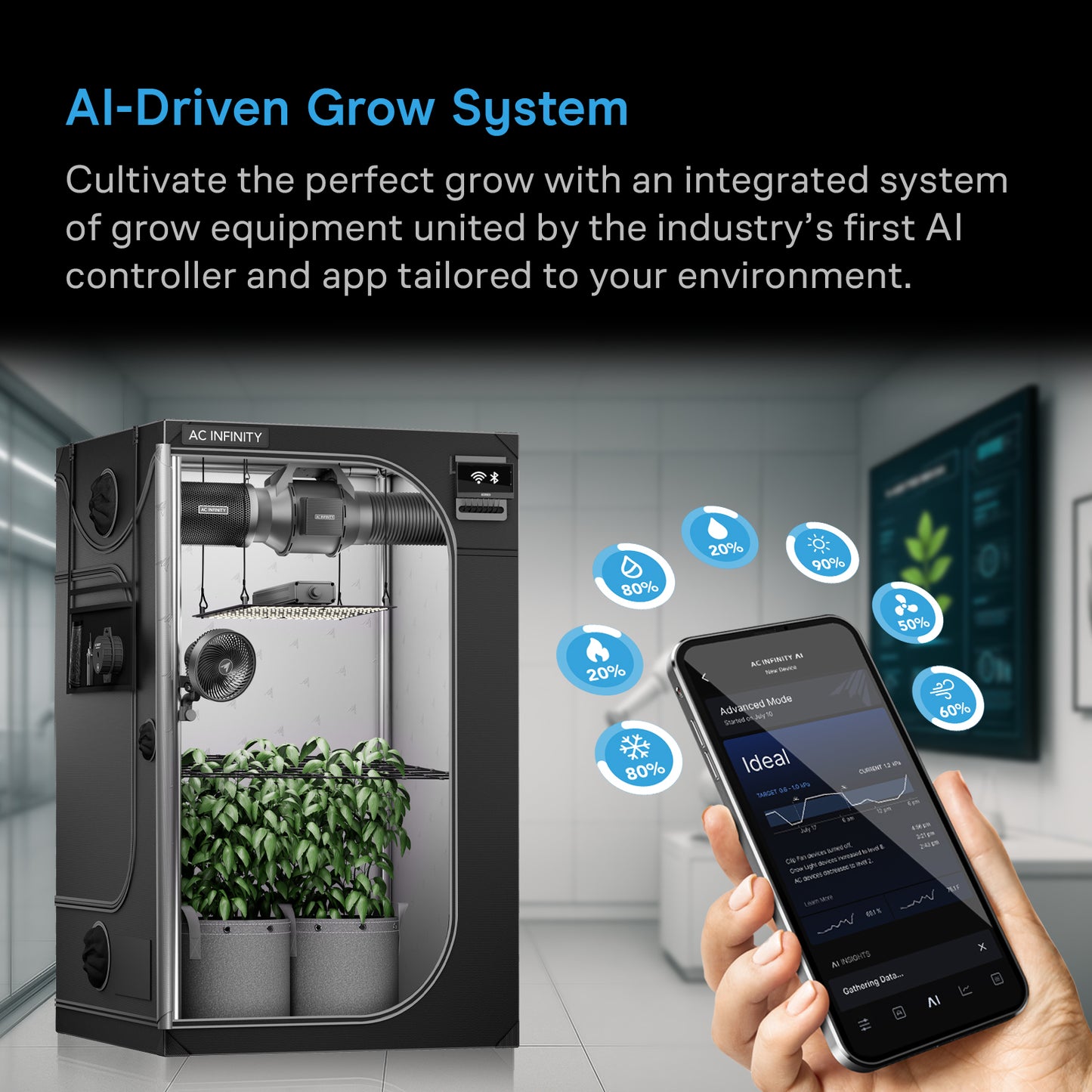

AI-driven controller predicts climate shifts using real-time and historical data, auto-adjusting connected devices for optimal grow conditions.

Connect this controller to the Wi-Fi app for access to real-time AI insights, guides, chatbot, and more from anywhere.

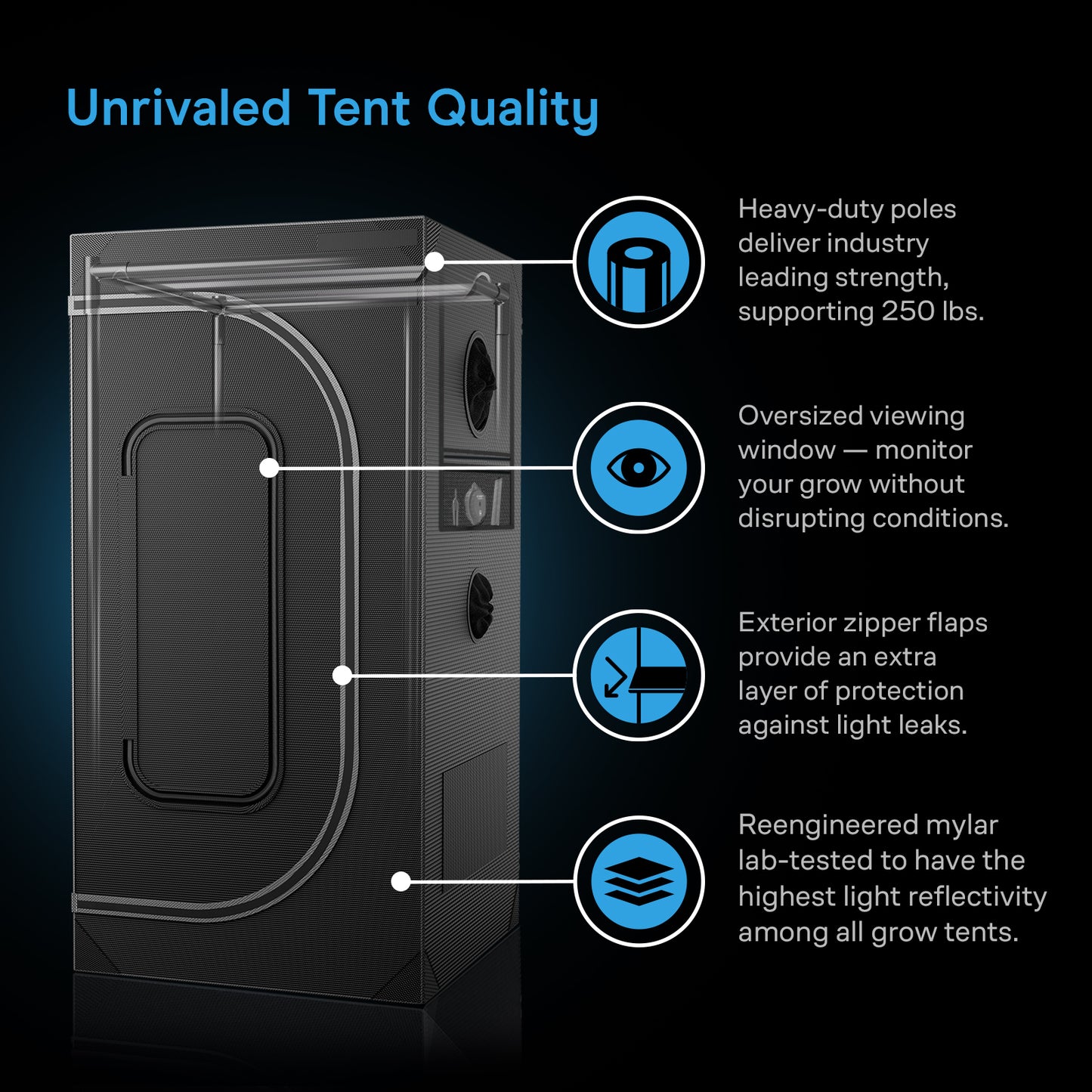

Advanced grow tent features lab-tested reflective Mylar for maximum light efficiency, taller window for clear visibility, and enhanced light-blocking design.

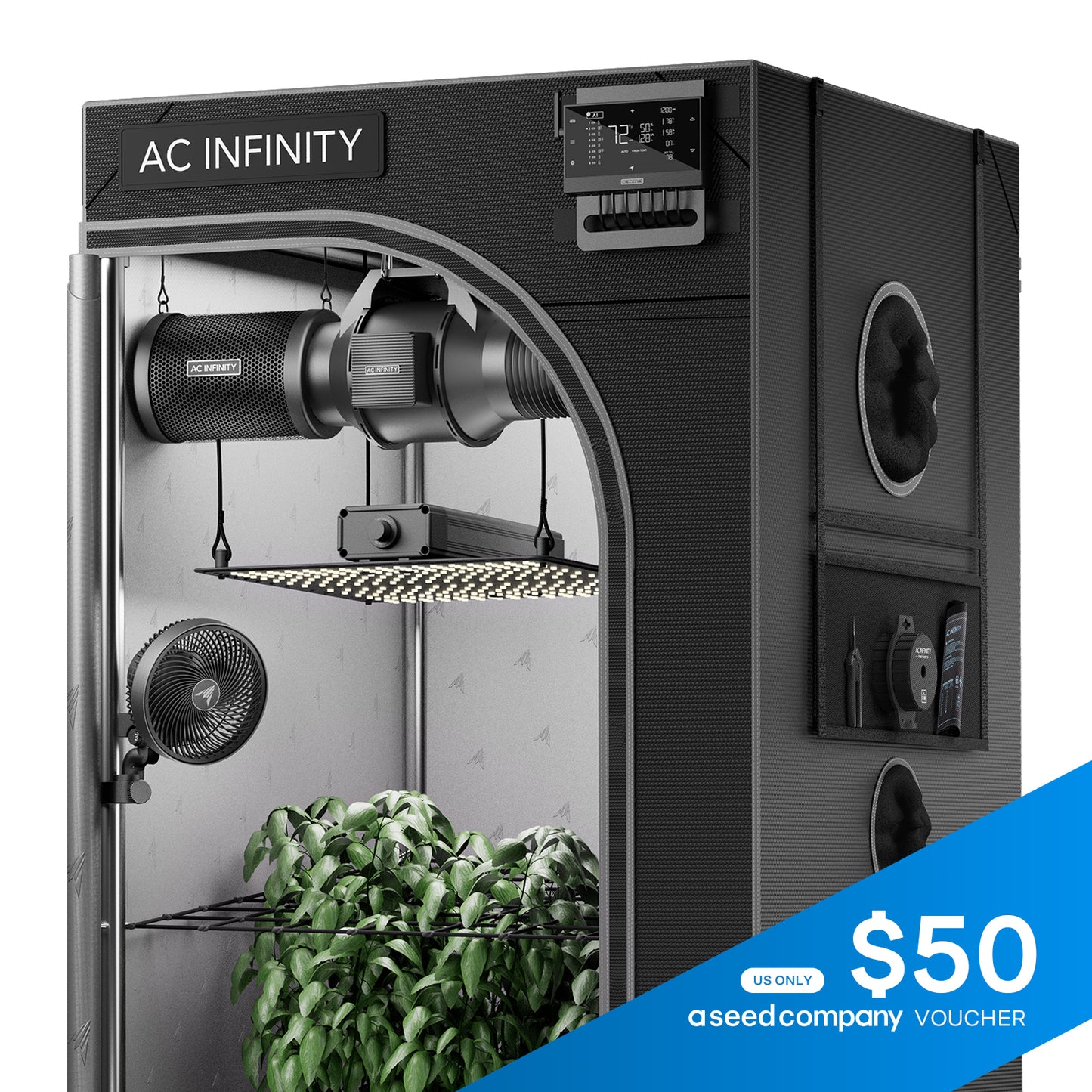

EC inline fan 4", oscillating clip fan 6", and 2x2 full-spectrum grow light with Samsung LM301H LEDs.

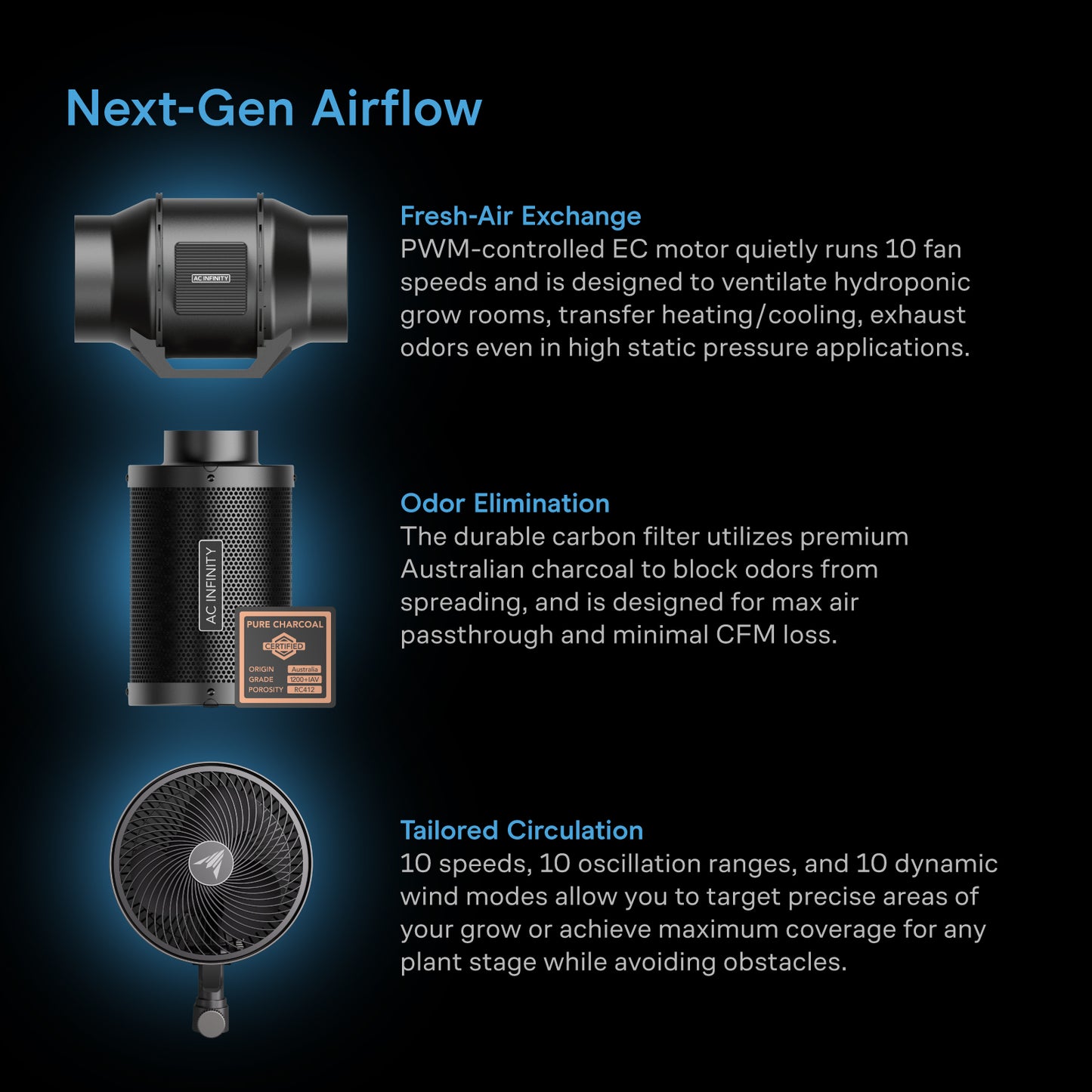

Product Description: Introducing the upgraded AI-powered grow tent system-engineered with a cutting-edge intelligent controller that autonomously manages your grow environment for peak performance and maximum yields. This next-generation system uses smart sensors and algorithms to dynamically maintain ideal temperature, humidity, and airflow, taking the guesswork out of indoor growing. The inline fan, carbon filter, and ducting system work seamlessly to regulate climate conditions, actively removing excess heat, humidity, and odors. The eco-friendly carbon filter is long-lasting, filled with Australian Virgin carbon rated at 1200+ IAV, and has a higher microporosity. Airflow is fine-tuned with a re-engineered oscillating clip fan, built with range control to deliver custom, targeted circulation that adapts to your plant's needs over time. At the heart of the system is a powerful LED grow light built with algorithmically arranged LM301H diodes, providing superior light output, higher efficiency, and broader coverage than LM301B, Bridgelux 3030, and other standard LEDs. All components are enclosed within an advanced high-density Oxford grow tent, reinforced with a durable steel frame, lab-tested reflective Mylar interior to create a stable climate-controlled growing environment featuring a large window to view your grow without disruption. With the power of AI now integrated, this grow tent system doesn't just support your grow-it thinks ahead for it.

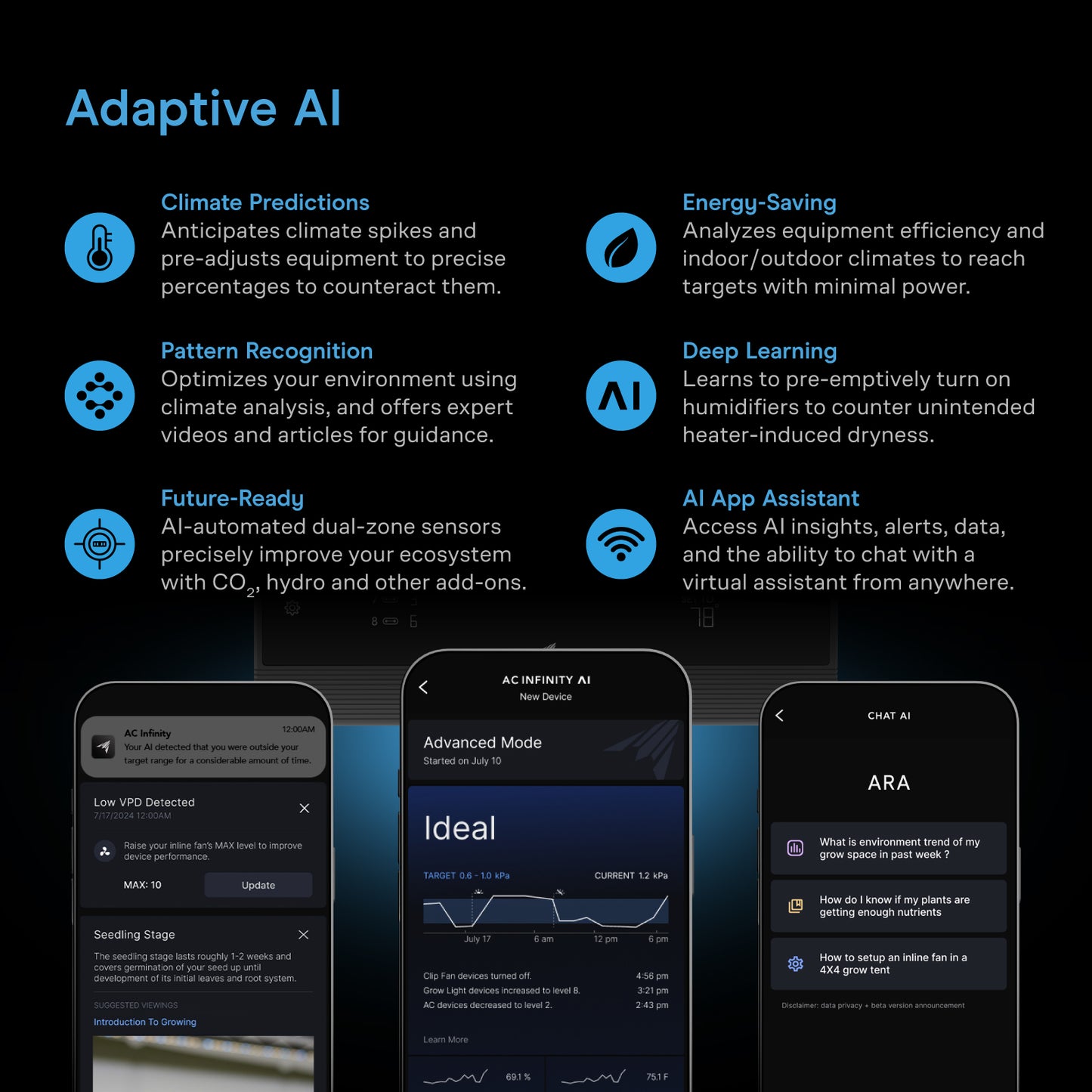

Intelligent Programming: The CONTROLLER AI+ observes your grow space, pairing with the inline fan, clip fan, and LED grow light, and makes environmental adjustments to ensure its stability. Going beyond on/off triggering and timer programming, it is always learning, analyzing previous results to avoid over- or undershooting output levels and better optimize your climate. Connect this controller to the AC Infinity app to select between two AI modes that adjust automatically or fine-tuned control for greater customization. You can also get access to helpful grow guides, recipes, articles, video tutorials, and chatbot assistance that will equip you with the knowledge to improve how you grow.

Installation and operating conditions

Read the selected model’s manual before assembly. Match each device to its specified electrical supply. Vent ducted products outdoors. Do not hardwire the equipment, cover cords with fabric, obstruct airflow openings or place the system in flammable, explosive, chemical-laden or wet conditions. Keep fingers, loose objects and cables clear of moving fan parts. Unplug before installation, service or moving; programmed off is not electrical isolation. Supervise children and users who need qualified assistance. Do not operate damaged equipment.

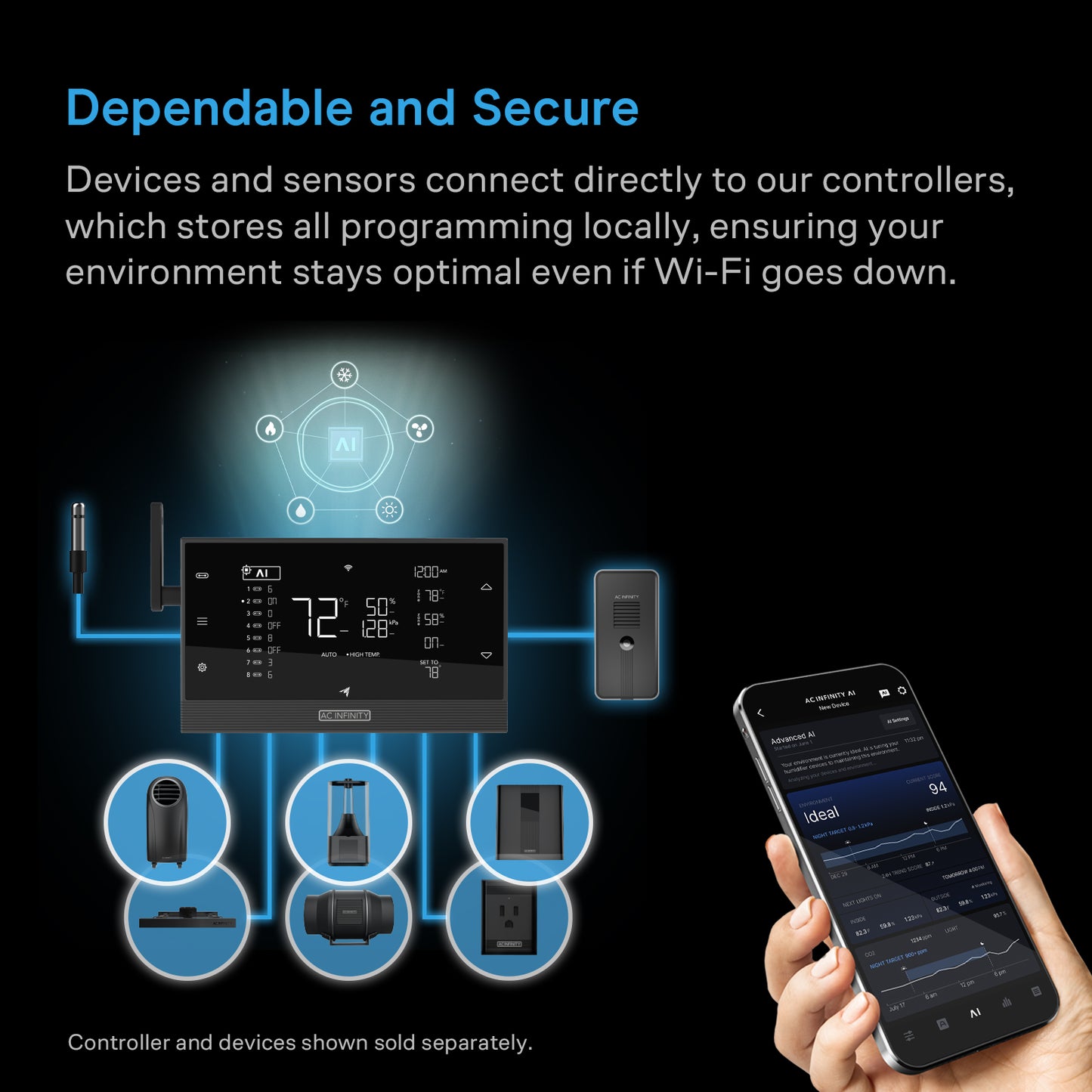

Power the AI+ controller through its adapter, connect its sensor near the plants and connect each grow device using the supplied UIS cords while powering the device through its own AC cord. Additional splitters, adapters and grow devices are sold separately. All devices on one splitter chain must be the same type; splitters are not compatible with UIS adapters such as the RJ11 lighting adapter.

Specifications

Product Identification

• Manufacturer: AC Infinity Inc.
• Product Name: AI Grow System 2x2
• Product Model: AC-PKB22
• UPC Code: 819137022836

Product and Mounting Dimensions - Grow Tent

• Tent Dimensions: 23.62" x 23.62" x 70.86" (60.0 x 60.0 x 180.0 cm)
• Duct Opening Sizes: 4-Inch (x4), 6-Inch (x3)
• Viewing Window Size: 9.84 x 39.37 in. (25.0 x 100.0 cm)
• Side Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)

Product Performance and Technical Specs - Grow Tent

• Outer Tent Material: Oxford
• Inner Tent Material: Mylar
• Pole Material: Steel
• Pole Thickness: 22 mm
• Beam Weight Capacity: 250 lbs.
• Hanging Bars: 3
• Plant Capacity: 1 Plant (5 gal.)

Product and Mounting Dimensions - Inline Fan

• Duct Size: 4"
• Total Dimensions: 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
• Mounting Hole-To-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
• Screw Hole Diameter: 0.197 in. (0.5 cm)
• Cord Length to Controller: 120 in. (10 feet)
• Cord Length to Plug: 96 in. (8 feet)

Performance and Technical Specs - Inline Fan

• Total Airflow: 165 CFM
• Total Noise: 29 dBA
• Max Speed: 2800 RPM
• Static Pressure: 324 Pa
• Voltage: 100-240V AC
• Frequency: 50/60Hz
• Max Power Draw: 35 W
• Average Power Usage: 18 W
• Current: 0.55 A
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Ingress Protection: IP-44
• Fan Bearings: Dual Ball
• Mounting Positions: Horizontal or Vertical
• L10 Life Expectancy: 67,000 Hours
• Fan Quality Approvals: CE, RoHS

Product and Mounting Dimensions - Clip Fan

• Impeller Size: 6.5"
• Total Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)
• Cord Length to Plug: 96 in. (8 feet)

Product Performance and Technical Specs - Clip Fan

• Maximum Airflow: 325 CFM
• Total Noise: 31 dBA
• Static Pressure: 25 Pa
• Operating Voltage: 100-240V AC
• Power: 11 W
• Current: 0.15 A
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Waterproof Rating: IP-44
• Rotation Range: 90°
• Tilt Angle: 55°
• Oscillation: Automatic Oscillation
• Fan Bearings: Dual Ball Bearing
• Mounting Positions: Horizontal or Vertical
• Life Expectancy: 67,000 Hours

CONTROLLER AI+ — selected controller component

• Total Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)
• Display Size: 4.5 in.
• Sensor Probe Length: 144 in. (12 feet)
• Maximum Devices Controlled: 8 (32 with Splitters)
• Buttons: Capacitive Touch
• Sensors Supported: 3 (1 Built In)
• Onboard Sensor: Temperature & Humidity
• Corded Sensor: Temperature & Humidity
• Controller: Temperature Humidity VPD Controller
• Power Source: Adapter
• App Control: Wi-Fi + Bluetooth
• Wattage: 2 W Max
• Voltage: 100 to 240V AC
• Operating Temperature: 32° to 140°F
• Operating Humidity: 35% to 85% RH

Product and Mounting Dimensions - LED Grow Light

• Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)
• LED Board Thickness: 0.43 in. (1.1 cm)
• Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)

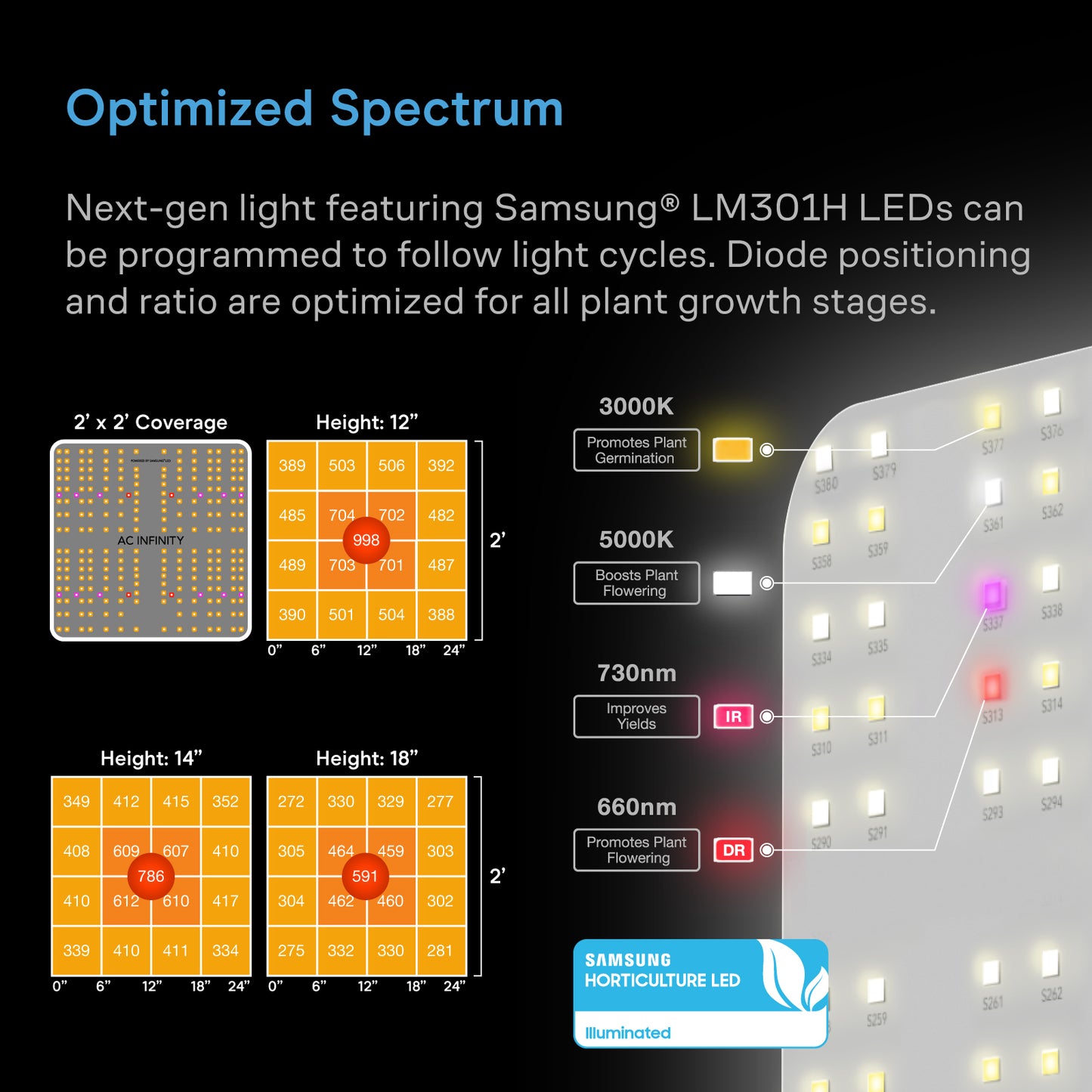

Product Performance and Technical Specs - LED Grow Light

• Coverage: 2 x 2 ft.
• Diodes: Samsung LM301H
• LED Chip Count: 272
• LED Driver: AC Infinity Proprietary Driver IB-150
• Efficiency: 2.7 µmol/j
• PPFD: 998 PPFD
• Spectrum: 660nm, 730nm, 3000K, 5000K
• Wattage: 115 W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amps: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
• Controller: Digital Dimming Timer
• Power Connector Type: US Plug (NEMA 1-15 Type-A)
• Operating Humidity: 35 to 85% RH
• Operating Temperature: 32 to 140°F
• Life Expectancy: 50,000 Hours

Product and Mounting Dimensions - Carbon Filter

• Duct Opening Size: 4"
• Total Dimensions: 13.35 x 6.97 in. (33.3 x 17.7 cm)
• Flange Length: 1.46 in. (3.7 cm)

Product Performance and Technical Specs - Carbon Filter

• Flange Material: Aluminum
• Flange Design: Reversible
• Mesh Material: Galvanized Steel
• Carbon Type: Australian Virgin RC412
• Carbon Grade: 1200+ IAV
• Carbon Thickness: 38mm
• Maximum Airflow: 210 CFM

Product Dimensions - Ducting

• Ducting Size: 4 in. (10.2 cm)
• Length: 96 in. (8 ft)

Product Performance and Technical Specs - Ducting

• Outer Layer: PVC Thermoplastic
• Inner Material: Aluminum Foil
• Internal Structure: Spiral Steel-Wire

Data Sheet

AI-powered grow-system manual PK2410X1

CONTROLLER AI+ setup, modes and app overview

Assembly video: The retained AC Infinity family tutorial demonstrates the earlier CONTROLLER 69 generation. These selected kits use CONTROLLER AI+; follow the current grow-system manual and CONTROLLER AI+ setup instructions above.

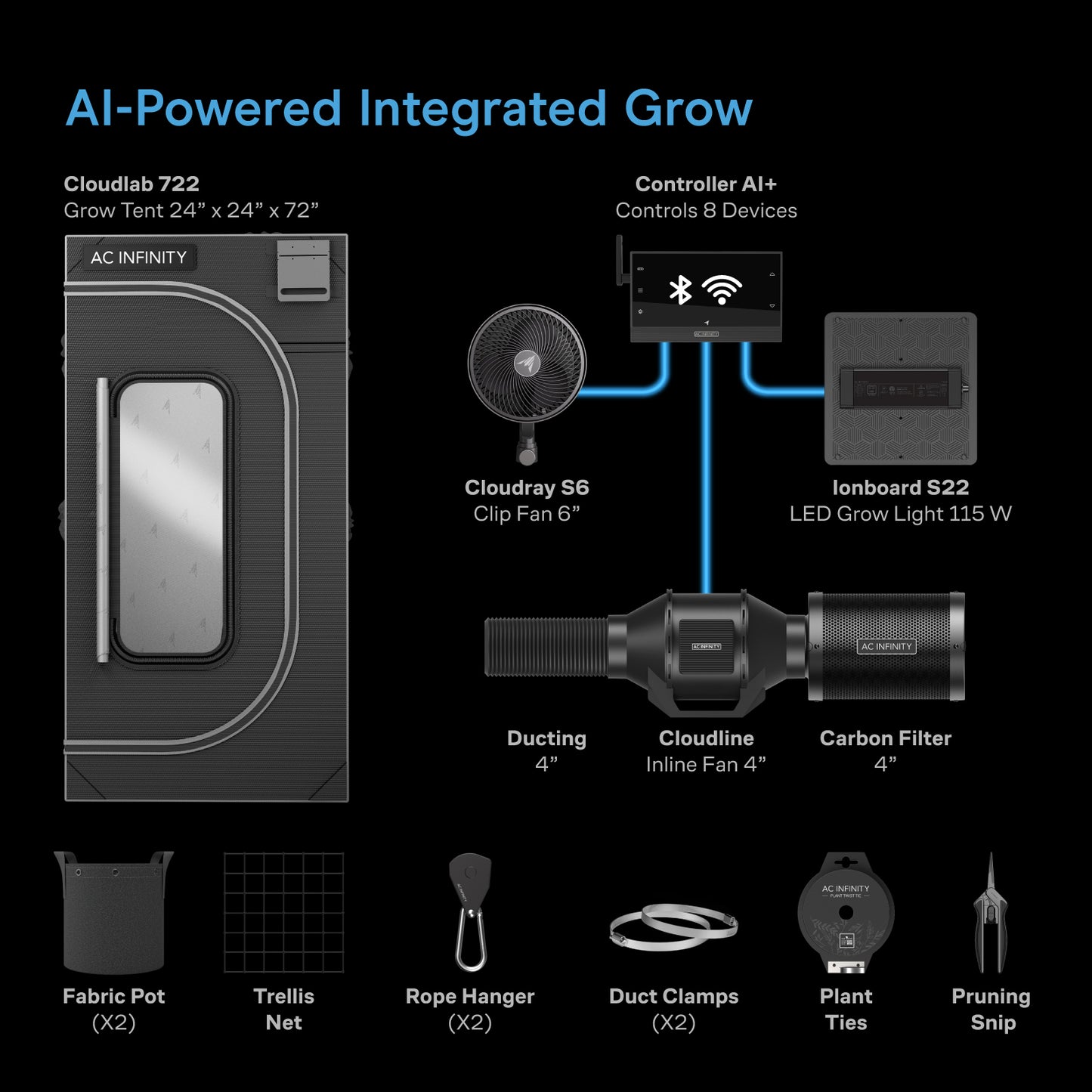

Kit Contents

• CLOUDLAB 722 grow tent, 24 x 24 x 72 inches (1).
• CONTROLLER AI+ eight-port grow controller (1).
• CLOUDLINE A4 inline fan, 4 inches (1).
• IONBOARD S22 grow light, 2x2 coverage (1).
• CLOUDRAY S6 oscillating clip fans (1).
• Inline carbon filter, 4 inches (1).
• Nylon hanging straps: 2 in each inline-fan and carbon-filter box.
• Adjustable rope clip hangers (2).
• 4-inch flexible ducting, 8 feet long (1); 4-inch metal clamps (2).
• Aluminum ducting tape, 5 feet (1); hook-and-loop cable ties (10).
• Elastic trellis netting, 2x2 feet (1); black plant twist ties (1); micro-tip pruning shears (1).
• 5-gallon fabric pots (2).
• 6' UIS Male to Male Controller Cord (x1).
• Hanging hooks (2) and wire tie with 3M base (1), as listed in the selected IONBOARD package table.
• 6' L-Shaped UIS Male to Male Controller Cord (x1).
• Wire ties with 3M bases (1), as listed in the component package table.
• Controller temperature/humidity sensor probe (1), power adapter (1), cable dock (1), mounting screws with plastic anchors (2), hook-and-loop ties (2), wire tie with 3M base (1).
